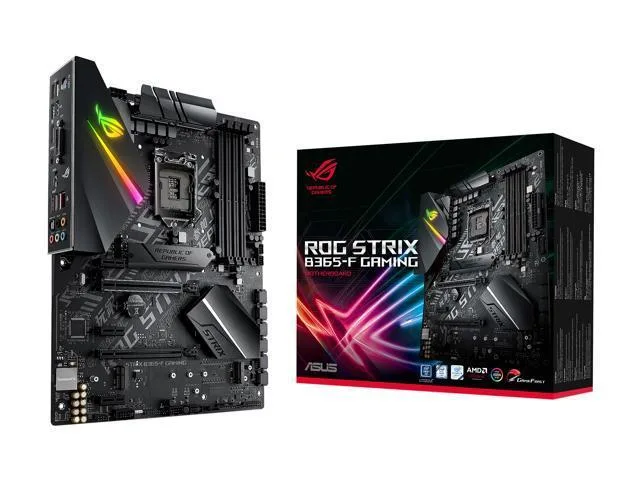

Black ATX motherboard with grey heatsinks and RGB lighting accents

ASUS

ASUS ROG STRIX B365-F GAMING Intel motherboard

SKU CH-HFER-5K7ZV

LGA 1151 ATX board with Intel B365 chipset, dual M.2 slots, six SATA ports, DDR4 memory to 2666 MHz and SupremeFX S1220A audio

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel B365
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 9th and 8th Gen Intel Core, Pentium Gold and Celeron processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz across four 288-pin slots with 64 GB maximum
  • Two M.2 sockets plus six SATA 6 Gb/s ports with RAID 0/1/5/10 for flexible storage
  • Intel B365 chipset provides PCI Express 3.0 x16 graphics slots and three PCI Express x1 expansion slots
  • ROG SupremeFX S1220A audio codec delivers high-definition sound for gaming and media

ROG STRIX B365-F GAMING motherboard

The ROG STRIX B365-F GAMING is an ATX motherboard built around the Intel B365 chipset and the LGA 1151 socket. It accepts 8th and 9th Generation Intel Core, Pentium Gold and Celeron processors. Four DDR4 slots support up to 64 GB of memory at 2666, 2400 or 2133 MHz in dual-channel mode.

Two M.2 slots and six SATA ports

Two M.2 sockets and six SATA 6 Gb/s ports give multiple options for solid-state and hard-disk storage. Intel Optane memory is supported for caching. The board also provides an M.2 E-key slot for a Wi-Fi module. Onboard ROG SupremeFX audio uses the S1220A codec for high-definition output.

Suits mid-range Intel builds needing expansion

This board fits builders who want a full-size ATX layout with dual PCI Express 3.0 x16 slots and three PCI Express x1 slots for add-in cards. It is not intended for platforms that require newer sockets, chipsets or memory standards beyond DDR4 2666.

Highlights

  • Supports 9th and 8th Gen Intel Core, Pentium Gold and Celeron processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz across four 288-pin slots with 64 GB maximum
  • Two M.2 sockets plus six SATA 6 Gb/s ports with RAID 0/1/5/10 for flexible storage
  • Intel B365 chipset provides PCI Express 3.0 x16 graphics slots and three PCI Express x1 expansion slots
  • ROG SupremeFX S1220A audio codec delivers high-definition sound for gaming and media

Specifications

BrandASUS
SeriesROG
ModelROG STRIX B365-F GAMING
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel B365
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2666
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16
PCI Express x13 x PCI Express x1
Other Slots1 x M.2 with E key for Wi-Fi module
Serial ATA (SATA)6 x SATA 6Gb/s
M.22 x M.2
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels8 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Onboard USB2 x USB 3.1 + 4 x USB 2.0
Other Connectors1 x AAFP connector1 x Aura RGB Strip Header(s)1 x M.2_FAN connector1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x System panel(s)1 x 5-pin EXT_FAN (Extension Fan) connector1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x 14-1 pin TPM connector1 x COM port header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin24 Pin
FeaturesMulti-GPU Support:Supports AMD 2-Way CrossFireX Technology ROG Exclusive Features:ROG CPU-ZPre-mounted I/O ShieldOverwolfROG Aura- Aura Lighting Control- Aura RGB Strip HeadersROG Exclusive Software- RAMCache III- GameFirst VSpecial Features:Fan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlGamer's Guardian:- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports- DRAM Overcurrent Protection- Stainless Steel Back I/O- Highly Durable Components- SafeSlotAURA:- Aura Lighting Control- Aura RGB Strip Headers
Package ContentsAccessories:User's manual4 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x Strix door hanger1 x CABLE TIE BLACK1 x ROG Strix stickers1 x Extension Cable for RGB strips (80cm)

Questions about this item

Will the S1220A audio codec or the chipset heatsink need replacement down the line?

The S1220A audio codec is soldered to the board and the Intel B365 chipset uses a passive heatsink; neither is a user-serviceable part, so they last the life of the motherboard.

What limit appears first when the LGA 1151 socket runs a 65 W processor all day?

The VRM heatsink temperature is the first limit; sustained full-core loads push the power phases toward their thermal ceiling before the CPU hits its own throttle point.

How loud or hot does the board get when the VRM and M.2 slots run continuously?

With no onboard fans, the board is silent; heat from the VRM and dual M.2 slots rises into the case airflow, so a front intake and rear exhaust keep temperatures in check.
