Black ATX motherboard with silver heatsinks and ROG branding

ASUS

ASUS ROG STRIX B550-F GAMING WIFI II AMD motherboard

SKU CH-GKD7-566M9 MPN ROG STRIX B550-F GAMING WIFI II

ATX board for AM4 Ryzen 3000, 4000 G and 5000 CPUs with PCIe 4.0, dual M.2, WiFi 6E, 2.5 Gb LAN, HDMI 2.1 and 12+2 power stages

  • CPU Socket TypeAM4
  • CPU TypeSupports AMD Ryzen 5000 / 3000 Series Processors* Supports A
  • ChipsetAMD B550
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) /
  • Maximum Memory Supported128GB

Option ROG STRIX B550-F GAMING WIFI II

  • Supports AMD Ryzen 5000 and 3000 series processors via AM4 socket
  • PCIe 4.0 x16 slot and dual M.2 slots enable high-speed storage and graphics
  • WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet deliver fast, reliable networking
  • 12+2 teamed power stages with ProCool connector ensure stable power delivery
  • HDMI 2.1 and DisplayPort 1.2 outputs support high-resolution integrated graphics

AM4 socket for Ryzen 5000 and 3000 series

This ATX motherboard uses the AMD B550 chipset and an AM4 socket. It supports AMD Ryzen 5000 and 3000 series desktop processors plus 5000 and 4000 G-series APUs. Four DDR4 slots accept up to 128 GB of memory in dual-channel mode.

12+2 teamed power stages for sustained delivery

The board employs 12+2 teamed power stages with ProCool connectors, alloy chokes and durable capacitors. This design keeps voltage stable during extended multi-core workloads rather than only in short bursts. PCIe 4.0 x16 and a primary M.2 slot run at full speed from the CPU.

WiFi 6E and 2.5 Gb LAN with LANGuard

On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet provide high-throughput networking. ASUS LANGuard protects the LAN port against surges. HDMI 2.1 and DisplayPort 1.2 outputs are available when using a processor with integrated graphics.

Highlights

  • Supports AMD Ryzen 5000 and 3000 series processors via AM4 socket
  • PCIe 4.0 x16 slot and dual M.2 slots enable high-speed storage and graphics
  • WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet deliver fast, reliable networking
  • 12+2 teamed power stages with ProCool connector ensure stable power delivery
  • HDMI 2.1 and DisplayPort 1.2 outputs support high-resolution integrated graphics

Specifications

BrandASUS
SeriesROG
ModelSTRIX B550-F GAMING WIFI II
CPU Socket TypeAM4
CPU TypeSupports AMD Ryzen 5000 / 3000 Series Processors*
Supports AMD Ryzen 5000 / 4000 G-Series Processors*
* Refer to www.asus.com for CPU support list.
ChipsetAMD B550
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) *
DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors) *
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
ECC SupportedECC Memory (ECC mode) support varies by CPU.
Buffer SupportedUn-buffered

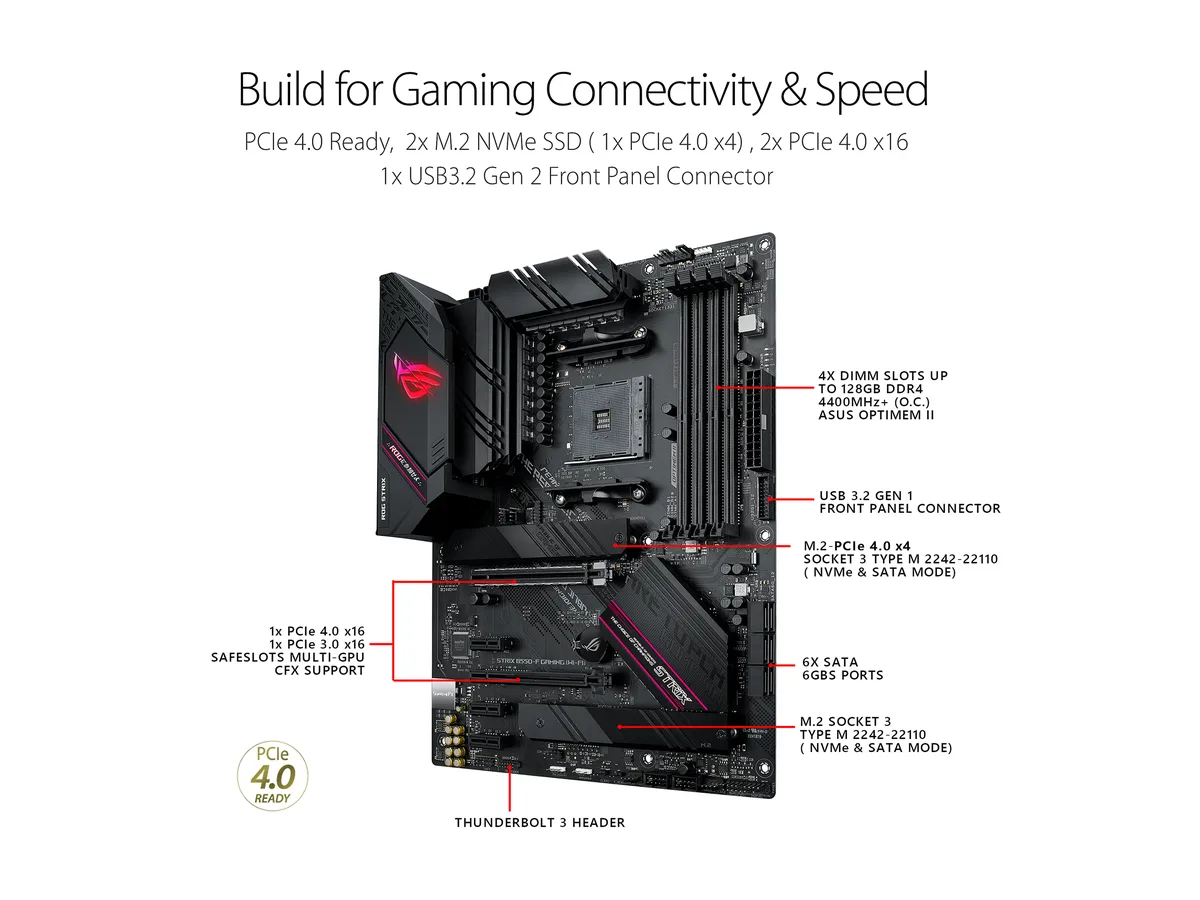

PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16*
* Supports x4 mode.
* Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3.
PCI Express x13 x PCIe 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.2AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD B550 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.
SATA RAID0/1/10
Onboard Video ChipsetSupported only by CPU with integrated graphic
Audio ChipsetROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels7.1 Channels
LAN ChipsetIntel I225-V
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6E
802.11a/b/g/n/ac/ax
BluetoothBluetooth 5.2

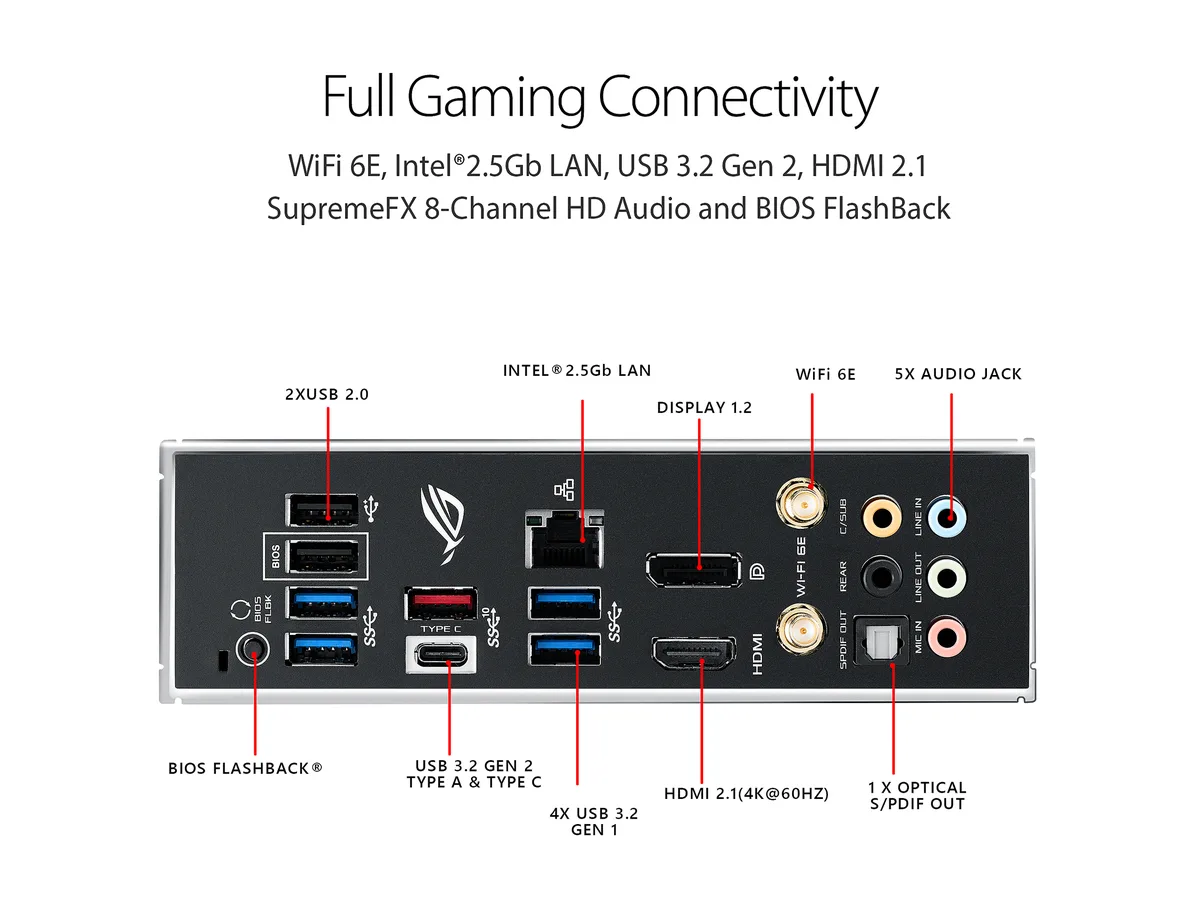

Back I/O Ports2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
1 x Wi-Fi Module
1 x DisplayPort
1 x HDMI port
1 x Intel I225-V 2.5G Ethernet
1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and cooling related
1 x 4-Pin AIO_Pump header
1 x 4-Pin CPU fan header
1 x 4-Pin CPU_OPT fan header
3 x 4-Pin Chassis fan headers
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front panel audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Windows 11Supported
FeaturesSpecial Features:
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- M.2 heatsink

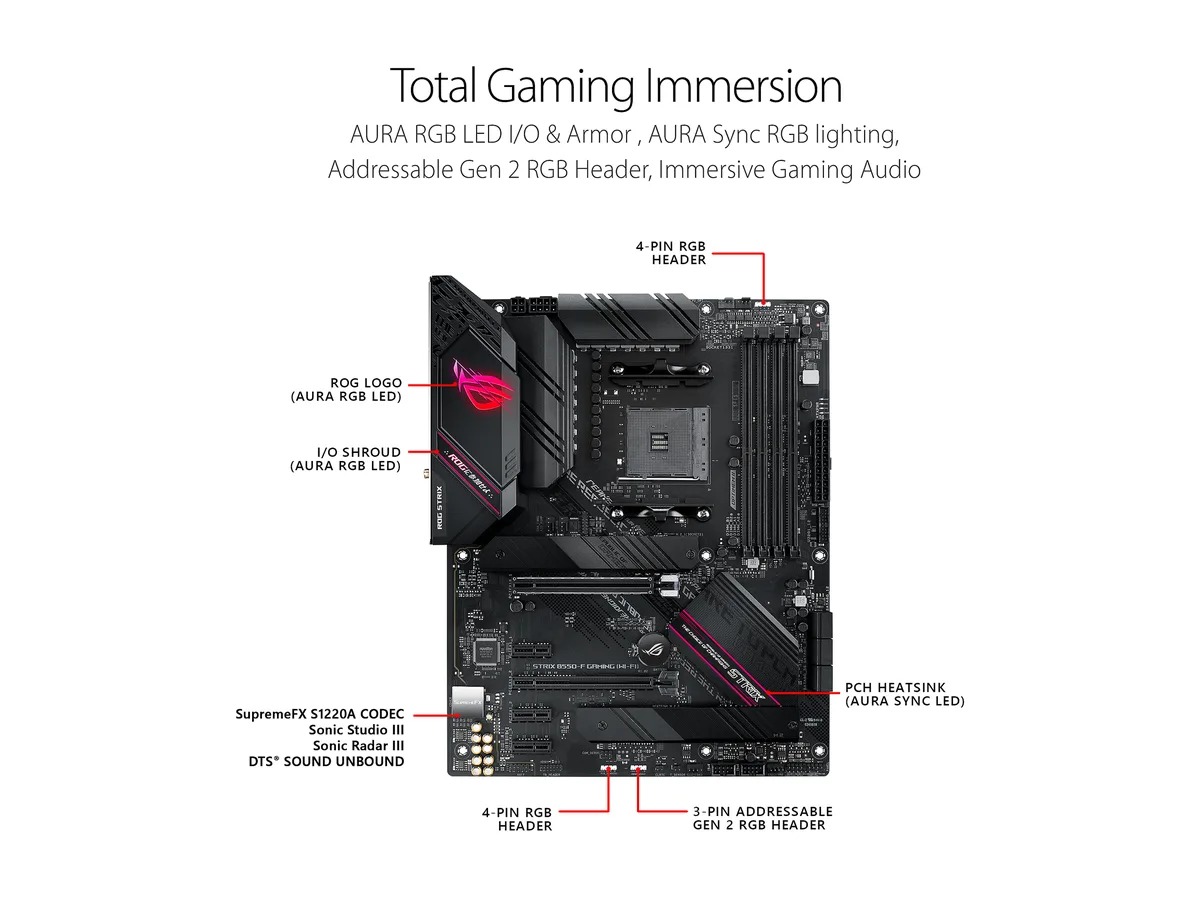

AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS header
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Software Features:
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Fea

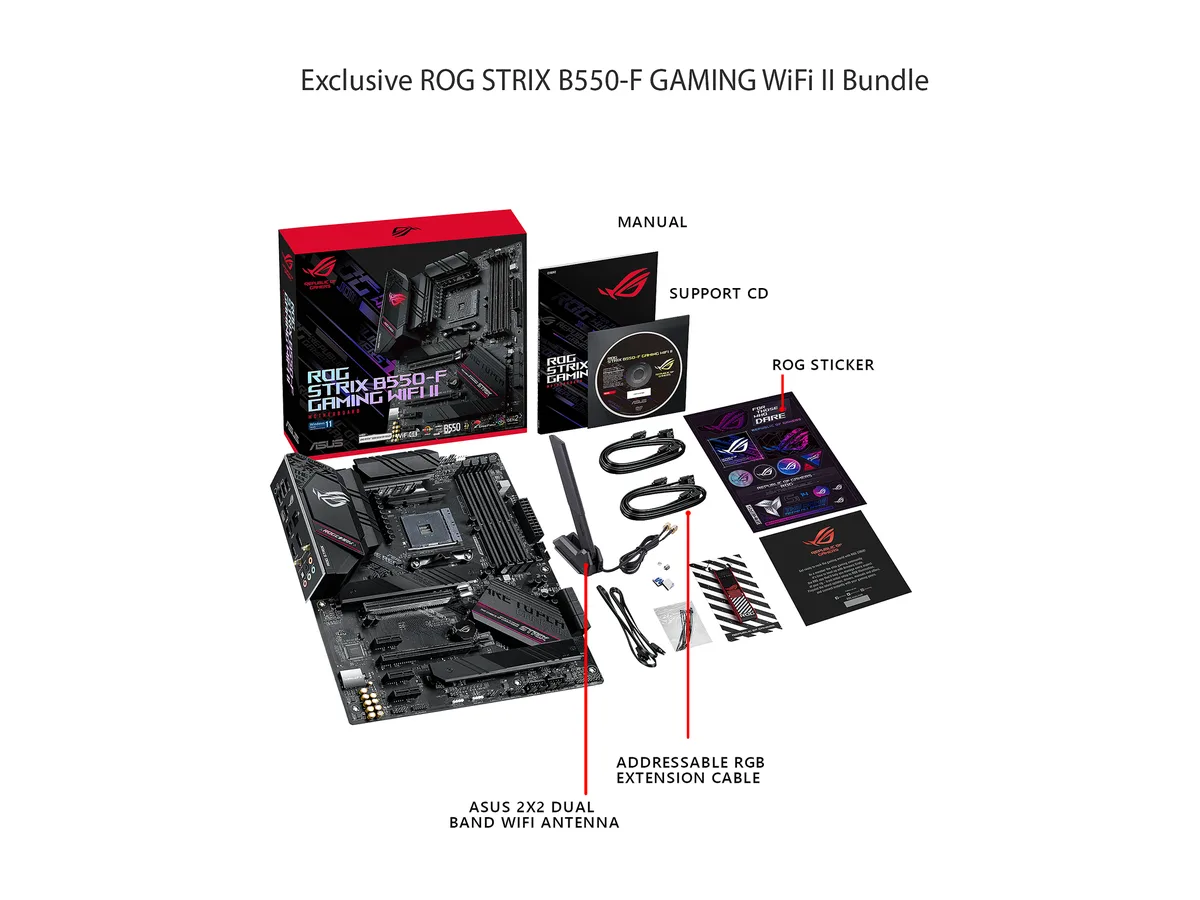

Package ContentsCables
1 x Addressable RGB extension cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
Shipping weight1.75 kg
Package size338 × 273 × 68 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud or hot does the 12+2 teamed power-stage VRM get when the board runs all day?

The 12+2 teamed power stages with ProCool connector, alloy chokes and durable capacitors are designed for sustained loads; actual noise and temperature depend on your CPU cooler, case airflow and ambient conditions.

Which components must I already own for this AM4 board to POST and boot?

You need a compatible AMD Ryzen 5000, 4000 G-Series or 3000 series processor, DDR4 memory modules, an ATX power supply with 24-pin and 8-pin EPS connectors, and a graphics card or a Ryzen G-Series APU for video output.

Will my existing PCIe 3.0 graphics card and SATA SSDs work at full speed in the PCIe 4.0 x16 slot and the six SATA 6Gb/s ports?

Yes — the PCIe 4.0 x16 slot is backward compatible with PCIe 3.0 cards, and all six SATA 6Gb/s ports run at the native SATA III rate for your current drives.
