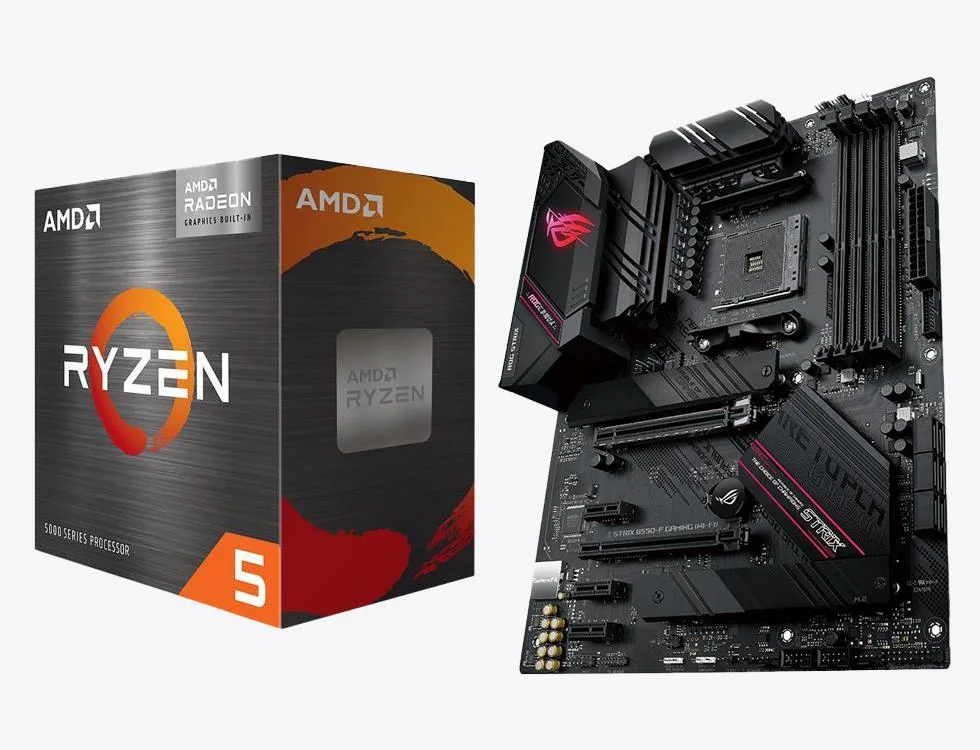

ATX motherboard with dark heatsinks and CPU in socket

ASUS

ASUS ROG STRIX B550-F GAMING WIFI II AMD motherboard with Ryzen 5 5600G

SKU CH-H7SX-29NZX

ATX board with B550 chipset, AM4 socket, four DDR4 slots up to 128 GB, PCIe 4.0 x16, six SATA ports and 7.1 audio, bundled with 65 W 6-core Ryzen 5 5600G APU

  • CPU Socket TypeAM4
  • ChipsetAMD B550
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) /
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • AM4 socket supports Ryzen 5000 and 3000 series CPUs
  • DDR4 memory overclocked to 5100 delivers high bandwidth for gaming
  • PCIe 4.0 x16 slot enables full GPU throughput
  • Dual M.2 slots accept 2242 2260 2280 22110 drives
  • ROG SupremeFX S1220A codec outputs 7.1 channel audio

AM4 platform with integrated graphics

This bundle pairs a B550 chipset board with a Ryzen 5 5600G processor that includes Radeon graphics. The combination targets builders who want a capable gaming or productivity system without a separate graphics card. The board supports Ryzen 5000 and 3000 series CPUs as well as 5000 and 4000 G-Series APUs.

DDR4 speeds and PCIe lane sharing

Four 288-pin slots accept up to 128 GB of DDR4 in dual-channel mode with supported frequencies from 2133 to 5100(OC) depending on the CPU generation. The primary PCIe 4.0 x16 slot connects to the CPU, while a second x16 slot runs at PCIe 3.0 x4 and shares bandwidth with three PCIe 3.0 x1 slots. Six SATA 6 Gb/s ports and two M.2 sockets provide storage flexibility.

ROG audio and ATX mounting

The SupremeFX S1220A codec delivers 7.1-channel high-definition audio for headphones or speakers. Standard ATX mounting holes fit common chassis, and the rear I/O includes integrated Wi-Fi antennas. ECC memory support varies by the installed processor, so verify compatibility if error correction is required.

Highlights

  • AM4 socket supports Ryzen 5000 and 3000 series CPUs
  • DDR4 memory overclocked to 5100 delivers high bandwidth for gaming
  • PCIe 4.0 x16 slot enables full GPU throughput
  • Dual M.2 slots accept 2242 2260 2280 22110 drives
  • ROG SupremeFX S1220A codec outputs 7.1 channel audio

Specifications

BrandASUS
SeriesROG
ModelSTRIX B550-F GAMING WIFI II
CPU Socket TypeAM4
ChipsetAMD B550
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) *
DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors) *
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
ECC SupportedECC Memory (ECC mode) support varies by CPU.
Buffer SupportedUn-buffered
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16*
* Supports x4 mode.
* Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3.
PCI Express x13 x PCIe 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.2AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD B550 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.
SATA RAID0/1/10
Onboard Video ChipsetSupported only by CPU with integrated graphic
Audio ChipsetROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels7.1 Channels
LAN ChipsetIntel I225-V
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6E
802.11a/b/g/n/ac/ax
BluetoothBluetooth 5.2
Back I/O Ports2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
1 x Wi-Fi Module
1 x DisplayPort
1 x HDMI port
1 x Intel I225-V 2.5G Ethernet
1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and cooling related
1 x 4-Pin AIO_Pump header
1 x 4-Pin CPU fan header
1 x 4-Pin CPU_OPT fan header
3 x 4-Pin Chassis fan headers
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front panel audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Windows 11Supported
FeaturesSpecial Features:
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- M.2 heatsink
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS header
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Software Features:
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Fea
Package ContentsCables
1 x Addressable RGB extension cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual

Questions about this item

Should I pick the 65 W Ryzen 5 5600G or a different CPU for this AM4 board?

The bundle includes the 65 W Ryzen 5 5600G with integrated Radeon graphics; the board also supports other Ryzen 5000, 4000 G-Series and 3000 series processors if you need more cores or a different power envelope.

What does the DDR4 5100 OC rating mean once the memory is installed?

5100 MT/s is the highest overclocked speed listed for Ryzen 5000 and 4000 G-Series CPUs; actual stability depends on the memory kit, CPU memory controller and BIOS settings.

How fast is the PCI Express 4.0 x16 slot in practice?

The top slot runs at PCIe 4.0 x16 from the CPU, giving a 4.0 link for a graphics card or a PCIe 4.0 M.2 drive in the primary M.2_1 slot.
