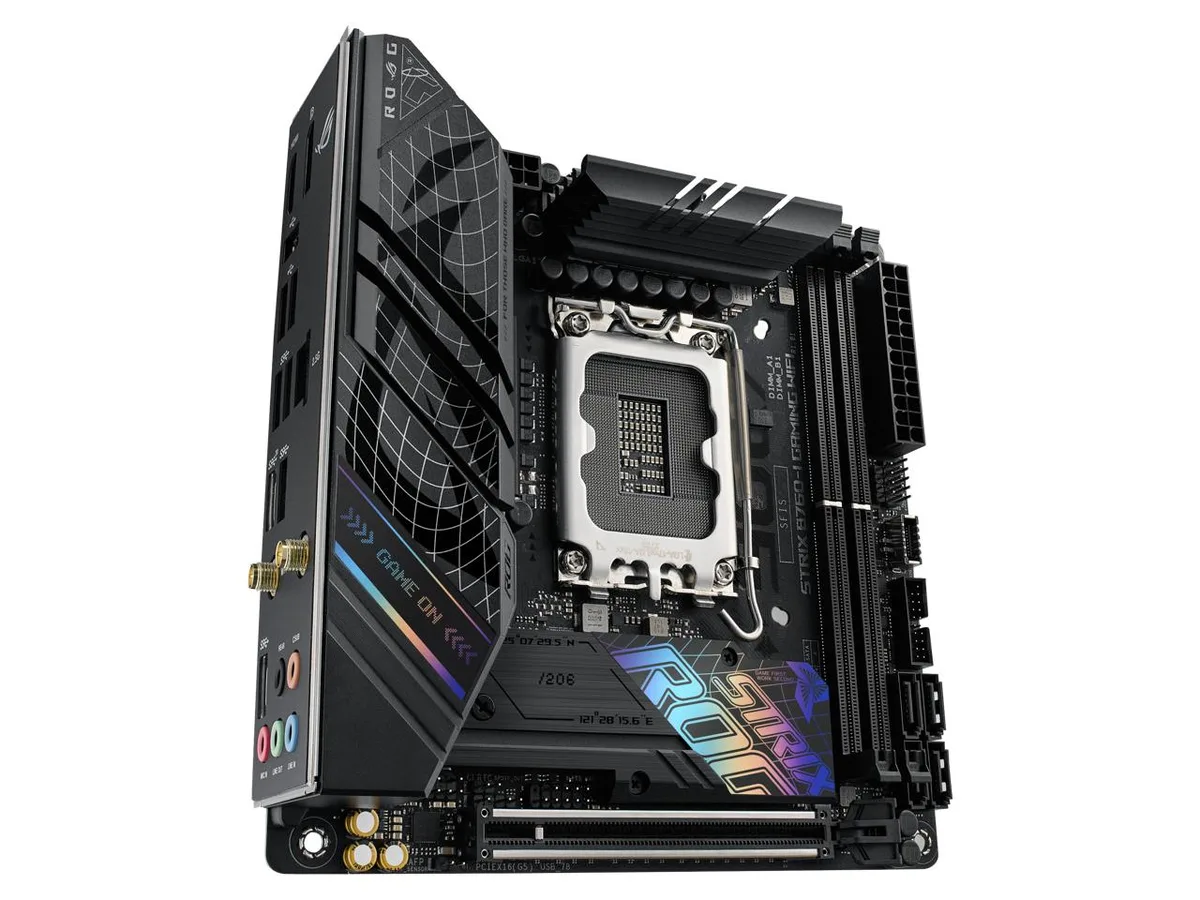

Mini-ITX motherboard with black heatsinks, silver I/O shield and two M.2 slots

ASUS

ASUS ROG Strix B760-I Gaming WiFi Intel motherboard

SKU CH-XS7D-YCW2W

Mini-ITX motherboard for 12th and 13th Gen Intel Core processors with DDR5 support up to 7600 MT/s, two PCIe 4.0 M.2 slots, WiFi 6E, 2.5Gb Ethernet and 7.1-channel audio

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 13th Gen (LGA 1700)
  • ChipsetIntel B760
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(
  • Maximum Memory Supported64GB
  • DDR5 up to 7600 MT/s for high-speed memory performance
  • 8+1 power stages rated at 80A for stable multi-core power delivery
  • PCIe 5.0 x16 slot ready for next-generation graphics cards
  • Two PCIe 4.0 M.2 slots with heatsink for fast storage expansion
  • WiFi 6E and 2.5Gb Ethernet for low-latency networking

Mini-ITX board for 12th and 13th Gen Intel Core

The ASUS ROG Strix B760-I Gaming WiFi fits Intel LGA 1700 processors from the 12th and 13th generations in a mini-ITX footprint. An 8+1 power stage design rated for 80A backs multi-core chips with ProCool connectors, alloy chokes and durable capacitors. Thick VRM heatsinks linked by high-conductivity pads and an integrated I/O cover keep thermals in check. Dual-channel DDR5 runs up to 7600 MT/s with XMP support and a 64GB ceiling.

Compact builders needing strong VRM

The board suits small-form-factor gaming or workstation builds that want robust power delivery, WiFi 6E, 2.5Gb Ethernet and a USB 3.2 Gen 2x2 Type-C port. It also serves users who value the bundled 60-day AIDA64 Extreme trial and an intuitive UEFI BIOS with integrated MemTest86. Buyers requiring more than two DIMM slots, additional PCIe expansion or a larger ATX layout should look at bigger form factors instead.

Two PCIe 4.0 M.2 slots

One M.2 socket accepts 2260 or 2280 drives with a heatsink, while a second rear-mounted slot takes 2242, 2260 or 2280 modules to save space. Both operate at PCIe 4.0 x4 speeds. Four SATA 6Gb/s ports with RAID 0/1/5/10 support add bulk-storage flexibility. The single PCIe 5.0 x16 slot handles modern graphics cards, while 7.1-channel audio driven by the S1220A codec and SV3H712 amplifier covers headset and speaker needs.

Highlights

  • DDR5 up to 7600 MT/s for high-speed memory performance
  • 8+1 power stages rated at 80A for stable multi-core power delivery
  • PCIe 5.0 x16 slot ready for next-generation graphics cards
  • Two PCIe 4.0 M.2 slots with heatsink for fast storage expansion
  • WiFi 6E and 2.5Gb Ethernet for low-latency networking

Specifications

BrandASUS
ModelROG STRIX B760-I GAMING WIFI
Part Number90MB1D90-M0AAY0
CPU Socket TypeLGA 1700
CPU TypeIntel Core 13th Gen (LGA 1700)
ChipsetIntel B760
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 5.0 x16Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChipsetROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
* Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio Channels7.1 Channels
Max LAN Speed1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
BluetoothBluetooth v5.3

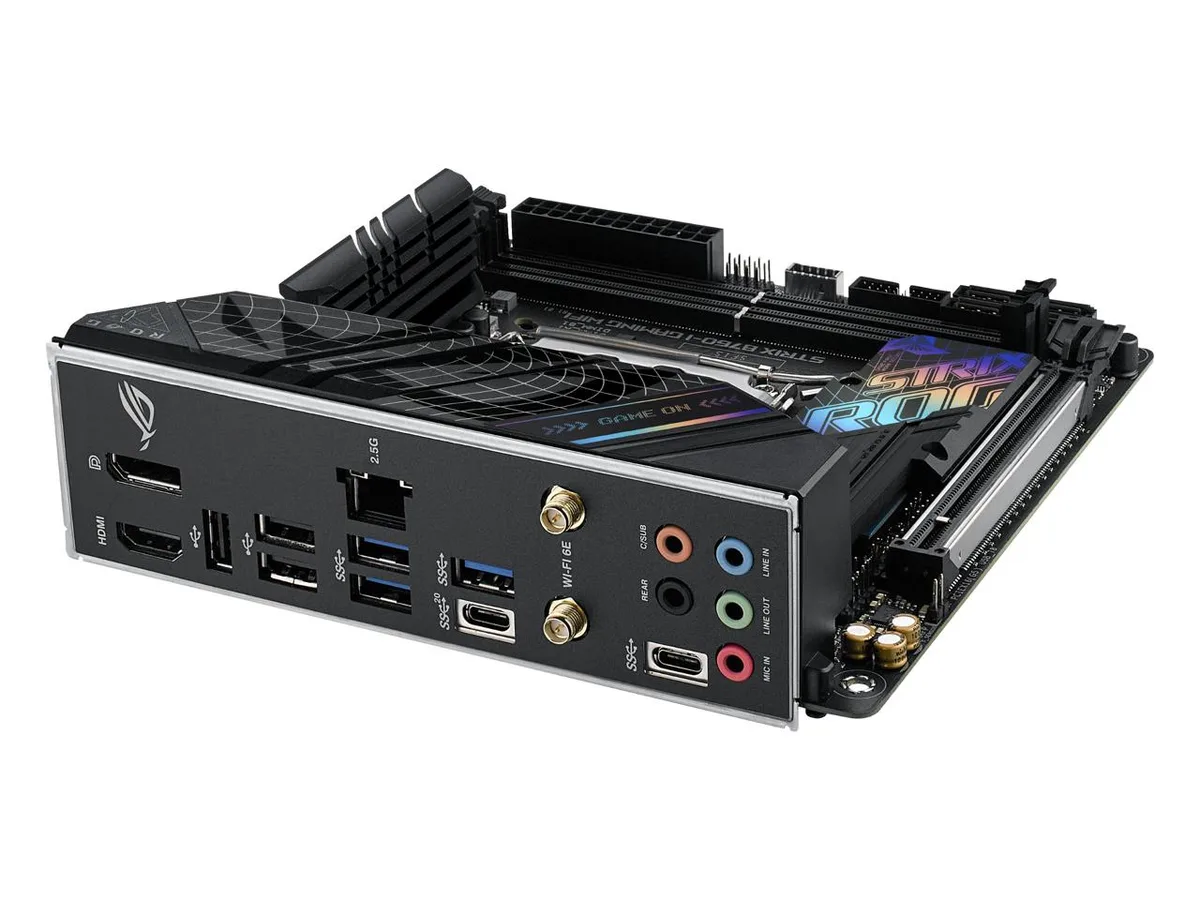

Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 1 ports (3 x USB Type-A )
1 x USB 3.2 Gen 1 port (1 x USB Type-C)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMI port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Audio jacks
Onboard USB1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers support additional 2 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chasis Fan header
1 x 4-pin AIO Pump header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
1 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Windows 11Supported
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
ASUS EZ DIY
-CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 header
Package ContentsCables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
1 x M.2 bracket
1 x ROG key chain
1 x ROG STRIX stickers
1 x ROG STRIX thank you card
Documentation
1 x User manual

Questions about this item

What CPU and memory must I already have to use this LGA 1700 board?

You need an Intel 13th or 12th Gen Core, Pentium Gold or Celeron processor for the LGA 1700 socket, plus DDR5 modules — the board has two 288-pin slots supporting up to 64 GB at speeds from 4800 up to 7600 MT/s with XMP.

Will my existing SATA drives and PCIe 4.0 M.2 SSDs work alongside the new PCIe 5.0 slot?

Yes — four SATA 6 Gb/s ports and two M.2 slots (one 2260/2280, one 2242/2260/2280) both running PCIe 4.0 x4 remain fully usable while the primary PCIe 5.0 x16 slot handles the graphics card.

How can I confirm the board is running the DDR5 memory at its rated 7600 MT/s after assembly?

Enter the UEFI BIOS and use the integrated MemTest86 tool, or check the memory frequency readout in the BIOS dashboard and in the bundled AIDA64 Extreme trial once the OS loads.
