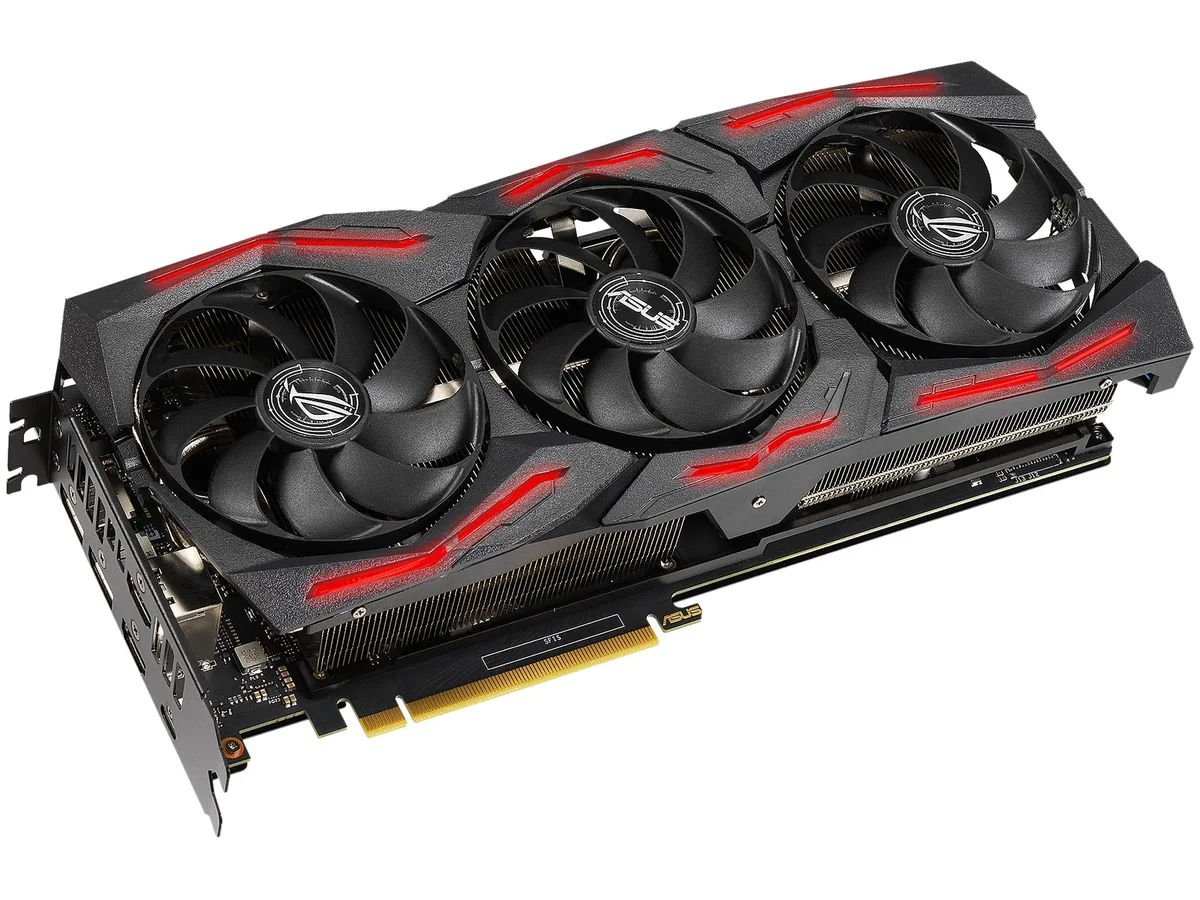

ASUS ROG Strix RTX 2060 SUPER EVO triple-fan graphics card in dark metallic finish

ASUS

ASUS ROG Strix RTX 2060 SUPER EVO Gaming graphics card

SKU CH-35XD-TRRT0

GeForce RTX 2060 SUPER graphics card with 8 GB GDDR6, 2176 CUDA cores and boost clocks up to 1710 MHz

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPUGeForce RTX 2060 SUPER
  • Boost ClockOC Mode - 1710 MHz/Gaming Mode - 1680 MHz
  • CUDA Cores2176
  • Effective Memory Clock14000 MHz
  • 8 GB GDDR6 on a 256-bit bus for high-resolution textures
  • Boost clock reaches 1710 MHz in OC mode for extra frame rates
  • 2176 CUDA cores accelerate ray-tracing and AI workloads
  • Four display outputs plus USB-C drive up to four monitors at 7680 x 4320
  • 5-slot cooler fits standard ATX cases with a 550 W PSU

8 GB GDDR6 on a 256-bit bus

The ASUS ROG Strix RTX 2060 SUPER EVO is a graphics card built around the NVIDIA GeForce RTX 2060 SUPER GPU. It provides 8 GB of GDDR6 memory running at 14000 MHz across a 256-bit interface. The card connects via PCI Express 3.0 and draws power through a recommended 550 W supply.

2.5-slot design for multi-monitor builds

This model suits users who need four simultaneous displays through two HDMI 2.0b ports, two DisplayPort 1.4 ports and one USB Type-C connection. The 2.5-slot thickness and 11.83-inch length require a case with matching clearance. Builders with compact chassis or single-slot spacing should consider a slimmer alternative.

Boost clocks of 1710 MHz OC and 1680 MHz Gaming

The GPU operates at 1710 MHz in OC Mode and 1680 MHz in Gaming Mode across 2176 CUDA cores. These frequencies determine the card's rasterisation and compute throughput. If your workload demands higher sustained clocks or a different thermal profile, a variant with a higher factory boost or larger cooler would be more appropriate.

Highlights

  • 8 GB GDDR6 on a 256-bit bus for high-resolution textures
  • Boost clock reaches 1710 MHz in OC mode for extra frame rates
  • 2176 CUDA cores accelerate ray-tracing and AI workloads
  • Four display outputs plus USB-C drive up to four monitors at 7680 x 4320
  • 5-slot cooler fits standard ATX cases with a 550 W PSU

Specifications

BrandASUS
SeriesROG Strix
ModelROG-STRIX-RTX2060S-A8G-EVO-GAMING
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPUGeForce RTX 2060 SUPER
Boost ClockOC Mode - 1710 MHz/Gaming Mode - 1680 MHz
CUDA Cores2176
Effective Memory Clock14000 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI2 x HDMI 2.0b
DisplayPort2 x DisplayPort 1.4
Other Ports1 x USB Type-C
Max Resolution7680 x 4320
SLI SupportNo
System RequirementsRecommended PSU: 550W
Recommended PSU Wattage550W
Power Connector1 x 6-pin, 1 x 8-pin
HDCP Ready2.2

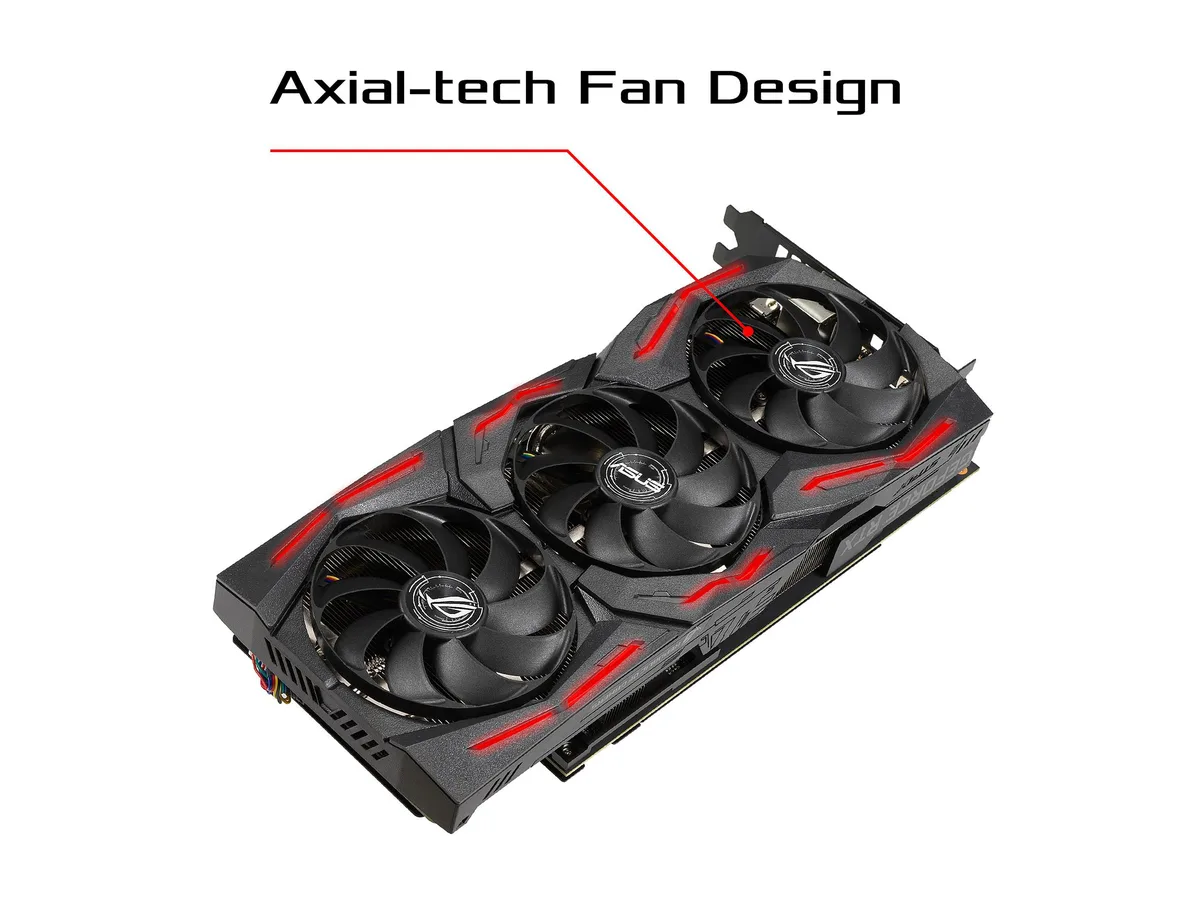

FeaturesAdvanced Edition: Boost Clock 1710 MHz (OC Mode) / 1680 MHz (Gaming Mode).//RT Cores: Dedicated ray tracing hardware enables fast real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination.//Concurrent Floating Point and Integer Processing: Turing GPUs more efficiently process the compute heavy workloads of modern games.//Ultra-fast GDDR6: Experience up to 496 GB/s of memory bandwidth for high-speed, high-resolution gaming.//Axial-tech fan design features a smaller fan hub that facilitates longer blades and a
Max GPU Length301 mm
Card Dimensions (L x H)11.83" x 5.14"
Slot Width2.5-slot
Package ContentsAccessories:/1 x Quick Guide/1 x ROG Velcro Hook & Loop

Questions about this item

What does the 1710 MHz boost clock mean once the card is installed?

In OC mode the GPU can reach 1710 MHz; Gaming mode runs at 1680 MHz. Actual speeds depend on temperature, power limit and workload.

How does the PCI Express 3.0 interface affect real-world throughput?

The x16 PCIe 3.0 link caps bandwidth at the 3.0 specification; the card will not exceed that ceiling even on newer motherboards.

Will the 2.5-slot, 11.83-inch by 5.14-inch board fit my case?

The card occupies 2.5 expansion slots and measures 11.83 inches long by 5.14 inches high; verify case clearance and motherboard spacing before purchase.
