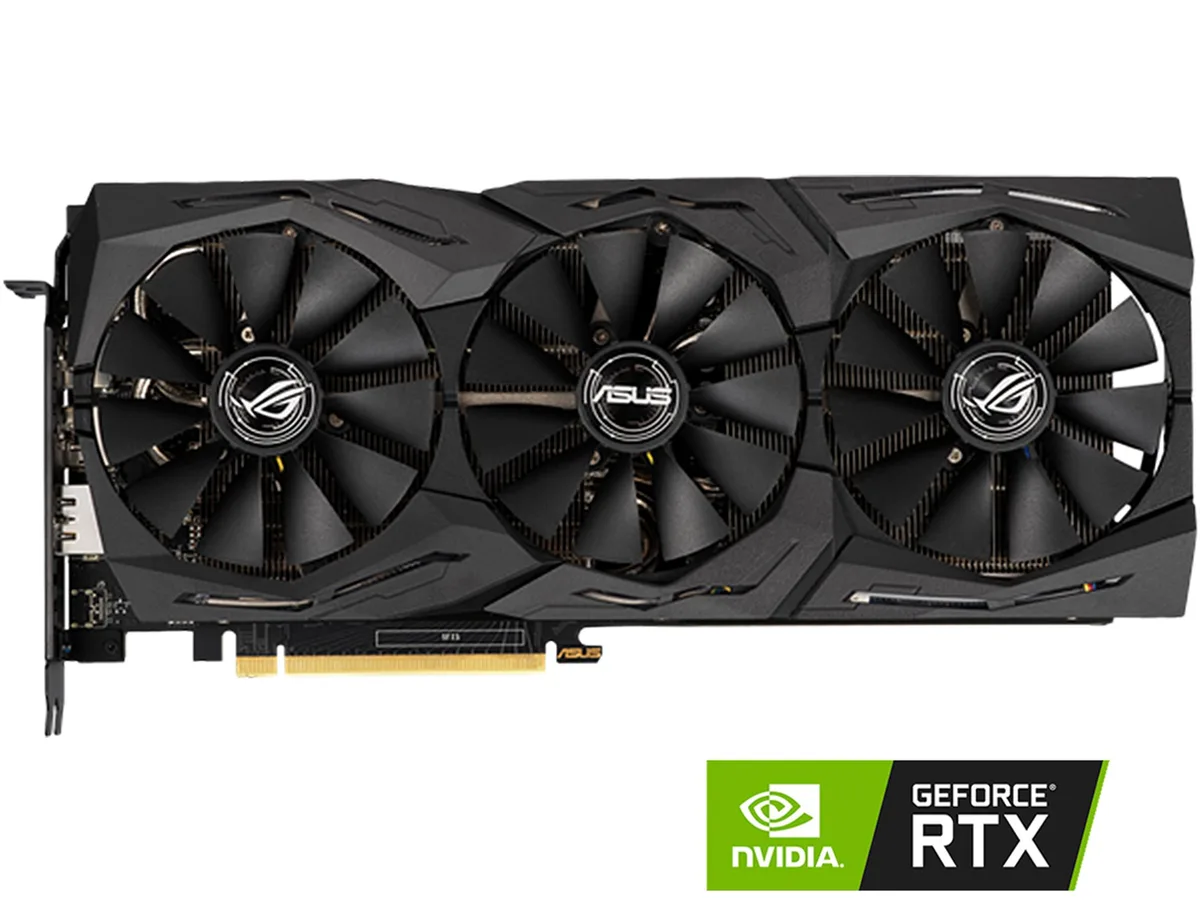

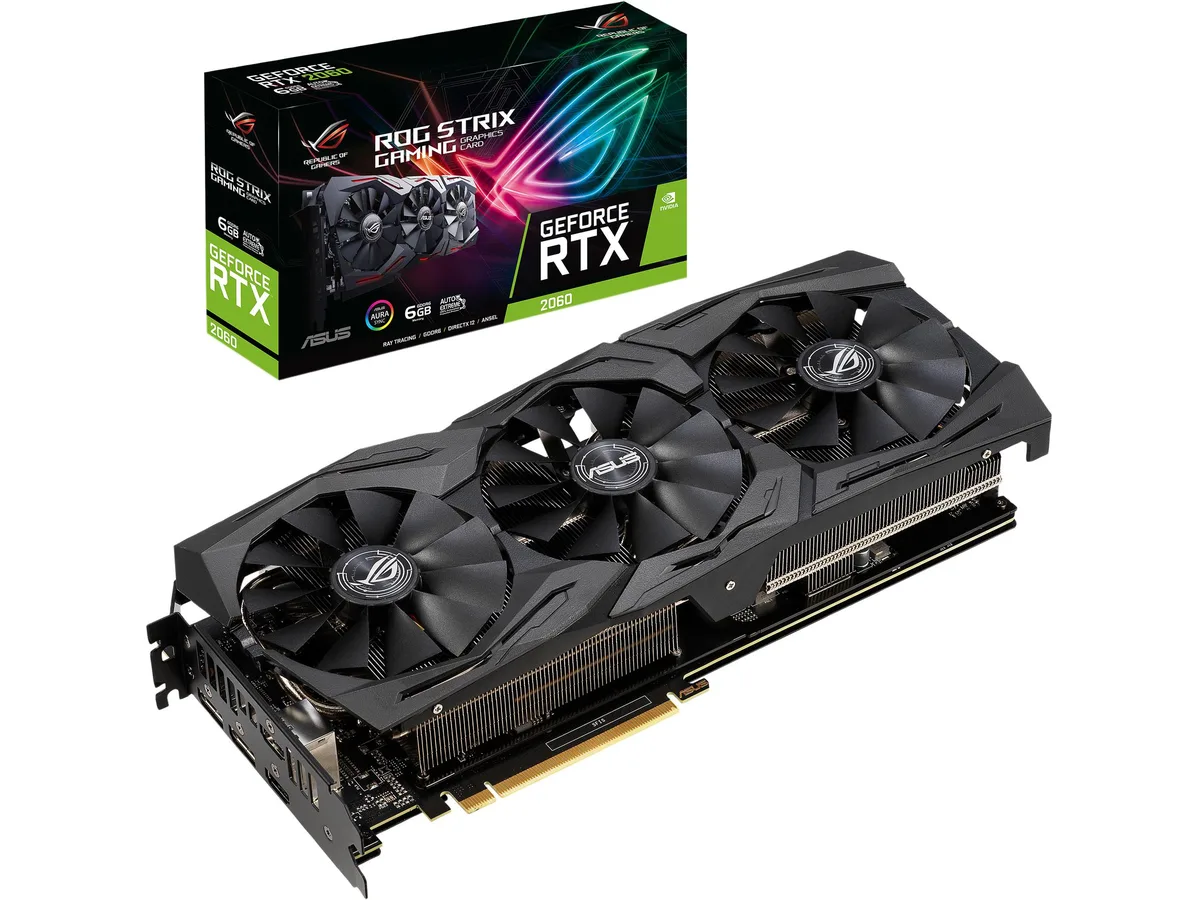

ASUS ROG STRIX GeForce RTX 2060 graphics card, 2.5-slot design with triple fans, silver and black shroud, metal backplate, two HDMI

ASUS

ASUS ROG-STRIX-RTX2060-6G-GAMING graphics card

SKU CH-G117-1EH48

GeForce RTX 2060 graphics card with 6 GB GDDR6 memory, 1920 CUDA cores, OC boost up to 1710 MHz and 2.5-slot triple-fan cooling

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 20 Series
  • GPUGeForce RTX 2060
  • Core ClockGaming Mode: 1365 MHz
  • Boost ClockOC Mode: 1710 MHz /Gaming Mode: 1680 MHz
  • 6 GB GDDR6 memory and 192-bit bus deliver high bandwidth for 1440p gaming
  • 1920 CUDA cores and Turing architecture accelerate modern titles with real-time ray tracing
  • Boost clock up to 1710 MHz in OC mode provides extra headroom for demanding scenes
  • Two HDMI 2.0b and two DisplayPort 1.4 outputs drive four monitors at 7680 x 4320
  • 5-slot design and 11.81-inch length fit most mid-tower cases while keeping thermals in check

ROG STRIX GeForce RTX 2060 graphics card

The ASUS ROG-STRIX-RTX2060-6G-GAMING is a PCI Express 3.0 add-in board built around the NVIDIA GeForce RTX 2060 GPU with 1920 CUDA cores. It targets gamers and creators who need hardware-accelerated ray tracing and AI features at 1440p. The 2.5-slot design fits standard ATX chassis while providing robust cooling for sustained loads.

6GB GDDR6 memory on a 192-bit bus

The card carries 6GB of GDDR6 memory clocked at an effective 14000 MHz across a 192-bit interface. This capacity handles modern titles at high settings and 1440p resolution comfortably. Memory bandwidth becomes the limiting factor at 4K or with heavy texture packs, where the 6GB frame buffer can fill and force texture streaming.

PCI Express 3.0 x16 interface

The GPU connects via a PCI Express 3.0 x16 slot, delivering full bandwidth for the RTX 2060 without bottlenecking. Systems limited to PCI Express 2.0 will see reduced throughput, particularly in data-heavy compute workloads. Verify your motherboard supports PCI Express 3.0 to match the card's rated interface speed.

Highlights

  • 6 GB GDDR6 memory and 192-bit bus deliver high bandwidth for 1440p gaming
  • 1920 CUDA cores and Turing architecture accelerate modern titles with real-time ray tracing
  • Boost clock up to 1710 MHz in OC mode provides extra headroom for demanding scenes
  • Two HDMI 2.0b and two DisplayPort 1.4 outputs drive four monitors at 7680 x 4320
  • 5-slot design and 11.81-inch length fit most mid-tower cases while keeping thermals in check

Specifications

BrandASUS
SeriesROG STRIX
ModelROG-STRIX-RTX2060-6G-GAMING
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 20 Series
GPUGeForce RTX 2060
Core ClockGaming Mode: 1365 MHz
Boost ClockOC Mode: 1710 MHz /Gaming Mode: 1680 MHz
CUDA Cores1920
Effective Memory Clock14000 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI2 x HDMI 2.0b
DisplayPort2 x DisplayPort 1.4
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
Thermal Design Power160W
System RequirementsRecommended PSU: 500W
Recommended PSU Wattage500W
Power Connector1 x 8 + 1 x 6-pin
HDCP Ready2.2
FeaturesNVIDIA TURING: ROG GeForce RTX graphics cards are powered by the Turing GPU architecture and the all-new RTX platform. This gives you up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to games.//DirectX 12: Power new visual effects and rendering techniques for more lifelike gaming.//NVIDIA Shadowplay Record and share high-quality gameplay videos, screenshots, and livestreams with your friends.//Unique Wing-blade Fans deliver high air pressure, reduced noise levels, IP5X certified dust resistance, and 0dB mode for silen
Max GPU Length300 mm
Card Dimensions (L x H)11.81" x 5.20"
Slot Width2.5-slot
Package ContentsAccessories:/1 x ROG Velcro Hook & Loop/1 x CD/1 x Quick Guide

Questions about this item

Will the 2.5-slot width of this RTX 2060 fit alongside my existing PCIe 3.0 add-in cards without blocking their slots?

The card occupies 2.5 slots, so it covers the adjacent expansion slot. Check your motherboard layout to confirm the next PCIe 3.0 slot remains usable for other cards.

How can I verify the GPU is running at the 1710 MHz OC Mode boost clock after installation?

Use GPU monitoring software to observe the core frequency under load; it should reach 1710 MHz when the OC mode profile is selected in the vendor utility.

Which cables are included for the 2 x HDMI 2.0b and 2 x DisplayPort 1.4 outputs, and do I need a separate power adapter?

The box contains the graphics card only; display cables and the required 8-pin PCIe power connector from your PSU must be sourced separately.
