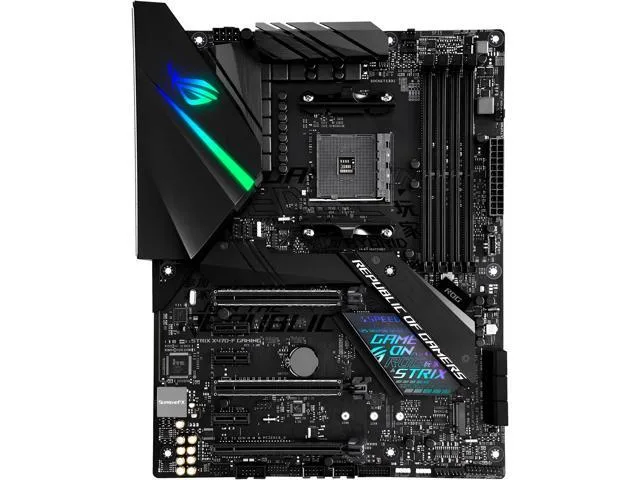

Black ATX motherboard with grey heatsinks and RGB lighting zones

ASUS

ASUS ROG Strix X470-F Gaming AMD motherboard

SKU CH-TEVK-GQWZ6

ATX AM4 board with AMD X470 chipset, four DDR4 slots up to 64 GB, dual M.2 with heatsink, six SATA 6 Gb/s ports, Intel Gigabit LAN, SupremeFX 8-channel audio and Aura Sync RGB lighting

  • CPU Socket TypeAM4
  • CPU TypeAMD AM4 Socket AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen /
  • ChipsetAMD X470
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardAMD Ryzen 2nd Generation ProcessorsDDR4 3600(O.C.)/ 3466(O.C
  • Maximum Memory Supported64GB
  • Supports Ryzen 2nd and 3rd Gen processors with AM4 socket
  • Four DDR4 slots handle up to 64GB at 3600MHz overclocked
  • Dual M.2 slots with heatsink keep storage cool under load
  • SupremeFX S1220A audio delivers 8-channel high-definition sound
  • Intel i211AT LAN provides reliable Gigabit Ethernet connectivity

AM4 socket motherboard for Ryzen builds

The ASUS ROG Strix X470-F Gaming is an ATX motherboard built around the AMD X470 chipset and the AM4 socket. It supports AMD Ryzen 1st, 2nd and 3rd Generation processors as well as Athlon and A-Series APUs with Radeon Vega Graphics. The board delivers dual-channel DDR4 memory support up to 64GB across four slots.

Suits gamers and builders needing overclocking

This board fits users who want to push memory speeds to 3600 MHz O.C. and run multi-GPU configurations at x16 or dual x8 bandwidth with Ryzen CPUs. Builders using 7th Generation A-Series or Athlon X4 processors lose the second x16 slot and M.2 PCIe connectivity, so they should consider a simpler platform.

Single M.2 slot with PCIe 3.0 x4 and SATA modes

The board provides one M.2 Socket 3 with M key accepting 2242, 2260, 2280 and 22110 form factors. With Ryzen 2nd Generation or compatible APUs the slot runs at PCIe 3.0 x4 for fast storage; with older APUs it falls back to SATA only. Six SATA 6Gb/s ports add further drive capacity.

Highlights

  • Supports Ryzen 2nd and 3rd Gen processors with AM4 socket
  • Four DDR4 slots handle up to 64GB at 3600MHz overclocked
  • Dual M.2 slots with heatsink keep storage cool under load
  • SupremeFX S1220A audio delivers 8-channel high-definition sound
  • Intel i211AT LAN provides reliable Gigabit Ethernet connectivity

Specifications

BrandASUS
SeriesROG
ModelStrix X470-F Gaming
CPU Socket TypeAM4
CPU TypeAMD AM4 Socket AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation / 7th Generation A-series/Athlon X4 Processors
ChipsetAMD X470
Number of Memory Slots4x288pin (DDR4)
Memory StandardAMD Ryzen 2nd Generation ProcessorsDDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory *Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation ProcessorsDDR4 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory *AMD 7th Generation A-Series/Athlon X4 ProcessorsDDR4 2400/ 2133 MHz Un-buffered Memory* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x16AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors2 x PCIe 3.0 x16 (x16 or dual x8)AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series/Athlon X4 Processors1 x PCIe 3.0 x16 (x8 mode)AMD Athlon with Radeon Vega Graphics Processors1 x PCIe 3.0 x16 (max at x4 mode)
PCI Express 2.0 x161 x PCI Express 2.0 x16 slot (max. at x4 mode)** PCIeX16_3 slot shares bandwidth with PCIeX1_1 and PCIeX1_3.
PCI Express x13 x PCI Express 2.0 x1 slots
Serial ATA (SATA)6 x SATA 6Gb/s
M.2AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)AMD 7th Generation A-series/Athlon Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)AMD Athlon with Radeon Vega Graphics Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)AMD X470 chipset:1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)
SATA RAID0/1/10
Onboard Video ChipsetIntegrated Graphics in the AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics ProcessorsMulti-VGA output support: HDMI/DisplayPort ports- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 HzMaximum shared memory of 2048MB (for iGPU exclusively)
Audio ChipsetSupremeFX S1220A High Definition Audio CODEC
Audio Channels8 Channels* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
LAN ChipsetIntel i211AT
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI5 x USB 3.1 Gen 1 Type-A1 x Optical S/PDIF out5 x Audio jack(s)2 x USB 3.1 Gen 2 (red) Type-A1 x USB 3.1 (black) USB Type-CAnti-surge LAN (RJ45) port
Onboard USB1 x USB 3.1 Gen2 front panel connector1 x USB 3.1 Gen1 headers support additional 2 x USB 3.1 Gen1 ports2 x USB 2.0 header supports additional 4 x USB 2.0 ports
Other Connectors1 x Aura Addressable Strip Header(s)2 x Aura RGB Strip Header(s)1 x TPM connector(s)1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x W_PUMP+ connector1 x Front panel audio connector(s) (AAFP)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX power connector1 x 8-pin ATX 12V power connector
FeaturesMulti-GPU Support:Supports NVIDIA 2-Way SLI TechnologySupports AMD 3-Way CrossFireX Technology ROG Exclusive Features:ROG RAMCache IIROG CPU-ZOverwolfGameFirst IVSpecial Features:5-Way Optimization by Dual Intelligent Processors 5- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.TPU- Auto Tuning, TurboV, GPU BoostGamer's Guardian:-
Package ContentsAccessories:User's manual4 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x Strix door hanger1 x SLI HB BRIDGE (2-WAY-M)1 x ROG Strix stickers1 x Cable ties pack(s)1 x Extension Cable for RGB strips (80cm)1 x Extension cable for Addressable LED
