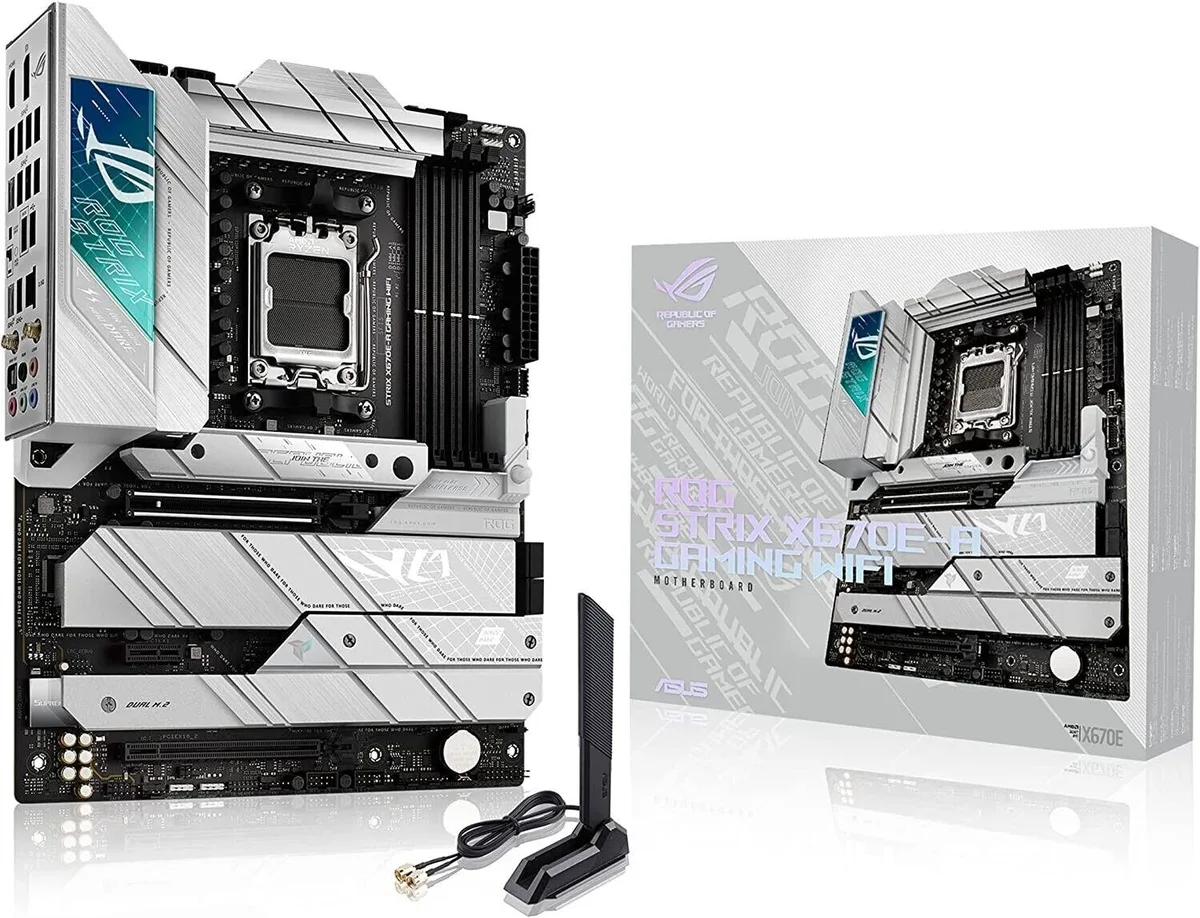

Black PCB with white accents and silver heatsinks on ATX motherboard

ASUS

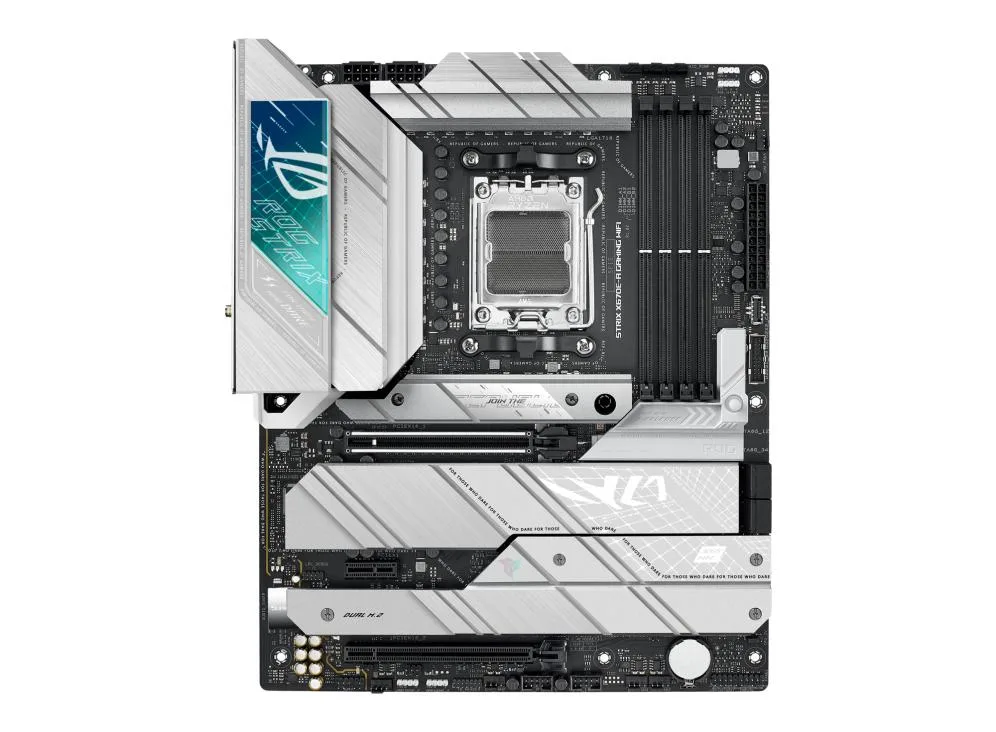

ASUS ROG Strix X670E-A Gaming WiFi 6E AMD motherboard

SKU CH-X4KX-NCGVN

Socket AM5 motherboard with 16+2 power stages, DDR5 support, PCIe 5.0 slots, WiFi 6E and 2.5 Gb Ethernet for Ryzen 7000 builds

  • CPU TypeRyzen 7000 Series
  • Memory StandardDDR5-SDRAM
  • Wireless LAN802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.1
  • Robust 16+2 power stages deliver stable voltage for multi-core Ryzen 7000 CPUs
  • PCIe 5.0 on two M.2 slots and the top x16 slot enables fastest NVMe and GPU bandwidth

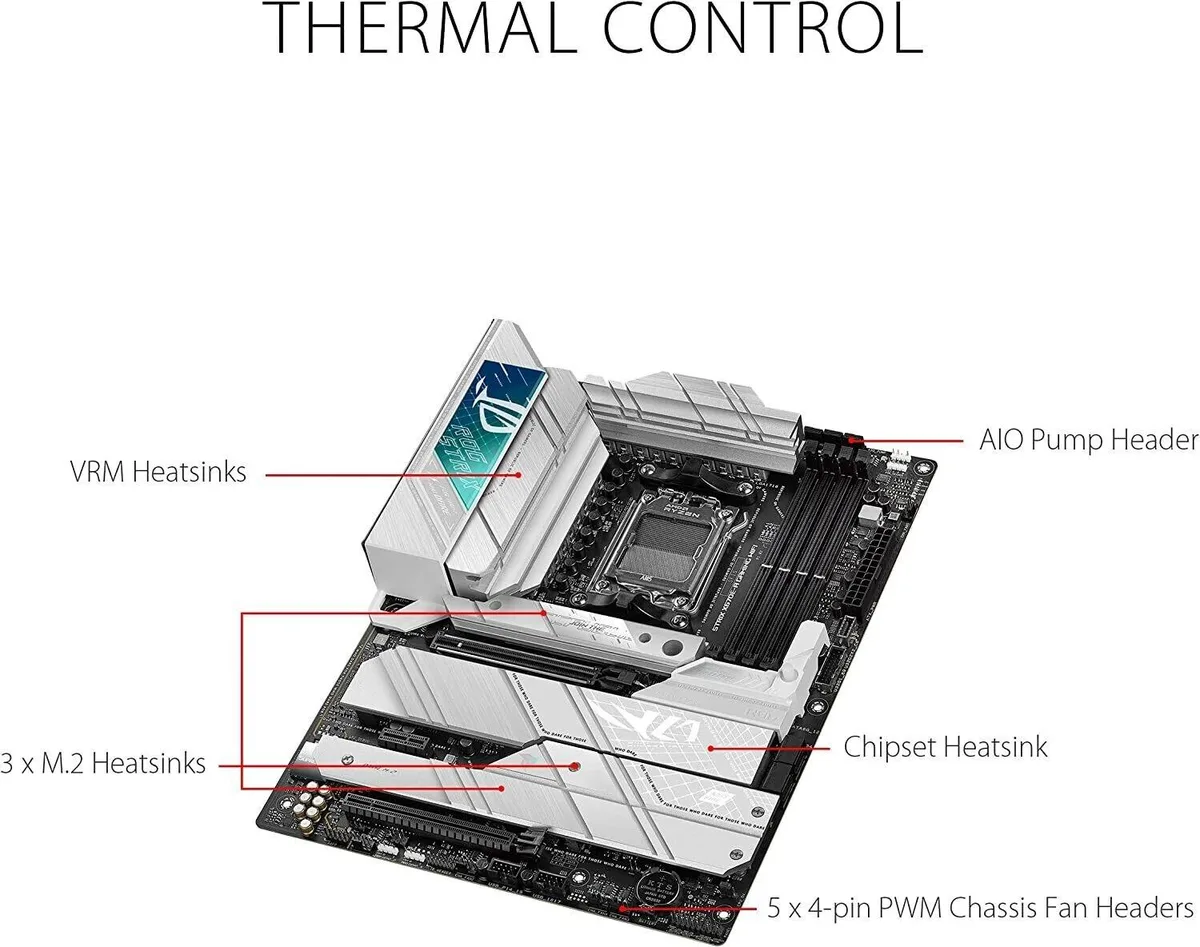

  • Four onboard M.2 heatsinks plus a backplate keep storage cool under sustained loads
  • WiFi 6E and Intel 2.5 Gb Ethernet provide low-latency wireless and wired networking
  • Dynamic OC Switcher, Core Flex and PBO Enhancement give flexible overclocking control

Socket AM5 Platform

The ASUS ROG Strix X670E-A Gaming WiFi 6E motherboard fits AMD Ryzen 7000 Series processors into the LGA 1718 socket. It targets builders who want a full-feature ATX board with robust power delivery and integrated wireless networking for a high-performance gaming system.

PCIe 5.0 and DDR5 Upgrade

This board replaces older AM4 platforms by adding PCIe 5.0 on the primary x16 slot and two M.2 slots, plus DDR5 memory support. The jump is worthwhile when you need faster storage throughput and higher memory bandwidth for current-generation Ryzen CPUs.

Enthusiast Gaming Build

It suits enthusiasts building a premium AM5 system who value extensive M.2 capacity, 2.5 Gb Ethernet and WiFi 6E connectivity. Builders staying on AM4 or using entry-level processors should look at something else.

Highlights

  • Robust 16+2 power stages deliver stable voltage for multi-core Ryzen 7000 CPUs
  • PCIe 5.0 on two M.2 slots and the top x16 slot enables fastest NVMe and GPU bandwidth
  • Four onboard M.2 heatsinks plus a backplate keep storage cool under sustained loads
  • WiFi 6E and Intel 2.5 Gb Ethernet provide low-latency wireless and wired networking
  • Dynamic OC Switcher, Core Flex and PBO Enhancement give flexible overclocking control

Specifications

BrandASUS
Model90MB1BM0-M0EAY0
CPU TypeRyzen 7000 Series
Memory StandardDDR5-SDRAM
Wireless LAN802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Questions about this item

What CPU socket and power connectors does this board use?

It uses an AM5 LGA 1718 socket and two 8-pin ProCool II connectors to feed the 16+2 power stages.

How do you remove a graphics card from the top PCIe 5.0 x16 slot?

Press the Q-release button on the SafeSlot bracket to unlock the card before pulling it out.

Which M.2 slots include heatsinks and how many are there?

Four onboard M.2 heatsinks cover the slots, plus a backplate on the M.2_1 position.
