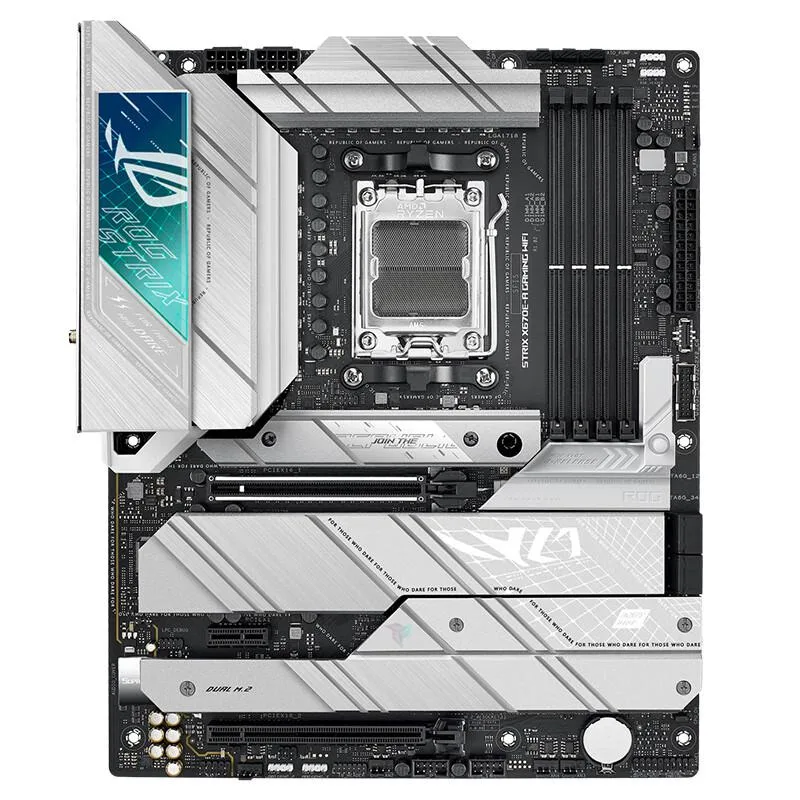

White ATX motherboard with silver heatsinks and I/O cover

ASUS

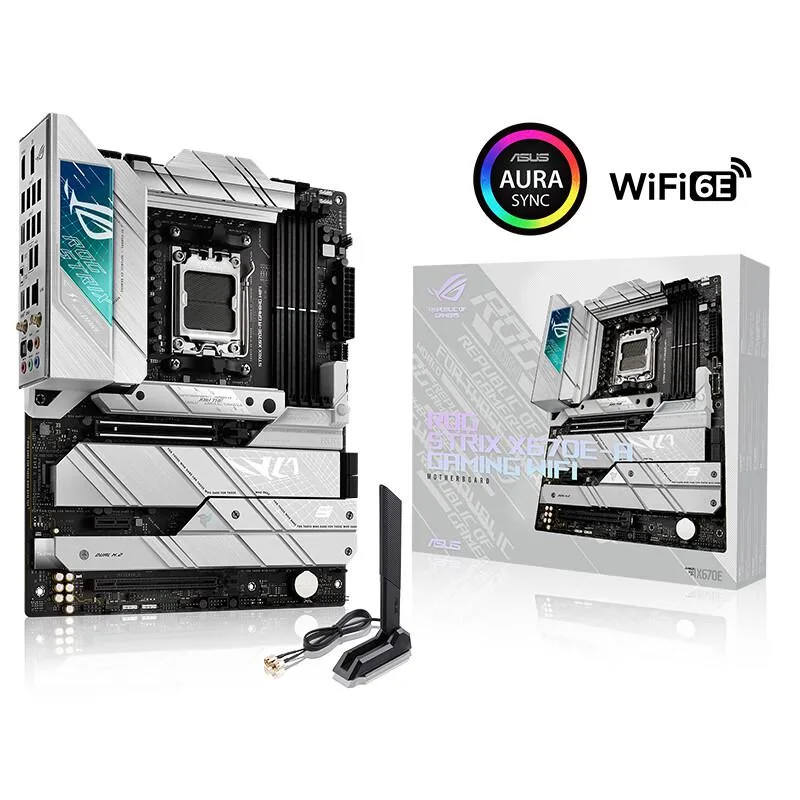

ASUS ROG STRIX X670E-A GAMING WIFI Snow AMD motherboard

SKU CH-J3VE-Z6QCS

AM5 socket board for Ryzen 7000 CPUs with 16+2 power stages, DDR5 to 6400, two PCIe 5.0 M.2 slots, Wi-Fi 6E and 2.5Gb LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series
  • ChipsetAMD X670E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5
  • Maximum Memory Supported128GB
  • Robust 16+2 power stages deliver stable CPU performance
  • Four M.2 slots with heatsinks keep storage cool
  • DDR5 up to 6400 OC maximises memory speed
  • Wi-Fi 6E and 2.5Gbps LAN provide fast networking
  • PCIe 5.0 graphics and M.2 slots enable next-gen bandwidth

AM5 Socket for Ryzen 7000 Builds

This ATX motherboard fits AMD Socket AM5 processors from the Ryzen 7000 series. It delivers a 16+2 teamed power stage design with dual 8-pin ProCool II connectors for stable delivery. Four DDR5 slots support up to 128GB running at speeds up to 6400+(OC) in dual-channel mode. The board includes two PCIe 5.0 M.2 slots and two PCIe 5.0 M.2 slots from the chipset, plus four SATA 6Gb/s ports.

Check CPU Cooler Clearance and Power Connectors

Verify that your CPU cooler mounting hardware supports the AM5 1718 LGA socket pattern. Ensure your power supply provides two 8-pin EPS connectors for the ProCool II headers. Confirm your chassis fits a 305 x 244 mm ATX board and has front-panel headers for USB 3.2 Gen 2x2 Type-C and Thunderbolt. Memory kits should be DDR5 unbuffered non-ECC validated for the listed OC frequencies.

VRM Heatsinks and M.2 Cooling Under Load

Massive VRM heatsinks and an integrated aluminium I/O cover use high-conductivity thermal pads to dissipate heat from the 16+2 power stages. Four onboard M.2 heatsinks and a dedicated M.2_1 backplate keep both PCIe 5.0 drives cool during sustained transfers. The 2.5Gbps Ethernet and Wi-Fi 6E controllers maintain low latency. Audio uses the ROG SupremeFX ALC4050 with Savitech SV3H712 amplifier for clean output.

Highlights

  • Robust 16+2 power stages deliver stable CPU performance
  • Four M.2 slots with heatsinks keep storage cool
  • DDR5 up to 6400 OC maximises memory speed
  • Wi-Fi 6E and 2.5Gbps LAN provide fast networking
  • PCIe 5.0 graphics and M.2 slots enable next-gen bandwidth

Specifications

BrandASUS
SeriesROG
ModelSTRIX X670E-A GAMING WIFI Snow
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series
ChipsetAMD X670E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported128GB
Channel SupportedDual Channel
Buffer SupportedUn-buffered
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
PCI Express 5.0 x161 x PCIe 5.0/4.0/3.0 x16 slot
PCI Express 4.0 x161 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
PCI Express x11 x PCI Express 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
BluetoothBluetooth v5.2

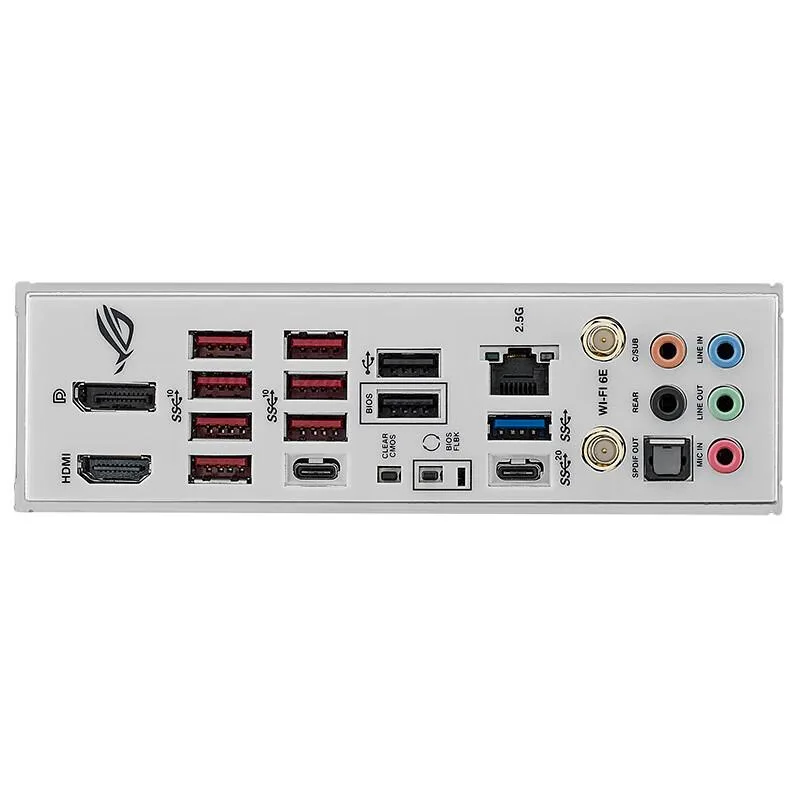

Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Questions about this item

What comes in the box and what must I buy separately?

The motherboard ships with Wi-Fi 6E and Bluetooth 5.2 antennas, an I/O shield, cables for four SATA 6Gb/s drives and M.2 mounting screws. You must supply an AM5 Ryzen 7000 processor, DDR5 memory, storage drives, a graphics card, an ATX power supply with 24-pin plus dual 8-pin connectors, and a chassis.

Which memory speed should I choose for this board?

The board validates DDR5 kits from 4800 up to 6400+(OC) MT/s. Pick a kit on the QVL that matches your CPU's memory controller; 6000 MT/s CL30 is a common sweet spot for Ryzen 7000.

What does the PCIe 5.0 x16 slot mean for my graphics card?

The primary x16 slot runs at PCIe 5.0 with Ryzen 7000 CPUs, giving double the bandwidth of PCIe 4.0 for current and future GPUs while remaining backward compatible with PCIe 4.0 and 3.0 cards.
