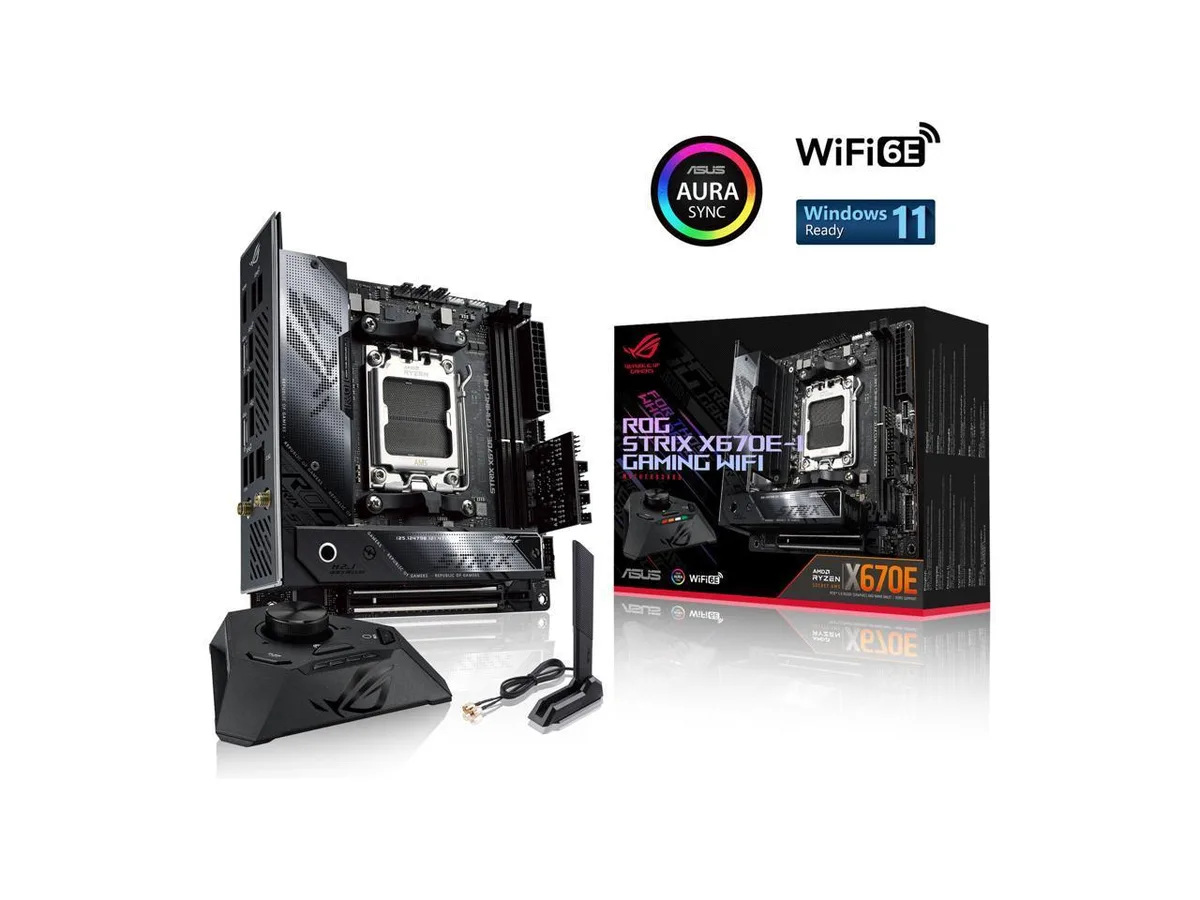

Compact mini-ITX motherboard with black VRM heatsink, silver M.2 cover and rear I/O shield visible

ASUS

ASUS ROG STRIX X670E-I GAMING WIFI 6E AMD Motherboard

SKU CH-T1M2-9X4WV

Mini-ITX AM5 board with 10 + 2 power stages, DDR5 to 6400, Wi-Fi 6E, two USB4 Type-C ports and dual M.2 slots

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series
  • AM5 socket supports Ryzen 7000 series desktop processors
  • 10 + 2 power stages deliver stable power for multi-core CPUs
  • DDR5 memory runs up to 6400 MHz overclocked for high bandwidth
  • Two USB4 Type-C ports plus HDMI 2.1 enable fast external connections
  • Wi-Fi 6E and 2.5 Gb Ethernet provide low-latency network access

Socket AM5 Mini-ITX Platform

This ASUS ROG STRIX X670E-I GAMING WIFI 6E motherboard uses the AMD Socket AM5 (LGA 1718) for Ryzen 7000 Series desktop processors. The mini-ITX form factor suits compact gaming builds or workstations where space is limited. It targets enthusiasts who want high-end features in a small chassis.

64 GB DDR5 Capacity With OC Headroom

Two DIMM slots support up to 64 GB of DDR5 memory across a wide range of overclocked speeds from 4800 MHz to 6400 MHz. The 10 + 2 power stage design with ProCool II connector delivers stable current for multi-core CPUs. Memory headroom ends at the two-slot limit and the maximum validated frequency ceiling.

Replaces Larger ATX X670E Boards For Small Cases

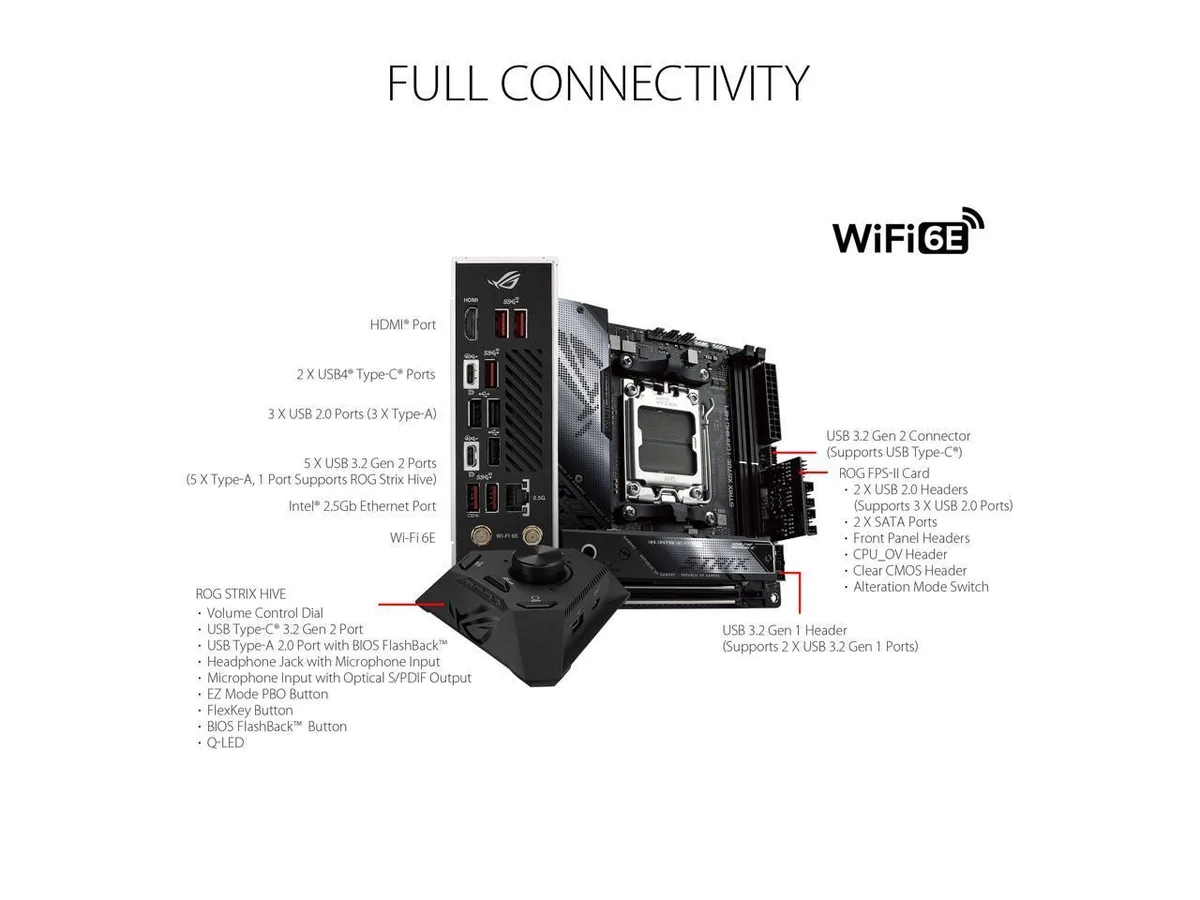

This board condenses the X670E chipset feature set into mini-ITX, adding Wi-Fi 6E, Intel 2.5 Gb Ethernet, HDMI 2.1, PCIe 5.0, two M.2 slots and two USB4 Type-C ports. The jump is worth it when a full-size ATX board will not fit but you still need Gen 5 connectivity and robust VRM cooling. Builders who need four memory slots or more than two M.2 drives should look elsewhere.

Highlights

  • AM5 socket supports Ryzen 7000 series desktop processors
  • 10 + 2 power stages deliver stable power for multi-core CPUs
  • DDR5 memory runs up to 6400 MHz overclocked for high bandwidth
  • Two USB4 Type-C ports plus HDMI 2.1 enable fast external connections
  • Wi-Fi 6E and 2.5 Gb Ethernet provide low-latency network access

Specifications

CPU Socket TypeAM5
CPU TypeRyzen 7000 Series

Questions about this item

Will my existing AM5 Ryzen 7000 CPU and DDR5 memory kits rated up to 6400 MHz work with this X670E-I mini-ITX board?

Yes, the board supports Socket AM5 (LGA 1718) Ryzen 7000 processors and DDR5 up to 6400 MHz (OC) across two DIMM slots for a maximum of 64 GB.

How can I verify the PCIe 5.0 slot and two USB4 Type-C ports are active after assembly?

Enter the UEFI BIOS (already updated) and confirm the primary slot reports Gen 5.0 and both USB4 controllers appear; the I/O shield labels also identify the two USB4 Type-C ports.

What accessories ship in the box and which common items might be missing?

The package includes the motherboard, I/O shield, original box and Wi‑Fi 6E antenna; additional screws or cables are not guaranteed.
