ATX motherboard in dark finish with four DDR5 slots and large heatsinks

ASUS

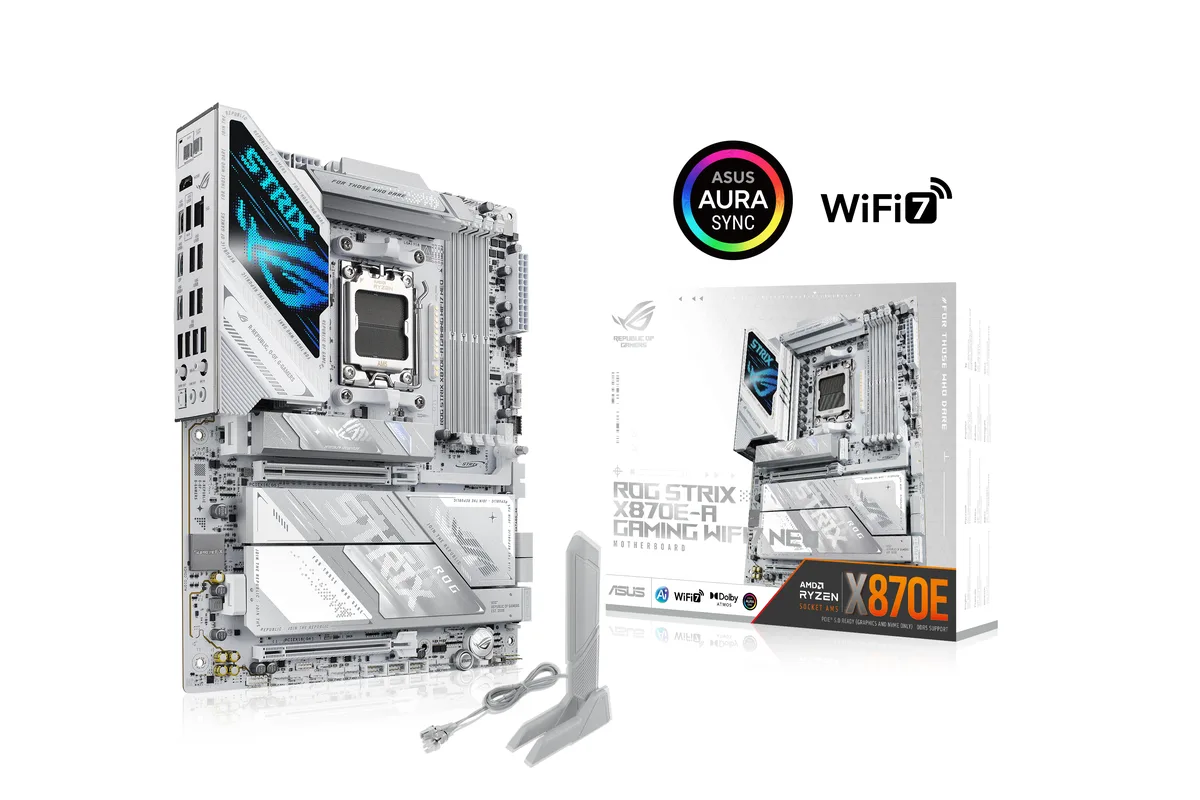

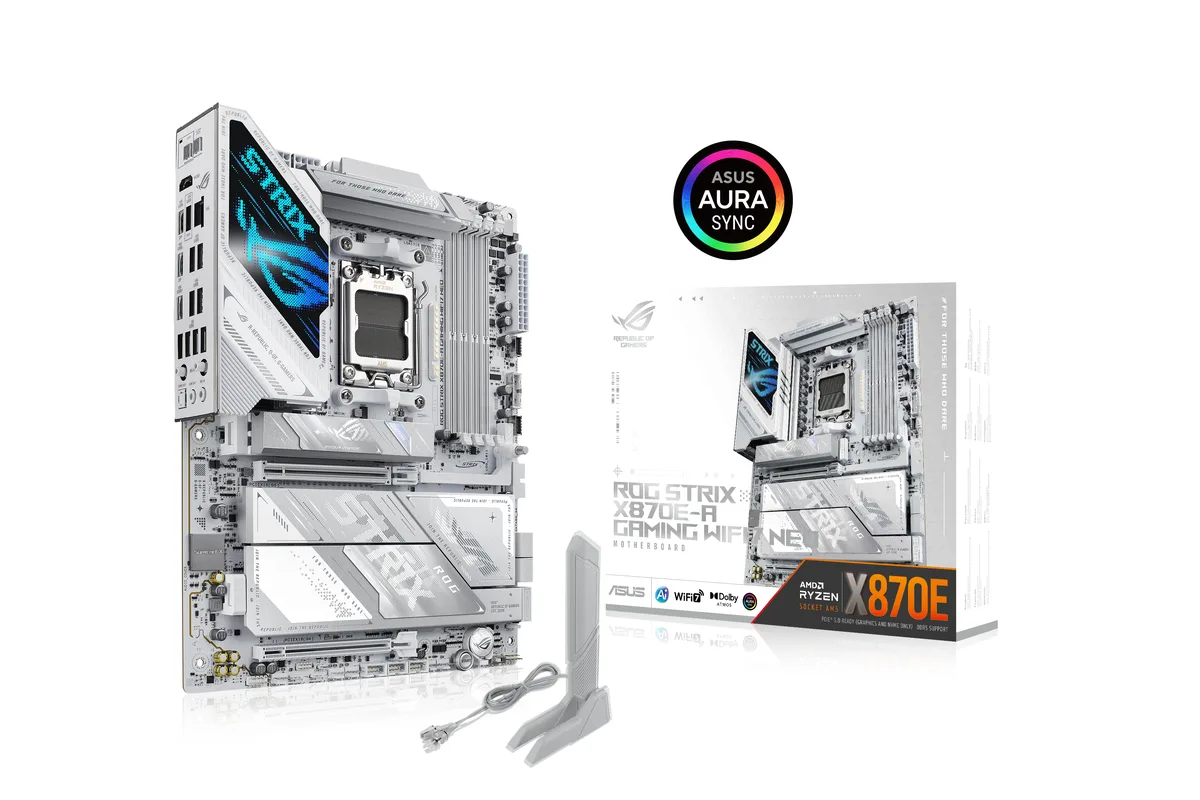

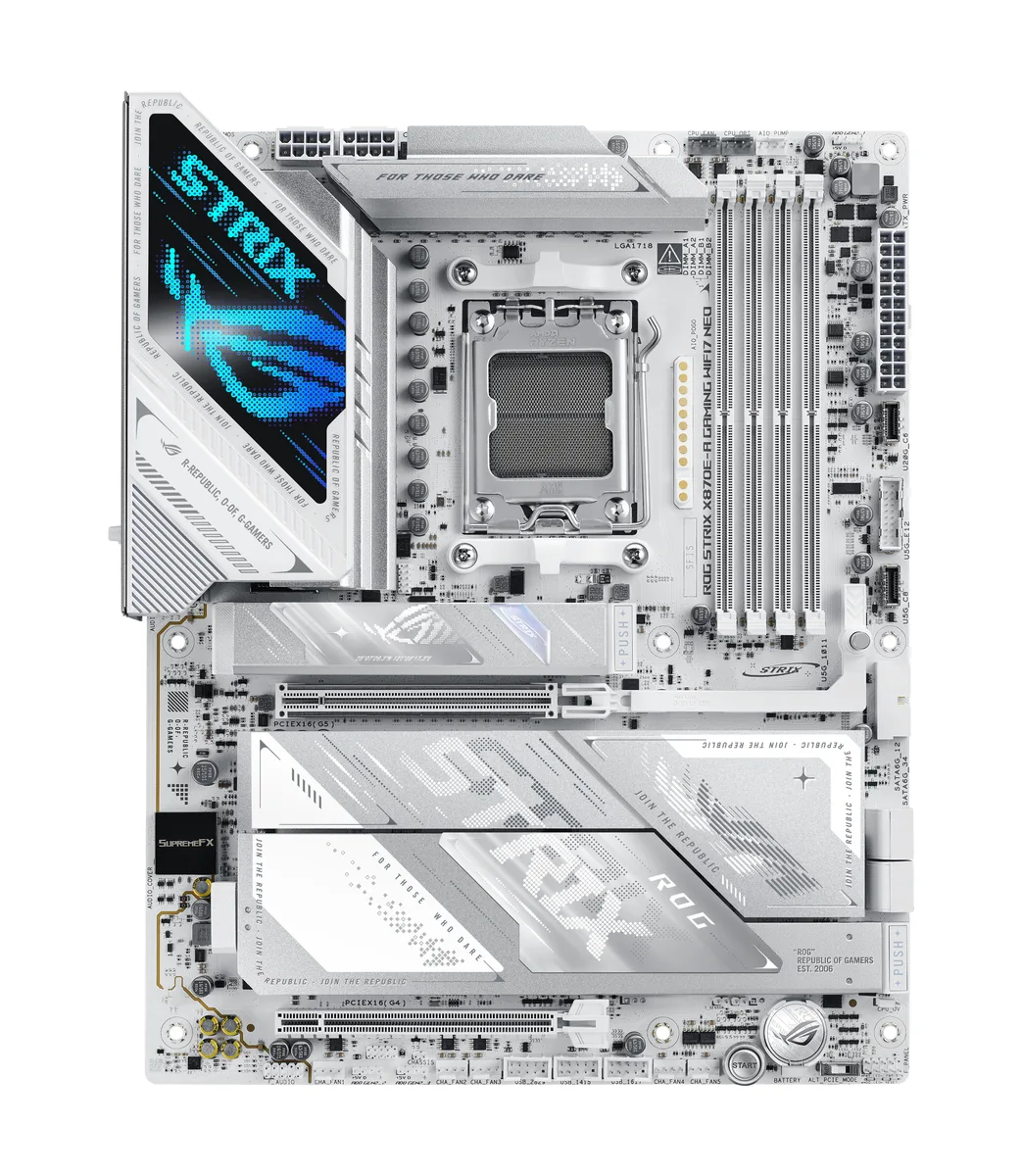

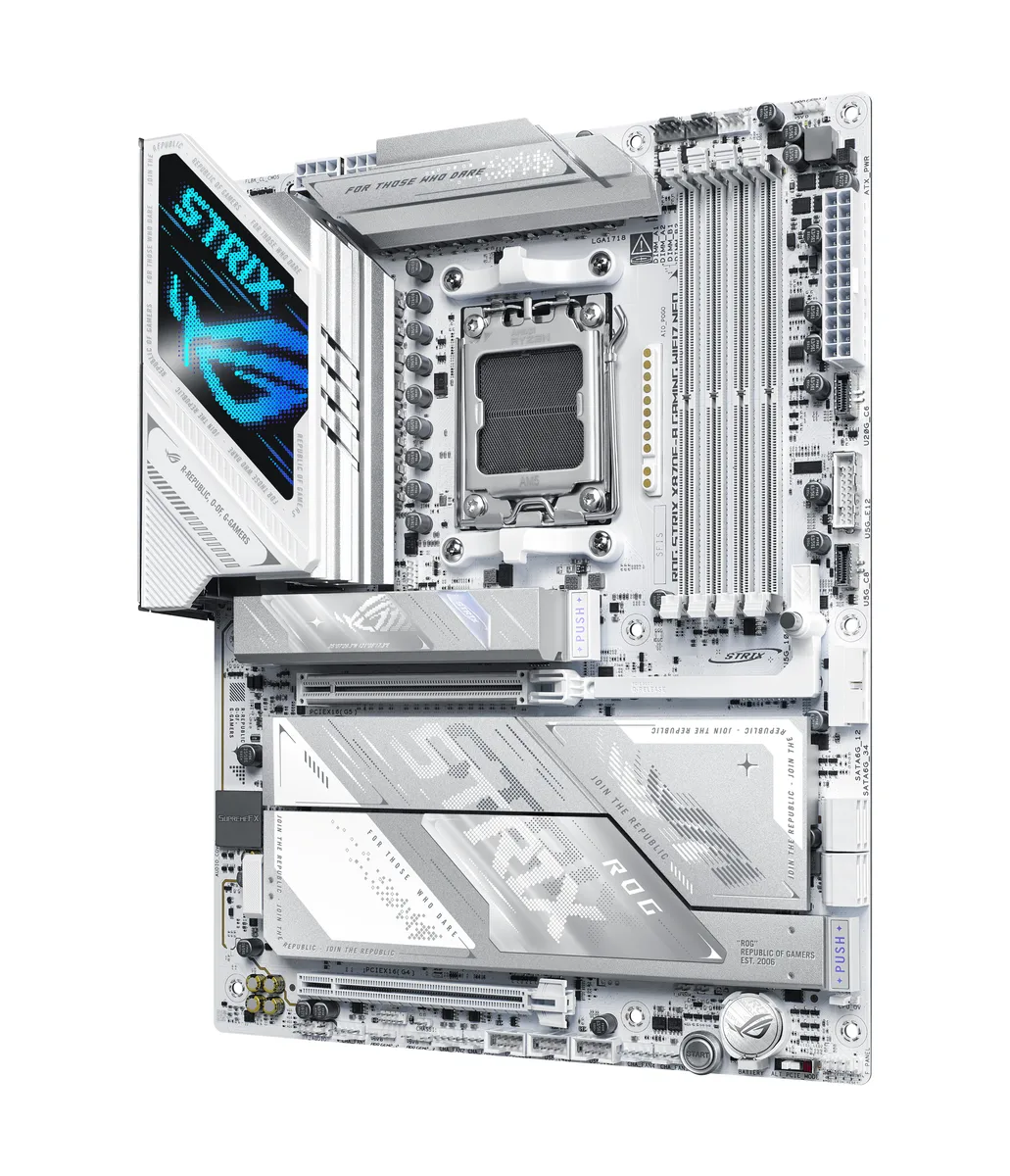

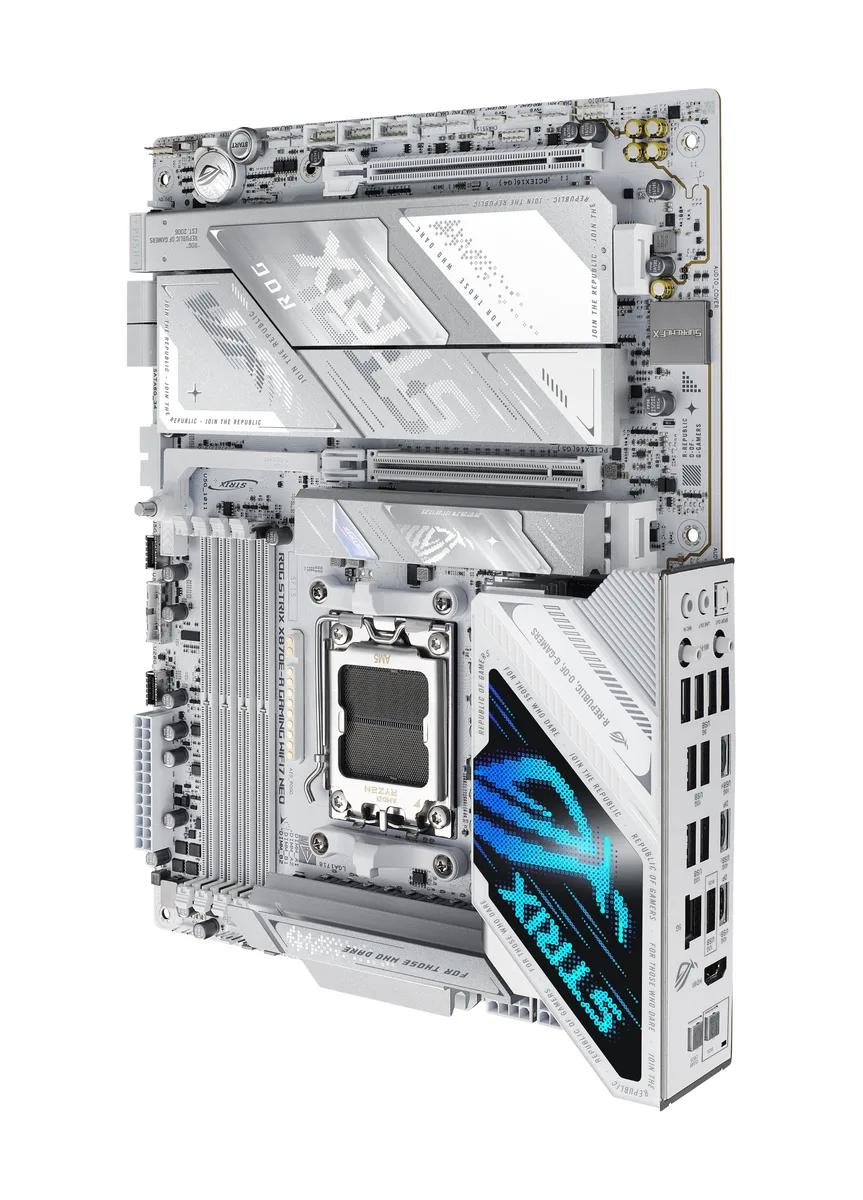

ASUS ROG STRIX X870E-A GAMING WIFI7 NEO AMD ATX motherboard

SKU CH-NSR5-4K6S7 MPN ROG STRIX X870E-A GAMING WIFI7 NEO

An AMD X870E ATX board with 16+2+2 power stages, four DDR5 slots up to 256GB, two PCIe 5.0 M.2 slots, WiFi 7 and 5Gbps LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen 9
  • Maximum Memory Supported256GB
  • Supports up to 9600 MT/s DDR5 with Ryzen 8000 series
  • 16+2+2 power stages rated for 90 A each
  • Four M.2 slots including two PCIe 5.0 x4
  • WiFi 7 and 5 Gbps LAN for fast networking
  • ROG SupremeFX 7.1 audio with ALC4080 codec

Socket AM5 Platform

This ATX motherboard accepts AMD Ryzen 7000, 8000 and 9000 series processors through the AM5 socket. The X870E chipset unlocks full PCIe 5.0 bandwidth for graphics and storage. Four DDR5 slots support up to 256GB of memory in dual-channel mode. It is built for enthusiasts who need high core counts and fast I/O.

DDR5 Speed by CPU Generation

Maximum memory frequency changes with the installed processor. Ryzen 9000 series reaches 8600 MT/s manual or 8200 MT/s via EXPO. Ryzen 8000 series pushes to 9600 MT/s manual or 9000 MT/s via EXPO. Ryzen 7000 series tops out at 8000 MT/s for both methods. Matching the CPU to the desired memory speed is the critical compatibility check.

Installation Notes

Standard ATX mounting holes align with common chassis. The pre-fitted I/O shield removes one alignment step. Dual ProCool II power connectors require firm seating to deliver up to 90A per stage. Four M.2 slots share bandwidth with the chipset and the primary PCIe 5.0 slot; populate M.2_1 and M.2_2 first to keep the graphics link at x16.

Highlights

  • Supports up to 9600 MT/s DDR5 with Ryzen 8000 series
  • 16+2+2 power stages rated for 90 A each
  • Four M.2 slots including two PCIe 5.0 x4
  • WiFi 7 and 5 Gbps LAN for fast networking
  • ROG SupremeFX 7.1 audio with ALC4080 codec

Specifications

BrandASUS
ModelROG STRIX X870E-A GAMING WIFI7 NEO
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to
8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen 9000 Series Processors,
9600+MT/s(OC)**/9000+MT/s(OC)*** with Ryzen 8000 Series Processors,
8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen 7000 Series Processors,
** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
*** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupports AMD Extended Profiles for Overclocking (EXPO)
Supports DIMM Fit and DIMM Fit Pro
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
1 x PCIe 4.0 x16 slots (supports x8 mode)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
1 x PCIe 4.0 x16 slots (supports x4 mode)
* Specifications vary by CPU types.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)**
AMD Ryzen 8500 & 8300 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (sup
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make s
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps port (1 x USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
1 x AIO Q-Connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature64 MB (512Mb) Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- ASUS AI Advisor
- AIDA64 Extreme (60 days free trial)
- HWiNFO
- ASUS GlideX
- USB Wattage Watcher
- TurboV Core
- Adobe Creative Cloud (Free Trial)
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
UEFI BIOS
Integrated WiFi Driver Support
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEF
FeaturesAsynchronous Clock
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- Dual DIMM clips
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers
Shipping weight2.59 kg
Package size351 × 279 × 71 mm

Questions about this item

What does the 16+2+2 power-stage design deliver for a Ryzen 9000 CPU?

The 16+2+2 phase layout is rated for up to 90A per stage, giving the VRM ample headroom for multi-core Ryzen 9000 processors under sustained loads.

How fast can the primary M.2 slot run with a Ryzen 9000 processor?

M.2_1 operates at PCIe 5.0 x4 with Ryzen 9000 and 7000 series CPUs, providing the full 5.0 bandwidth for compatible drives.

What cooler clearance does the integrated I/O cover and heatsink arrangement allow?

The massive heatsinks with integrated I/O cover are designed to clear standard AM5 coolers while covering the VRM and M.2 zones.
