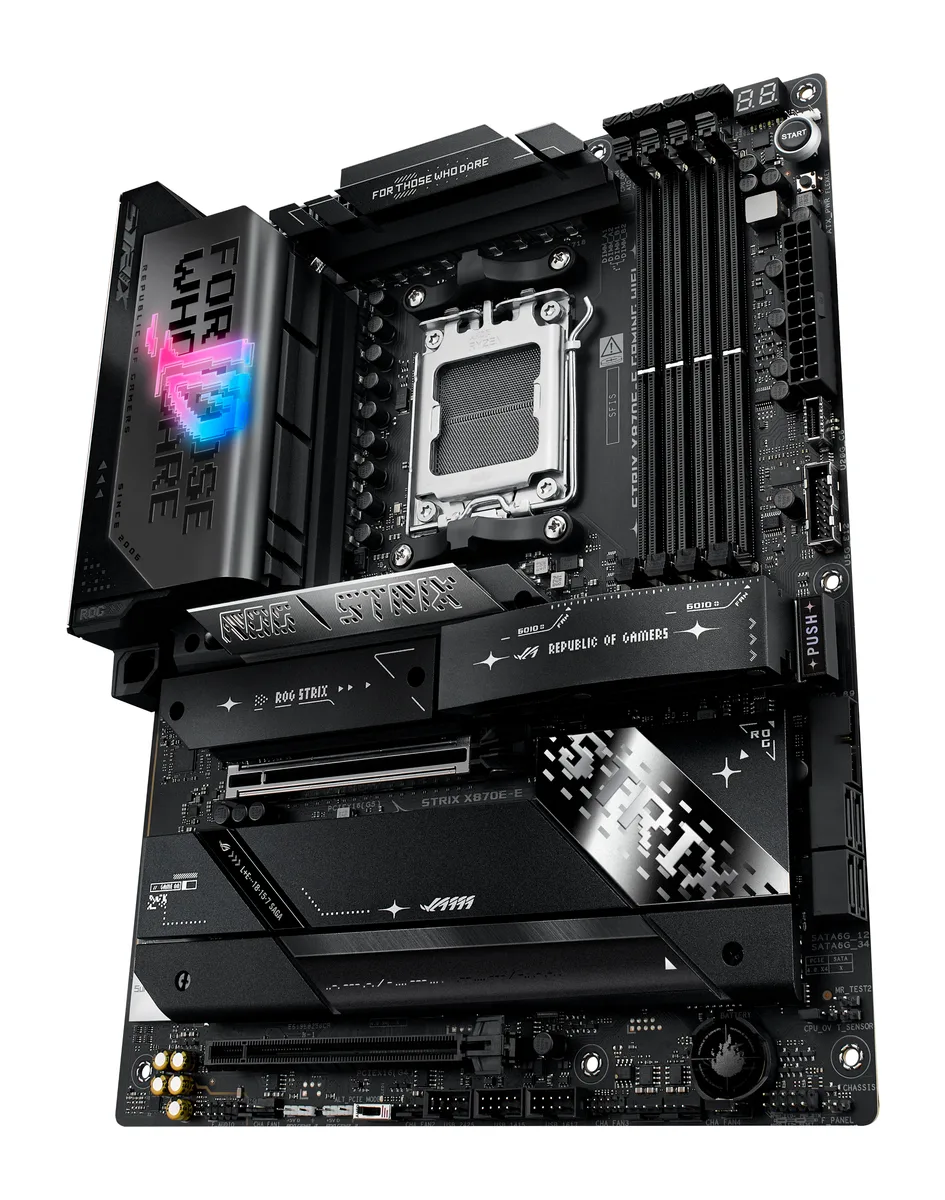

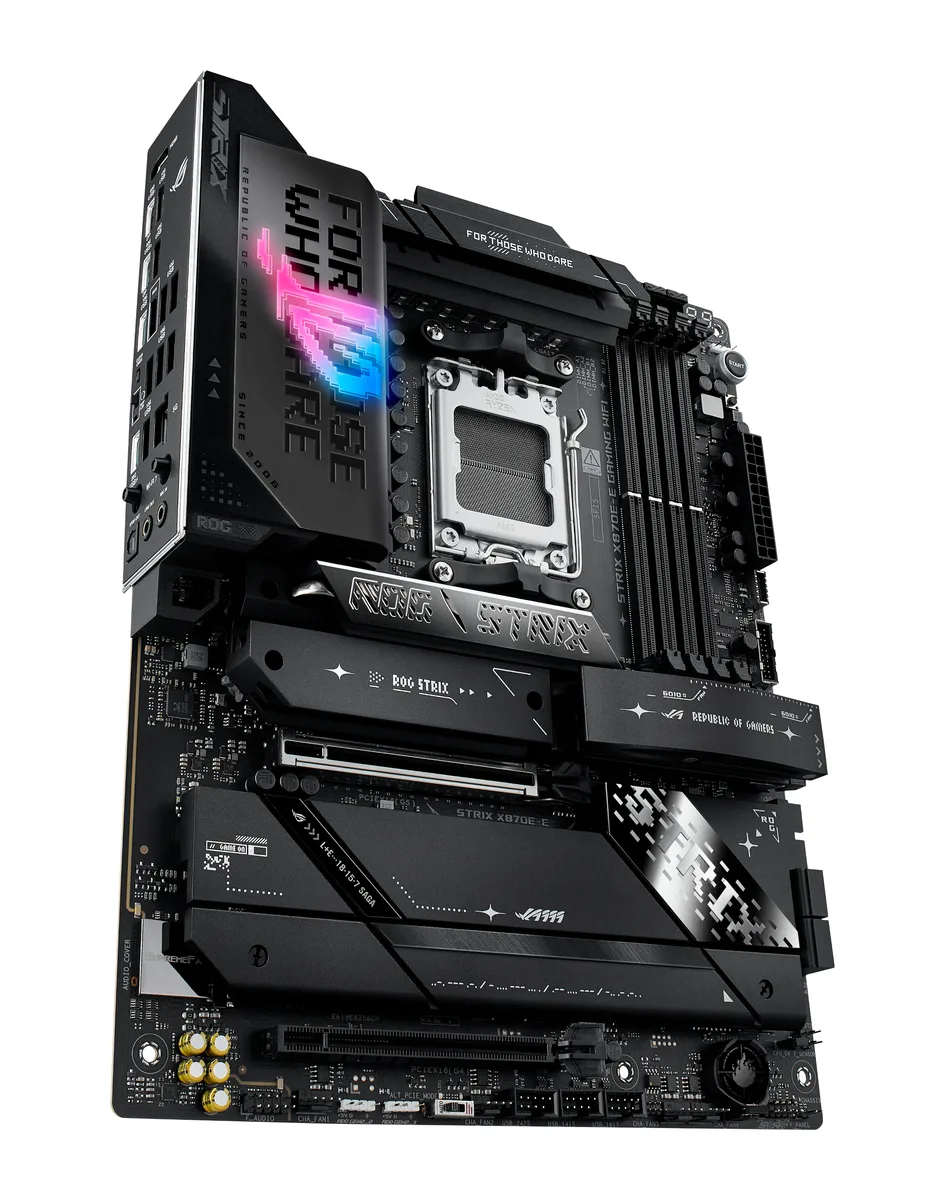

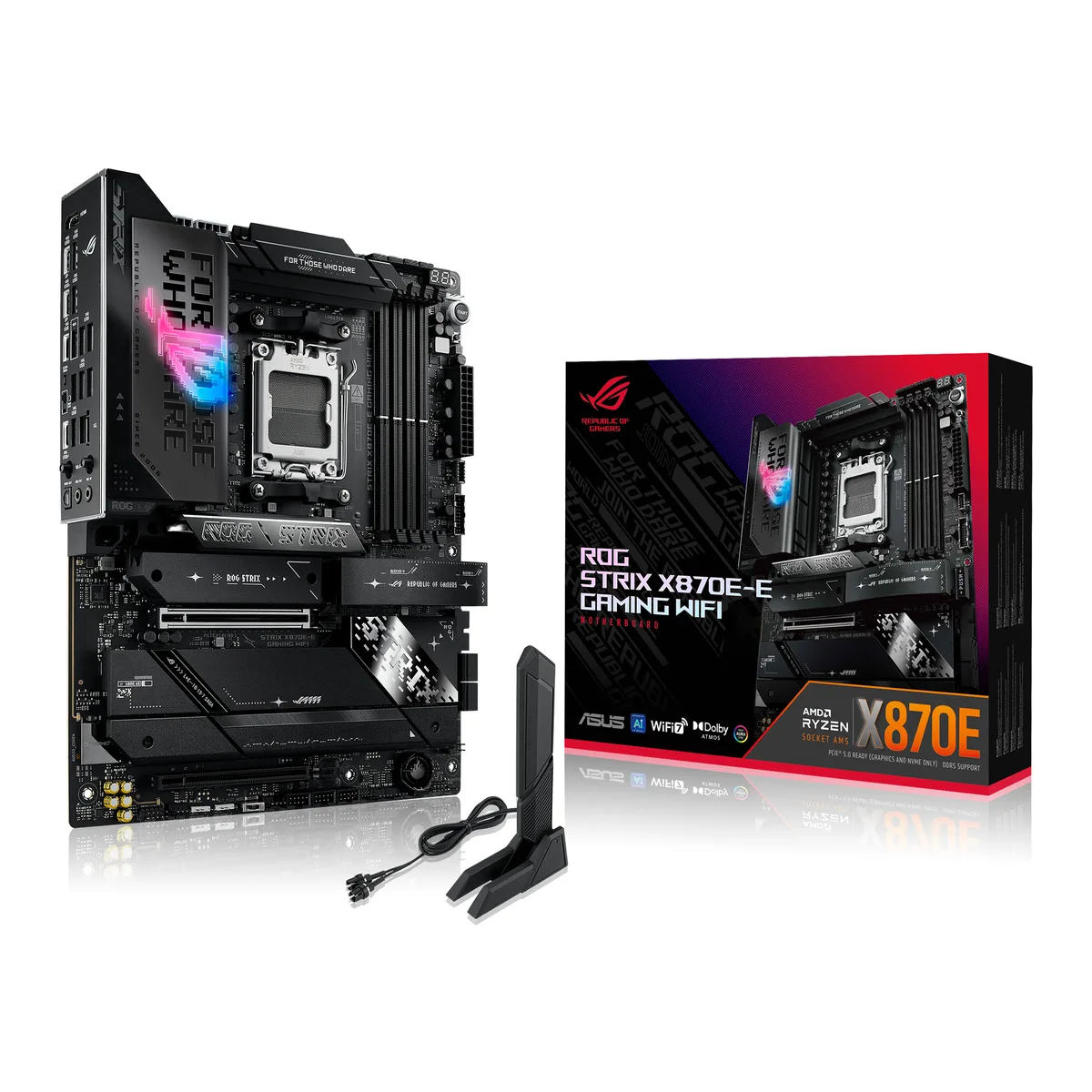

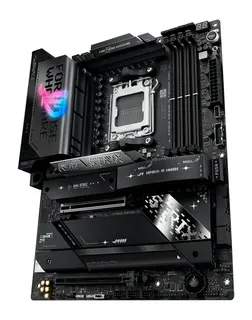

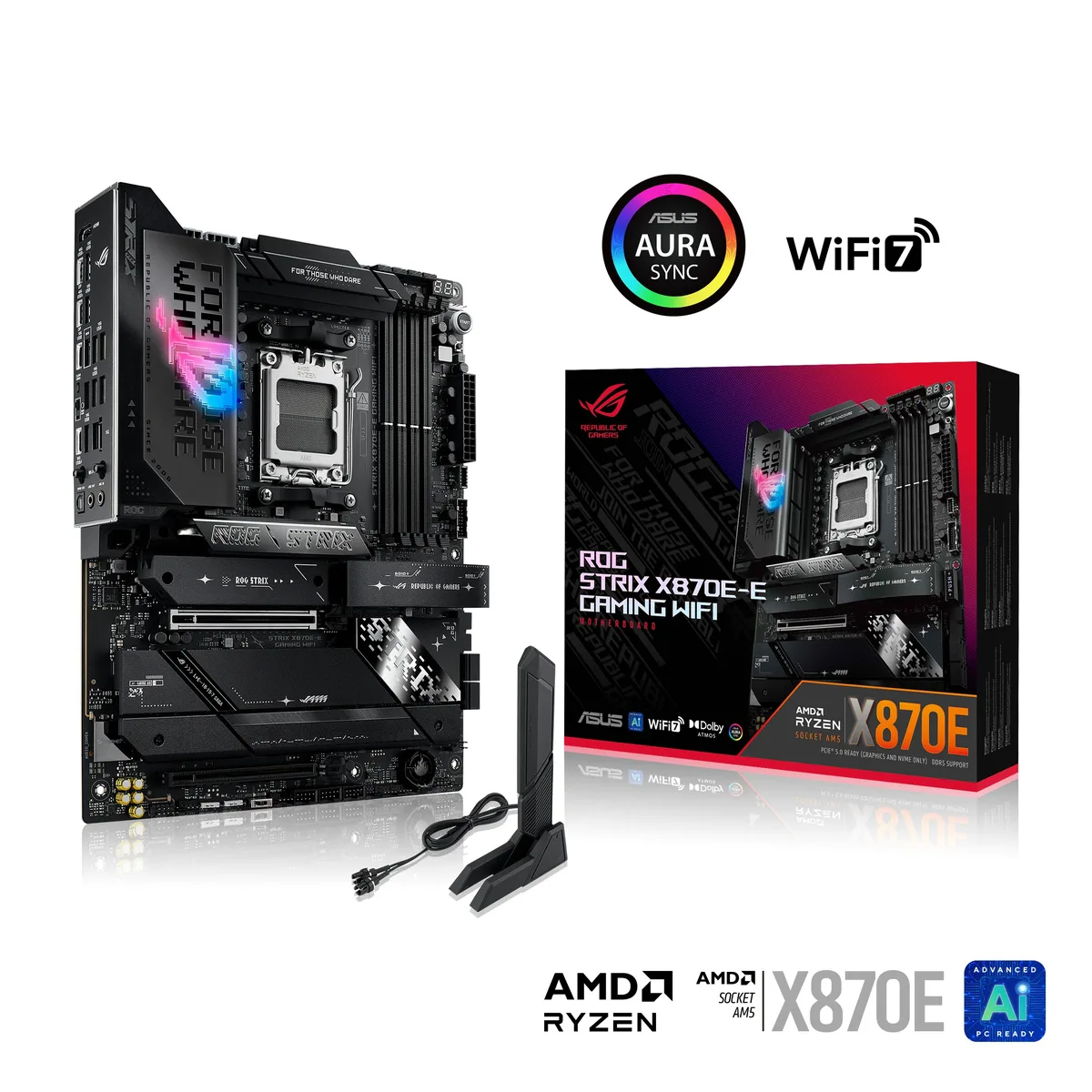

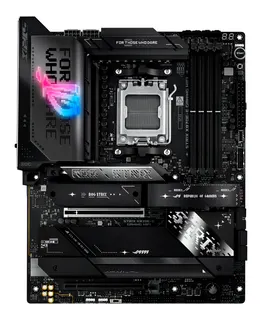

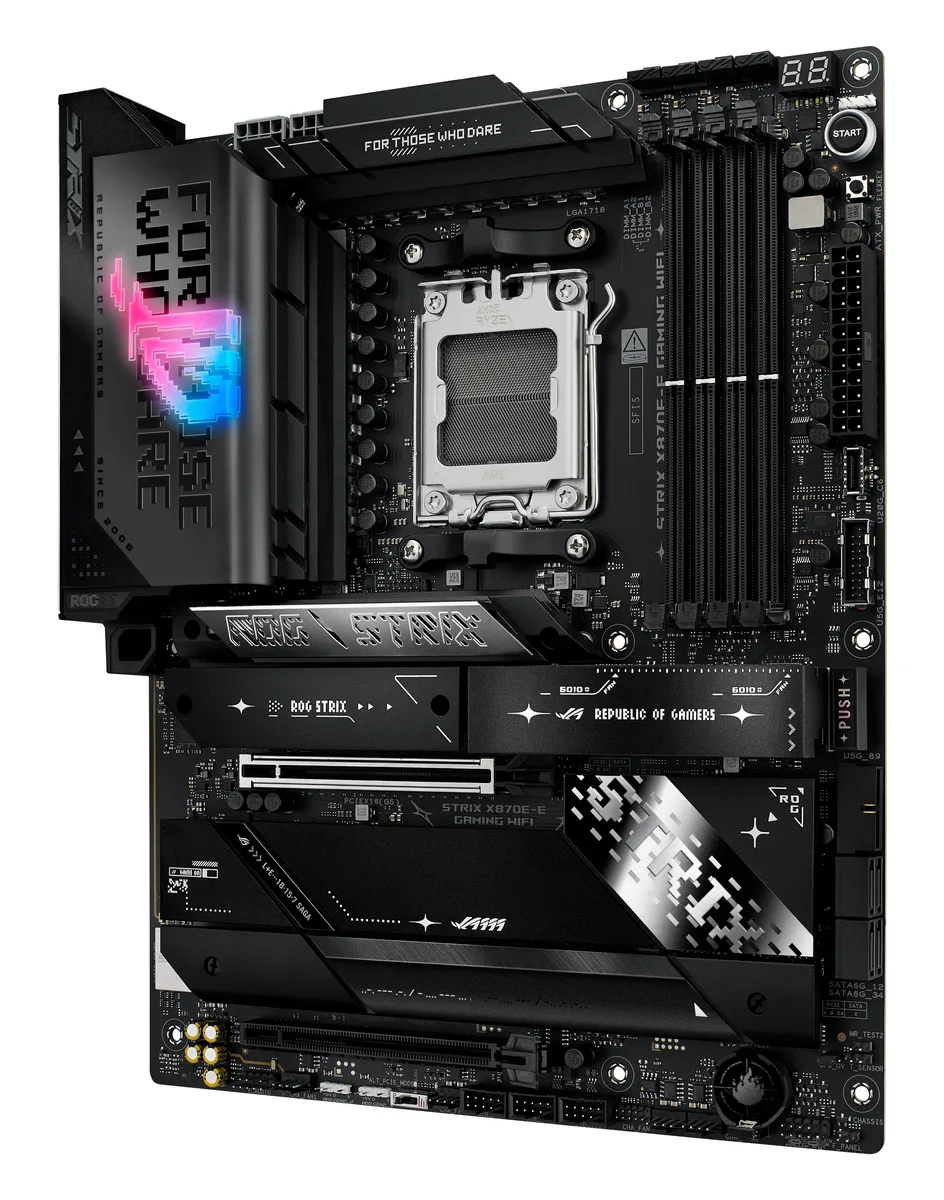

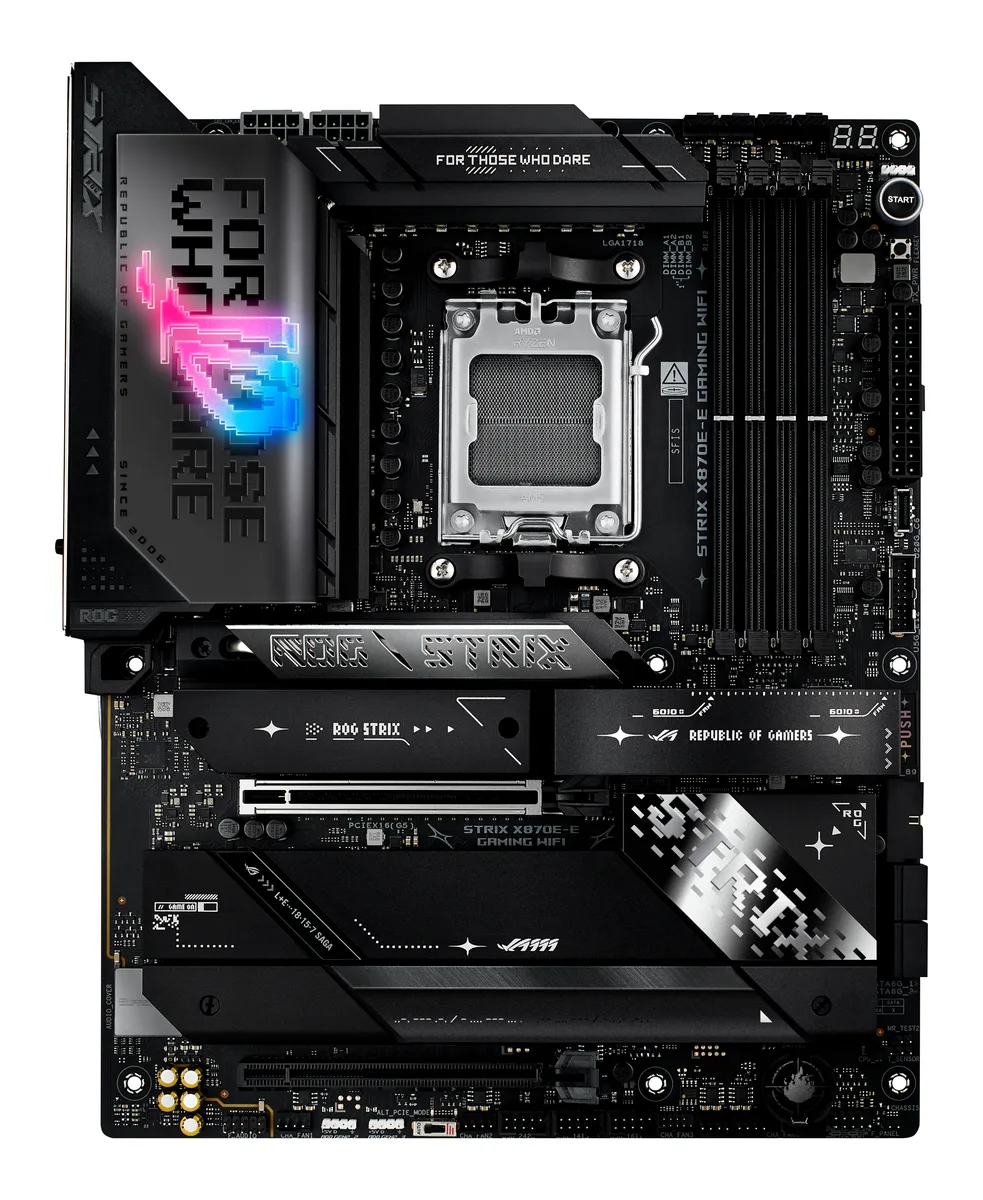

Rectangular ATX motherboard, dark grey finish, large CPU socket cover, four DDR5 slots, multiple M.2 heatsinks

ASUS

ASUS ROG STRIX X870E-E GAMING WIFI AMD AM5 X870 ATX motherboard

SKU CH-Z0Q9-AF6GA MPN ROG STRIX X870E-E GAMING WIFI

ATX board for AM5 Ryzen 7000, 8000 and 9000 CPUs with 18+2+2 power stages, DDR5 up to 8400 MT/s, WiFi 7, three PCIe 5.0 M.2 slots, dual USB4 and AI overclocking tools

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • Supports Ryzen 7000 8000 9000 series processors via AM5 socket
  • 18+2+2 power stages rated at 110A each for multi-core stability
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots with heatsinks
  • Dual USB4 Type-C ports and USB 20Gbps front-panel connector for fast I/O
  • AI Overclocking AI Cooling II AI Networking and AEMP simplify tuning

AM5 Platform Ready

The ROG STRIX X870E-E GAMING WIFI is an ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors. It targets enthusiasts who want a full feature set for high-end gaming or workstation builds. The board delivers robust power delivery and extensive connectivity for demanding workloads.

AI Tools And Connectivity

ASUS AI Overclocking, AI Cooling II and AI Networking automate tuning, fan curves and traffic prioritisation. AEMP profiles optimise compatible DDR5 kits without manual intervention. Dual USB4 Type-C ports, a USB 20Gbps front-panel header and a USB 10Gbps port with 30W PD 3.0 charging expand peripheral options.

18+2+2 Power Stages Rated 110A

The voltage regulator module uses eighteen plus two plus two power stages rated for 110A each, fed by dual ProCool II connectors. This design sustains high current for multi-core Ryzen CPUs during extended loads. Buyers planning heavy all-core overclocks should verify their cooler and case airflow match this power density.

Highlights

  • Supports Ryzen 7000 8000 9000 series processors via AM5 socket
  • 18+2+2 power stages rated at 110A each for multi-core stability
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots with heatsinks
  • Dual USB4 Type-C ports and USB 20Gbps front-panel connector for fast I/O
  • AI Overclocking AI Cooling II AI Networking and AEMP simplify tuning

Specifications

BrandASUS
ModelROG STRIX X870E-E GAMING WIFI
Part Number90MB1IB0-M0AAY0
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to
8000+MT/s(OC) with Ryzen 9000 Series Processors,
8400+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
PCI Express 5.0 x16AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slots (supports x16 mode)
PCI Express 4.0 x16AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
SATA RAID*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Shipping weight2.86 kg
Package size356 × 279 × 89 mm

Questions about this item

Will the 110 A power stages or the dual ProCool II connectors need replacement after heavy overclocking?

The 18+2+2 power solution uses stages rated for 110 A each and dual ProCool II connectors built for sustained high current; no user-replaceable parts are specified for this VRM area.

Which thermal limit appears first on the M.2_1 slot running PCIe 5.0 x4 continuously?

The primary M.2_1 slot operates at PCIe 5.0 x4 and includes a substantial heatsink; under sustained load the drive's own thermal throttle typically activates before the motherboard's cooling saturates.

How loud are the VRM and chipset fans when the board runs AI Cooling II all day?

AI Cooling II manages fan curves automatically; with the robust 18+2+2 VRM heatsinks and chipset heatsink, acoustic output stays low during typical all-day workloads.
