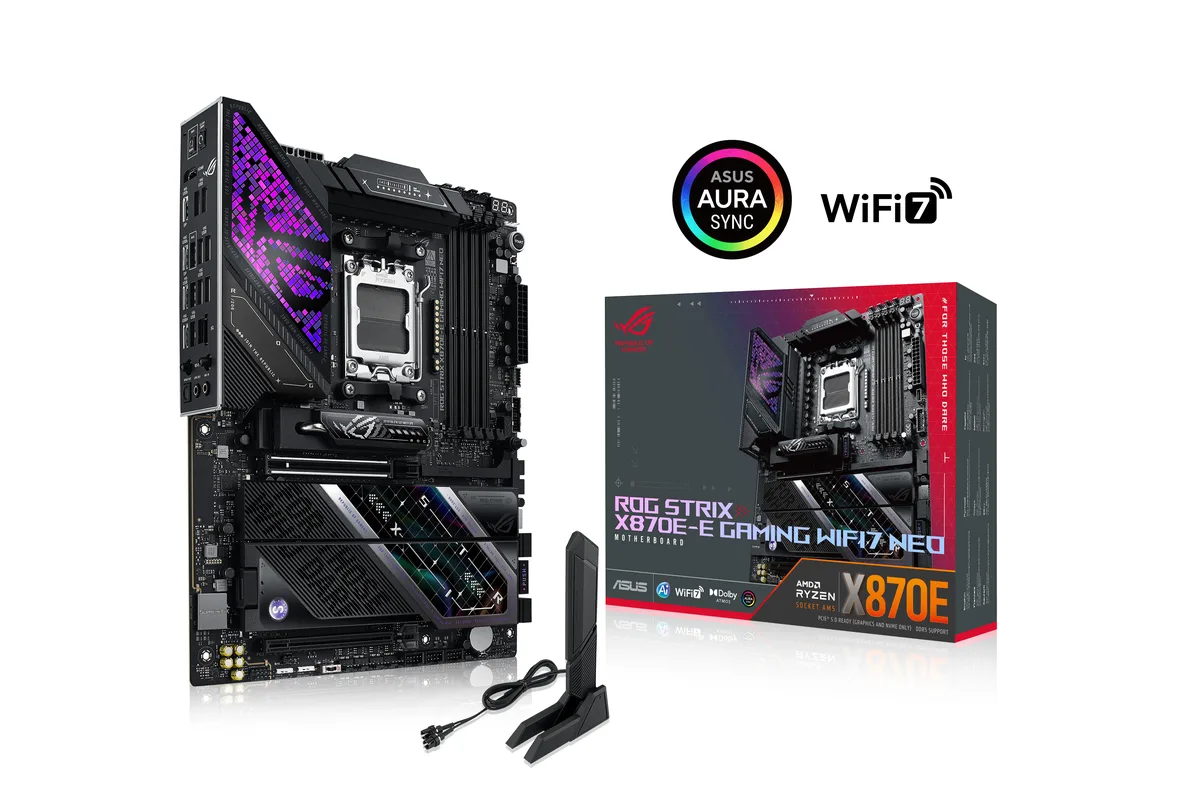

Black ATX motherboard with silver heatsinks and integrated rear I/O cover

ASUS

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO AMD motherboard

SKU CH-J59P-8YPPW MPN ROG STRIX X870E-E GAMING WIFI7 NEO

AM5 motherboard with 18+2+2 power stages, five M.2 slots, PCIe 5.0 x16, WiFi 7 and dual USB4 for Ryzen 7000, 8000 and 9000 series CPUs

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 S
  • Maximum Memory Supported256GB
  • Ready for advanced AI workloads with dedicated AI Cache Boost technology
  • 18+2+2 power stages rated up to 110A each for stable multi-core performance
  • Five M.2 slots including two PCIe 5.0 x4 for high-speed storage expansion
  • DDR5 memory support up to 9600 MT/s with AEMP and NitroPath DRAM technology
  • WiFi 7 and dual USB4 connectivity for next-generation wireless and wired speeds

AM5 Socket for Ryzen 9000, 8000, 7000 Series

This ATX motherboard accepts AMD Ryzen 9000, 8000 and 7000 series processors through the AM5 socket. It is built for users who want a high-end platform with extensive connectivity and AI-focused features. The 18+2+2 power stage design rated at 110A per stage supports multi-core workloads. A 64MB BIOS chip provides broad CPU compatibility out of the box.

Four DDR5 Slots up to 256GB with Five M.2 Slots

Four 288-pin DDR5 slots support up to 256GB in dual-channel mode with AMD EXPO and AEMP profiles. Memory speeds reach 9600+ MT/s OC with Ryzen 8000 series and 8600+ MT/s OC with Ryzen 9000 series. Five M.2 slots include two PCIe 5.0 x4 slots for 2242/2260/2280 drives and three PCIe 4.0 slots, all with substantial heatsinks. A PCIe 5.0 x16 slot and a PCIe 4.0 x4 slot handle graphics and add-in cards. Four SATA 6Gb/s ports and dual USB4 ports complete the storage and I/O layout.

Massive Heatsinks with Heatpipe and M.2 Combo-Sink

Large heatsinks with an integrated I/O cover, high-conductivity thermal pads and an L-shaped heatpipe dissipate heat from the power delivery during sustained operation. The M.2 Combo-Sink uses a direct-contact U-shaped heat pipe to keep all five M.2 drives cool during extended transfers. AI Cooling II manages fan curves based on system temperatures. The server-grade low-etch PCB and NitroPath DRAM technology maintain signal integrity for stable DDR5 operation at high frequencies over long sessions.

Highlights

  • Ready for advanced AI workloads with dedicated AI Cache Boost technology
  • 18+2+2 power stages rated up to 110A each for stable multi-core performance
  • Five M.2 slots including two PCIe 5.0 x4 for high-speed storage expansion
  • DDR5 memory support up to 9600 MT/s with AEMP and NitroPath DRAM technology
  • WiFi 7 and dual USB4 connectivity for next-generation wireless and wired speeds

Specifications

BrandASUS
SeriesROG STRIX
ModelROG STRIX X870E-E GAMING WIFI7 NEO
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to
8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 Series Processors
9600+MT/s(OC)/9000+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / ASUS Enhanced Memory Profile (AEMP)
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors
1 x PCIe 4.0 x16 slots (supports x8 mode)
AMD Ryzen 8500 & 8300 Series Desktop Processors
1 x PCIe 4.0 x16 slots (supports x4 mode)
PCI Express 4.0 x16AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
AMD Ryzen 8500 & 8300 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_3 slot (Key M), ty
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
Audio ChipsetRealtek ALC4080
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Supports LHDC, high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate and 2
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C with DP Alt mode)
11 x USB 10Gbps port(s) (9 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB2 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
5 x 4-pin Chassis Fan header(s)
1 x AIO Q-Connector
Miscellaneous
3 x Addressable RGB Gen 2 header(s)
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature64MB (512Mb) Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Polymo Lighting
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- ASUS AI Advisor
- AIDA64 Extreme (60 days free trial)
- HWiNFO
- ASUS GlideX
- USB Wattage Watcher
- TurboV Core
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
Integrated WiFi Driver Support
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ
Windows 11Supported
FeaturesAsynchronous Clock
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- Dual DIMM clips
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 header(s)
Package ContentsCables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x DDR5 fan holder
1 x Screw package for cooling kit
1 x ROG assistant fan (60mm)
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
5 x M.2 rubber package(s)
Documentation
1 x Quick start guide
Shipping weight2.74 kg
Package size358 × 287 × 89 mm

Questions about this item

How much power can the 18+2+2 stage VRM deliver before it becomes the thermal limit?

The 18+2+2 power solution is rated for up to 110A per stage with dual ProCool II connectors, alloy chokes and durable capacitors to support multi-core processors.

What noise or heat should I expect from the board itself when the system runs all day?

Massive heatsinks with an integrated I/O cover, high-conductivity thermal pads, an L-shaped heatpipe and an M.2 Combo-Sink with a direct-contact U-shaped heat pipe handle board-level cooling.

Which DDR5 memory kit do I need to have on hand before this motherboard will post?

Four 288-pin DDR5 slots support up to 256GB in dual channel with AMD EXPO and AEMP profiles; validated speeds reach 9600+ MT/s OC with Ryzen 8000 series CPUs.
