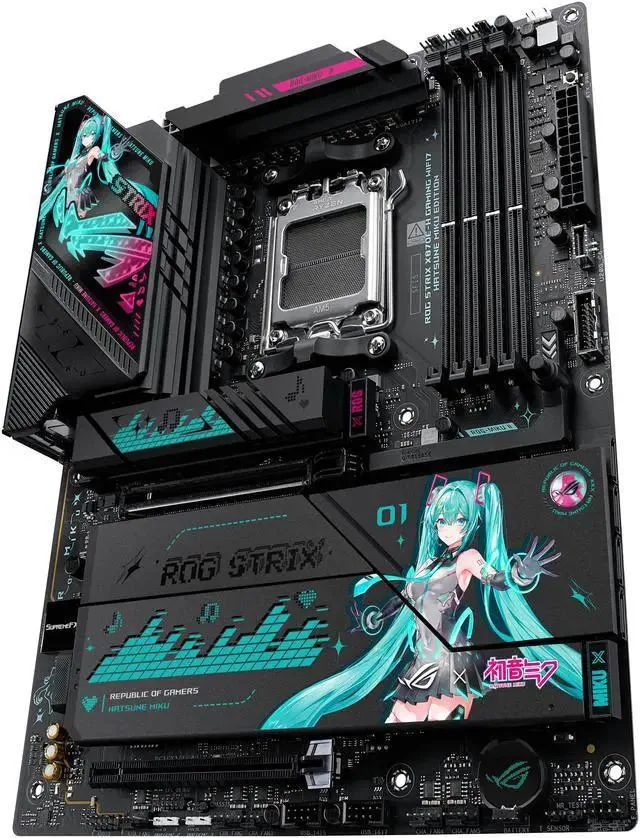

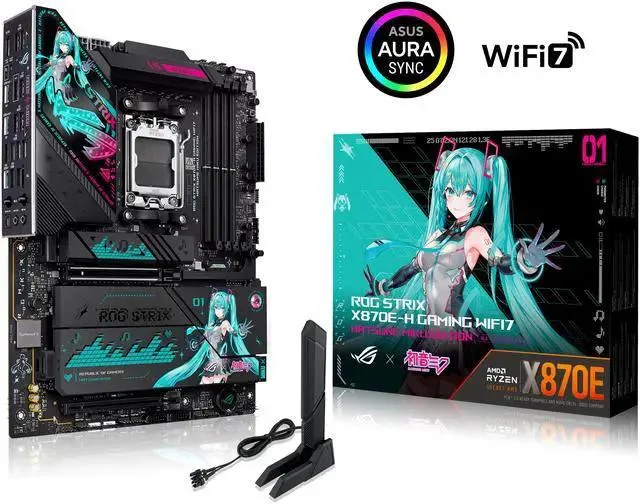

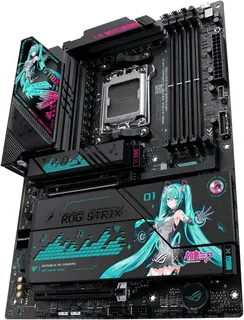

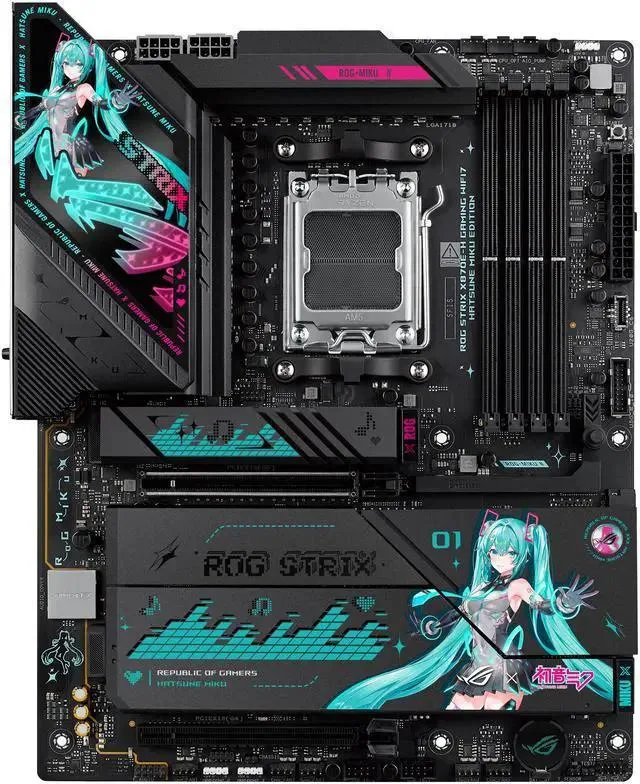

ATX motherboard in teal and pink with large heatsinks and integrated rear I/O cover

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION AMD motherboard

SKU CH-KYMS-5QWEM

ATX motherboard for AMD AM5 processors with 16+2+1 power stages, DDR5 up to 8000 MT/s, WiFi 7, Bluetooth 5.4, four M.2 slots including two PCIe 5.0, dual USB4 and USB 10Gbps Type‑C

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC)
  • Maximum Memory Supported256GB
  • Supports Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • 16+2+1 power stages rated 80A with dual ProCool II connectors for stable multi-core operation
  • Massive heatsinks with integrated I/O cover and high-conductivity thermal pads keep temperatures low
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
  • Dual USB4 Type-C ports plus USB 20Gbps front-panel and USB 10Gbps rear with 30W PD 3.0

AMD X870E Platform

The ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION is an ATX motherboard built for AMD Ryzen 9000, 8000 and 7000 series processors on the AM5 socket. It delivers a 16+2+1 power stage design rated at 80A per stage with dual ProCool II connectors for stable multi-core operation. The board targets enthusiasts who want extensive connectivity and AI-assisted tuning in a distinctive theme.

DDR5 Memory Limits

Four 288-pin slots support dual-channel DDR5 up to 256GB total capacity with overclocked speeds reaching 8000 MT/s. The platform relies on the CPU memory controller, so maximum frequency and stability vary by processor generation and module quality. AEMP profiles simplify configuration, yet manual tuning remains necessary to push beyond rated JEDEC speeds.

Expansion And Storage Headroom

One PCIe 5.0 x16 slot and two PCIe 5.0 M.2 slots provide full bandwidth for Ryzen 9000 and 7000 CPUs, while Ryzen 8000 drops the primary slot to PCIe 4.0 x8 and the M.2 slots to PCIe 4.0. Two additional PCIe 4.0 M.2 slots and four SATA 6Gb/s ports add capacity for mixed drive configurations. Dual USB4 Type-C and a rear USB 10Gbps Type-C with 30W PD handle high-speed peripherals, while 5Gbps LAN and WiFi 7 cover networking.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • 16+2+1 power stages rated 80A with dual ProCool II connectors for stable multi-core operation
  • Massive heatsinks with integrated I/O cover and high-conductivity thermal pads keep temperatures low
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
  • Dual USB4 Type-C ports plus USB 20Gbps front-panel and USB 10Gbps rear with 30W PD 3.0

Specifications

BrandASUS
ModelROG STRIX X870E-H GAMING WIFI7
Part Number90MB1MA0-MVAAY0
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Questions about this item

What DDR5 speed and capacity does the ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION support?

The board has four 288-pin DDR5 slots running in dual-channel mode, supports up to 8000+ MT/s when overclocked, and accepts a maximum of 256 GB total memory.

What does the 16+2+1 power stage design rated at 80 A per stage deliver for a Ryzen 9000 series CPU?

It provides a robust 16+2+1 phase VRM fed by dual ProCool II connectors, using high-quality alloy chokes and durable capacitors to sustain multi-core workloads without throttling.

Which M.2 slots run at PCIe 5.0 x4 and which run at PCIe 4.0 on this X870E motherboard?

Two M.2 slots operate at PCIe 5.0 x4 (M.2_1 supports 2242/2260/2280; M.2_2 supports 2280/22110) and the remaining two run at PCIe 4.0 x4, all with substantial heatsinks.
