ASUS
ASUS ROG STRIX X870E-H S MIKU AMD motherboard combo with Ryzen 7 9700X
Hatsune Miku themed X870E board paired with Ryzen 7 9700X CPU, 360 mm liquid cooler, keyboard and headset in one box
- CPU Socket TypeAM5
- CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
- ChipsetAMD X870E
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardSupports up to 8000+MT/s(OC)
- Maximum Memory Supported256GB
CPU +R7 9700X
- +R7 9700X
- +R9 9950X3D
Struck-through versions exist but are not stocked here.
- Hatsune Miku themed bundle includes motherboard CPU cooler keyboard and headset
- Ryzen 7 9700X processor delivers 100+ FPS gaming performance
- X870E chipset with 16+2+1 power stages rated for 80A each
- DDR5 memory support up to 8000 MT/s and 256GB capacity
- Dual USB4 ports and Wi-Fi 7 plus Bluetooth 5.4 connectivity
Combo overview

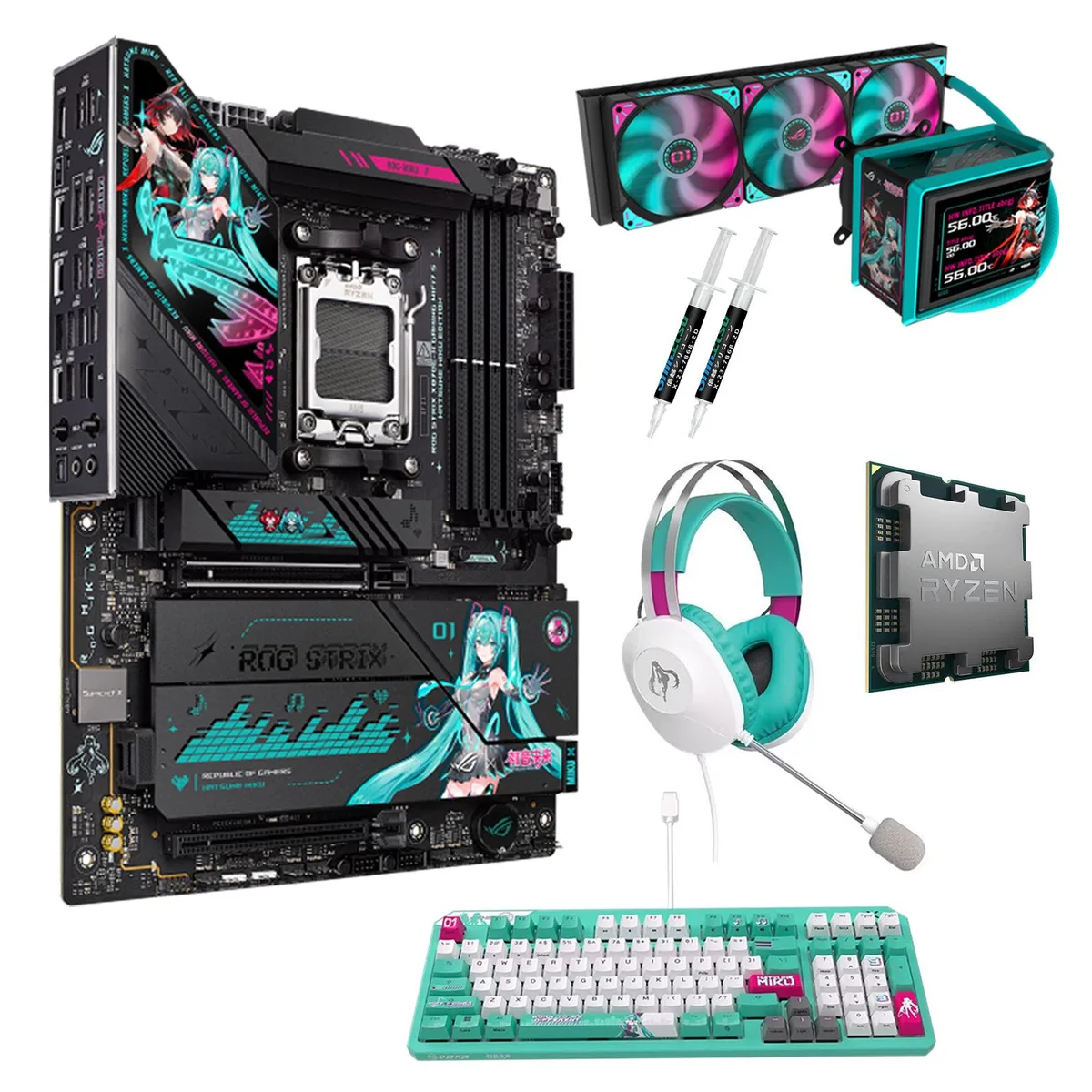

This bundle pairs an ASUS ROG STRIX X870E-H S MIKU motherboard with a Ryzen 7 9700X processor, a 360 mm liquid cooler, thermal paste, a themed keyboard and a themed headset. It targets builders who want a coordinated AM5 platform with matching Hatsune Miku aesthetics and high-end connectivity in a single purchase.
Interface limits
The board runs on the AMD X870E chipset with dual-channel DDR5 support up to 8000 MT/s and a 256 GB capacity ceiling. PCIe 5.0 x16 graphics bandwidth is available with Ryzen 9000 and 7000 series CPUs, while Ryzen 8000 series drops to PCIe 4.0 x8 or x4 mode. Two M.2 slots operate at PCIe 5.0 x4 and two at PCIe 4.0 x4, all with dedicated heatsinks. Rear I/O includes dual USB4 Type-C ports, one USB 10 Gbps Type-C with 30 W PD 3.0, three additional USB 10 Gbps ports, 5 Gbps LAN, WIFI7 and Bluetooth 5.4.
Upgrade context
The combo replaces a piecemeal AM5 build by supplying motherboard, CPU, cooler, paste and peripherals together. The jump is worthwhile when moving from an older socket or when a unified thermal and aesthetic package saves assembly time and guarantees component compatibility. The 16+2+1 power stage design rated for 80 A per stage supports multi-core workloads, while AI Advisor, AI Cache Boost, AI Cooling II and AI Networking II automate tuning for AI-ready desktop tasks.
Highlights
- Hatsune Miku themed bundle includes motherboard CPU cooler keyboard and headset
- Ryzen 7 9700X processor delivers 100+ FPS gaming performance
- X870E chipset with 16+2+1 power stages rated for 80A each
- DDR5 memory support up to 8000 MT/s and 256GB capacity
- Dual USB4 ports and Wi-Fi 7 plus Bluetooth 5.4 connectivity
Specifications
| Brand | ASUS |
|---|---|
| Model | ROG STRIX X870E-H S MIKU+(R7 9700X) |
| Part Number | ROG STRIX X870E-H S MIKU+(R7 9700X) |
| CPU Socket Type | AM5 |
| CPU Type | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Supports up to 8000+MT/s(OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)* AMD Ryzen 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2280/22110 (Not supports)** AMD X870E Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) * M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu |
| SATA RAID | AMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| Audio Chipset | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |
| Back I/O Ports | 2 x USB4 (40Gbps) ports(2 x USB Type-C) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge) 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst ASUS AI Advisor ASUS DriverHub - AIDA64 Extreme (60 days free trial) - HWiNFO ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
| Windows 11 | Supported |
| Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync -Addressable RGB Gen 2 headers |
Questions about this item
Should I pick the combo or the board alone?

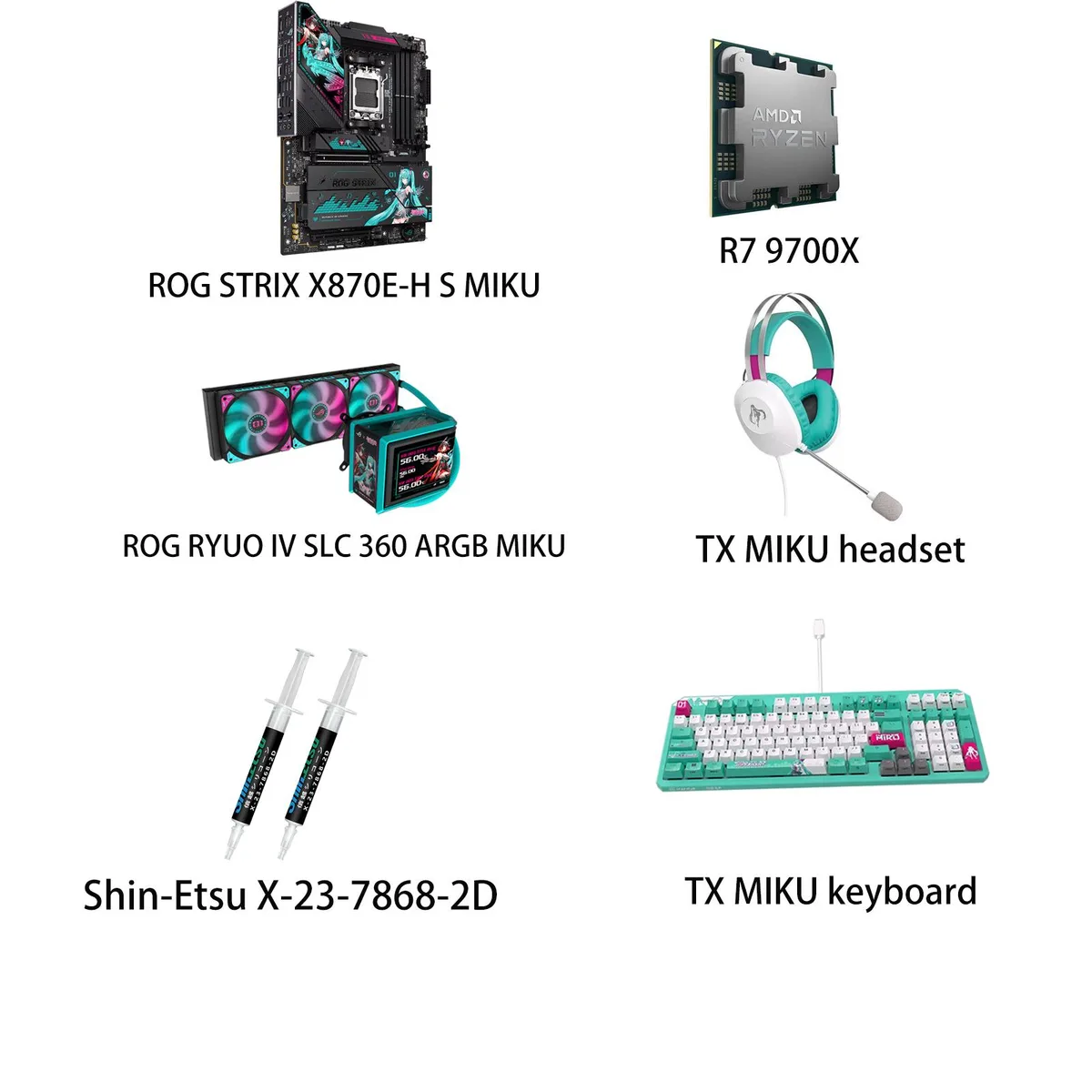

The combo bundles the ROG STRIX X870E-H S MIKU motherboard with a Ryzen 7 9700X processor, ROG RYUO IV SLC 360 ARGB MIKU cooler, Shin-Etsu X-23-7868-2D thermal paste, a TX MIKU keyboard and a TX MIKU headset.
What does the 8000+ MT/s memory rating mean once the PC is built?
The board supports DDR5 up to 8000+ MT/s when overclocked, with four slots for a maximum of 256 GB in dual-channel mode. Actual speed depends on the CPU memory controller and the modules installed.
What does the dual USB4 interface cap in practice?
Two USB4 Type-C ports are provided on the rear I/O, plus a front-panel USB 20Gbps Type-C header and one rear USB 10Gbps Type-C port with PD 3.0 up to 30 W.
