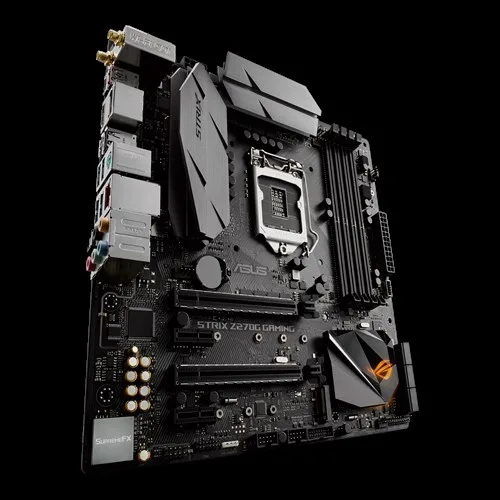

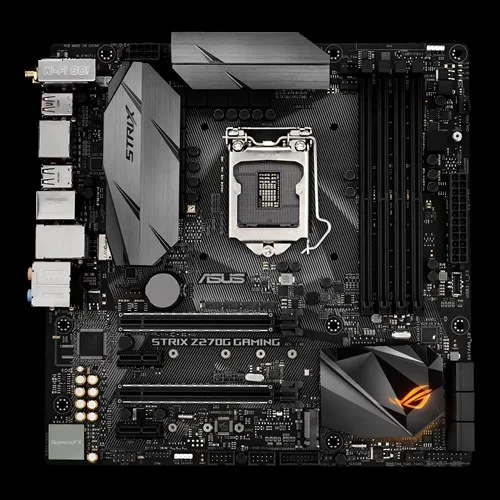

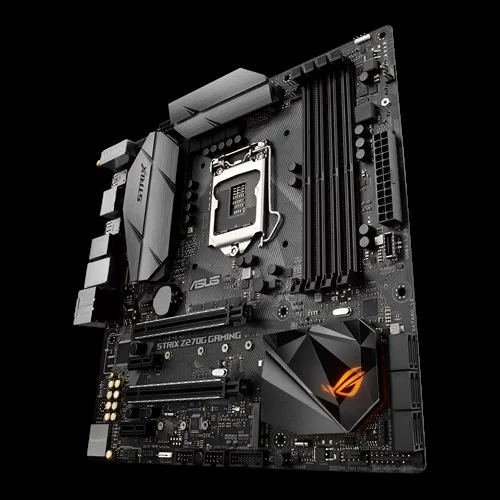

Compact mATX motherboard in dark finish with RGB accents and I/O shield

ASUS

ASUS ROG STRIX Z270G GAMING Intel Motherboard

SKU CH-ED22-T00PT

A compact mATX board for LGA 1151 CPUs with dual M.2 slots, RGB lighting and onboard Wi-Fi

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0 * Not Compatible with Intel 8th G
  • ChipsetIntel Z270
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics supportMul
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 7th Gen Intel Core processors via LGA 1151 socket
  • Dual M.2 slots with PCIe 3.0 x4 and SATA modes for fast storage
  • 64 GB maximum DDR4 memory across four slots for heavy multitasking
  • Intel I219-V Gigabit LAN plus dual-band Wi-Fi 802.11 a/b/g/n/ac with MU-MIMO
  • ROG SupremeFX S1220A 8-channel audio with Aura RGB lighting control

Socket LGA 1151 mATX board

The ASUS ROG STRIX Z270G GAMING is an Intel Z270 motherboard built for the LGA 1151 socket. It accepts Core i7, i5, i3, Pentium and Celeron processors and delivers four DDR4 slots supporting up to 64 GB in dual-channel mode. The mATX form factor fits compact gaming chassis while still providing two PCIe 3.0 x16 slots and two M.2 sockets.

Builders needing native 8th-generation support

This board is not compatible with Intel 8th Gen CPUs, so buyers planning a Coffee Lake upgrade cannot use it. It suits enthusiasts staying on 6th or 7th generation chips who want overclocking headroom, SupremeFX S1220A audio and onboard 802.11 a/b/g/n/ac Wi-Fi with MU-MIMO. Users requiring more than two M.2 drives or a full-size ATX layout will need a different platform.

Dual M.2 sockets with PCIe 3.0 x4 wiring

One M.2 socket accepts both SATA and PCIe 3.0 x4 modules in 2242, 2260 and 2280 lengths, while the second supports PCIe 3.0 x4 drives up to 21100 length. This arrangement lets you install a fast boot drive and a high-capacity secondary SSD without sacrificing a PCIe slot.

Highlights

  • Supports 7th Gen Intel Core processors via LGA 1151 socket
  • Dual M.2 slots with PCIe 3.0 x4 and SATA modes for fast storage
  • 64 GB maximum DDR4 memory across four slots for heavy multitasking
  • Intel I219-V Gigabit LAN plus dual-band Wi-Fi 802.11 a/b/g/n/ac with MU-MIMO
  • ROG SupremeFX S1220A 8-channel audio with Aura RGB lighting control

Specifications

BrandASUS
ModelSTRIX Z270G GAMING
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU TechnologiesTurbo Boost Technology 2.0 * Not Compatible with Intel 8th Gen CPUs
ChipsetIntel Z270
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics supportMulti-VGA output support: DisplayPort/HDMI/DVI-D portsSupports DisplayPort 1.2* with max. resolution 4096 x 2304@60HzSupports HDMI 1.4b with max. resolution 4096 x 2304@24HzSupports DVI-D with max. resolution 1920 x 1200@60Hz Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/InsiderSupports up to 3 displays simultaneouslyMaximum shared memory of 1024MB* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8)2 x PCIe 3.0/2.0 x1 slot
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x 4 mode)1 x M.2_2 Socket 3 with M key, type 2242/2260/2280/21100 storage devices support (PCIE 3.0 x 4 mode)
Audio ChipsetROG SupremeFX S1220A
Audio Channels8 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz with MU-MIMO support
BluetoothBluetooth v4.1, 4.0LE, 3.0+HS
PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
RJ451 x Anti-surge LAN (RJ45) port
DisplayPort1 x DisplayPort
USB 3.12 x USB 3.1 ports (1 x typeA [red] and 1 x TypeC [black])
USB 3.04 x USB 3.0
USB 1.1/2.02 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports5 Ports
Antenna Connectors1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)
Onboard USB1 x USB 3.1 front panel connector1 x USB 3.0 connector supports additional 2 x USB 3.0 ports2 x USB 2.0 connectors support additional 4 x USB 2.0 ports
Other Connectors1 x 4-Pin CPU_FAN connector1 x 4-Pin CPU_OPT fan connector1 x 4-Pin W_PUMP+ connector2 x 4-Pin CHA_FAN connectors1 x 24-pin EATX power connector1 x 8-pin EATX 12V power connector1 x Front panel audio connector (AAFP)1 x TPM connector2 x RGB Header1 x Clear CMOS jumper1 x Thermal sensor connector1 x System panel connector1 x CPU_OV jumper
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin24 Pin
FeaturesMulti-GPU Support:Supports NVIDIA® 2-Way SLI™ TechnologySupports AMD® 2-Way CrossFireX™ TechnologyROG Exclusive Features:ROG RAMCache IIROGGameFirst TechnologyROG CPU-ZROG OverwolfROG ClonedrivePerformance Optimization5-Way Optimization- Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages.DIGI+ Power Control- Digi+VRMEPU- EPUTPU- Auto Tuning, TurboV, GPU BoostFan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlA
Package ContentsAccessories:User guideROG motherboard support DVD1 x I/O Shield2 x 2-in-1 SATA 6Gb/s cables1 x SLI HB BRIDGE (2-WAY-S)1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)1 x RGB LED extension cable1 x CPU Installation tool1 x ROG cable label set1 x ROG Strix sticker1 x 3D Printing Mount2 x M.2 screws kit1 x ROG Coaster

Questions about this item

Will the 4-pin PWM fan headers controlled by FanXpert 4 need periodic cleaning or replacement under continuous operation?

FanXpert 4 manages the 4-pin PWM headers on this board; the fans themselves may need dust cleaning over time, but the motherboard headers are solid-state and do not wear out.

Which thermal limit appears first when the 8-phase VRM runs an overclocked Core i7 at full load for hours?

The 8-phase VRM with heatsinks will hit its thermal throttle point before the chipset or M.2 drives under sustained heavy load.

How loud do the VRM and chipset fans get when the board runs 24/7 with Aura RGB enabled?

This mATX board uses passive heatsinks on the VRM and chipset, so there are no dedicated fans to generate noise; only case fans attached to the 4-pin headers will be audible.
