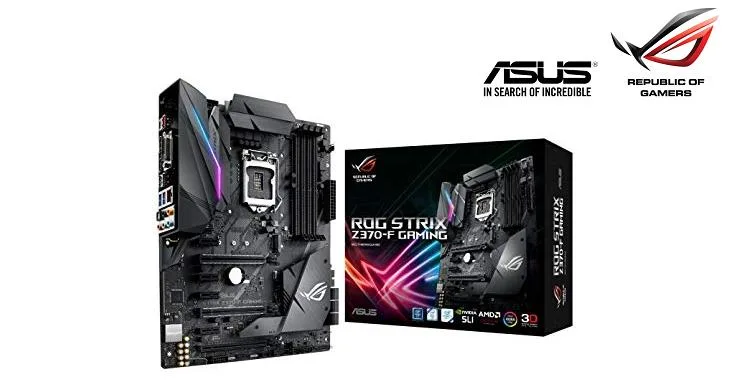

Black ATX motherboard with silver heatsinks, reinforced PCIe slots, and an M.2 shield

ASUS

ASUS ROG Strix Z370-F Gaming Intel motherboard

SKU CH-C390-7M780

ATX Intel Z370 board for 8th Gen Core CPUs with four DDR4 slots up to 64 GB, dual M.2, six SATA 6Gb/s, reinforced PCIe slots and SupremeFX 8-channel audio

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeIntel Socket 1151 only for 8th Generation Core Processors *
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* * The support of
  • ChipsetIntel Z370
  • Onboard Video ChipsetIntegrated Graphics Processor- Intel HD Graphics support Mul
  • Number of Memory Slots4x288pin (DDR4)
  • Ready for 8th Gen Intel Core with LGA 1151 300 Series socket
  • Up to 64 GB DDR4 across four 288-pin slots at speeds to 4000 MHz OC
  • Dual M.2 slots at PCIe 3.0 x4 with 2242/2260/2280 support for fast storage
  • SupremeFX S1220A 8-channel audio with dual headphone amps and Japanese capacitors
  • SafeSlot reinforced PCIe 3.0 x16 slots plus Intel I219-V Gigabit LAN

LGA 1151 Z370 ATX motherboard

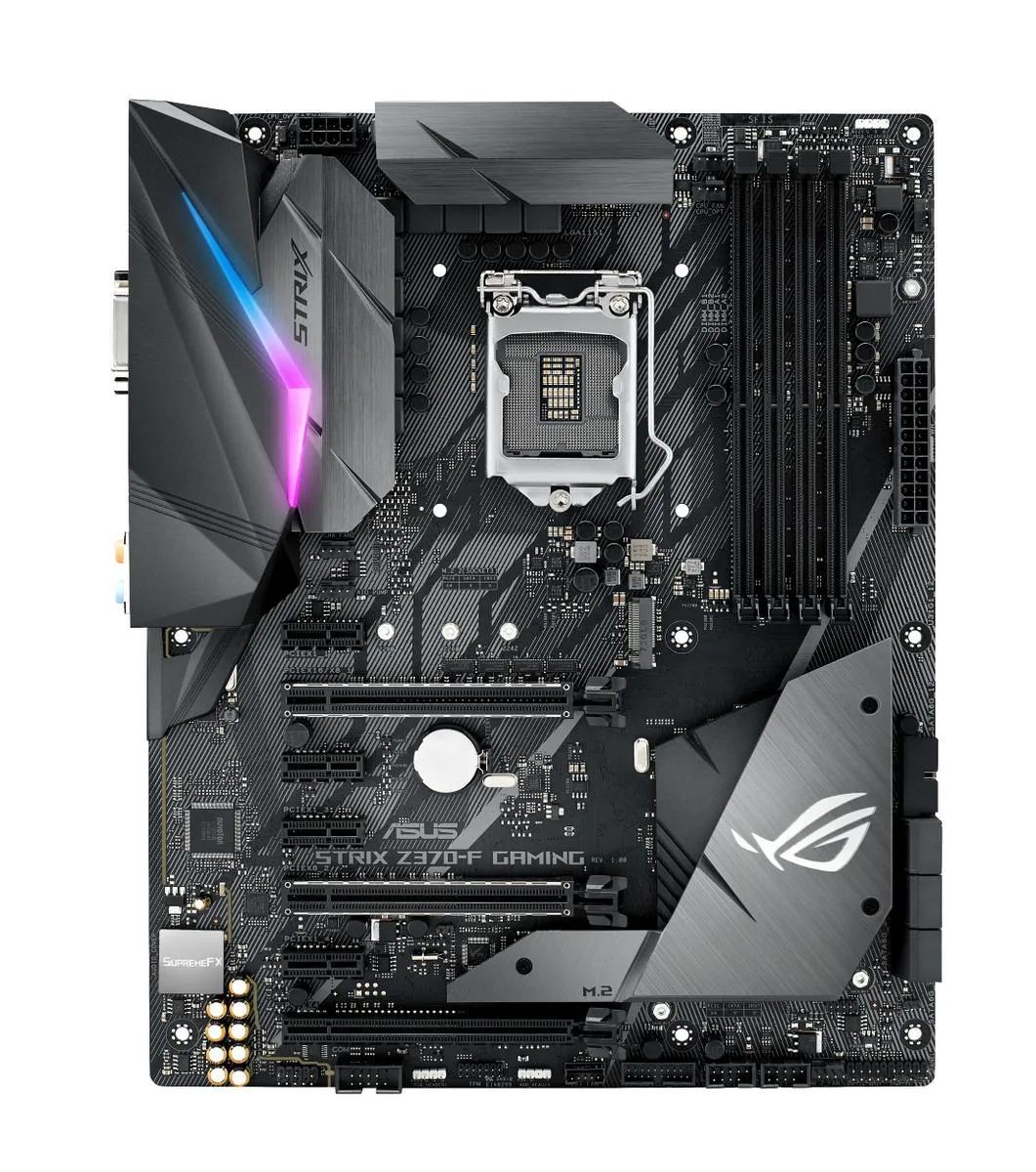

The ASUS ROG Strix Z370-F Gaming is an ATX board built on the Intel Z370 chipset for 8th Generation Intel Core processors using the LGA 1151 socket. It is not backward compatible with older LGA 1151 CPUs. The platform targets gamers and enthusiasts who want a feature-rich foundation for a high-performance desktop build.

Build integration with DDR4 and multi-GPU

Four 288-pin slots accept up to 64GB of DDR4 memory running at speeds from 2133 up to 4000(OC) in dual-channel mode. Two reinforced SafeSlots support x16 or x8/x8 configurations for NVIDIA 2-Way SLI or AMD 3-Way CrossFireX. Two M.2 sockets take 2242, 2260 or 2280 drives with one slot supporting both SATA and PCIe 3.0 x4 modes while the second runs PCIe 3.0 x4. Six SATA 6Gb/s ports and USB 3.1 Gen 2 Type-A and Type-C complete the storage and peripheral connectivity.

Sustained operation with thermal and network tuning

The integrated M.2 heatsink on the primary slot helps maintain SSD performance during prolonged workloads. 5-Way Optimization with Auto-Tuning and FanXpert 4 adjusts overclocking profiles and fan curves dynamically based on real-time thermal data. Intel I219-V Gigabit LAN with ROG GameFirst Technology prioritises gaming traffic to reduce latency under heavy network load. SupremeFX S1220A 8-channel audio driven by Japanese capacitors delivers consistent signal quality during extended sessions.

Highlights

  • Ready for 8th Gen Intel Core with LGA 1151 300 Series socket
  • Up to 64 GB DDR4 across four 288-pin slots at speeds to 4000 MHz OC
  • Dual M.2 slots at PCIe 3.0 x4 with 2242/2260/2280 support for fast storage
  • SupremeFX S1220A 8-channel audio with dual headphone amps and Japanese capacitors
  • SafeSlot reinforced PCIe 3.0 x16 slots plus Intel I219-V Gigabit LAN

Specifications

BrandASUS
SeriesROG
ModelStrix Z370-F Gaming
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeIntel Socket 1151 only for 8th Generation Core Processors
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0*
* The support of these features depends on the CPU types.
ChipsetIntel Z370
Onboard Video ChipsetIntegrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: DisplayPort/HDMI/DVI-D ports
Supports DisplayPort 1.2* with max. resolution 4096 x 2304@60Hz
Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz
Supports DVI-D with max. resolution 1920 x 1200@60Hz
Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/Insider
Supports up to 3 displays simultaneously
Maximum shared memory of 1024MB
* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4000(OC)*/ 3866(OC)*/ 3733(OC)*/ 3600(OC)*/ 3466(OC)*/ 3400(OC)*/ 3333(OC)*/ 3300(OC)*/ 3200(OC)*/ 3000(OC)*/ 2800(OC)*/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**)
1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode)
* For 2 Intel SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX8_2 slot, enable this card under BIOS settings.
** For 3 Intel SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16/x8_1 slot, enable this card under BIOS settings.
PCI Express x14 x PCIe 3.0/2.0 x1 slot
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x4 modes)*
1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)**
Ready for Intel Optane Memory***
* The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
** The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use SATA devices.
*** Intel Optane Technology only supported when using 8th Generation Intel Processors. Before using Intel Optane mem
SATA RAID0/1/5/10
Audio ChipsetROG SupremeFX S1220A
Audio Channels8 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps

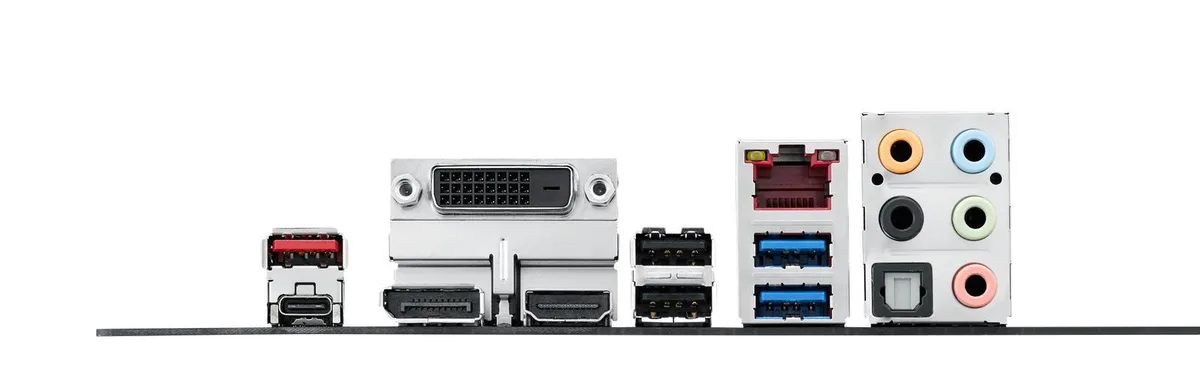

Video Ports1 x DVI port
HDMI1 x HDMI
RJ451 x Anti-surge LAN (RJ45) port
DisplayPort1 x DisplayPort
USB 3.12 x USB3.1 Gen2 ports (1 x Type-A [red] and 1 x Type-C ports at back panel)
2 x USB 3.1 Gen1 ports [blue]
USB 1.1/2.02 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB2 x USB 3.1 Gen1 connectors support additional 4 x USB 3.1 Gen1 ports
2 x USB 2.0 connectors support additional 4 x USB 2.0 ports
Other Connectors1 x 4-Pin M.2_FAN connector
1 x 4-Pin AIO_PUMP fan connector
1 x 4-Pin CPU fan connector
1 x 4-Pin CPU_OPT fan connector
2 x 4-Pin Chassis fan connectors
1 x 5-Pin Extension fan connector
1 x Front panel audio connector (AAFP)
1 x COM connector
2 x RGB Headers
1 x Addressable Header
1 x TPM connector
1 x System panel connector
1 x Thermal sensor connector
1 x CPU_OV
1 x Clear CMOS jumper (2-pin)
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
FeaturesMulti-GPU Support:
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
ROG Exclusive Features:
ROG RAMCache II
ROG GameFirst IV
ROG CPU-Z
ROG Overwolf
ROG Clonedrive
Special Features:
Performance Optimization
5-Way Optimization
- Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages.
Digi+VRM
EPU
- EPU
TPU
- Auto Tuning, TPU, GPU Boost
Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Package ContentsAccessories:
User guide
Support DVD
I/O Shield
4 x SATA 6Gb/s cables
1 x SLI HB BRIDGE (2-WAY-M)
1 x RGB LED extension cable
1 x Addressable LED extension cable
1 x 3D Printing Mount
1 x M.2 Screw Package
1 x ROG STRIX Door Hanger
1 x Thermal Sensor Cable
1 x CPU Installation tool
1 x CPU Fan holder
1 x Pack of cable ties

Questions about this item

What is the maximum DDR4 memory capacity this board can address?

The board supports up to 64GB of DDR4 memory across four 288-pin slots running in dual-channel mode.

How much heat does the VRM area generate during extended all-core loads?

The 5-Way Optimization with FanXpert 4 automatically tailors fan curves to your unique build for dynamic system cooling under sustained workloads.
