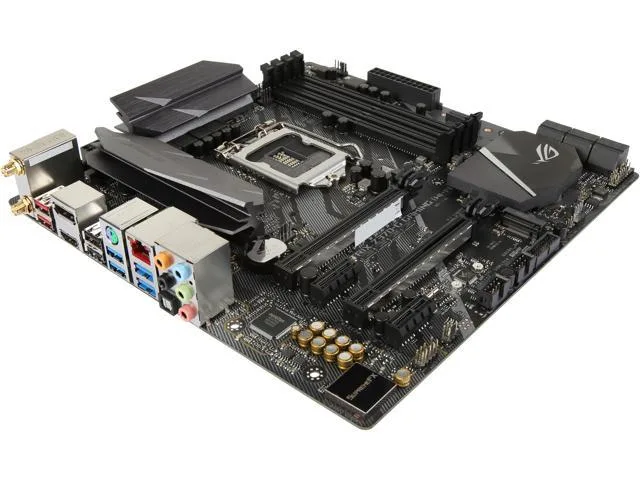

Micro ATX motherboard with black PCB, silver heatsinks, reinforced PCIe slots, rear I/O shield

ASUS

ASUS ROG STRIX Z370-G Gaming (WI-FI AC) Intel motherboard

SKU CH-WYG7-2HYFV

Supports 8th-generation Intel Core processors, dual-channel DDR4 up to 64 GB, reinforced PCIe slots for heavy GPUs and SupremeFX 8-channel audio with dual headphone amps

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeIntel Socket 1151 only for 8th Generation Core Processors* N
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* The support of th
  • ChipsetIntel Z370
  • Onboard Video ChipsetIntegrated Graphics Processor- Intel HD Graphics support Mul
  • Number of Memory Slots4x288pin (DDR4)
  • Ready for 8th Gen Intel Core with LGA 1151 300 Series socket
  • Overclock DDR4 memory up to 4000 MHz across four 288-pin slots
  • Reinforced SafeSlots with metal framing secure heavy graphics cards
  • SupremeFX S1220A codec drives 8-channel audio with dual headphone amps
  • 5-Way Optimization auto-tunes overclocking and FanXpert 4 cooling profiles

LGA 1151 Z370 Micro ATX Board

The ASUS ROG STRIX Z370-G Gaming (WI-FI AC) is a Micro ATX motherboard built on the Intel Z370 chipset for 8th Generation Core processors. It targets builders who want overclocking features and ROG audio in a compact form factor. The board delivers dual PCIe 3.0 x16 slots, six SATA 6Gb/s ports and two M.2 sockets for storage flexibility.

Check CPU Generation And Memory Slots

This socket only accepts 8th Generation Intel Core CPUs; older LGA 1151 processors will not work. Verify your cooler mounting holes match the 300 Series layout before ordering. The board provides four 288-pin DDR4 slots supporting up to 64GB in dual channel mode; populate the A2 slot first for best stability.

Thermals Noise And Power Draw

The 5 Way Optimization with Auto Tuning and FanXpert 4 adjusts fan curves and voltage automatically for a balanced thermal profile. SafeSlots use integrated metal framing to handle heavy graphics cards without flex. The SupremeFX S1220A codec with Japanese capacitors keeps analogue noise floor low during typical gaming loads.

Highlights

  • Ready for 8th Gen Intel Core with LGA 1151 300 Series socket
  • Overclock DDR4 memory up to 4000 MHz across four 288-pin slots
  • Reinforced SafeSlots with metal framing secure heavy graphics cards
  • SupremeFX S1220A codec drives 8-channel audio with dual headphone amps
  • 5-Way Optimization auto-tunes overclocking and FanXpert 4 cooling profiles

Specifications

BrandASUS
SeriesROG
ModelSTRIX Z370-G Gaming (WI-FI AC)

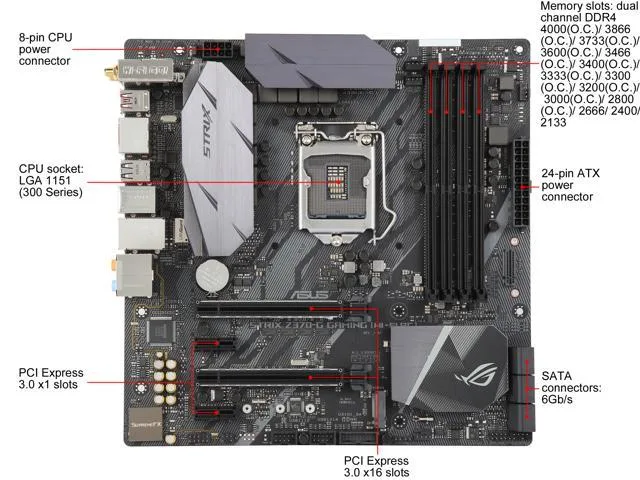

CPU Socket TypeLGA 1151 (300 Series)
CPU TypeIntel Socket 1151 only for 8th Generation Core Processors* Not backward compatible with older generation of LGA 1151 CPUs* Refer to www.asus.com for CPU support list
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* The support of these features depends on the CPU types.
ChipsetIntel Z370
Onboard Video ChipsetIntegrated Graphics Processor- Intel HD Graphics support Multi-VGA output support: HDMI/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024MBSupports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, InsiderSupports up to 3 displays simultaneouslyDP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported64GB
Channel SupportedDual Channel Memory Architecture* * For DRAM compatibility and performance, please use A2 slot for priority 1.
PCI Express 3.0 x162 x PCIe 3.0/2.0 x16 (x16 or dual x8)
PCI Express x12 x PCIe 3.0/2.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)* The M.2_1 socket shares bandwidth with SATA_1 port when using M.2 SATA mode device. Adjust BIOS settings to use SATA device.
SATA RAID0/1/5/10
Audio ChipsetROG SupremeFX S1220A
Audio Channels8 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac
BluetoothBluetooth V4.2

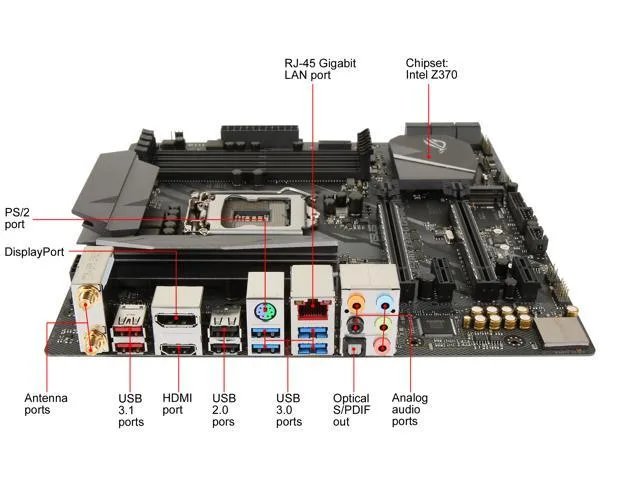

PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.12 x USB 3.1 Gen2, Type-A4 x USB 3.1 Gen1
USB 1.1/2.02 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports5 Ports
Antenna Connectors1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
Onboard USB1 x USB 3.1 Gen 1 connector supports additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) supports additional 4 USB 2.0 port(s)
Other Connectors1 x AAFP connector1 x CPU Fan connector (1 x 4-pin)1 x CPU OPT Fan connector (1 x 4-pin)2 x Chassis Fan connector(s) (2 x 4-pin)1 x W_PUMP+ connector (1 x 4-pin)1 x Thermal sensor connector1 x Clear CMOS jumper1 x System panel connector1 x CPU_OV jumper
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin EATX Power connector1 x 8-pin ATX 12V Power connector
FeaturesMulti-GPU Support:Supports NVIDIA 2-Way SLI Technology Supports AMD 2-Way CrossFireX TechnologyROG Exclusive Features:ROG RAMCache IIROG CPU-ZROG CloneDriveOverwolfGameFirst IVSpecial Features:5-Way Optimization by Dual Intelligent Processors 5- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.TPU- Fan Xpert 4 featuring Fan
Package ContentsAccessories:User's manual1 x Vertical M.2 bracket setI/O Shield4 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x CPU installation tool1 x Supporting DVD1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant)1 x Strix door hanger1 x SLI HB BRIDGE (2-WAY-S)1 x Cable ties pack(s)1 x Thermistor cable(s)1 x STRIX series sticker1 x CPU Fan Holder

Questions about this item

Which processors can I use with this motherboard?

The board accepts only 8th Generation Intel Core processors in the LGA 1151 (300 Series) socket. Older LGA 1151 CPUs are not supported.

What memory speeds are officially supported and how much RAM can I install?

DDR4 modules up to 4000 MT/s (overclocked) are supported across four slots, with a maximum capacity of 64 GB in dual-channel mode.

How many graphics cards or M.2 drives can I fit?

Two PCIe 3.0 x16 slots run at x16 or dual x8 for multi-GPU, and two M.2 sockets (2242/2260/2280 and 2242/2260/2280/22110) accept SATA or PCIe 3.0 x4 drives.
