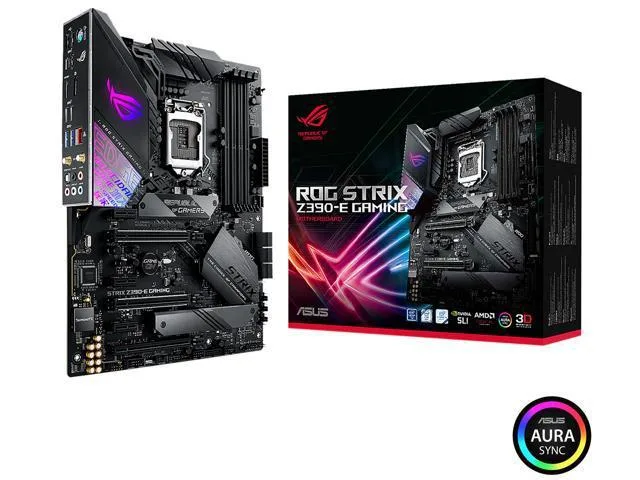

Black ATX motherboard with silver heatsinks and RGB lighting zones

ASUS

ASUS ROG Strix Z390-E Gaming Intel motherboard

SKU CH-YDYV-2X7AM

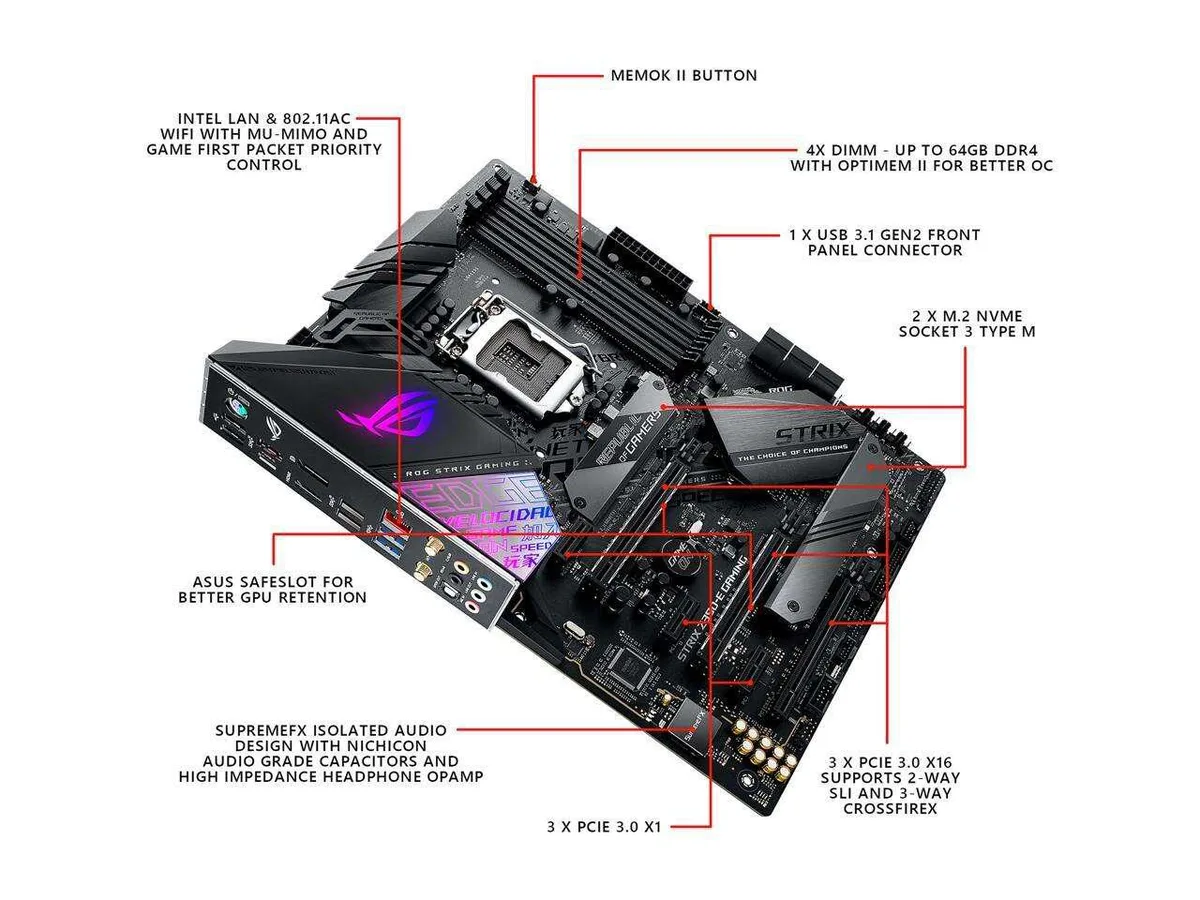

An Intel Z390 ATX board for LGA 1151 CPUs with four DDR4 slots up to 64 GB, two PCIe 3.0 x16 slots, six SATA ports and dual M.2 sockets

  • CPU Socket TypeLGA 1151 (300 Series)
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* * Intel Turbo Boo
  • ChipsetIntel Z390
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support Mu
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.
  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • DDR4 memory overclocked up to 4266 MT/s across four slots for 64 GB capacity
  • Dual M.2 sockets with PCIe 3.0 x4 and SATA modes for fast storage
  • Intel I219-V Gigabit LAN plus SupremeFX S1220A 8-channel audio for clear networking and sound
  • 5-Way Optimization with one-click overclocking and AURA Sync RGB lighting control

ROG Strix Z390-E Gaming for 9th

This ATX motherboard uses the Intel Z390 chipset and an LGA 1151 socket to support 9th and 8th Generation Intel Core, Pentium Gold and Celeron processors. It is aimed at enthusiasts who want a feature-rich platform for gaming and content creation. Onboard Intel HD Graphics are driven through HDMI and DisplayPort outputs.

64GB DDR4 capacity with dual-channel headroom

Four 288-pin slots accept DDR4 modules up to a listed 4266 MT/s when overclocked, with native support down to 2133 MT/s. The 64GB maximum gives ample room for heavy multitasking and large project files. Dual-channel architecture keeps bandwidth high for memory-sensitive workloads. Six SATA 6Gb/s ports and two M.2 sockets provide plenty of storage lanes.

Premium audio and Intel networking for daily

The ROG SupremeFX S1220A codec delivers eight-channel high-definition sound with shielding for cleaner output. An Intel I219-V LAN controller handles wired networking with low CPU overhead. Reinforced PCIe slots and a pre-mounted I/O shield simplify assembly and protect ports during frequent upgrades. Aura Sync RGB headers allow coordinated lighting.

Highlights

  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • DDR4 memory overclocked up to 4266 MT/s across four slots for 64 GB capacity
  • Dual M.2 sockets with PCIe 3.0 x4 and SATA modes for fast storage
  • Intel I219-V Gigabit LAN plus SupremeFX S1220A 8-channel audio for clear networking and sound
  • 5-Way Optimization with one-click overclocking and AURA Sync RGB lighting control

Specifications

BrandASUS
SeriesROG
ModelStrix Z390-E Gaming
CPU Socket TypeLGA 1151 (300 Series)
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0*
* Intel Turbo Boost Technology 2.0 support depends on the CPU type
ChipsetIntel Z390
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x13 x PCIe 3.0/2.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
* When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetROG SupremeFX S1220A High Definition Audio CODEC
Audio Channels8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel Wireless-AC 9560
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
BluetoothBluetooth v5.0
Back I/O Ports1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 2 (3 x Type-A + 1 x USB Type-C)
2 x USB 3.1 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi Module
Onboard USB1 x USB 3.1 Gen 2 front panel connector
1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

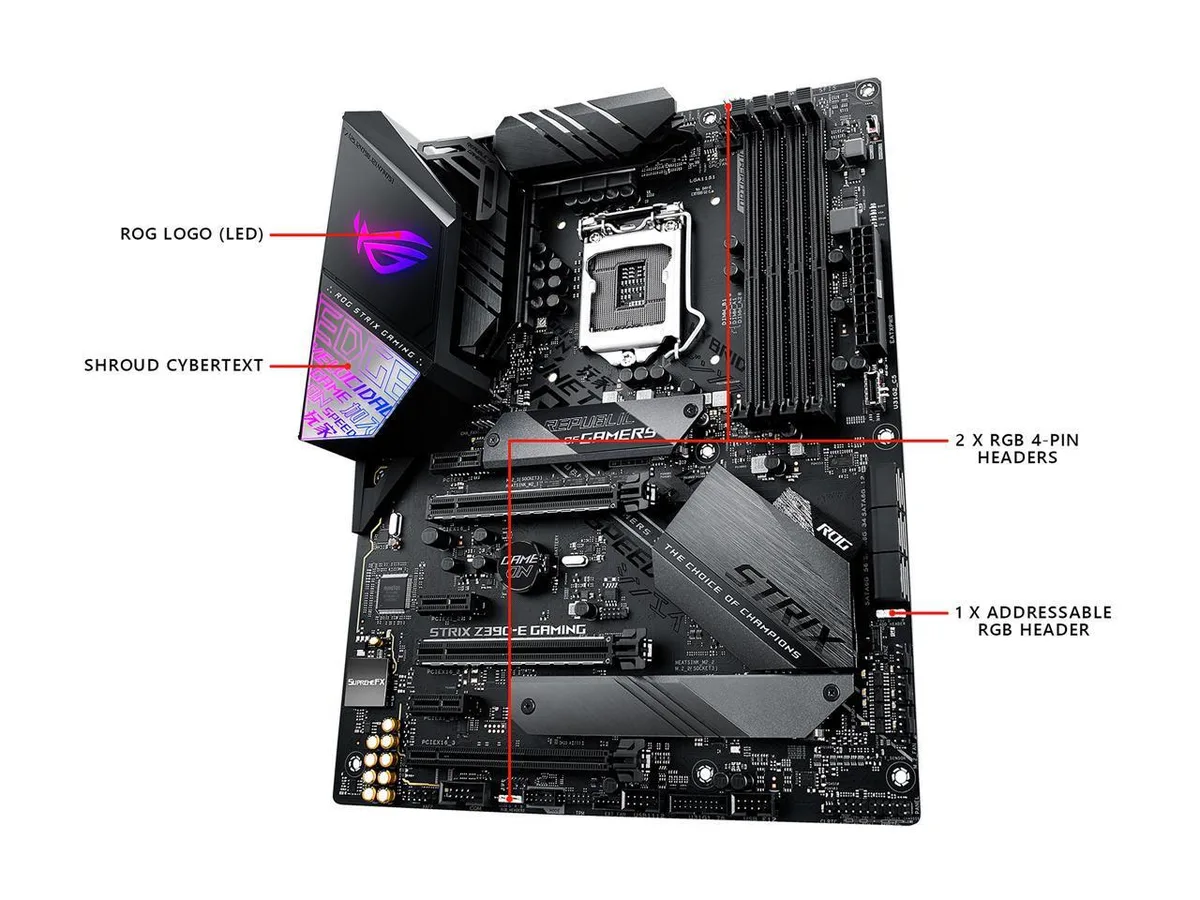

Other Connectors1 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x 5-pin EXT_FAN (Extension Fan) connector
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x AIO PUMP Header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
FeaturesMulti-GPU Support:
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
ROG Exclusive Features:
ROG Exclusive Software
- RAMCache III
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
Special Features:
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
AI Overclocking
ASUS Optimem II:
- Improved DDR4 Stability
AURA:
- A

Questions about this item

Will my existing DDR4-2133 memory work with the Strix Z390-E Gaming's four 288-pin slots?

Yes, the board supports DDR4 from 2133 up to 4266(O.C.) across all four slots, with a maximum capacity of 64GB in dual-channel mode.

How can I verify the SupremeFX S1220A audio is running at 8 channels after installation?

Open Windows Sound control panel, select the Realtek device, choose Configure, pick 7.1 Surround and run the speaker test; all eight channels should play distinct tones.

Which cables and drives are included in the box versus what I must purchase separately?

The motherboard ships with SATA 6Gb/s cables, an I/O shield, M.2 screws and documentation; you still need to buy the LGA 1151 CPU, DDR4 modules, storage drives and a graphics card if your processor lacks integrated graphics.
