ASUS ROG STRIX Z390-E GAMING Intel Motherboard A
ATX motherboard for 8th and 9th Gen Intel Core processors on LGA 1151, with DDR4 memory up to 4266 MHz, dual M.2 slots, six SATA ports and SupremeFX 8-channel audio
- CPU Socket TypeLGA 1151
- CPU TypeIntel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and
- Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 * The Intel Turbo
- ChipsetIntel Z390
- Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support Mu
- Number of Memory Slots4x288pin (DDR4)
- Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
- Dual-channel DDR4 memory up to 64 GB across four 288-pin slots
- AI-driven 5-Way Optimization automates CPU overclocking with thermal telemetry
- Comprehensive cooling control through Fan Xpert 4 and UEFI BIOS
- Aura Sync RGB lighting synchronises with compatible components

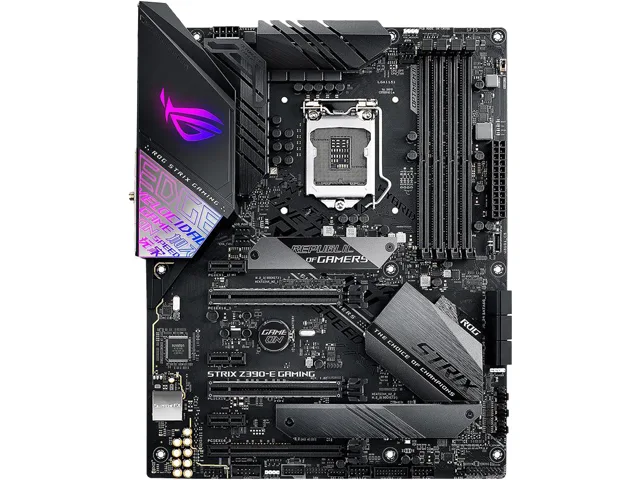

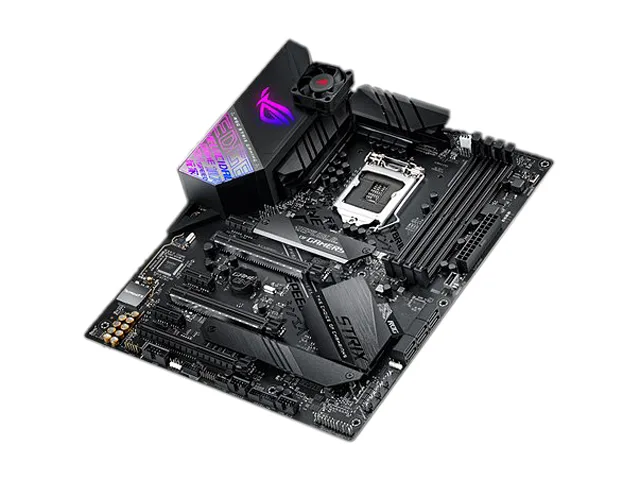

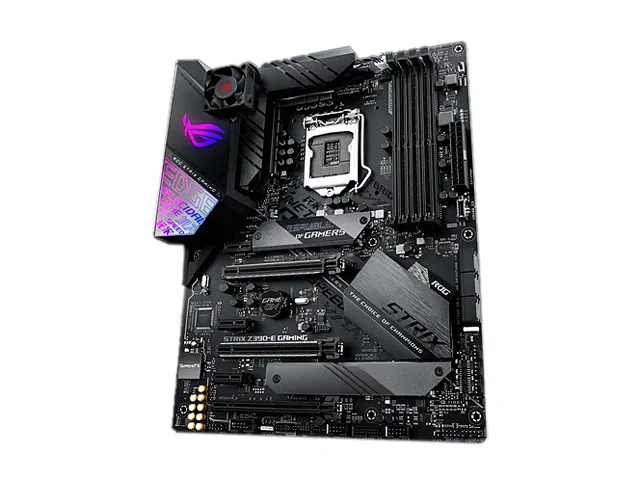

ROG STRIX Z390-E GAMING for 9th/8th Gen Intel Core
This ATX motherboard uses the Intel Z390 chipset and an LGA 1151 socket to support 9th and 8th Generation Intel Core, Pentium Gold and Celeron processors. It provides four DDR4 slots with a maximum capacity of 64GB and dual-channel architecture. Integrated graphics output is available through HDMI and DisplayPort connectors.
Best for AI overclocking and RGB builds.
Builders who want automated tuning will benefit from 5-Way Optimization with AI overclocking and thermal telemetry. Fan Xpert 4 and UEFI BIOS give granular control over PWM and DC headers for air or liquid cooling. Aura Sync RGB lighting coordinates with compatible devices. This board is not backward compatible with older LGA 1151 CPUs, so buyers using previous-generation processors must look elsewhere.
Simple ATX install; watch M.2 bandwidth sharing
Standard ATX mounting fits most cases and the pre-mounted I/O shield speeds up the build. Two full-length PCIe 3.0 x16 slots run at x16 or dual x8, while a third x16 slot operates at x4 mode. Three PCIe x1 slots add expansion room. Note that populating the M.2_1 socket with a SATA device disables SATA ports 5 and 6, and using a PCIe device there shares bandwidth with the PCIe x4 slot.
Highlights
- Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
- Dual-channel DDR4 memory up to 64 GB across four 288-pin slots
- AI-driven 5-Way Optimization automates CPU overclocking with thermal telemetry
- Comprehensive cooling control through Fan Xpert 4 and UEFI BIOS
- Aura Sync RGB lighting synchronises with compatible components
Specifications
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | ROG STRIX Z390-E GAMING |
| CPU Socket Type | LGA 1151 |
| CPU Type | Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors * Not backward compatible with older generation of LGA 1151 CPUs |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel Z390 |
| Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) |
| PCI Express x1 | 3 x PCIe 3.0/2.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
| M.2 | 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) * When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
| Audio Channels | 8 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 1Gbps |
| Wireless LAN | Intel Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO |
| Bluetooth | Bluetooth 5.0 |
| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 (3 x Type-A + 1 x USB Type-C) 2 x USB 3.1 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi Module |
| Onboard USB | 1 x USB 3.1 Gen 2 front panel connector 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
| Other Connectors | 1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x AIO PUMP Header |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) |
| Features | Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology ROG Exclusive Features: ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III Special Features: OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App AI Overclocking ASUS Optimem II: - Improved DDR4 Stability AURA: - A |
Questions about this item
What CPU and memory must I already have to use this LGA 1151 board?
You need an 8th or 9th Gen Intel Core, Pentium Gold or Celeron processor plus DDR4 modules up to 64 GB total across the four 288-pin slots.
Can I keep my existing SATA drives and PCIe 3.0 add-in cards with the Z390 chipset?
Yes, the board provides six SATA 6Gb/s ports, two PCIe 3.0 x16 slots and three PCIe 3.0 x1 slots for current drives and expansion cards.
How do I confirm the SupremeFX S1220A audio is active after assembly?
Open the audio control panel in Windows and verify that 8-channel output is selectable for the Realtek S1220A codec.
