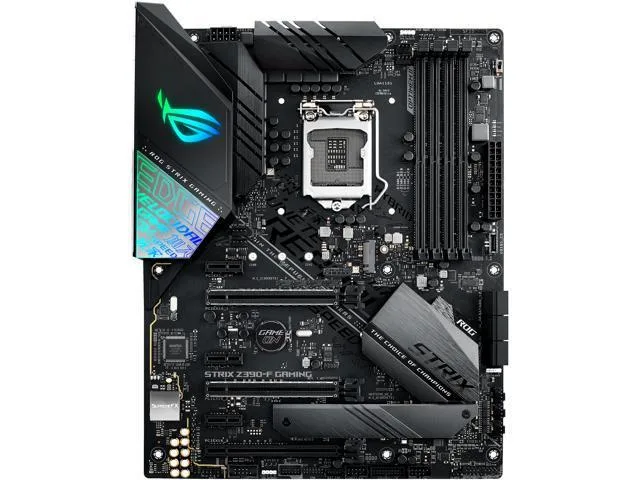

Black ATX motherboard with silver heatsinks, four DDR4 slots and an HDMI port

ASUS

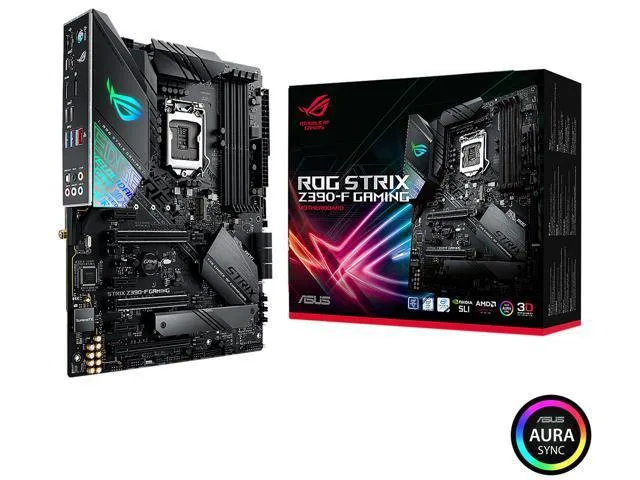

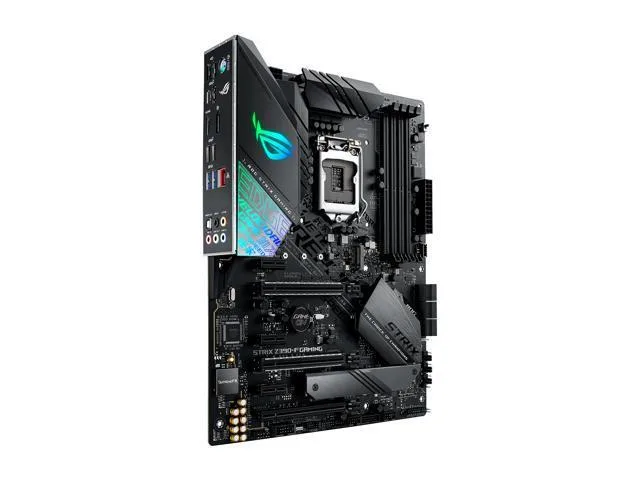

ASUS ROG Strix Z390-F Gaming 9th/8th Gen Intel motherboard

SKU CH-CZAF-NZPXY

LGA 1151 (300 Series) ATX board with Intel Z390 chipset, dual PCIe 3.0 x16 slots, six SATA 6Gb/s ports, two M.2 sockets, HDMI and DisplayPort video outputs.

  • CPU Socket TypeLGA 1151 (300 Series)
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 * The Intel Turbo
  • ChipsetIntel Z390
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support Mu
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.
  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB at speeds up to 4266 MHz overclocked
  • Two full-length PCIe 3.0 x16 slots run at x16 or dual x8 for multi-GPU
  • Dual M.2 sockets accept 2242, 2260, 2280 and 22110 drives in PCIe and SATA modes
  • Intel I219-V Gigabit LAN plus HDMI and DisplayPort for integrated graphics output

Intel Z390 ATX board for 8th and 9th Gen Core

The motherboard uses the Intel Z390 chipset and an LGA 1151 (300 Series) socket. It accepts 8th and 9th Generation Intel Core, Pentium Gold and Celeron processors. Four DDR4 slots support up to 64 GB of non-ECC un-buffered memory in dual-channel mode.

DDR4 overclock steps and PCIe 3.0 lane limits

Memory speeds from 2133 MHz to 4266 MHz are listed as overclocked steps; 2666 MHz runs at the base standard. Two PCIe 3.0 x16 slots operate at x16 or dual x8, while a third x16 slot is limited to x4 mode. Three PCIe 3.0 x1 slots provide additional expansion.

Dual M.2 slots with shared bandwidth notes

One M.2 socket supports 2242, 2260, 2280 and 22110 drives in PCIe 3.0 x4 mode; a second socket supports 2242, 2260 and 2280 drives in both SATA and PCIe modes. Six SATA 6Gb/s ports offer RAID 0, 1, 5 and 10. Intel I219-V LAN delivers 1 Gbps wired networking.

Highlights

  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB at speeds up to 4266 MHz overclocked
  • Two full-length PCIe 3.0 x16 slots run at x16 or dual x8 for multi-GPU
  • Dual M.2 sockets accept 2242, 2260, 2280 and 22110 drives in PCIe and SATA modes
  • Intel I219-V Gigabit LAN plus HDMI and DisplayPort for integrated graphics output

Specifications

BrandASUS
SeriesROG
CPU Socket TypeLGA 1151 (300 Series)
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel Z390
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x13 x PCIe 3.0/2.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
* When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio Channels8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.13 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
USB 1.1/2.02 x USB 2.0
USB Type-C1 x USB 3.1 Gen 2
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB1 x USB 3.1 Gen 1 front panel Type-C connector
1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)

Questions about this item

Which memory speed should I pick — 2133 MHz or the higher overclocked options like 4266 MHz?

The board runs DDR4 at 2133 MHz by default; speeds up to 4266 MHz are supported only when you enable overclock profiles in the BIOS and use compatible modules.

What does the 4096 × 2160 @ 30 Hz HDMI limit mean for my monitor?

You can drive a 4K display at 30 Hz over the single HDMI port; higher refresh rates at that resolution would need a DisplayPort connection instead.

How fast can an M.2 drive actually run on the PCIe 3.0 x4 slot?

The second M.2 socket is wired for PCIe 3.0 x4, capping sequential throughput at roughly 4 GB/s for a compatible drive.
