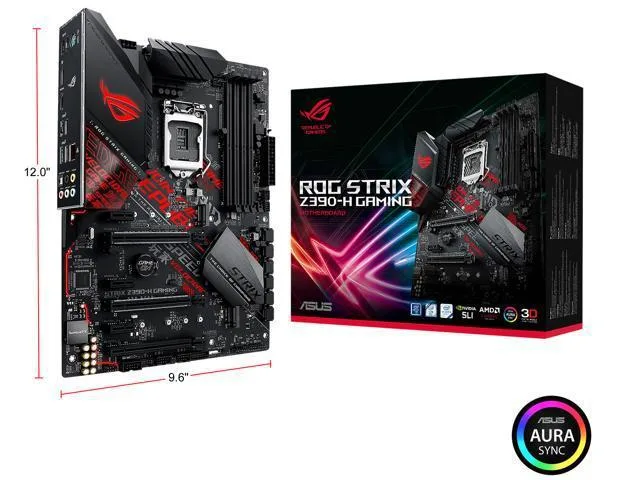

Black rectangular ATX motherboard with silver heatsinks and ROG branding

ASUS

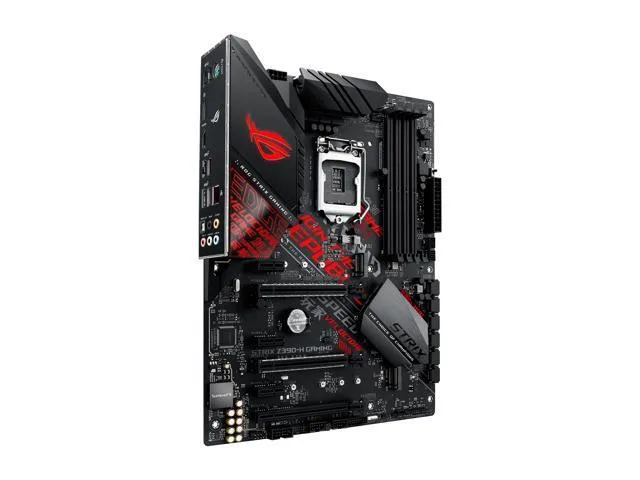

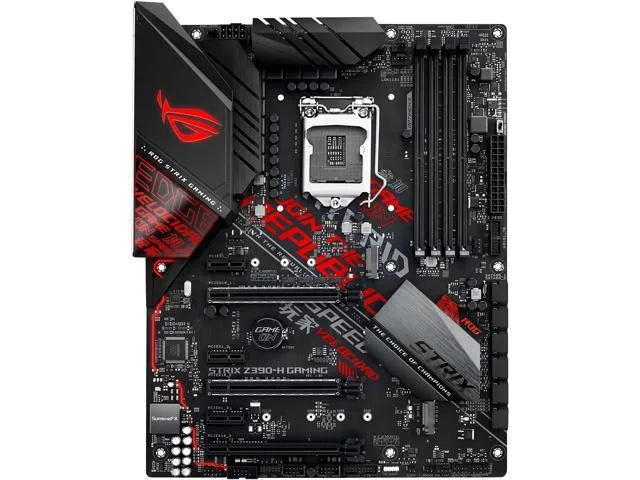

ASUS ROG Strix Z390-H Gaming Intel motherboard

SKU CH-NNBF-VKAWF

ATX Intel Z390 board for 8th and 9th Gen CPUs with dual M.2 slots, USB 3.1 Gen2, Gigabit LAN, DDR4 to 4133 MHz and SupremeFX 8-channel audio

  • CPU TypeLGA 1151
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* * Intel Turbo Boo
  • ChipsetIntel Z390
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel UHD Graphics support M
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4133+(OC)*/ 4000(OC)*/ 3866(OC)*/ 3733(OC)*/ 3600(OC)*/
  • Supports Intel 8th and 9th Gen CPUs via LGA 1151 socket
  • Dual M.2 slots with PCIe 3.0 x4 and SATA modes for fast storage
  • USB 3.1 Gen 2 ports deliver up to 10 Gbps data transfer
  • SupremeFX S1220A codec with Japanese capacitors provides 8-channel HD audio
  • SafeSlot, ESD Guards and DRAM Overcurrent Protection enhance component longevity

Designed for Intel 8th and 9th Gen Core

This ATX board uses the Intel Z390 chipset and an LGA 1151 socket to support 8th and 9th generation Intel Core processors. Four 288-pin slots accept DDR4 memory up to 64 GB in dual-channel mode. Dual M.2 sockets take 2242, 2260, 2280 and 22110 modules with PCIe 3.0 x4 or SATA signalling. Integrated graphics output comes through HDMI 1.4b and DisplayPort 1.2.

Pre-mounted I/O shield eases the build

A factory-fitted I/O shield removes the fiddly separate plate that often bends or gets forgotten. SafeSlot reinforces the primary PCIe 3.0 x16 slots so heavy graphics cards stay seated. ESD Guards and DRAM Overcurrent Protection guard the ports and memory traces during assembly. The standard ATX layout fits most chassis without special clearance checks.

VRM heatsinks keep power delivery steady

The ROG Strix Z390-H Gaming uses substantial heatsinks on the voltage-regulator modules to dissipate heat during long gaming or rendering sessions. Eight-channel audio driven by the SupremeFX S1220A codec and Japanese capacitors maintains low noise floor when the system runs hot. Intel I219-V Gigabit LAN sustains 1 Gbps throughput without thermal throttling. M.2 shields prevent SSD throttling under continuous read-write workloads.

Highlights

  • Supports Intel 8th and 9th Gen CPUs via LGA 1151 socket
  • Dual M.2 slots with PCIe 3.0 x4 and SATA modes for fast storage
  • USB 3.1 Gen 2 ports deliver up to 10 Gbps data transfer
  • SupremeFX S1220A codec with Japanese capacitors provides 8-channel HD audio
  • SafeSlot, ESD Guards and DRAM Overcurrent Protection enhance component longevity

Specifications

BrandASUS
SeriesROG
ModelStrix Z390-H Gaming
CPU TypeLGA 1151
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0*
* Intel Turbo Boost Technology 2.0 support depends on the CPU type
ChipsetIntel Z390
Onboard Video ChipsetIntegrated Graphics Processor - Intel UHD Graphics support
Multi-VGA output support: HDMI/DisplayPort
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
- Supports HDMI 1.4b withUHD, max. resolution 4096 x 2304 @ 24 Hz, 24 bpp or 3840 x 2160 @ 30 Hz, 24 bpp
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4133+(OC)*/ 4000(OC)*/ 3866(OC)*/ 3733(OC)*/ 3600(OC)*/ 3466(OC)*/ 3400(OC)*/ 3333(OC)*/ 3300(OC)*/ 3200(OC)*/ 3000(OC)*/ 2800(OC)*/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x168th Gen Intel Core Processors
2 x PCIe 3.0 x16 slots (support x16, x8/x8)
Intel Z390 Chipset
1 x PCIe 3.0 x16 slot (max. at x2 mode)
PCI Express x13 x PCIe 3.0 x1 slots
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
SATA RAID0/1/5/10
Audio ChipsetROG SupremeFX S1220A High Definition Audio CODEC
Audio Channels8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
RJ451 x Anti-surge LAN (RJ45) port
DisplayPort1 x DisplayPort
USB 3.12 x USB 3.1 Gen1 ports [blue]
4 x USB3.1 Gen2 ports (4 x Type-A [red])
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB2 x USB 3.1 Gen 1 header supports additional 4 USB 3.1 Gen 1 ports
2 x USB 2.0 header supports additional 4 USB 2.0 ports
Other Connectors1 x 4-Pin CPU_FAN connector
1 x 4-Pin CPU_OPT fan connector
2 x 4-Pin Chassis fan connectors
1 x 4-Pin AIO_PUMP connector
1 x CPU_OV
1 x Thermal sensor connector
1 x Aura RGB headers
1 x MemOK!_II switch
1 x COM port
1 x TPM connector
1 x Front panel audio connector (AAFP)
1 x System panel connector
1 x Clear CMOS jumper
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
FeaturesMulti-GPU Support:
Supports NVIDIA 2-Way/Quad-GPU SLI Technology
Supports AMD 3-Way/Quad-GPU CrossFireX Technology
ROG Exclusive Features:
ROG RAMCache III
ROG GameFirst V
ROG CPU-Z
ROG Overwolf
Special Feature:
AURA
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
Gamer's Guardian
- Procool
- SafeSlot
- DIGI+ VRM
- DRAM Overc

Questions about this item

How do I confirm the motherboard is working after installation?

Power on the system and check that the POST screen appears, the BIOS recognises the installed CPU, the full 64 GB of DDR4 memory and any drives in the two M.2 sockets, then verify 8-channel audio output and a 1 Gbps link on the Intel I219-V LAN.

What comes in the box and what must I buy separately?

The board ships with a pre-mounted I/O shield, SATA cables, M.2 mounting screws and the driver disc; you still need to purchase an LGA 1151 processor, DDR4 DIMMs, storage drives, a graphics card if your CPU lacks integrated graphics, and a compatible ATX power supply and case.

Which memory speed should I choose for this Z390 board?

The board supports DDR4 from 2133 up to 4133+(OC) across its four 288-pin slots in dual-channel mode; pick a kit rated at 3200 or 3600 for a good balance of price and stability, or a higher OC-rated kit only if you plan to enable XMP and have adequate cooling.
