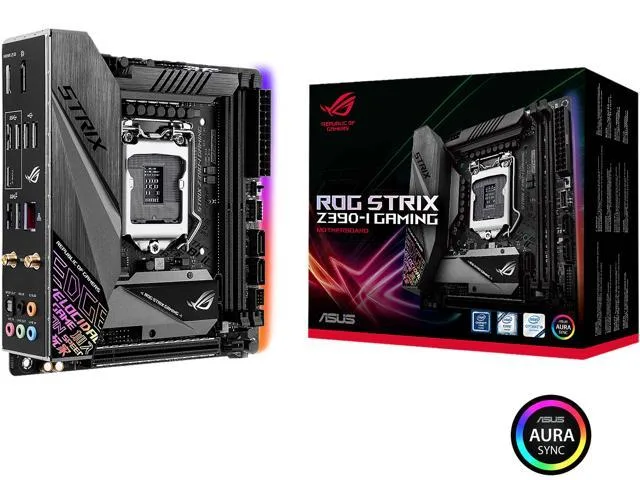

Compact square mini-ITX motherboard dark grey VRM heatsink integrated I/O shield double-decker M.2 heatsink RGB lighting accents

ASUS

ASUS ROG Strix Z390-I Gaming Intel motherboard

SKU CH-FK5Z-HRFJH

Mini-ITX Z390 board for 8th and 9th Gen Intel CPUs with dual M.2, USB 3.1 Gen 2 and integrated Wi-Fi

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeIntel Socket 1151 for Intel Core 9000 series, 8th Generation
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0** Intel Turbo Boos
  • ChipsetIntel Z390
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel UHD Graphics support M
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • Dual M.2 slots accept 2242 2260 2280 drives with PCIe 3.0 x4 or SATA modes
  • Onboard Intel 802.11 ac Wi-Fi and Intel I219-V Gigabit Ethernet for wireless and wired networking
  • SupremeFX S1220A audio codec delivers 8-channel high-definition sound
  • Mini-ITX form factor with pre-mounted I/O shield simplifies compact builds

Mini ITX Z390 Board for 8th and 9th Gen Intel

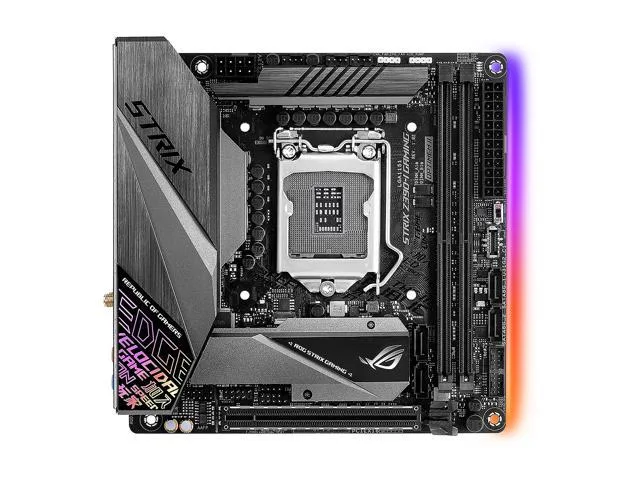

This ASUS ROG Strix motherboard uses the Intel Z390 chipset on a Mini ITX PCB with an LGA 1151 socket. It supports 8th and 9th generation Intel Core i9, i7, i5, i3, Pentium and Celeron processors. The board carries two DDR4 slots and a pre-mounted I/O shield for easier assembly.

Dual M.2 and USB 3.1 Gen 2 Limits

Two M.2 sockets accept 2242, 2260 and 2280 modules running in PCIe 3.0 x4 or SATA modes. When the first M.2 socket operates in SATA mode, the second SATA port is disabled. Four SATA 6Gbps ports and USB 3.1 Gen 2 Type-A plus Type-C connectors provide additional storage and peripheral bandwidth.

Check CPU Generation and Memory Kit

Verify that the processor is an 8th or 9th generation Intel Core part; earlier LGA 1151 CPUs are not supported. The board holds two DIMM slots with a listed maximum of 32 GB, though the manufacturer notes that double-capacity modules can raise the ceiling to 64 GB. Confirm your cooler clears the VRM and M.2 heatsinks in a compact chassis.

Highlights

  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • Dual M.2 slots accept 2242 2260 2280 drives with PCIe 3.0 x4 or SATA modes
  • Onboard Intel 802.11 ac Wi-Fi and Intel I219-V Gigabit Ethernet for wireless and wired networking
  • SupremeFX S1220A audio codec delivers 8-channel high-definition sound
  • Mini-ITX form factor with pre-mounted I/O shield simplifies compact builds

Specifications

BrandASUS
SeriesROG
ModelStrix Z390-I Gaming
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeIntel Socket 1151 for Intel Core 9000 series, 8th Generation Core i7/i5/i3, Pentium and Celeron processors* Not backward compatible with older generation of LGA 1151 CPUs** Refer to www.asus.com for Intel CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0** Intel Turbo Boost Technology 2.0 support depends on the CPU type
ChipsetIntel Z390
Onboard Video ChipsetIntegrated Graphics Processor - Intel UHD Graphics support Multi-VGA output support: HDMI 2.0/DisplayPort- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz- Supports HDMI 2.0a with max. resolution of 4096 x 2160 @ 60 Hz, 24 bpp
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 4500+(OC)*/ 4400(OC)*/ 4333(OC)*/ 4266(OC)*/ 4133(OC)*/ 4000(OC)*/ 3866(OC)*/ 3733(OC)*/ 3600(OC)*/ 3466(OC)*/ 3400(OC)*/ 3333(OC)*/ 3300(OC)*/ 3200(OC)*/ 3000(OC)*/ 2800(OC)*/ 2666/ 2400/ 2133* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCIe 3.0 x16 slot (supports x16)
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2 Socket 3 with M Key, type 2242/2260/2280 (Support PCIe 3.0 x4 and SATA modes)** When the M.2_1 Socket is operating in SATA mode, SATA port 2 will be disabled.
SATA RAID0/1/5/10
Audio ChipsetROG SupremeFX S1220A High Definition Audio CODEC
Audio Channels8 Channels* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel Wireless-AC 95602x2 Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73 Gbps transfer speed
BluetoothBluetooth v5.0
Back I/O Ports1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
HDMI1 x HDMI 2.0a port
RJ451 x Anti-surge LAN (RJ45) port
DisplayPort1 x DisplayPort 1.2
USB 3.12 x USB 3.1 Gen 1 ports (2 x Type-A [blue])2 x USB 3.1 Gen 2 ports (2 x Type-A [red])
USB 1.1/2.02 x USB 2.0
USB Type-C1 x USB 3.1 Gen 1 port ([black])
S/PDIF Out1 x Optical
Audio Ports5 Ports
Antenna Connectors1 x ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0.)
Onboard USB1 x USB 3.1 Gen 2 front panel connector1 x USB 3.1 Gen 1 header supports additional 2 USB 3.1 Gen 1 ports1 x USB 2.0 header supports additional 2 USB 2.0 ports

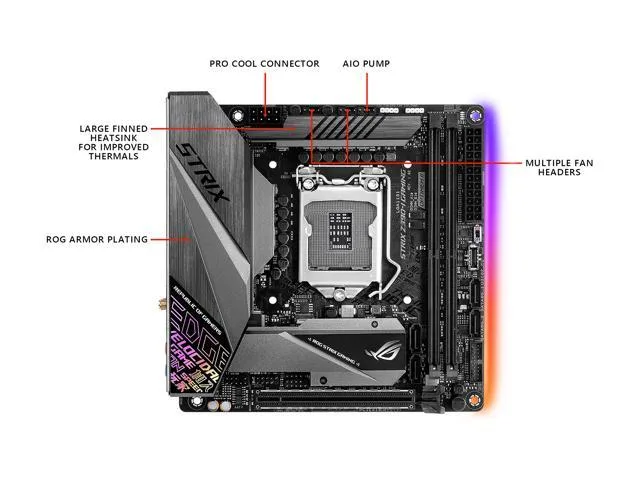

Other Connectors1 x 4-Pin CPU fan connector1 x 4-Pin Chassis fan connector1 x 4-Pin AIO_PUMP connector1 x Thermal sensor connector1 x Aura RGB header1 x Addressable header1 x MemOK!_II switch1 x Speaker header1 x Front panel audio connector (AAFP)1 x System panel connector1 x Clear CMOS jumper
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin EATX power connector1 x 8-pin EATX 12V power connector
FeaturesROG Exclusive Features:ROG RAMCache IIIROG GameFirst VROG CPU-ZROG OverwolfSpecial Feature:AURA- Aura Lighting Control- Aura RGB Strip Headers- Aura Lighting Effects Synchronization with compatible ASUS ROG devices- Aura Addressable Strip HeaderASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer's Guardian- Procool- SafeSlot - DIGI+ VRM - DRAM Overcurrent Protection - ESD Guards on LAN, Audio and USB3.1/2.0 ports - Highly Durab
Package ContentsAccessories:Support DVDUser guide1 x 2x2 dual-band Wi-Fi antennas 2 x SATA 6Gb/s cables1 x Panel Cable1 x Extension Cable for Addressable LED Strips (80cm)1 x M.2 mounting kit2 x M.2 Screw Package1 x ROG Strix series sticker1 x ROG Strix thank you card1 x Pack of cable ties

Questions about this item

Will this board fit in a standard mini-ITX case and does it need any special mounting hardware?

The board uses the mini-ITX form factor with a pre-mounted I/O shield, so it installs directly into any standard mini-ITX chassis using the regular standoffs and screws supplied with the case.

Which memory kits are supported up to the maximum 64 GB capacity?

Two DDR4 UDIMM slots accept double-capacity modules up to 32 GB each for a total of 64 GB; speeds from 2133 to 4600 are listed, with all frequencies above 2666 requiring overclocking.

Can I run two M.2 drives at full PCIe 3.0 x4 speed simultaneously?

Both M.2 sockets support PCIe 3.0 x4 and SATA modes, but when the first socket runs in SATA mode the second SATA port is disabled; in PCIe mode both drives operate at full x4 bandwidth.
