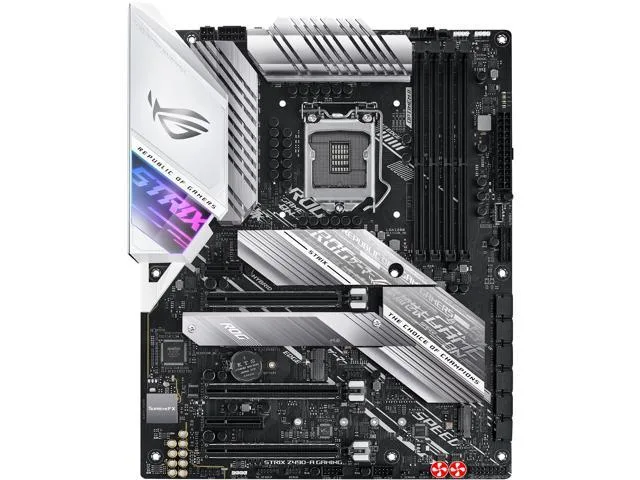

ATX motherboard with silver VRM heatsinks and black PCB

ASUS

ASUS ROG STRIX Z490-A GAMING Intel motherboard

SKU CH-PQ6V-83RWT

ATX board for 10th Gen Intel CPUs with 12+2 power stages, dual M.2 slots, 2.5 Gb Ethernet and DDR4 up to 4600 MHz

  • CPU Socket TypeLGA 1200
  • CPU TypeIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold and
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z490
  • Onboard Video ChipsetSupported only by CPU with integrated graphic:1 x DisplayPor
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 10th Gen Intel Core processors on LGA 1200 socket

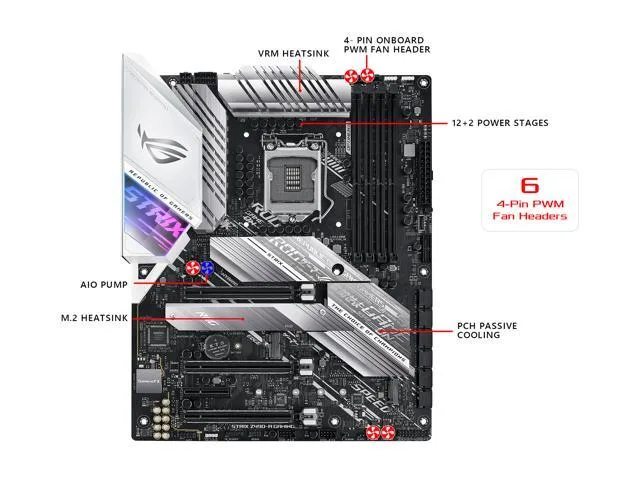

  • 12+2 Dr. MOS power stages deliver stable CPU power
  • VRM, PCH and M.2 heatsinks with Fan Xpert 4 cooling
  • Onboard Intel 2.5Gb Ethernet with LANGuard for fast networking
  • SupremeFX S1220A codec with DTS Sound Unbound and Sonic Studio III

LGA 1200 Motherboard for 10th Gen Intel

The ASUS ROG STRIX Z490-A GAMING fits the Intel LGA 1200 socket and supports 10th Gen Intel Core, Pentium Gold and Celeron processors. It is built for users who need a full-size ATX board with robust 12+2 Dr. MOS power stages and ProCool II connectors. Dual-channel DDR4 memory scales up to 128 GB across four 288-pin slots.

PCIe 3.0 and Storage Interfaces

The CPU provides three PCIe 3.0 x16 slots that operate at x16 or x8+x4+x4, while the Z490 chipset adds one PCIe 3.0 x4 slot running at up to x2 mode and one PCIe 3.0 x1 slot. Six SATA 6Gb/s ports support RAID 0, 1, 5 and 10, and Intel Optane memory is ready. Two M.2 sockets accept 2242, 2260, 2280 and 22110 modules, with the first supporting both SATA and PCIe 3.0 x4 and the second PCIe 3.0 x4 only.

DDR4 4600 Overclock Ceiling

The memory controller validates speeds from 2133 MHz up to 4600 MHz when overclocked, covering every step listed in the specification. This ceiling decides whether the board matches a high-frequency DDR4 kit or a standard JEDEC set.

Highlights

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • 12+2 Dr. MOS power stages deliver stable CPU power
  • VRM, PCH and M.2 heatsinks with Fan Xpert 4 cooling
  • Onboard Intel 2.5Gb Ethernet with LANGuard for fast networking
  • SupremeFX S1220A codec with DTS Sound Unbound and Sonic Studio III

Specifications

BrandASUS
SeriesROG
ModelSTRIX Z490-A GAMING
CPU Socket TypeLGA 1200
CPU TypeIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z490
Onboard Video ChipsetSupported only by CPU with integrated graphic:1 x DisplayPort 1.4 *1 x HDMI 1.4b* Graphics specifications may vary between CPU types.** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x16Intel 10th Gen Processors3 x PCIe 3.0 x16 (x16 or x8+x4+x4)
PCI Express x4Intel Z490 Chipset1 x PCIe 3.0 x4 (max at x2 mode)
PCI Express x11 x PCIe 3.0 x1
Other SlotsM.2 slot only (Key E) (Support CNVI & PCIe interface)** Wi-Fi module is sold separately.
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels8 Channels* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
LAN ChipsetIntel I225-V
Max LAN Speed2.5Gbps
Back I/O Ports1 x Intel I225-V 2.5Gb Ethernet1 x DisplayPort1 x HDMI2 x USB 3.2 Gen 2 (1 x Type-A + USB Type-C)4 x USB 3.2 Gen 1 Type-A2 x USB 2.0 (one port can be switched to USB BIOS FlashBack)1 x Optical S/PDIF out1 x USB BIOS FlashBack Button(s)5 x Gold-plated audio jacks
Onboard USB1 x USB 3.2 Gen 1 front panel TypeC connector1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors1 x M.2_FAN connector1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x Addressable RGB header1 x AAFP connector2 x Aura RGB Strip Headers1 x Thunderbolt header(s)1 x System panel(s) (Chassis intrusion header is inbuilt)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x CPU_OV jumper1 x VRM_HS_FAN Header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)
FeaturesMulti-GPU Support:Supports AMD 2-Way CrossFireX Technology Software Features:ROG Exclusive Software- RAMCache III- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer- Sonic Radar III- DTS Sound Unbound- Overwolf- Anti-virus softwareASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3-5-way Optimization with AI Overclocking.TPUEPUDigi+ VRMFan Xpert 4Turbo app-EZ updateWinRARUEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeFlexKeyASUS Special Features:Aura Feature- Standard RGB headers- Addre
Package ContentsAccessories:User's manual1 x ASUS Fan Holder4 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x ROG Strix stickers1 x Cable ties pack(s)1 x Extension Cable for RGB strips (80cm)1 x Extension cable for Addressable LED1 x Thermistor cable(s)1 x ROG Thank you card1 x 2-in-1 Rubber pad1 M.2 SSD screw package(s)1 M.2 Key E screw package(s)1 ROG key chain

Questions about this item

Which DDR4 speed should I pick for the ROG STRIX Z490-A GAMING?

The board supports DDR4 up to 4600 MHz when overclocked and runs natively at 2666 MHz; choose a kit rated for your target speed and enable the XMP profile in BIOS to reach it.

What does the 12+2 power stage design deliver in a real build?

Twelve Dr. MOS stages for the CPU core and two for the system agent give stable, efficient current delivery so 10th Gen Intel Core processors can sustain high boost clocks under load.

How fast is the onboard 2.5 Gb Ethernet in practice?

The Intel 2.5Gb Ethernet controller provides up to 2.5 gigabits per second throughput, roughly two and a half times standard gigabit LAN, limited by your router, cabling and internet plan.
