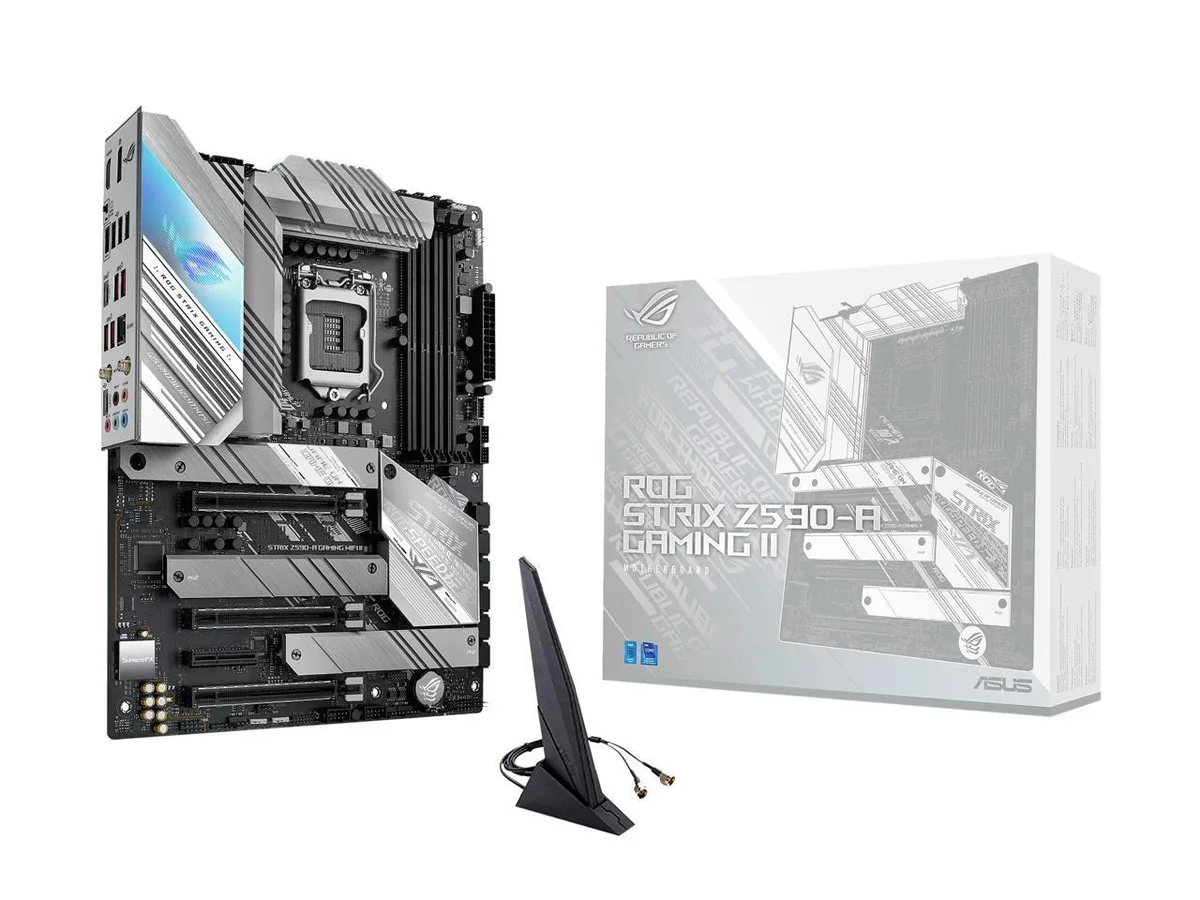

ATX motherboard, black PCB with silver heatsinks, white ROG lettering, pre-mounted I/O shield

ASUS

ASUS ROG STRIX Z590-A GAMING WIFI II Intel motherboard

SKU CH-Z4M8-S7GRE

An Intel Z590 ATX motherboard for 10th and 11th Gen Core processors with 14+2 power stages, DDR4 memory up to 128 GB, three M.2 slots, 2.5 Gb Ethernet and WiFi 6

  • CPU Socket TypeLGA 1200
  • CPU TypeIntel Core 11th Gen (LGA 1200)
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Stable multi-core power from 14+2 teamed stages and ProCool II connector

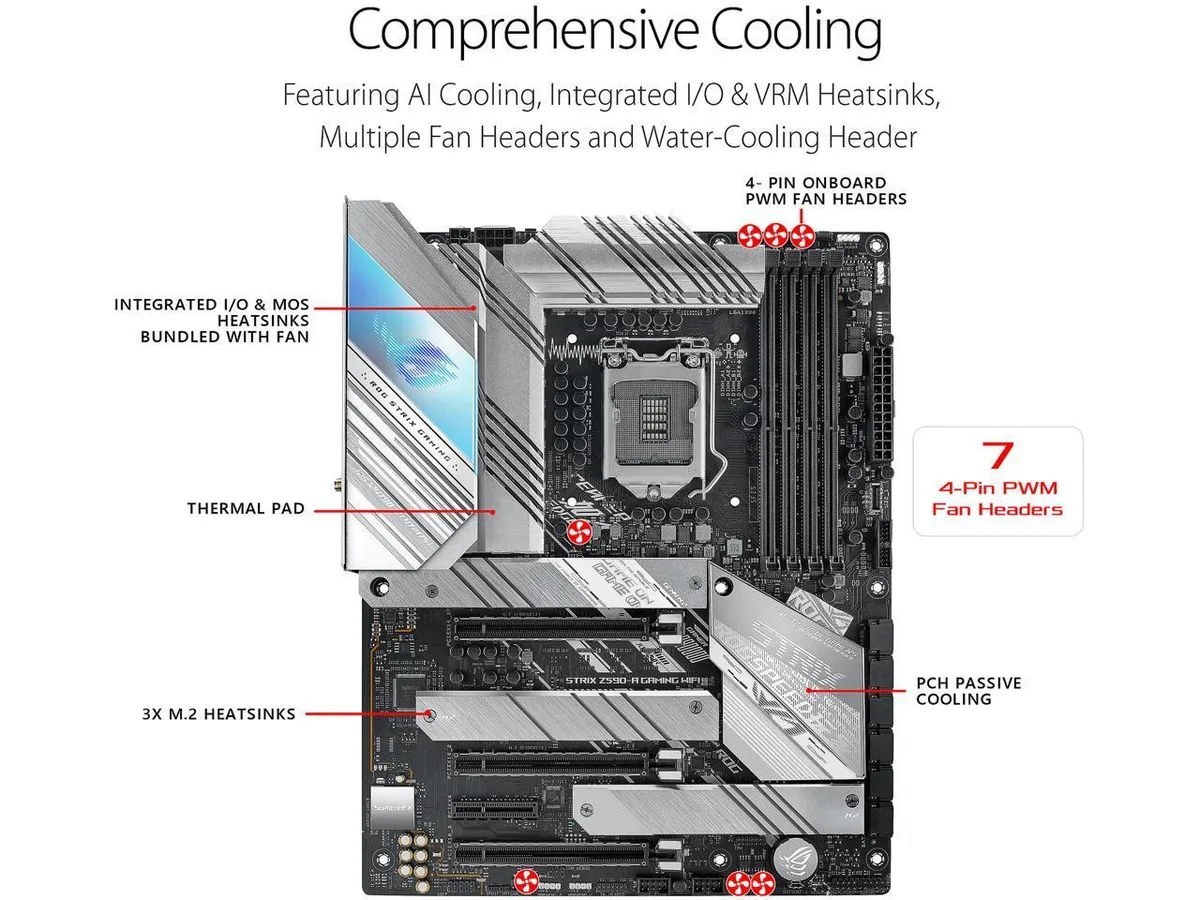

  • VRM and three M.2 heatsinks plus backplate keep thermals in check
  • WiFi 6 AX201 and 2.5 Gb Ethernet with LANGuard deliver fast wired and wireless links
  • AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation simplify tuning
  • M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack and FlexKey speed up the build

ROG STRIX Z590-A GAMING WIFI II Motherboard

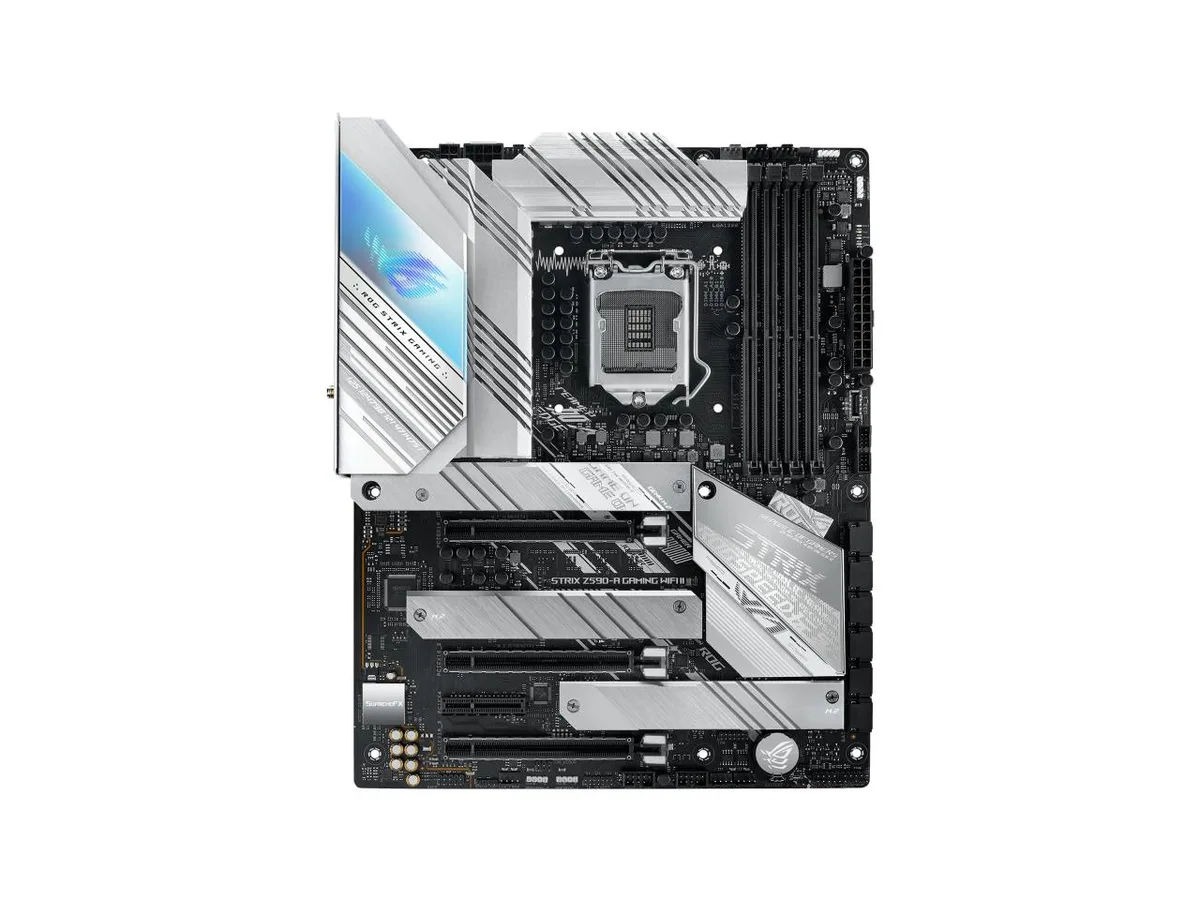

The ASUS ROG STRIX Z590-A GAMING WIFI II is an ATX motherboard built around the Intel Z590 chipset and LGA 1200 socket. It supports 10th and 11th Gen Intel Core, Pentium Gold and Celeron processors. A 14+2 teamed power stage design with ProCool II connectors delivers stable current for multi-core workloads. Onboard Intel Wi-Fi 6 AX201 and 2.5 Gb Ethernet provide high-speed networking.

Compatibility Checklist Before Ordering

Verify that your CPU is a 10th or 11th Gen Intel processor in the LGA 1200 package. Only 11th Gen CPUs enable PCIe 4.0 on the primary M.2 slot and the top PCIe x16 slot; with 10th Gen chips that M.2 slot is disabled and the x16 slot runs at PCIe 3.0. Memory must be DDR4 DIMMs up to 128 GB total across four 288-pin slots. The chassis must accept an ATX form factor and provide clearance for VRM heatsinks and three M.2 heatsinks.

Ideal Build Targets and Alternatives

This board suits builders who want AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation in a single package, plus USB 3.2 Gen 2x2 Type-C, HDMI 2.0 and DisplayPort 1.4 outputs. It also fits users needing 7.1-channel audio and Aura Sync RGB headers. Buyers running 10th Gen CPUs who do not need PCIe 4.0 storage or those planning a smaller form factor should consider a different model.

Highlights

  • Stable multi-core power from 14+2 teamed stages and ProCool II connector
  • VRM and three M.2 heatsinks plus backplate keep thermals in check
  • WiFi 6 AX201 and 2.5 Gb Ethernet with LANGuard deliver fast wired and wireless links
  • AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation simplify tuning
  • M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack and FlexKey speed up the build

Specifications

BrandASUS
SeriesROG
CPU Socket TypeLGA 1200
CPU TypeIntel Core 11th Gen (LGA 1200)
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4267(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x163 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
* Supports PCIe bandwidth bifurcation for RAID on CPU function.
PCI Express x41 x PCIe 3.0 x4
Serial ATA (SATA)6 x SATA 6Gb/s
M.2Intel 11th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
Intel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
* When M.2_2 is operating in SATA device, SATA6G_2 will be disabled.
** When M.2_3 is operating in SATA device, SATA6G_6 will be disabled.
Intel Optane ReadyTo enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
Audio Channels7.1 Channels
LAN ChipsetIntel I225-V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6
802.11a/b/g/n/ac/ax
BluetoothBluetooth 5.0
Back I/O Ports1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
5 x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C)
1 x HDMI port
1 x DisplayPort
1 x ASUS Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 3.2 Gen 1 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Questions about this item

Does the ASUS ROG STRIX Z590-A GAMING WIFI II ship with cables and an I/O shield, or must I buy them separately?

The board includes a pre-mounted I/O shield, SATA cables, M.2 Q-Latch hardware and driver media. A CPU, DDR4 memory, graphics card and storage are purchased separately.

Should I choose an 11th Gen or 10th Gen Intel Core processor for this LGA 1200 board?

11th Gen Core processors unlock PCIe 4.0 on the primary M.2 slot and the top three x16 slots. 10th Gen CPUs run at PCIe 3.0 speeds and disable the primary M.2 slot.

What does the 14+2 power-stage design mean for an overclocked 11th Gen Core i9?

The 14+2 teamed stages with ProCool II connectors deliver stable current to multi-core 11th Gen CPUs, while the VRM heatsink and M.2 backplate keep thermals in check during heavy loads.
