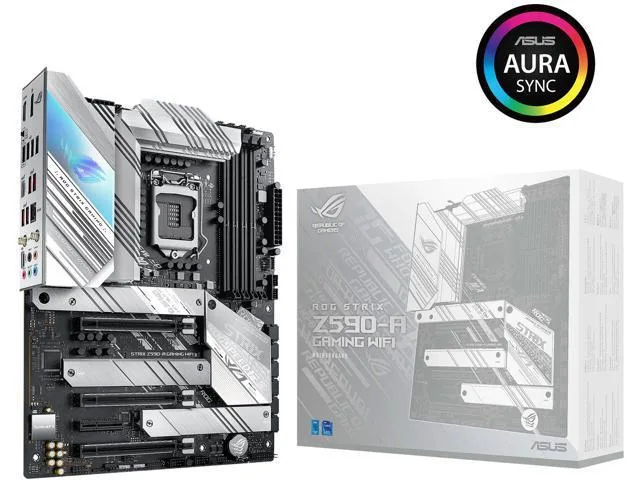

White ATX motherboard with silver heatsinks and RGB lighting

ASUS

ASUS ROG Strix Z590-A Gaming WiFi White Intel motherboard

SKU CH-VS5M-XFP7V

LGA 1200 ATX board for 10th and 11th Gen Intel Core CPUs with 14+2 power stages, triple M.2 slots, WiFi 6, 2.5 Gb LAN and Thunderbolt 4 header in a white finish

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • LGA 1200 socket supports 11th and 10th Gen Intel Core processors
  • 14+2 Dr. MOS power stages with ProCool II connector deliver stable CPU power

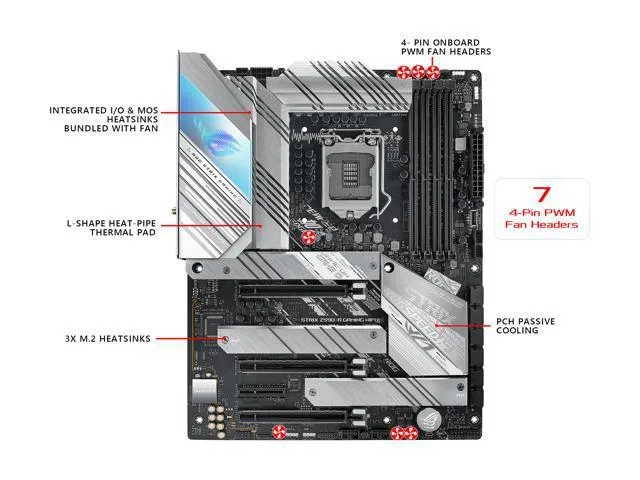

  • VRM, PCH and M.2 heatsinks plus Fan Xpert 4 keep temperatures low
  • Intel WiFi 6 AX200 and 2.5Gb Ethernet with LANGuard provide fast networking
  • Triple M.2 slots, USB 3.2 Type-C front panel and Thunderbolt 4 header expand connectivity

Socket and Chipset

This LGA 1200 board pairs the Intel Z590 chipset with 10th and 11th Gen Core i9, i7, i5 and i3 processors. A 14+2 Dr. MOS power stage array and ProCool II connectors feed the CPU cleanly when Turbo Boost 3.0 pushes clocks higher. The white and silver finish matches bright-themed builds.

Expansion and Connectivity

Three PCI Express 4.0 x16 slots and one x4 slot handle graphics and add-in cards, while three M.2 sockets and six SATA 6Gb/s ports give plenty of room for NVMe and SATA storage. Front-panel USB 3.2 Gen 2 Type-C, HDMI 2.0, DisplayPort 1.4 and a Thunderbolt 4 header cover display and peripheral needs. Intel WiFi 6 AX200 and 2.5Gb Ethernet with LANGuard keep network latency low.

Audience Fit

The four DDR4 slots support up to 128 GB at 3200 MHz, with overclocked kits reaching 5333 MHz, suiting enthusiasts who want high capacity on a mature platform. AI Overclocking, AI Cooling and AI Noise Cancellation simplify tuning for less experienced builders. Users who need a newer socket or a different memory standard should select a board built for that generation.

Highlights

  • LGA 1200 socket supports 11th and 10th Gen Intel Core processors
  • 14+2 Dr. MOS power stages with ProCool II connector deliver stable CPU power
  • VRM, PCH and M.2 heatsinks plus Fan Xpert 4 keep temperatures low
  • Intel WiFi 6 AX200 and 2.5Gb Ethernet with LANGuard provide fast networking
  • Triple M.2 slots, USB 3.2 Type-C front panel and Thunderbolt 4 header expand connectivity

Specifications

BrandASUS
SeriesROG
ModelSTRIX Z590-A GAMING WIFI
CPU Socket TypeLGA 1200
CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x163 x PCI Express 4.0 x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)6 x SATA 6Gb/s
M.23 x M.2
Intel Optane ReadyYes
Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Channels7.1 Channels
LAN ChipsetIntel I225-V
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothYes
Back I/O Ports1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)4 x USB 3.2 Gen 2 port(s) (4 x Type-A)5 x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C) 1 x HDMI port1 x DisplayPort1 x ASUS Wi-Fi Module1 x Intel I225-V 2.5Gb Ethernet5 x Audio jacks 1 x BIOS FlashBack button
Onboard USB3 x USB 3.2 + 4 x USB 2.0
Other ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)4 x 4-pin Chassis Fan header(s)1 x VRM heatsink Fan headerMiscellaneous3 x AURA Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x Clear CMOS header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP) 1 x TPM-M header (14-1-pin)1 x 20-3-pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt header1 x S/PDIF out header
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin24 Pin
FeaturesSpecial Features:Extreme Engine Digi+- 5K Black Metallic CapacitorsASUS Q-Design - M.2 Q-Latch - Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsinkASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- ProCool II- Pre-mounted I/O shield- SafeSlotAURA Sync- AURA RGB header(s)- Addressable Gen 2 RGB header(s)Software Features:ROG Exclusive Software- RAMCache III- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III- DTS Sound Unbound - Overwolf - Anti-v
Package ContentsAccessories:Cables:1 x ROG audio USB Type-C cable4 x SATA 6Gb/s cables Miscellaneous:1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Q-Latch package 2 x M.2 Rubber Packages1 x ROG key chain1 x ROG STRIX sticker1 x ROG STRIX thank you cardInstallation Media:1 x Support DVDDocumentation:1 x User manual

Questions about this item

Will the 14+2 Dr. MOS power stages handle an 11th Gen Core i9 at full load without throttling?

The 14+2 Dr. MOS power stages with ProCool II connectors, alloy chokes and durable capacitors are designed to deliver reliable power when pushing CPU performance to the limit.

How loud does the PCH fanless heatsink and VRM cooling get during all-day gaming?

The board uses a VRM heatsink, fanless PCH heatsink, M.2 heatsinks and hybrid fan headers controlled by Fan Xpert 4 for quiet thermal management under sustained loads.

Which CPU cooler mounting pattern fits the LGA 1200 socket on this motherboard?

The board uses the Intel LGA 1200 socket; select a cooler that lists LGA 1200 compatibility.
