ASUS
ASUS ROG Strix Z590-I Gaming WiFi 6E Intel motherboard
Mini-ITX Intel Z590 board with 8+2 power stages, WiFi 6E, 2.5 Gb LAN, dual M.2 slots and Thunderbolt 4
- CPU Socket TypeLGA 1200
- CPU TypeIntel Core 11th Gen (LGA 1200)
- Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
- ChipsetIntel Z590
- Onboard Video ChipsetSupported only by CPU with integrated graphic
- Number of Memory Slots2x288pin (DDR4)
- Supports 11th Gen Intel Core CPUs via LGA 1200 socket
- 10 layer PCB with 8+2 Dr. MOS stages delivers stable power
- Active VRM fan and triple-decker heatsinks keep temperatures low
- WiFi 6E AX210 plus 2.5 Gb Ethernet for fast networking

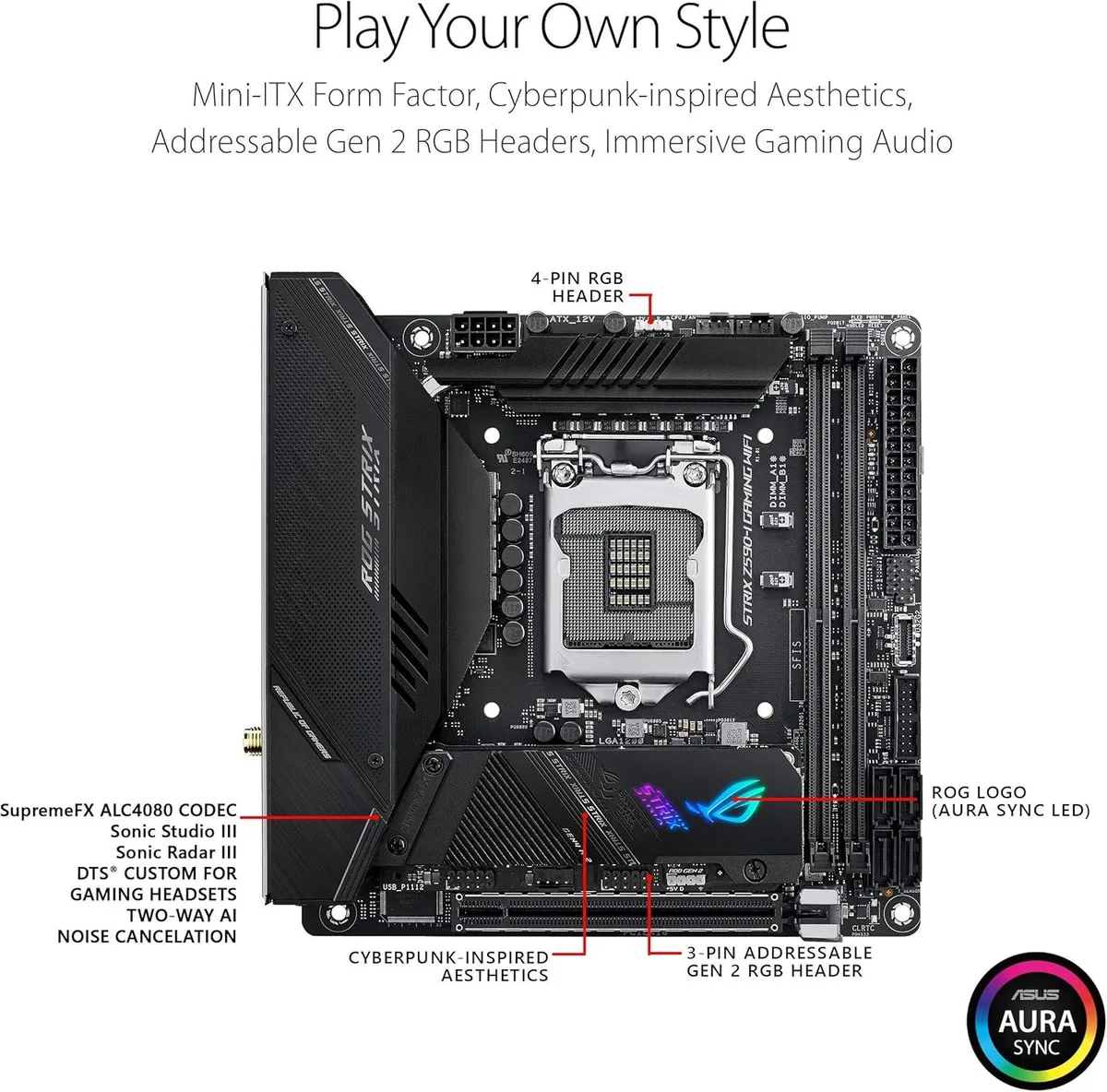

- SupremeFX ALC4080 codec provides 7.1 channel high-definition audio
Mini-ITX Z590 platform for 11th Gen Intel Core
This LGA 1200 mini-ITX board targets builders who want a compact gaming system based on 11th or 10th generation Intel Core processors. The Intel Z590 chipset enables PCIe 4.0 support with a compatible 11th Gen CPU. Dual-channel DDR4 memory tops out at 64 GB across two 288-pin slots.
Sustained-load behaviour with active VRM cooling

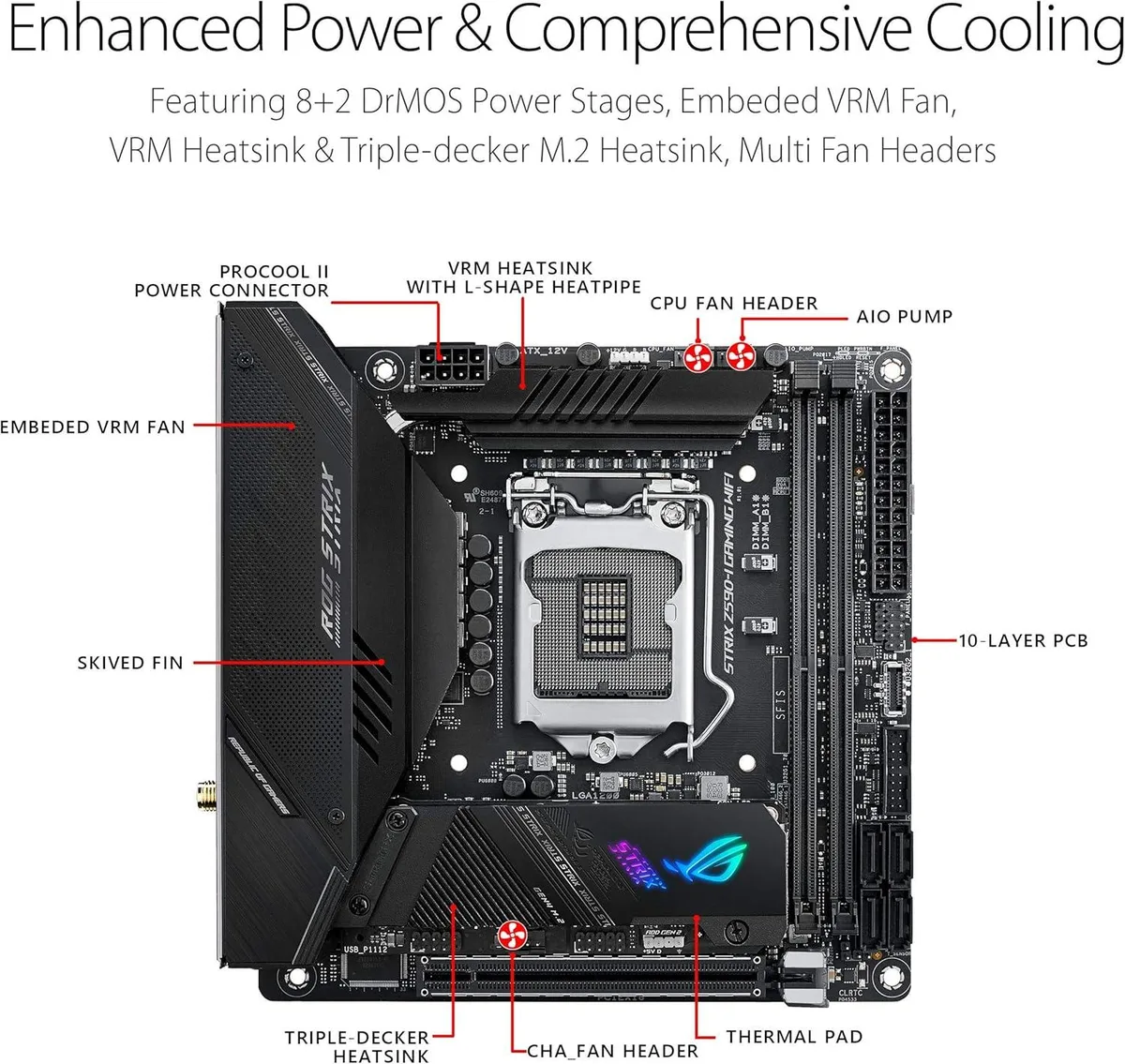

A 10-layer PCB carries an 8+2 Dr. MOS power stage array fed by a ProCool II connector, alloy chokes and durable capacitors. An active VRM fan works with triple-decker heatsinks, an integrated I/O and MOS heatsink, an L-shape heat-pipe, a PCH heatsink and a skived-fin design to move heat away during extended sessions. The M.2 backplate adds another thermal path for the primary slot.
Mini-ITX install notes and common pitfalls
The 6.7 by 6.7 inch footprint fits mini-ITX cases, yet the tall VRM heatsink stack can clash with low-profile CPU coolers or bulky graphics-card backplates. Only 11th Gen CPUs activate the top M.2 slot in PCIe 4.0 x4 mode; with a 10th Gen chip that slot is disabled. Front-panel USB 3.2 Gen 2 Type-C and Thunderbolt 4 headers need matching case connectors to function.
Highlights
- Supports 11th Gen Intel Core CPUs via LGA 1200 socket
- 10 layer PCB with 8+2 Dr. MOS stages delivers stable power
- Active VRM fan and triple-decker heatsinks keep temperatures low
- WiFi 6E AX210 plus 2.5 Gb Ethernet for fast networking
- SupremeFX ALC4080 codec provides 7.1 channel high-definition audio
Specifications
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | STRIX Z590-I GAMING WIFI |
| CPU Socket Type | LGA 1200 |
| CPU Type | Intel Core 11th Gen (LGA 1200) |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z590 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133* * 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU typ |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Actual support may vary by CPU |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Intel 11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel Z590 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| Intel Optane Ready | Yes |
| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Audio Channels | 7.1 Channels* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| LAN Chipset | Intel I225-V |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 hardware ready* * Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or later. |
| Back I/O Ports | 1 x Thunderbolt 4 USB Type-C port(s) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 1 x USB 3.2 Gen 1 port(s) (1 x Type-A) 4 x USB 2.0 port(s) (4 x Type-A) 1 x HDMI port 1 x Intel Wi-Fi 6E 1 x Intel I225-V 2.5Gb Ethernet port 3 x LED-illuminated audio jacks 1 x BIOS FlashBack button |
| Onboard USB | 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Miscellaneous 1 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Windows 11 | Supported |
| Form Factor | Mini ITX |
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Features | Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) ASUS HYDRANODE - 1 x Chassis fan support* (CHA_FANP) * Visit ASUS Website for the latest compatibility list. Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - |
| Package Contents | Accessories: Cables 4 x SATA 6Gb/s cables 1 x Panel cable 1 x ROG USB2.0 splitter cable Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 2 x M.2 SSD screw package(s) 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
Questions about this item
How loud does the active VRM fan get when the board runs all day?
The board uses an active VRM fan alongside triple-decker heatsinks, an L-shape heat-pipe and a skived-fin PCH heatsink to keep temperatures down during extended loads.
Which CPU and memory must I already have to use this LGA 1200 mini-ITX board?
You need an Intel 11th or 10th Gen Core processor for the LGA 1200 socket and up to 64 GB of DDR4 in two 288-pin slots running dual-channel.
Will my existing SATA drives and PCIe 3.0 graphics card work with the Z590 chipset?
Four SATA 6 Gb/s ports support current drives, and the single PCI Express 4.0 x16 slot is backward-compatible with PCIe 3.0 cards.
