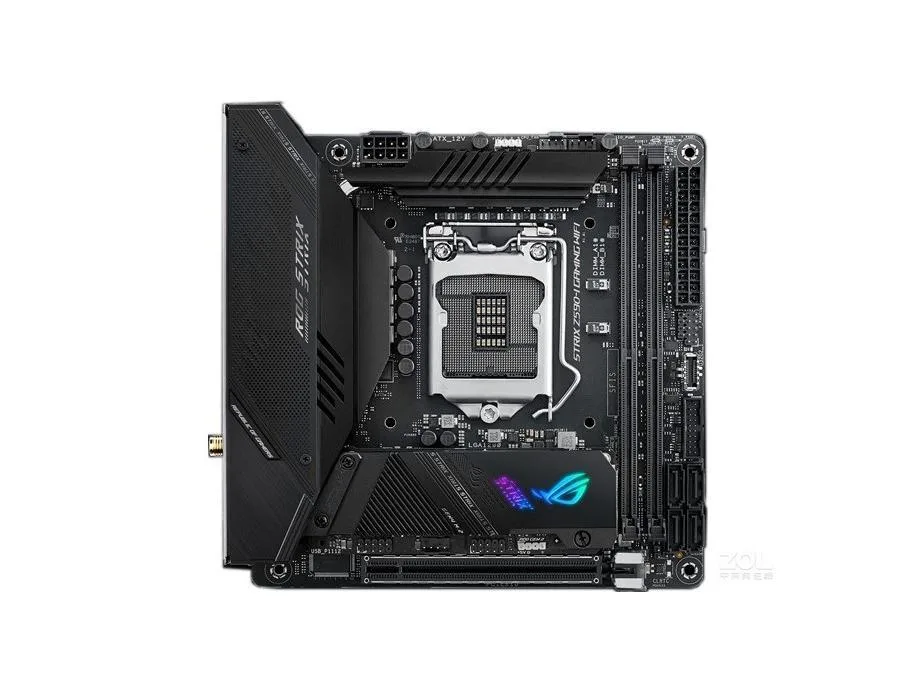

Compact Mini-ITX motherboard with dark PCB and metallic heatsinks

ASUS

ASUS ROG STRIX Z590-I GAMING WIFI Intel motherboard

SKU CH-EQ56-VFPGH

Mini-ITX Intel Z590 board for 10th and 11th generation LGA 1200 CPUs with dual-channel DDR4 up to 64GB and Thunderbolt 4

  • CPU Socket TypeLGA 1200
  • CPU TypeIntel Socket LGA1200 - Supports 11th Gen Intel Core Processo
  • ChipsetIntel Z590
  • Memory StandardSupport dual channel DDR4 5133 (OC)/5000 (OC)/4800 (OC)/4700
  • Maximum Memory Supported64GB
  • PCI Slots1 x PCIe 4.0 x16 (x16 mode) Eleventh/tenth generation Intel
  • Compact Mini-ITX form factor fits 17.0 cm builds
  • Supports 11th and 10th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory up to 64 GB with dual-channel speeds to 5133 OC
  • PCIe 4.0 x16 slot for 11th Gen CPUs and PCIe 3.0 x16 for 10th Gen CPUs
  • Thunderbolt 4 Type-C port delivers 15 W charging and fast data

Mini-ITX Z590 platform

This Mini-ITX motherboard uses the Intel Z590 chipset and an LGA 1200 socket to support 10th and 11th generation Intel Core, Pentium Gold and Celeron processors. The board provides a compact foundation for small-form-factor builds.

Dual-channel DDR4 up to 64 GB

Two DDR4 slots accept up to 64 GB of memory with a long list of overclocked speeds from 2400 up to 5133. A single PCIe 4.0 x16 slot handles modern graphics cards when paired with an 11th generation CPU, while 10th generation CPUs run the slot at PCIe 3.0.

Thunderbolt 4 and 7.1 audio under load

The rear I/O includes a Thunderbolt 4 Type-C port capable of 15 W charging, a USB 3.2 Gen 2x2 Type-C port and additional Type-A ports. The ALC4080 codec with Savitech SV3H712 headphone amplifier drives 7.1 surround sound through a luminous LED audio jack backed by Japanese capacitors.

Highlights

  • Compact Mini-ITX form factor fits 17.0 cm builds
  • Supports 11th and 10th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory up to 64 GB with dual-channel speeds to 5133 OC
  • PCIe 4.0 x16 slot for 11th Gen CPUs and PCIe 3.0 x16 for 10th Gen CPUs
  • Thunderbolt 4 Type-C port delivers 15 W charging and fast data

Specifications

BrandASUS
SeriesASUS ROG STRIX Z590-I GAMING WIFI
ModelASUS ROG STRIX Z590-I GAMING WIFI
CPU Socket TypeLGA 1200
CPU TypeIntel Socket LGA1200 - Supports 11th Gen Intel Core Processors/10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14nm processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 **
ChipsetIntel Z590
Memory StandardSupport dual channel DDR4 5133 (OC)/5000 (OC)/4800 (OC)/4700 (OC)/4600 (OC)/4500 (OC)/4400 (OC)/4266 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots1 x PCIe 4.0 x16 (x16 mode)
Eleventh/tenth generation Intel processors
1 x PCIe 4.0/3 x16 slots *
- 11th generation Intel, processor supports PCIe 4.0 x16 mode
10th generation Intel, processor supports PCIe 3.0 x16 mode
* Supports PCIe bandwidth branching to perform RAID on CPU functionality.
SATA RAID2XM.2 interface, SATA III interface
Audio Chipset- Audio splitting line
- ALC4080 + Savitech SV3H712 headamp
- Luminous LED audio jack
- High quality Japanese audio capacitor
* The front panel must be a chassis with an HD audio module to support 7.1 surround audio output
Onboard USBRear panel USB: 8 ports in total
1 x Thunderbolt 4 interface (1 x USB Type-C) up to 5V/3A, supports 15W charging
1 x USB 3.2 Gen 2x2 interface (1 x USB Type-C)
1 x USB 3.2 Gen 2 interface (1 x Type-A)
1 x USB 3.2 Gen 1 interface (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x USB 3.2 Gen 2 connection port (supports USB Type-C)
1 x USB 3.2 Gen 1 port expandable 2 USB 3.2 Gen 1 interface
1 x USB 2.0 port expandable 2 USB 2.0 ports

Questions about this item

What processor socket must I already have to use this board?

You need an Intel processor with an LGA 1200 socket; the board supports 10th and 11th generation Intel Core, Pentium Gold and Celeron CPUs.

Will my 10th generation Intel CPU still run the PCIe slot at full speed?

With a 10th generation processor the single PCIe 4.0 x16 slot operates in PCIe 3.0 x16 mode; 11th generation CPUs enable PCIe 4.0 x16.

How can I confirm the board is using dual-channel memory after I build?

Install two DDR4 modules in the two slots; the firmware will show dual-channel operation at speeds up to 5133 MT/s (OC) with a maximum capacity of 64 GB.
