ASUS ROG Strix Z690-A Gaming WiFi D4 90MB18K0-M0AAY0 Intel motherboard
An ATX motherboard for 12th and 13th Gen Intel Core processors with a 16+1 power stage design, DDR4 memory support up to 128 GB, PCIe 5.0, WiFi 6 and Thunderbolt connectivity
- CPU Socket TypeLGA 1700 * Designed with dual mounting holes compatible with
- CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold
- Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
- ChipsetIntel Z690
- Onboard Video ChipsetSupported only by CPU with integrated graphic
- Number of Memory Slots4x288pin (DDR4)
- Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
- 16+1 power stages deliver stable voltage for multi-core CPUs
- PCIe 5.0 x16 slot enables next-generation graphics bandwidth
- Four DDR4 slots support up to 128 GB memory at 5333 MT/s overclocked
- WiFi 6 and Intel 2.5 Gb Ethernet provide low-latency gaming networking
Socket LGA 1700 ATX board

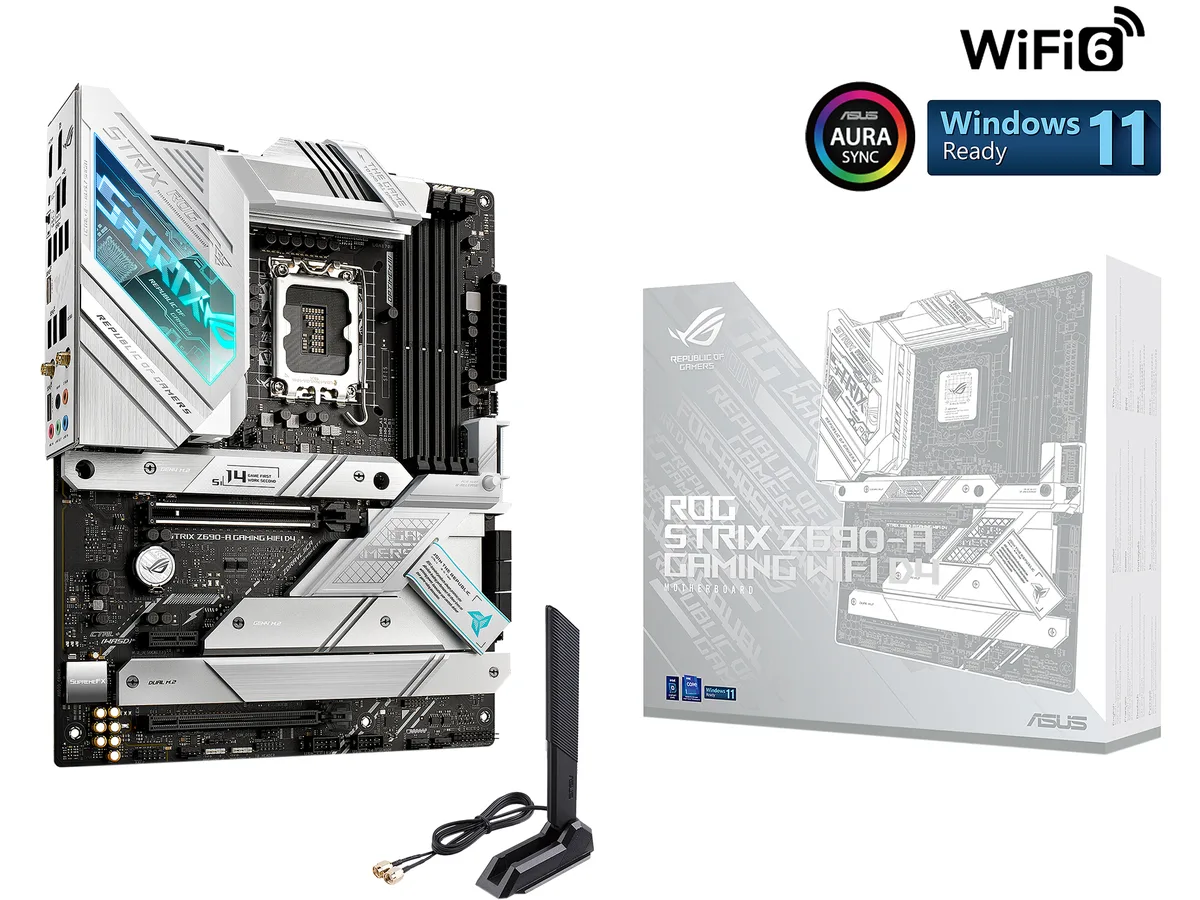

The ASUS ROG Strix Z690-A Gaming WiFi D4 is an ATX motherboard built around the Intel Z690 chipset and the LGA 1700 socket. It accepts 12th and 13th Generation Intel Core, Pentium Gold and Celeron processors. A BIOS update may be required before a 13th Generation CPU will boot. The board delivers a 16+1 power stage design with ProCool II connectors, alloy chokes and durable capacitors for multi-core workloads.
DDR4 memory, PCIe 5.0 graphics, quad M.2

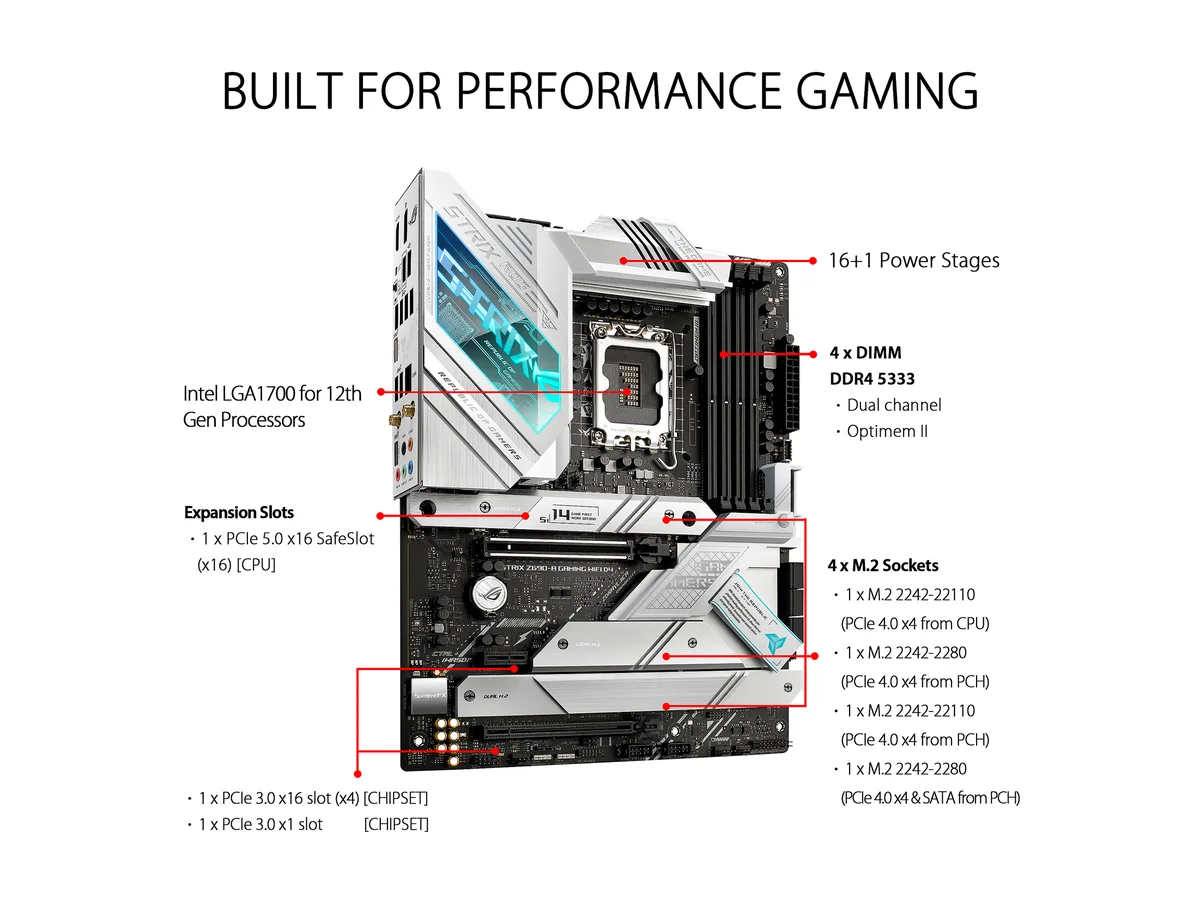

Builders who want to reuse DDR4 modules or who prefer the cost profile of DDR4 will find four 288-pin slots supporting up to 128 GB in dual-channel mode with speeds listed up to 5333 MT/s when overclocked. One PCI Express 5.0 x16 slot and one PCI Express 3.0 x16 slot running at x4 give graphics and add-in card flexibility. Four M.2 slots accept 2242, 2260, 2280 and 22110 form factors with PCIe 4.0 x4 wiring on the top two slots. Users needing a smaller form factor should choose a different model.
Capacity and headroom
The 128 GB memory ceiling and 5333 MT/s overclocked headroom handle large content-creation projects and heavy multitasking with room to spare. Six SATA 6 Gb/s ports and the quad M.2 array provide ample storage expansion for game libraries and work files. The 16+1 power stage VRM keeps high-core-count 12th and 13th Generation processors stable under sustained load, while the single PCIe 5.0 x16 slot and dual PCIe 4.0 M.2 links define the I/O ceiling for next-generation GPUs and SSDs.
Highlights
- Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
- 16+1 power stages deliver stable voltage for multi-core CPUs
- PCIe 5.0 x16 slot enables next-generation graphics bandwidth
- Four DDR4 slots support up to 128 GB memory at 5333 MT/s overclocked
- WiFi 6 and Intel 2.5 Gb Ethernet provide low-latency gaming networking
Specifications
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | STRIX Z690-A GAMING WIFI D4 |
| Part Number | 90MB18K0-M0AAY0 |
| CPU Socket Type | LGA 1700 * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets. |
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ * Refer to www.asus.com for CPU support list. |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z690 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Please check PCIe bifurcation table in support site. |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 * Supports x4 mode. |
| PCI Express x1 | 1 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
| M.2 | Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** When M.2_4 is operating in SATA mode, SATA6G_2 will be disabled. |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 2.5Gb Ethernet |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 6 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

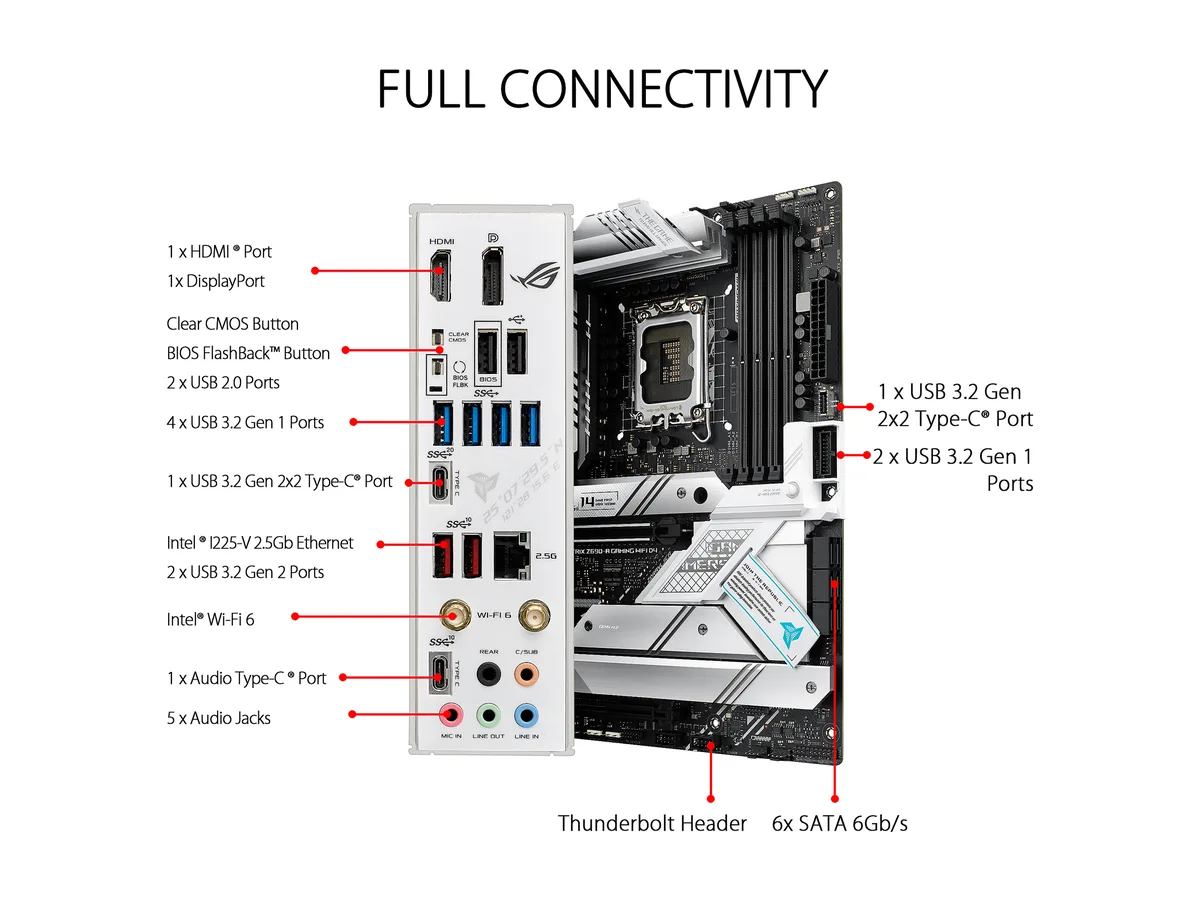

| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Onboard USB | 1 x USB 3.2 Gen 2x2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

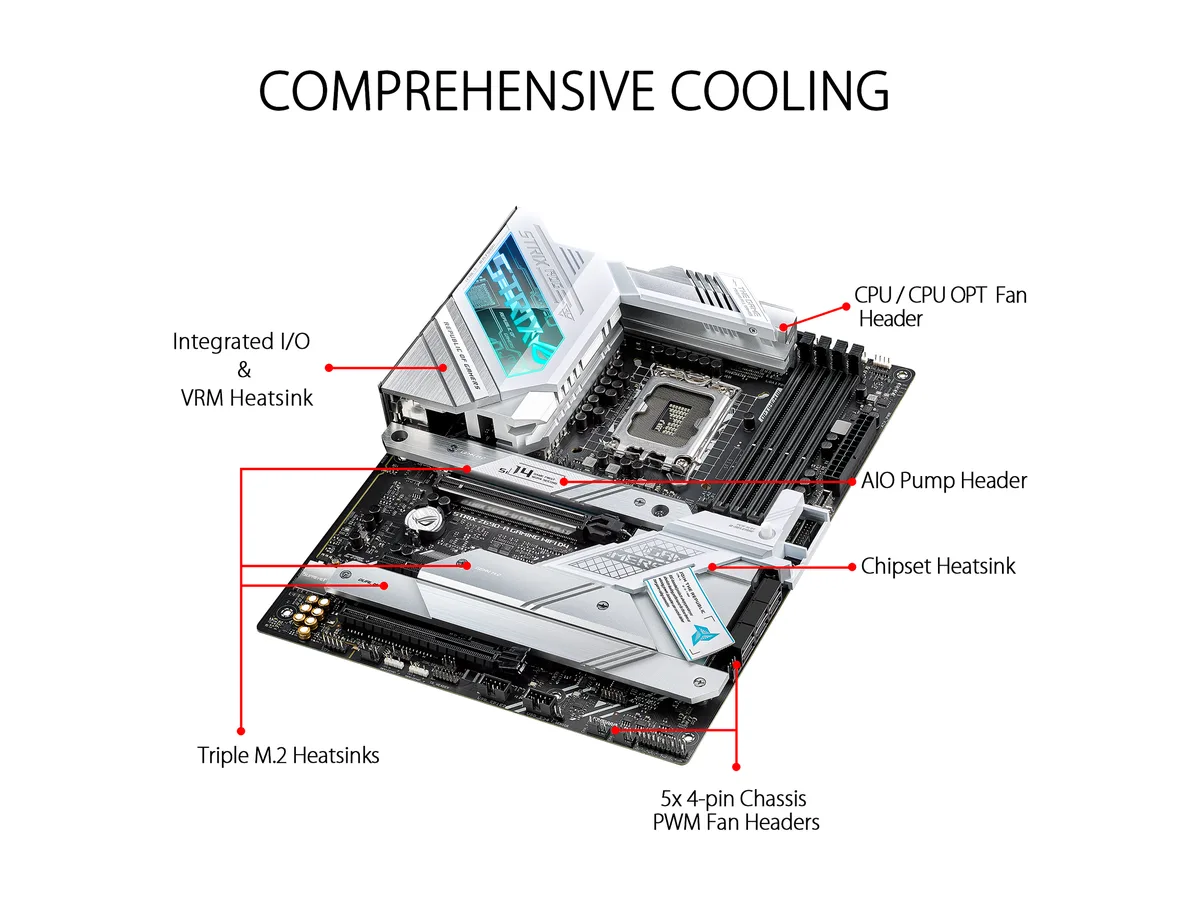

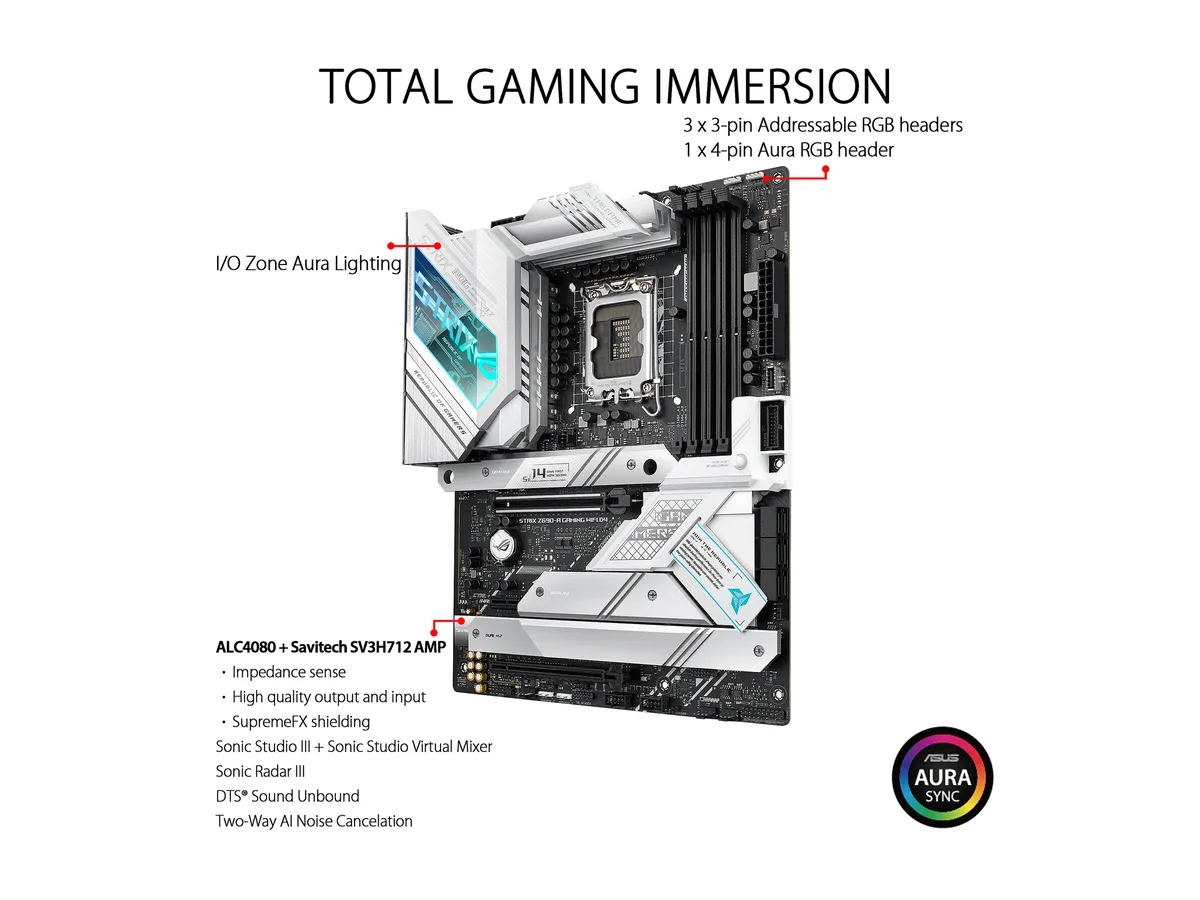

| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
| Windows 11 | Ready |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors |
| Features | Special Feature: Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers ASUS HYDRANODE - 1 x 12-1 pin Front Panel Audio header (AAFP) - 1 x Chas |
| Package Contents | Accessories: Cables 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User guide |
| Shipping weight | 2.29 kg |
| Package size | 338 × 273 × 70 mm |
Questions about this item
Will my existing LGA 1200 CPU cooler fit the LGA 1700 socket on the ASUS ROG Strix Z690-A Gaming WiFi D4?
Yes, the board includes dual mounting holes that accept both LGA 1700 and LGA 1200 cooler brackets, so your current cooler can be reused without an adapter.
Can I keep using my DDR4 memory kits with the four 288-pin slots on this Z690 board?
The four slots support DDR4 up to 5333(OC) and a maximum of 128 GB in dual-channel mode, so existing DDR4 modules work directly.
How do I confirm the PCIe 5.0 x16 slot is running at full speed after installing a graphics card?
Check the BIOS PCIe configuration or a system information utility; the primary slot is wired for PCIe 5.0 x16 when a 12th or 13th Gen CPU is installed.
