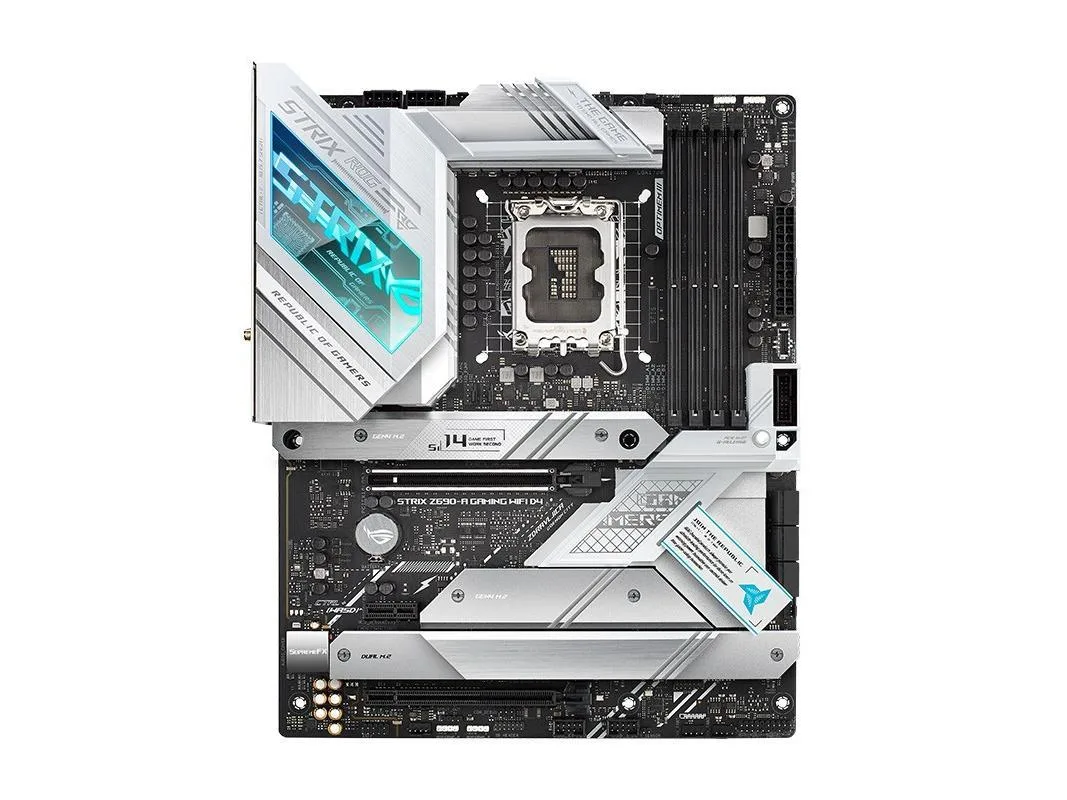

Rectangular ATX motherboard, dark finish with silver heatsinks and ROG branding

ASUS

ASUS ROG STRIX Z690-A GAMING WIFI Intel motherboard

SKU CH-M31K-XDSYW

An ATX Intel Z690 motherboard with LGA 1700 socket supporting 12th, 13th and 14th generation CPUs, dual-channel DDR4 up to 5333 MHz and 192 GB capacity, PCIe 5.0 x16, six SATA ports.

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Socket LGA1700 is suitable for Intel Core, 14th and 13
  • ChipsetIntel Z690
  • Memory StandardSupports dual-channel DDR4 5333 (OC) MHz memory
  • Maximum Memory Supported192GB
  • PCI SlotsIntel Core processors (14th, 13th, and 12th generations) 1 x
  • Supports up to 192GB DDR4 memory for heavy multitasking
  • Intel LGA 1700 socket fits 12th, 13th and 14th generation CPUs
  • PCIe 5.0 x16 slot delivers maximum graphics bandwidth
  • ROG SupremeFX ALC4080 codec provides 7.1 surround sound
  • Intel Wi-Fi 6E and 10 rear USB ports ensure fast connectivity

Z690 ATX Platform

The ASUS ROG STRIX Z690-A GAMING WIFI is an ATX motherboard built around the Intel Z690 chipset and the LGA 1700 socket. It accepts Intel Core processors from the 12th, 13th and 14th generations as well as Pentium Gold and Celeron models. The board supports dual-channel DDR4 memory up to 192 GB with overclocked speeds reaching 5333 MHz.

Connectivity and Build

The board measures 30.5 by 24.4 cm and uses standard ATX mounting points for case installation. Rear I/O provides 10 USB ports including one USB 3.2 Gen 2x2 Type-C, three USB 3.2 Gen 2 ports and four USB 3.2 Gen 1 ports. Internal storage options include four M.2 interfaces and six SATA III connectors, while audio is handled by the ROG SupremeFX ALC4080 codec delivering 7.1 surround sound.

Interface Limits

The primary PCIe 5.0 x16 slot is wired directly to the CPU and its bandwidth depends on the installed processor generation. A second full-length slot from the chipset operates at PCIe 3.0 x4 mode, and a single PCIe 3.0 x1 slot is also available. Wireless networking uses Intel Wi-Fi 6E, and the board ships without original packaging or most accessories.

Highlights

  • Supports up to 192GB DDR4 memory for heavy multitasking
  • Intel LGA 1700 socket fits 12th, 13th and 14th generation CPUs
  • PCIe 5.0 x16 slot delivers maximum graphics bandwidth
  • ROG SupremeFX ALC4080 codec provides 7.1 surround sound
  • Intel Wi-Fi 6E and 10 rear USB ports ensure fast connectivity

Specifications

BrandASUS
SeriesASUS ROG STRIX Z690-A GAMING WIFI
ModelASUS ROG STRIX Z690-A GAMING WIFI
CPU Socket TypeLGA 1700
CPU TypeIntel Socket LGA1700 is suitable for Intel Core, 14th and 13th generation processors, Intel Core, 12th generation, Pentium Gold and Celeron processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 ***
ChipsetIntel Z690
Memory StandardSupports dual-channel DDR4 5333 (OC) MHz memory
Maximum Memory Supported192GB
PCI SlotsIntel Core processors (14th, 13th, and 12th generations)
1 x PCIe 5.0/4 0/3.0 x16 slots *
Intel Z690 Chipset **
1 x PCIe 3.0 x16 slot (supports x4 mode) *
1 x PCIe 3.0 x1 slot
SATA RAID4XM.2 interface, 6xSATA III interface
Audio ChipsetROG SupremeFX 7.1 surround high fidelity audio codec ALC4080
LAN ChipsetIntel Wi-Fi 6E
Onboard USBRear panel USB: 10 ports in total
1 x USB 3.2 Gen 2x2 interface (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front panel USB: 7 ports in total
1 x USB 3.2 Gen 2x2 interface (supports USB Type-C)
1 x USB 3.2 Gen 1 pin support, additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 connectors support an additional 4 USB 2.0 ports

Questions about this item

Which PCIe standard does the top x16 slot use, and what speed does that cap the graphics card at?

The primary slot is PCIe 5.0 x16, so a graphics card will be limited to PCIe 5.0 bandwidth when installed there.

What are the board dimensions and mounting standard for case compatibility?

The board measures 30.5 by 24.4 centimetres and follows the ATX mounting pattern.

How is the I/O shield fitted, and which step is often missed?

The separate metal I/O panel must be pressed into the case cut-out from the inside before the motherboard is lowered into place; many builders forget to seat it first.
