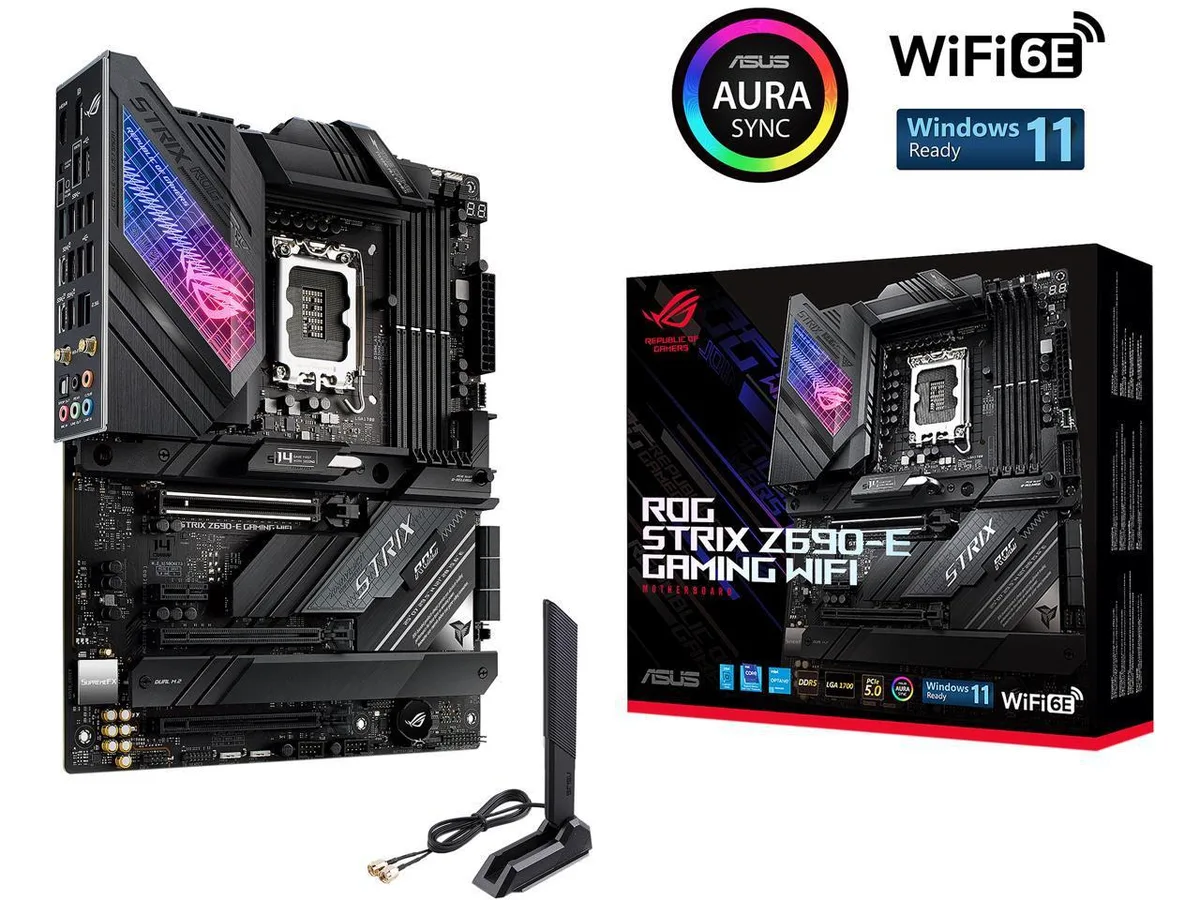

ATX motherboard in dark finish with illuminated acrylic panel and RGB lighting

ASUS

ASUS ROG STRIX Z690-E Gaming Wifi DDR5 Intel Motherboard

SKU CH-2Z4V-Y4D9D

An LGA 1700 ATX board with the Z690 chipset, DDR5 support, WiFi 6E, 2.5 Gb Ethernet, five M.2 slots including one PCIe 5.0, HDMI 2.0 and DisplayPort 1.4, plus ALC4080 audio

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th / 12th Generation Core / Pentium / Celeron
  • ChipsetIntel Z690
  • Ready for 12th and 13th Gen Intel Core CPUs with LGA 1700 socket and PCIe 5.0 support
  • Fast wireless and wired networking via on-board WiFi 6E and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Extensive storage and USB connectivity with five M.2 slots including one PCIe 5.0 M.2 plus USB 3.2 Gen 2x2 Type-C front and rear ports
  • High-fidelity gaming audio powered by ALC4080 codec with Savitech SV3H712 amplifier and DTS Sound Unbound
  • Distinctive ROG Strix aesthetics featuring illuminated acrylic display and Aura Sync RGB lighting with Gen 2 addressable headers

Ready for 12th and 13th Gen Intel Core

This ATX motherboard uses the Intel Z690 chipset and LGA 1700 socket. It supports 12th and 13th Generation Core, Pentium and Celeron processors. The board is designed for DDR5 memory and provides native PCIe 5.0 support for graphics and storage.

Dual cooler mounting and extensive I/O

Mounting holes accept both LGA 1700 and LGA 1200 cooling brackets, giving flexibility when choosing a CPU cooler. Rear I/O includes HDMI 2.0 and DisplayPort 1.4 for integrated graphics, WiFi 6E, Intel 2.5 Gb Ethernet with LANGuard, USB 3.2 Gen 2x2 Type-C and a front-panel USB 3.2 Gen 2x2 Type-C header.

Five M.2 slots with one PCIe 5.0

The board offers up to five M.2 slots, including one wired for PCIe 5.0 speeds. A ROG Hyper M.2 card is bundled to add further high-speed storage capacity. This density of fast M.2 connections is the key factor for builds that need multiple high-throughput drives.

Highlights

  • Ready for 12th and 13th Gen Intel Core CPUs with LGA 1700 socket and PCIe 5.0 support
  • Fast wireless and wired networking via on-board WiFi 6E and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Extensive storage and USB connectivity with five M.2 slots including one PCIe 5.0 M.2 plus USB 3.2 Gen 2x2 Type-C front and rear ports
  • High-fidelity gaming audio powered by ALC4080 codec with Savitech SV3H712 amplifier and DTS Sound Unbound
  • Distinctive ROG Strix aesthetics featuring illuminated acrylic display and Aura Sync RGB lighting with Gen 2 addressable headers

Specifications

BrandASUS
SeriesROG
CPU Socket TypeLGA 1700
CPU TypeSupports 13th / 12th Generation Core / Pentium / Celeron
ChipsetIntel Z690

Questions about this item

What PCIe generation does the board's top M.2 slot use, and what does that limit in practice?

The primary M.2 slot runs at PCIe 5.0, so the drive installed there is limited to PCIe 5.0 speeds.

What cooler mounting holes does the board provide for LGA 1700 and LGA 1200 brackets?

Dual mounting holes are present, accepting both LGA 1700 and LGA 1200 coolers.

How is the bundled ROG Hyper M.2 card installed, and what step is often missed?

Insert the card into a PCIe slot, secure it with the screw, then connect the M.2 drive to the card's onboard slot.
