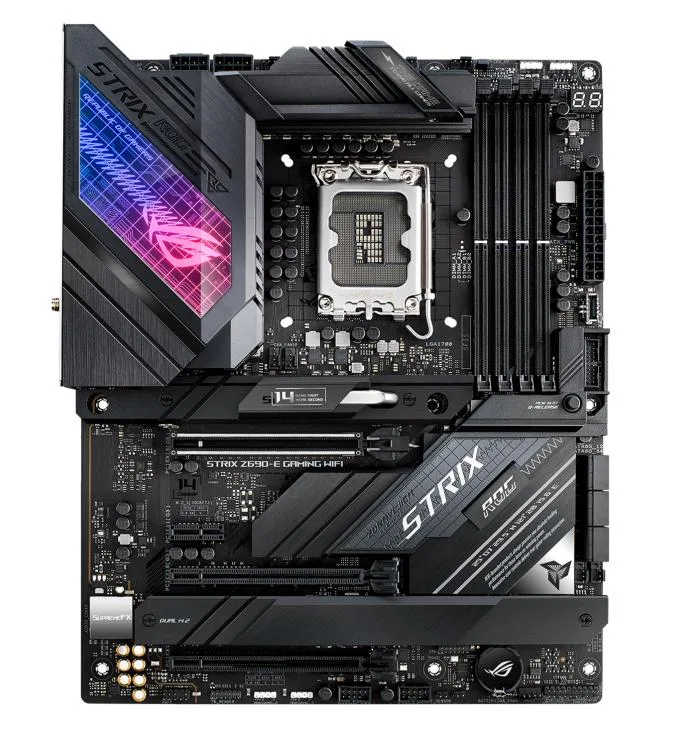

Black ATX motherboard with silver heatsinks and rear I/O shield

ASUS

ASUS ROG STRIX Z690-E GAMING WIFI Intel motherboard

SKU CH-TQZN-0KJBN

An ATX Intel Z690 board for LGA 1700 CPUs with DDR5 support up to 128 GB, one PCIe 5.0 x16 slot and three M.2 sockets

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 12th Gen (LGA 1700)
  • ChipsetIntel Z690
  • Memory StandardDDR5
  • Maximum Memory Supported128GB
  • PCI Express 5.0 x161 x PCI Express 5.0 x16
  • Supports up to 128GB DDR5 memory for high-capacity workloads
  • PCI Express 5.0 x16 slot enables next-gen GPU bandwidth
  • Three M.2 slots provide flexible storage expansion
  • ATX form factor fits standard desktop cases
  • LGA 1700 socket compatible with Intel Core 12th Gen processors

Socket LGA 1700 DDR5 foundation

This ATX motherboard pairs the Intel Z690 chipset with an LGA 1700 socket for 12th generation Core processors. It targets builders who want a DDR5 platform with a single PCI Express 5.0 x16 slot and three M.2 positions. The board ships as a manufacturer refurbished unit with only the I/O shield included.

128 GB ceiling and three M.2 slots

Four DDR5 slots support up to 128 GB of memory, giving ample headroom for content creation and heavy multitasking. Storage expansion uses three M.2 connectors, while a single PCI slot remains for legacy add-in cards. The lone PCIe 5.0 x16 slot limits multi GPU configurations to one card.

Refurbished unit with I/O shield only

ASUS tested the board and confirms full functionality, though it may show slight signs of use. The package contains the motherboard and I/O shield in an anti-static bag inside a plain box. No SATA cables, Wi-Fi antennas, driver media or manuals are supplied, so builders must source those separately.

Highlights

  • Supports up to 128GB DDR5 memory for high-capacity workloads
  • PCI Express 5.0 x16 slot enables next-gen GPU bandwidth
  • Three M.2 slots provide flexible storage expansion
  • ATX form factor fits standard desktop cases
  • LGA 1700 socket compatible with Intel Core 12th Gen processors

Specifications

BrandASUS
SeriesROG
ModelROG STRIX Z690-E GAMING WIFI
CPU Socket TypeLGA 1700
CPU TypeIntel Core 12th Gen (LGA 1700)
ChipsetIntel Z690
Memory StandardDDR5
Maximum Memory Supported128GB
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x161
PCI Slots1 x PCI Slot
M.23 x M.2
Back I/O Ports1 x DisplayPort / 1 x USB 3.1 Gen 2 Type-A
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.11 x USB 3.1
Form FactorATX

Questions about this item

Will this board fit in a standard ATX case and align with the rear I/O cutout?

Yes, it uses the ATX form factor and the included I/O shield matches the rear port layout exactly.

Which CPUs and memory can I install without buying extra parts?

The LGA 1700 socket accepts Intel Core 12th Gen processors, and the four DDR5 slots support up to 128 GB total when all slots are populated.

How many M.2 drives and expansion cards can I add at once?

Three M.2 slots are available, plus one PCI Express 5.0 x16 slot, one additional PCIe x16 slot and one legacy PCI slot for add-in cards.
