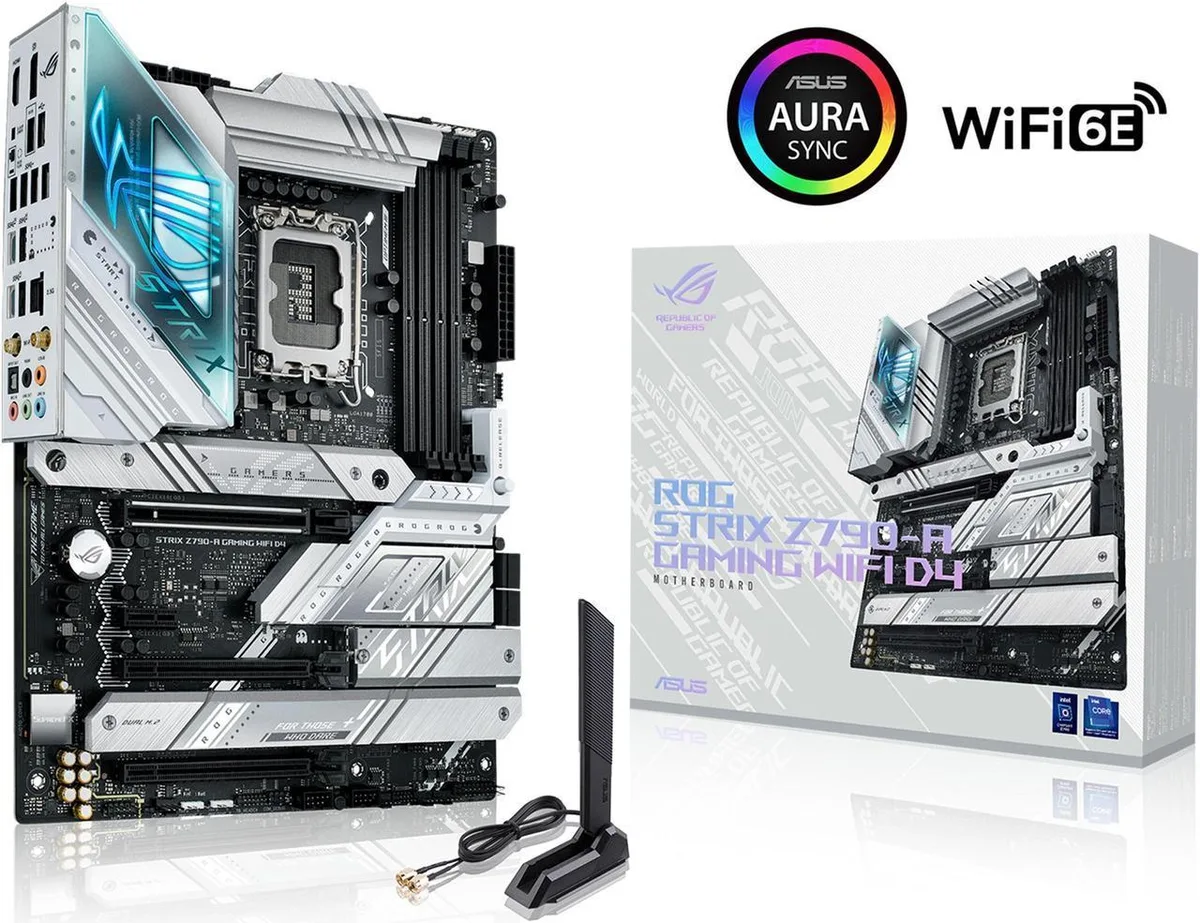

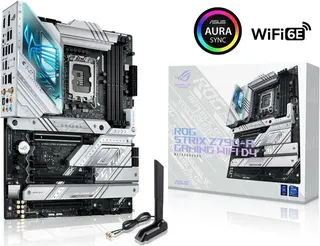

ATX motherboard with silver heatsinks and black PCB, LGA 1700 socket, four DDR4 slots, multiple M.2 heatsinks

ASUS

ASUS ROG Strix Z790-A Gaming WiFi D4 LGA1700 Intel motherboard

SKU CH-0D2T-KT4C1

ATX Intel Z790 board with 16+1 70A power stages, four DDR4 slots up to 5333 MT/s, four M.2 heatsinks, PCIe 5.0 x16, WiFi 6E, 2.5 Gb LAN and USB 3.2 Gen 2x2 Type-C PD 3.0 30W

  • CPU TypeIntel® Socket LGA1700 for 14th & 13th & 12th Gen Intel® Core
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4:5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel

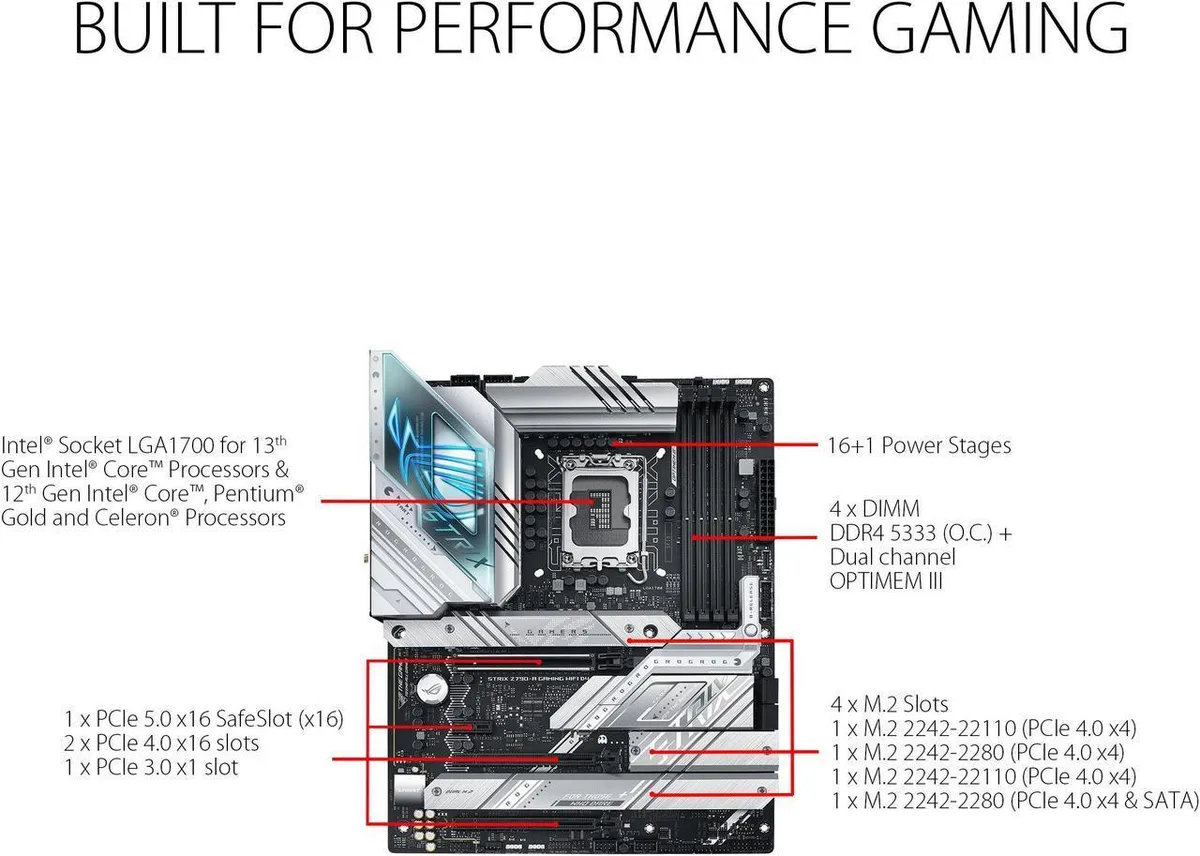

  • Supports 14th, 13th and 12th Gen Intel Core processors with LGA 1700 socket
  • 16 + 1 power stages rated for 70A each with dual ProCool II connectors for stable multi-core performance

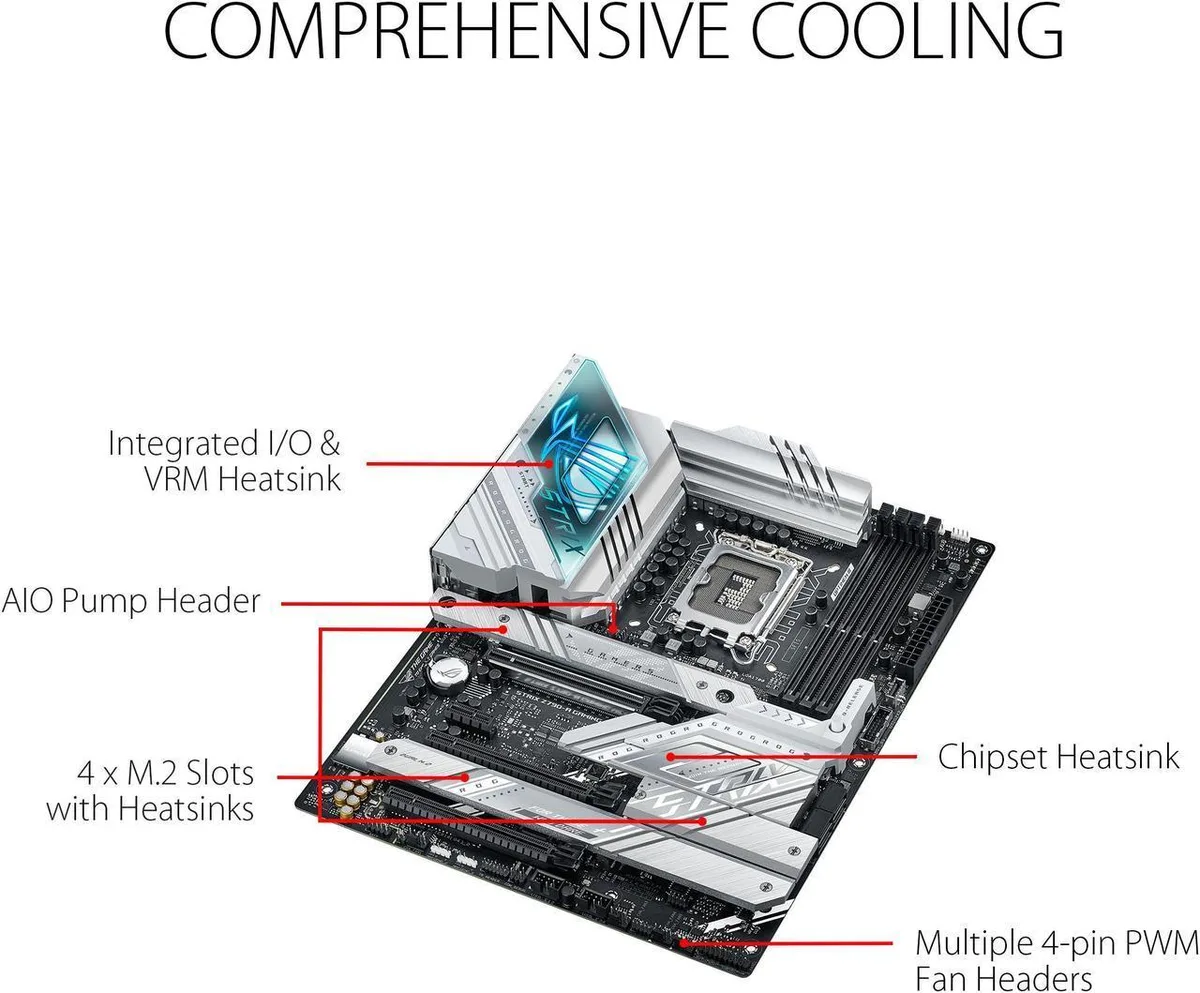

  • Massive VRM heatsinks with integrated I/O cover and high-conductivity thermal pads keep temperatures low
  • Four PCIe 4.0 M.2 slots, one with heatsink and backplate, three with heatsinks for fast storage expansion
  • USB 3.2 Gen 2x2 Type-C rear port and front-panel connector with PD 3.0 up to 30W, plus WiFi 6E and 2.5 Gb Ethernet

Socket and generation support

This ASUS ROG Strix motherboard uses the Intel LGA 1700 socket and the Z790 chipset. It accepts 12th, 13th and 14th Gen Intel Core processors as well as Pentium Gold and Celeron CPUs. A BIOS update may be required for some 14th Gen chips.

Memory type and capacity

The board provides four 288‑pin DDR4 slots running in dual‑channel mode. Supported speeds range from 2133 MT/s up to 5333 MT/s when overclocked, with a maximum capacity of 128 GB.

Storage layout and networking

Four M.2 slots and four SATA 6 Gb/s ports give plenty of drive options, all operating over PCIe 4.0 from the CPU or chipset. Networking includes Wi‑Fi 6E and Intel 2.5 Gb Ethernet, plus USB 3.2 Gen 2x2 Type‑C with 30 W Power Delivery on the rear I/O.

Highlights

  • Supports 14th, 13th and 12th Gen Intel Core processors with LGA 1700 socket
  • 16 + 1 power stages rated for 70A each with dual ProCool II connectors for stable multi-core performance
  • Massive VRM heatsinks with integrated I/O cover and high-conductivity thermal pads keep temperatures low
  • Four PCIe 4.0 M.2 slots, one with heatsink and backplate, three with heatsinks for fast storage expansion
  • USB 3.2 Gen 2x2 Type-C rear port and front-panel connector with PD 3.0 up to 30W, plus WiFi 6E and 2.5 Gb Ethernet

Specifications

BrandASUS
SeriesROG
ModelSTRIX Z790-A GAMING WIFI D4
Part Number90MB1CN0-M0AAY0
CPU TypeIntel® Socket LGA1700 for 14th & 13th & 12th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4:5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/
3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 5.0 x16Intel® 14th & 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4/x4 mode)
PCI Express x11 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports****
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAIDIntel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio ChipsetRealtek ALC4080
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries.
BluetoothBluetooth v5.2
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan header(s)
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Windows 11Windows® 11 64-bit, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support
- Support: up to 30W charging
-
Package ContentsCables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber Package
Documentation
1 x User guide

Questions about this item

What does the 16+1 power-stage design rated at 70A per stage mean for a multi-core processor?

The 16+1 power stages each rated at 70A deliver stable current to high-core-count 12th, 13th and 14th Gen Intel Core CPUs, while dual ProCool II connectors, alloy chokes and durable capacitors keep voltage steady under heavy multi-threaded loads.

How does the PCIe 5.0 x16 slot and the four PCIe 4.0 M.2 slots limit GPU and SSD bandwidth in practice?

The single PCIe 5.0 x16 SafeSlot runs at full 5.0 speed with 12th-14th Gen CPUs, while all four M.2 slots operate at PCIe 4.0 x4 — M.2_1 supports 22110 length with heatsink and backplate, M.2_2 and M.2_3 take 2280 drives with heatsinks, and M.2_4 also supports 2280.

What case clearance and mounting points does the ATX board with massive VRM heatsinks and integrated I/O cover need?

The board follows standard ATX mounting holes; the large VRM heatsinks with integrated I/O cover and high-conductivity thermal pads add height above the socket area, so verify CPU-cooler clearance, and the front-panel USB 3.2 Gen 2x2 Type-C connector with PD 3.0 up to 30W requires a matching case header.
