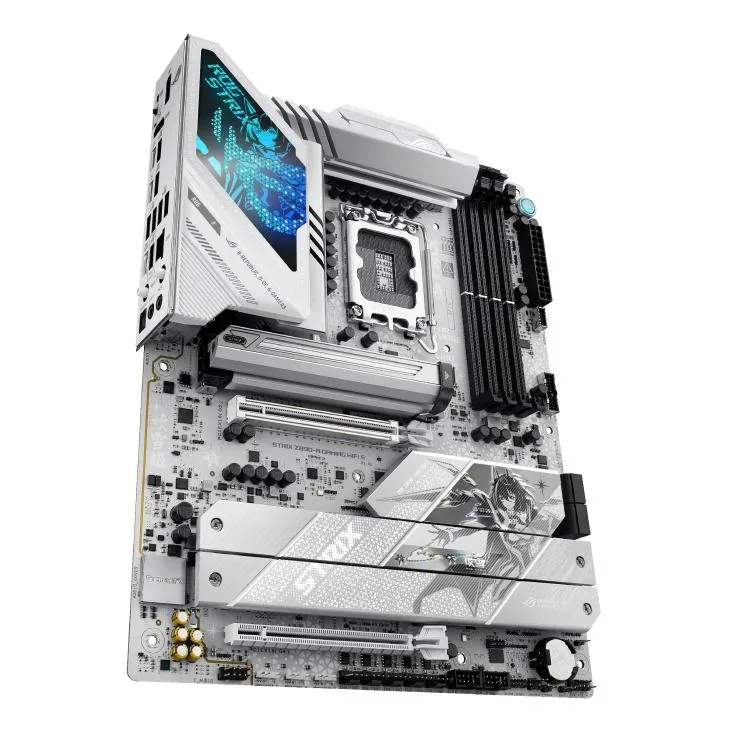

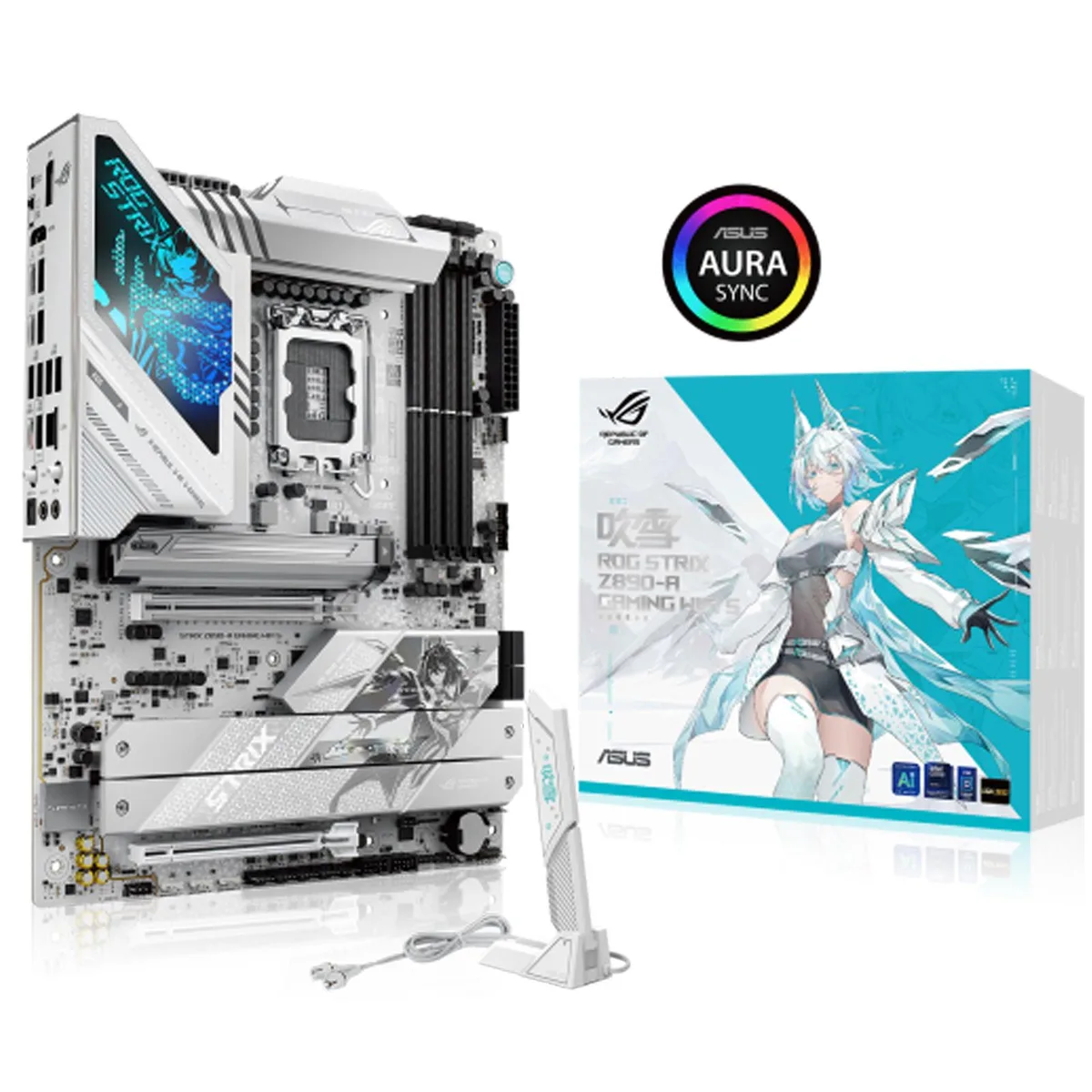

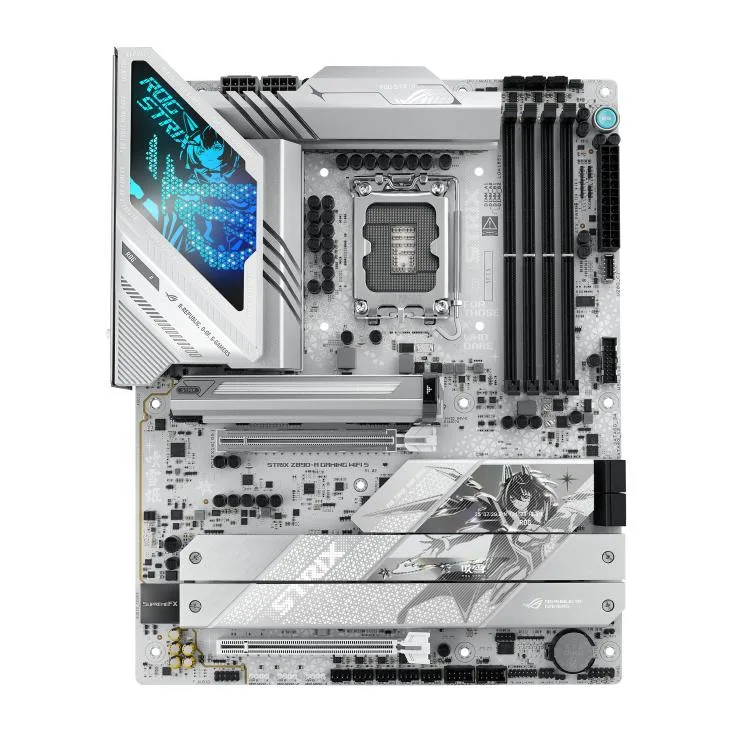

ATX motherboard with silver heatsinks and integrated I/O shield

ASUS

ASUS ROG STRIX Z890-A GAMING WIFI S Intel motherboard

SKU CH-2NX4-YS6P1

ATX board for Intel Core Ultra Series 2 with 16+2+1+2 power stages, DDR5 up to 9066 MT/s, five M.2 slots, WiFi 7, 2.5G LAN, Thunderbolt 4 and 192 GB capacity

  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • Memory FeatureSupport up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked
  • PCI Express 5.0 x16Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot
  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Robust 16+2+1+2 power stages rated up to 90A each for stable delivery
  • DDR5 memory support up to 192GB and 9066 MT/s with DIMM Flex and DIMM Fit
  • WiFi 7 and Bluetooth 5.4 plus 2.5G LAN for fast wireless and wired connectivity
  • Two Thunderbolt 4 ports and multiple high-speed USB including 20Gbps front-panel header

Socket & Chipset

The board uses the Intel LGA 1851 socket and Z890 chipset, targeting Intel Core Ultra Series 2 processors. It delivers a 16+2+1+2 phase power design rated at 90A and 80A per stage, plus ProCool II connectors for stable delivery. Four DDR5 slots support up to 192GB at speeds beyond 9066 MT/s when overclocked.

Ideal Build & Limits

Suits enthusiasts building an advanced AI-ready desktop who need Thunderbolt 4, WiFi 7, Bluetooth 5.4, and 2.5Gbps LAN from the rear I/O. Five M.2 slots (one PCIe 5.0, four PCIe 4.0) and four SATA 6Gb/s ports cover high-capacity storage. Builders needing legacy PCI slots or a smaller form factor should consider other models.

Deciding Spec

The defining specification is the LGA 1851 socket paired with the Z890 chipset, which only accepts Intel Core Ultra Series 2 CPUs. If your processor uses a different socket, this motherboard will not work. Verify CPU compatibility before purchase.

Highlights

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Robust 16+2+1+2 power stages rated up to 90A each for stable delivery
  • DDR5 memory support up to 192GB and 9066 MT/s with DIMM Flex and DIMM Fit
  • WiFi 7 and Bluetooth 5.4 plus 2.5G LAN for fast wireless and wired connectivity
  • Two Thunderbolt 4 ports and multiple high-speed USB including 20Gbps front-panel header

Specifications

BrandASUS
ModelROG STRIX Z890-A GAMING WIFI S
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupport up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
Supports DIMM FIT
ASUS Enhanced Memory Profile III (AEMPIII)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x Thunderbolt 4 ports (2 x USB Type-C)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-Cwith up to 30W PD/PPD Fast-charge)
2 x USB 5Gbps ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header
BIOS Feature256 Mb UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
MyAsus
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
MemTest86
Windows 11Windows 11 (22H2 later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
2 x M.2 rubber packages
Documentation
1 x Quick start guide
