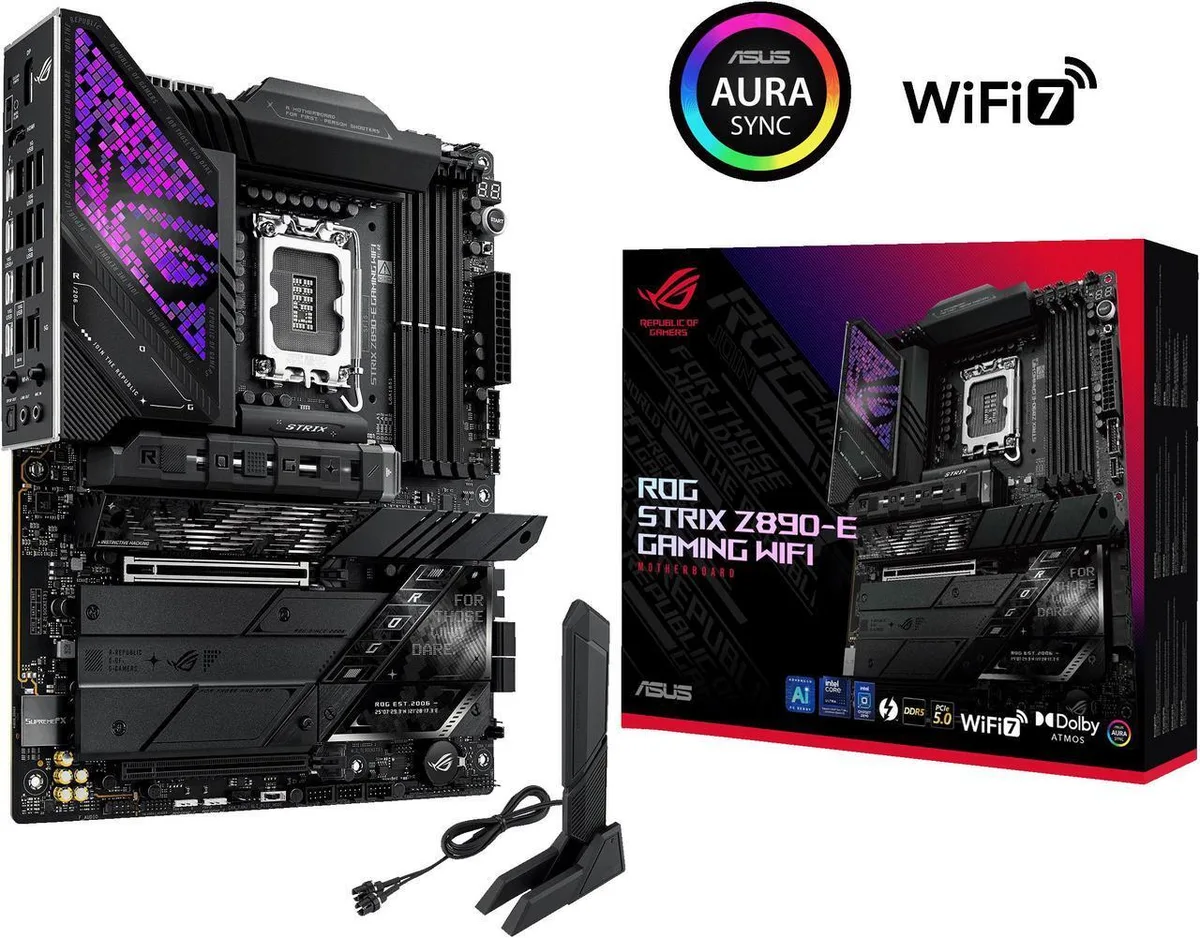

ATX motherboard in dark finish with large heatsinks and integrated I/O cover

ASUS

ASUS ROG STRIX Z890-E GAMING WIFI Intel Z890 LGA 1851 ATX motherboard

SKU CH-6VH5-D21SZ

ATX board for Intel Core Ultra Series 2 with 18+2+1+2 power stages, DDR5 to 8800 MT/s, three PCIe 5.0 and four PCIe 4.0 M.2 slots, WiFi 7, Thunderbolt 4 and 5 Gbps LAN

  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported192GB
  • Memory FeatureSupport up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DI
  • PCI Express 5.0 x16Intel Core Ultra Processors(series 2)* 1 x PCIe 5.0 x16 slot
  • PCI Express 4.0 x16Intel Z890 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode
  • Ready for advanced AI PCs with power and connectivity for demanding applications
  • Intel LGA 1851 socket supports Core Ultra Series 2 processors
  • Robust 18+2+1+2 power stages up to 110A with ProCool II connectors
  • Three PCIe 5.0 and four PCIe 4.0 M.2 slots with substantial cooling
  • WiFi 7 and Bluetooth 5.4 plus 5 Gbps LAN for fast networking

AI-ready Intel Z890 platform

This ATX motherboard uses the Intel Z890 chipset and LGA 1851 socket for Intel Core Ultra Series 2 processors. It targets builders who want a high-end foundation for AI workloads, gaming and content creation. The board delivers 18+2+1+2 power stages rated up to 110A each with ProCool II connectors, MicroFine alloy chokes and premium metallic capacitors. A C-shaped heatpipe links massive VRM heatsinks and an integrated I/O cover for thermal management.

Three PCIe 5.0 and four PCIe 4.0 M.2 slots

Seven M.2 sockets accept 2242, 2260, 2280 and 22110 drives, all fitted with substantial heatsinks. The top three run at PCIe 5.0 x4 from the CPU, the remaining four at PCIe 4.0 x4 from the chipset. Four SATA 6Gb/s ports and Intel Rapid Storage Technology add RAID 0/1/5/10 across PCIe and SATA. Networking includes 5Gbps LAN, WiFi 7 and Bluetooth 5.4, while audio uses the ROG SupremeFX ALC4080 codec for 7.1 surround.

Suits AI-focused builders needing maximum M.2

Enthusiasts who want extensive Gen 5 storage, Thunderbolt 4 on the rear panel and AI-assisted overclocking, cooling and networking will benefit. The four DDR5 slots support up to 192GB at 8800+ MT/s with DIMM Fit, DIMM Flex and AEMP III. Users needing more than two full-size PCIe slots, legacy PCI or a smaller form factor should consider other models.

Highlights

  • Ready for advanced AI PCs with power and connectivity for demanding applications
  • Intel LGA 1851 socket supports Core Ultra Series 2 processors
  • Robust 18+2+1+2 power stages up to 110A with ProCool II connectors
  • Three PCIe 5.0 and four PCIe 4.0 M.2 slots with substantial cooling
  • WiFi 7 and Bluetooth 5.4 plus 5 Gbps LAN for fast networking

Specifications

BrandASUS
ModelROG STRIX Z890-E GAMING WIFI
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported192GB
Memory FeatureSupport up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
PCI Express 5.0 x16Intel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slots (supports x16 mode)
PCI Express 4.0 x16Intel Z890 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Intel Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x Thunderbolt 4 USB Type-C ports (2 x USB Type-C)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
FlexKey
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
7 x M.2 Rubbers
Documentation
1 x Quick start guide

Questions about this item

Will the M.2 heatsinks on the three PCIe 5.0 and four PCIe 4.0 slots need periodic cleaning or replacement?

The board uses massive heatsinks with integrated I/O cover, high-conductivity thermal pads and a C-shaped heatpipe. No moving parts are present, so only occasional dust removal is required.

Which component hits its thermal limit first when the 18+2+1+2 power stages run at full load continuously?

The VRM heatsink array with high-conductivity pads and C-shaped heatpipe is designed to absorb sustained output from the 110A, 90A and 80A stages. Fan Xpert 4 with AI Cooling II adjusts chassis fans to keep temperatures in check.

How loud do the chassis fans get when AI Cooling II manages a full-load system all day?

AI Cooling II monitors CPU and motherboard temperatures, then automatically tunes the five 4-pin chassis fan headers and the AIO pump header for the lowest noise that still maintains safe thermals.
