ASUS
ASUS ROG-THOR-1200P3-MIKU 1200W power supply
A 1200 W ATX 3.1 unit with GaN MOSFETs, a patented GPU-First voltage stabiliser and a magnetic OLED display for real-time power monitoring
- ColorBlack
- TypeATX 3.1
- Maximum Power1200 W
- PFCActive
- Main Connector20+4Pin
- +12V RailsSingle
- GaN MOSFET boosts efficiency by 30% over standard designs
- GPU-First stabiliser improves graphics voltage delivery by 45%
- Magnetic OLED display shows real-time power draw and swaps sides
- Turbo Mode enables extended power excursions for heavy loads
- 80 PLUS Platinum certified 1200W output with full modular cables
1200W ATX 3.1 Power Supply

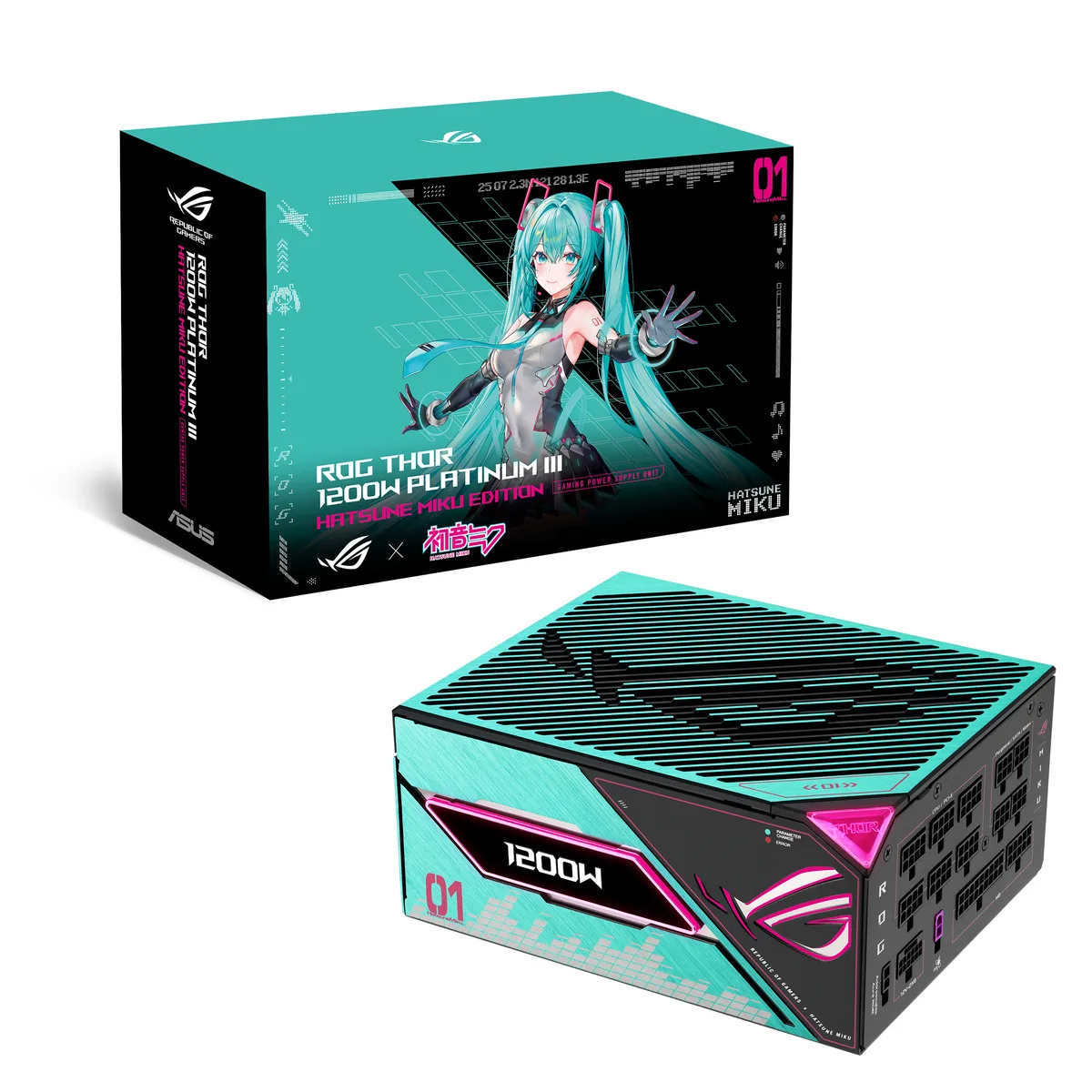

The ASUS ROG Thor 1200W Platinum III Hatsune Miku Edition is a fully modular ATX 3.1 power supply rated for 1200 W maximum output. It targets enthusiasts building high-end systems who want 80 PLUS Platinum efficiency and a distinctive co-branded aesthetic.
Who this suits and who should look elsewhere
This unit suits builders who need a single +12V rail capable of 100 A, a 16-pin PCIe Gen 5 connector plus four 6+2-pin PCIe cables, and seven SATA power connectors for storage arrays. The magnetic OLED display can be mounted on either side to fit fan-up or fan-down orientations. Buyers who do not require 1200 W or the specific Hatsune Miku colour scheme should consider lower-wattage or non-collaborative models.
The specification that decides fit
The 190 mm length is the critical clearance figure; verify that your case accepts a power supply this long before purchasing. The unit also requires an ATX 3.1 compatible motherboard and an input voltage range of 100 - 240 V for worldwide operation.
Highlights
- GaN MOSFET boosts efficiency by 30% over standard designs
- GPU-First stabiliser improves graphics voltage delivery by 45%
- Magnetic OLED display shows real-time power draw and swaps sides
- Turbo Mode enables extended power excursions for heavy loads
- 80 PLUS Platinum certified 1200W output with full modular cables
Specifications
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | ROG-THOR-1200P3-MIKU |
| Part Number | 90YE00V6-BPAA00 |
| Color | Black |
| Type | ATX 3.1 |
| Maximum Power | 1200 W |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 1 x 16-Pin, 4 x 6+2-Pin |
| SATA Power Connector | 7 |
| Max PSU Length | 190 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Protection | OPP/OVP/UVP/SCP/OCP/OTP |
| Input Voltage | 100 - 240 V |
| Output | +3.3V@30A, +5V@25A,+12V@100A, [email protected] ,+5Vsb@3A |
| Cable Spec | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5 16-pin Cable x 1 (750mm) PCI-E 1-to-1 Cable x 4 (750mm) SATA 1-to-4 Cable x 1 (400+120+120+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 2 (400+150+150mm) Addressable RGB Cable x 1 (800mm) |
| Dimensions | 190 x 150 x 86 mm |
| Weight | 2.37 KG (single PSU) |
| Package Content | ROG sticker x 1,ROG cable tie x 6,Chassis Screws Package x 1,Cable Tie x 12,User Manual x 1 |
| Peripheral Connector | 7 |
| Shipping weight | 4.99 kg |
| Package size | 381 × 241 × 131 mm |
Questions about this item
Will the 190 mm length fit my mid-tower case?
The unit is 190 mm long; check your case specification for maximum PSU length before ordering.
Does the single 12 V rail handle a modern GPU with the 12VHPWR connector?
Yes, one 16-pin PCIe Gen 5 cable is included and the rail delivers 100 A at 12 V.
Can I mount the OLED display on either side for fan-up or fan-down installation?
The magnetic OLED display detaches and reattaches to either side to suit both orientations.
