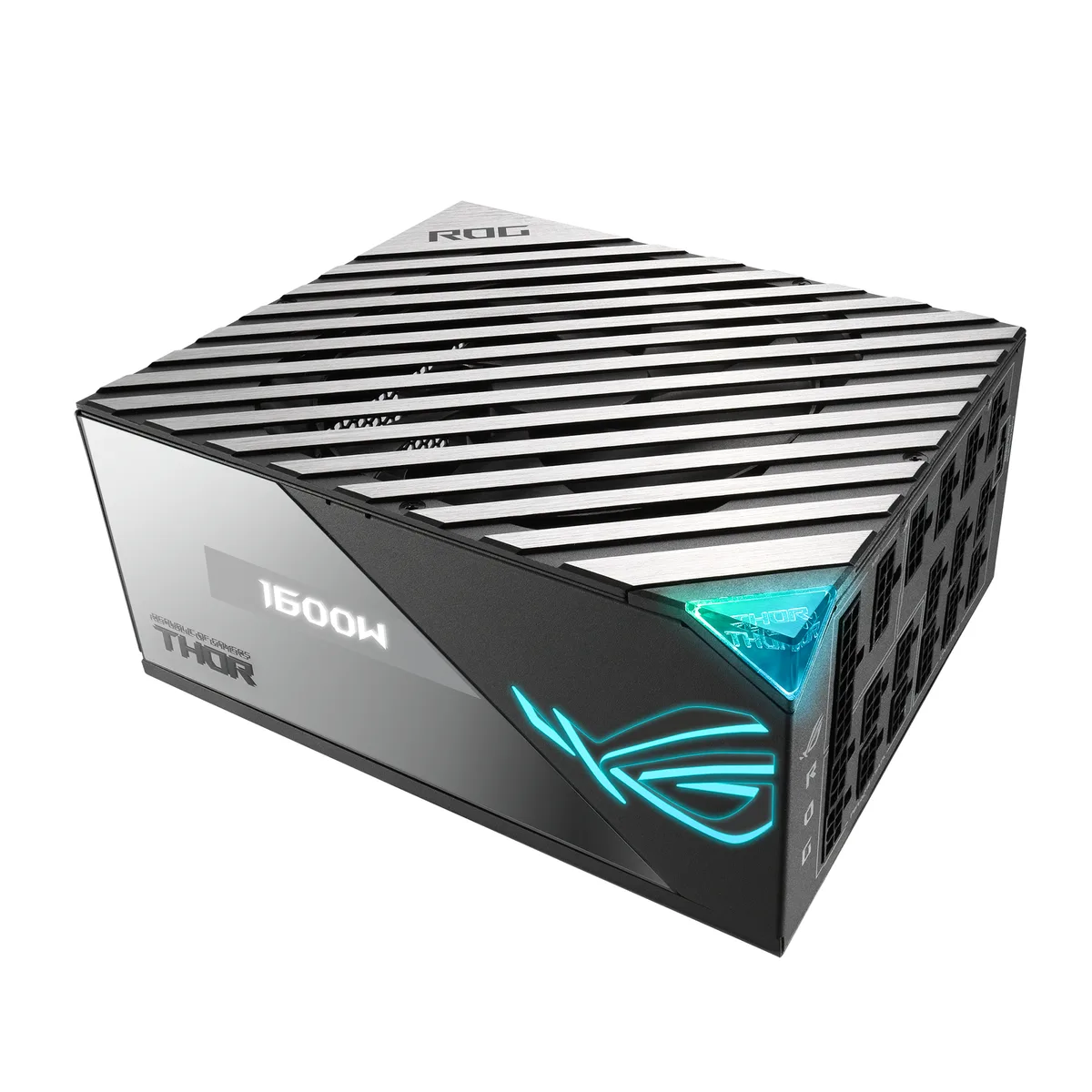

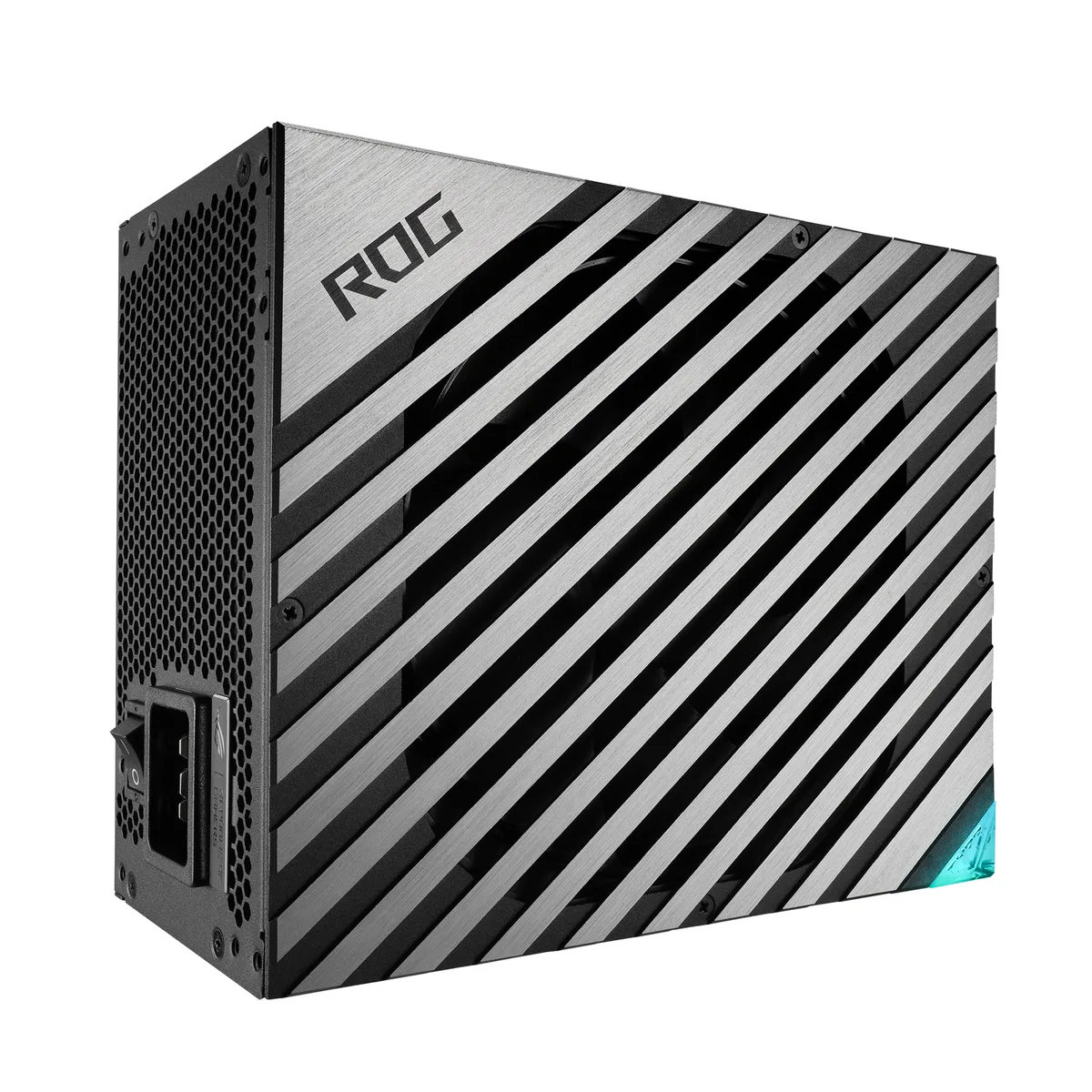

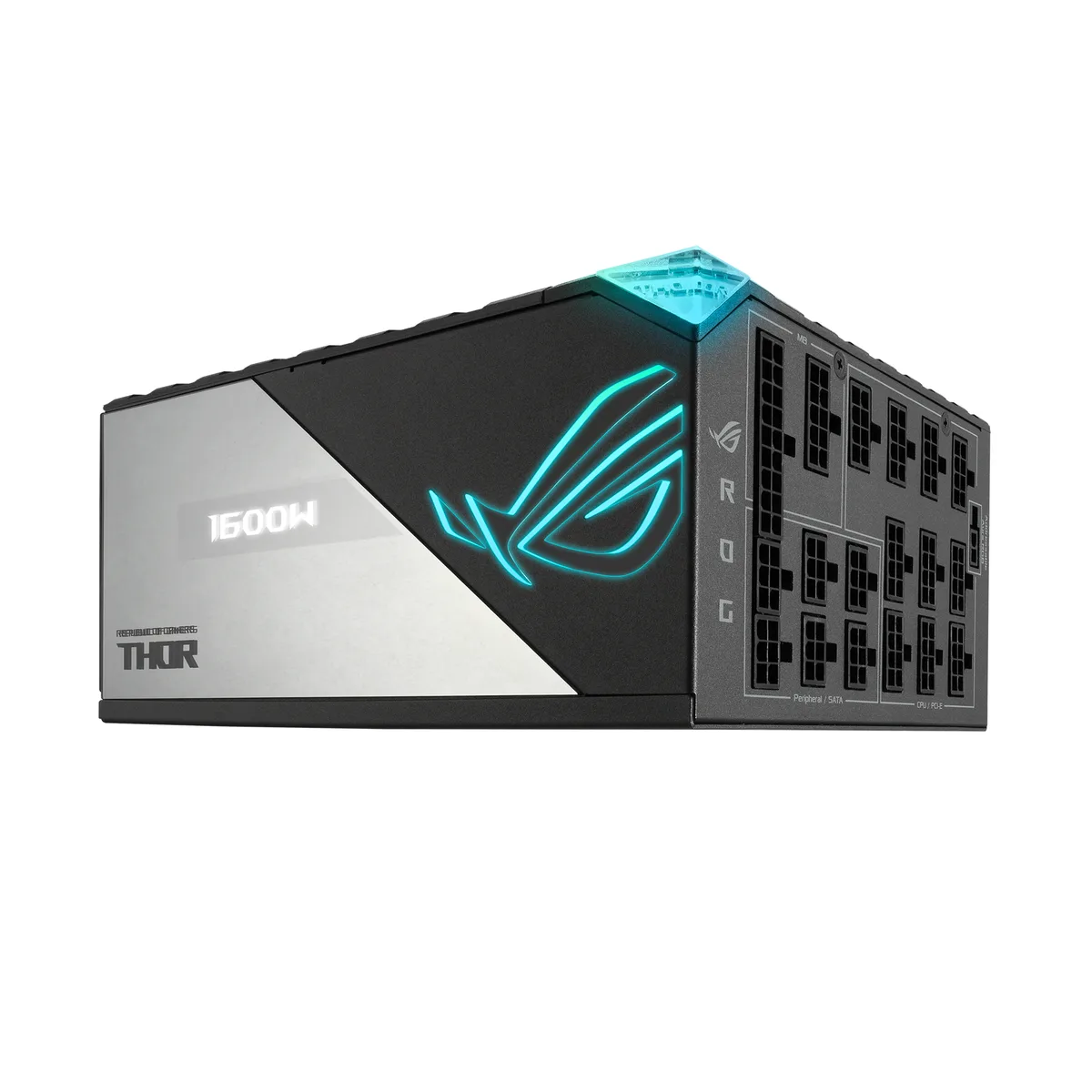

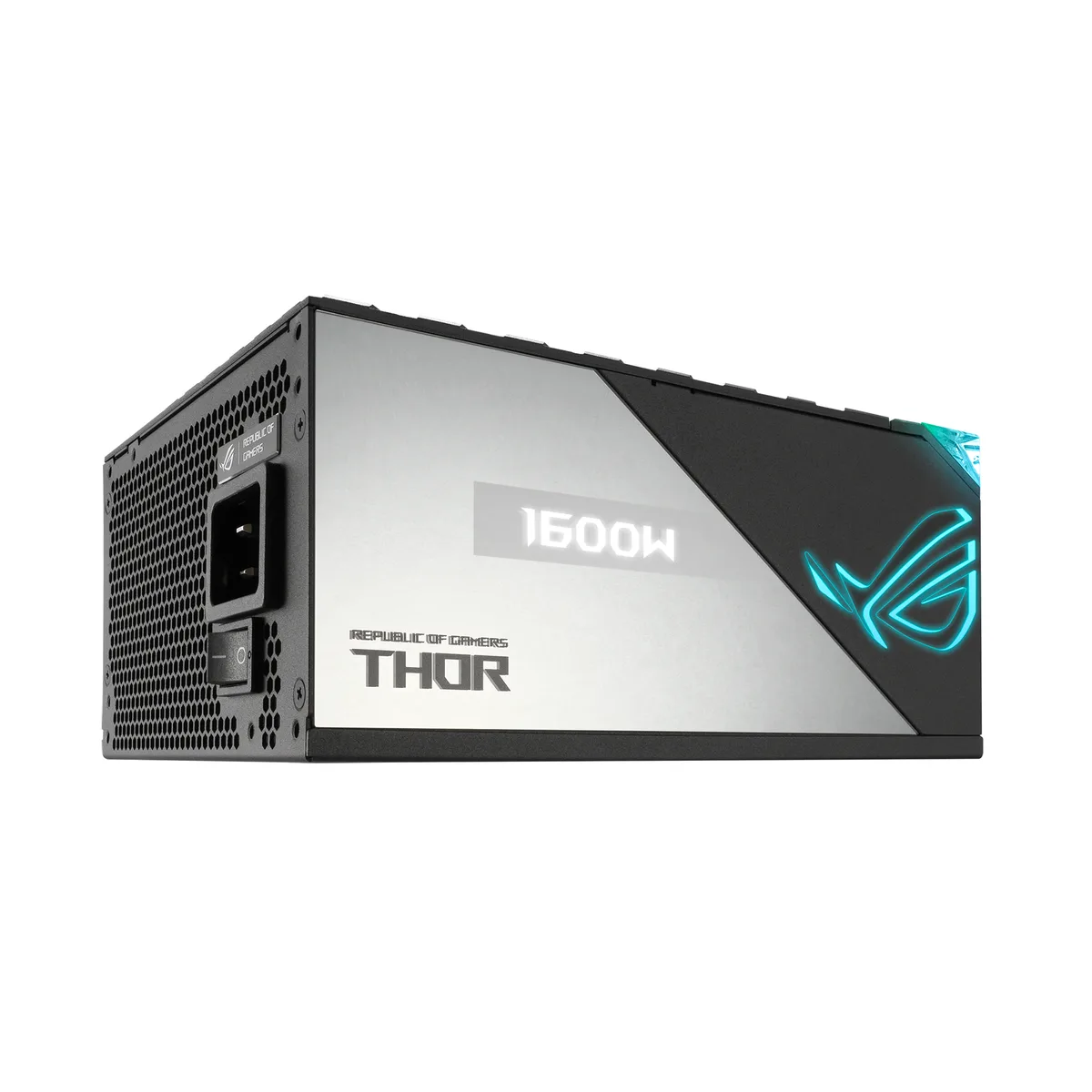

Black rectangular ATX power supply with front OLED display and 135 mm fan

ASUS

ASUS ROG-THOR-1600T-GAMING 1600W Titanium power supply

SKU CH-NVGN-3AN9S MPN ROG-THOR-1600T-GAMING

A fully modular ATX supply delivers 1600W with 80 Plus Titanium efficiency, GaN MOSFETs, a 135mm PWM fan, Lambda A++ noise rating, an OLED power monitor and a 16-pin PCIe cable for 600W graphics cards

  • TypeATX12V
  • Maximum Power135MM PWM FAN
  • Fans1 x 135 mm
  • Main Connector24Pin
  • PCI-Express Connector10 x 6+2-Pin
  • Max PSU Length190 mm

Options ATX 80+ Titanium (1600W)

  • Real-time power monitoring via OLED display
  • 80 Plus Titanium efficiency with GaN MOSFETs
  • Lambda A++ certification for quiet operation
  • PCIe Gen 5.0 ready with 16-pin connector
  • Fully modular design includes 10 PCIe 6+2-pin connectors

Thor 1600W Titanium for extreme builds

This 1600W ATX12V unit targets builders assembling multi-GPU workstations or heavily overclocked gaming rigs. Fully modular cabling and 80 Plus Titanium certification keep efficiency high across the load range. The integrated OLED panel displays real-time power draw without extra software. It is not for buyers who only need a modest office or single-GPU system.

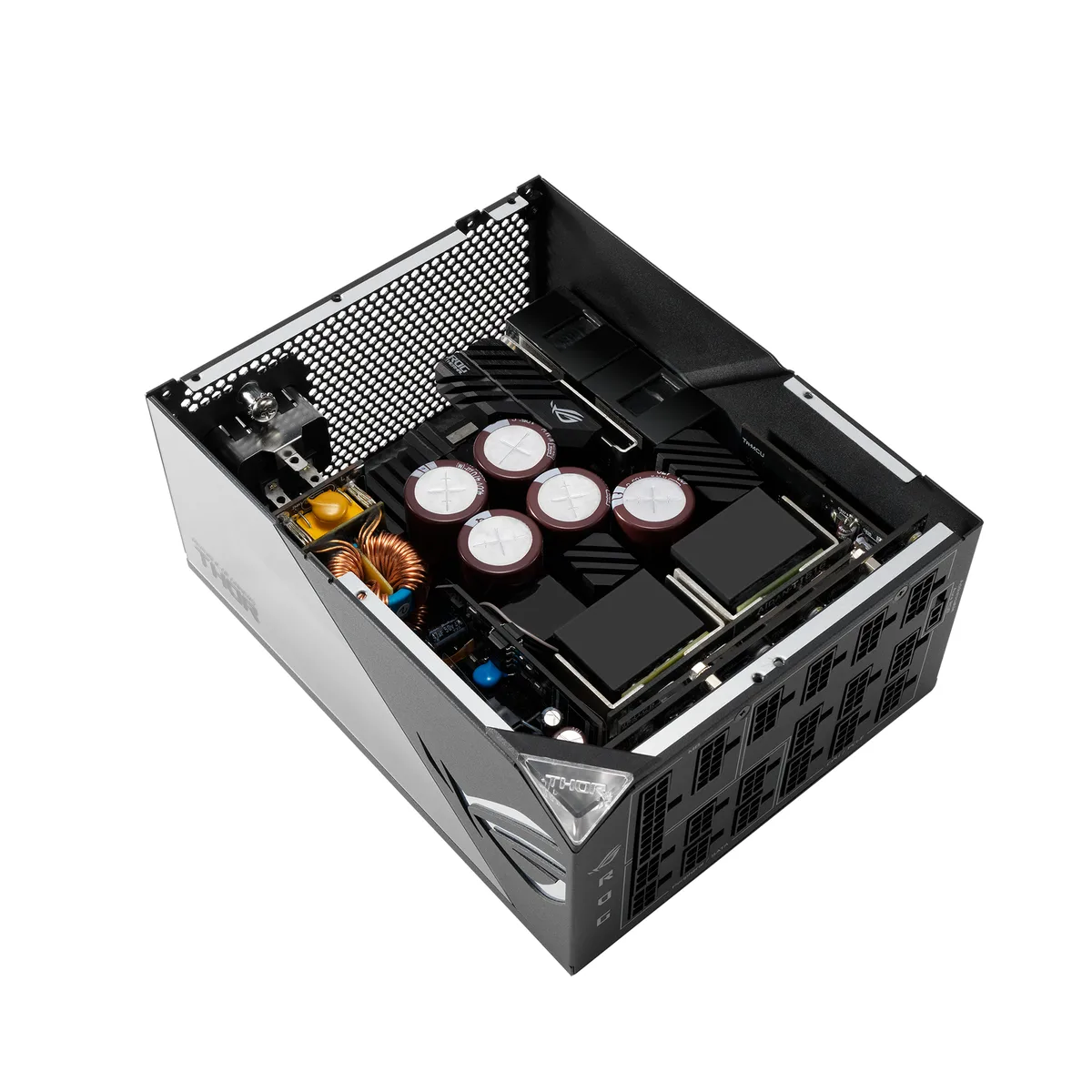

Japanese capacitors, GaN MOSFETs, 135mm PWM fan

ROG heatsinks cover critical components while a 135mm axial-tech fan runs under PWM control and stops completely in 0dB mode at low loads. Lambda A++ certification confirms very quiet operation. Full modularity means only the required cables stay in the case, simplifying routing. Aura Sync links lighting with compatible components.

Check case length, cable count and 16-pin GPU needs

The unit measures 190mm long so verify clearance in your chassis before ordering. Bundled cables include one 16-pin PCIe Gen 5.0 connector rated for 600W, six 1-to-1 and two 1-to-2 6+2-pin PCIe cables, three SATA 1-to-4 cables, two CPU 4+4-pin cables and a 24-pin motherboard cable. Ensure your graphics cards and drive count match the provided connectors.

Highlights

  • Real-time power monitoring via OLED display
  • 80 Plus Titanium efficiency with GaN MOSFETs
  • Lambda A++ certification for quiet operation
  • PCIe Gen 5.0 ready with 16-pin connector
  • Fully modular design includes 10 PCIe 6+2-pin connectors

Specifications

BrandASUS
ModelROG-THOR-1600T-GAMING
Part Number90YE00K0-B0AA00
TypeATX12V
Maximum Power135MM PWM FAN
Fans1 x 135 mm
Main Connector24Pin
PCI-Express Connector10 x 6+2-Pin
Max PSU Length190 mm
ModularFull Modular
Energy-Efficient80 PLUS TITANIUM Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Output+3.3V +5V +12V -12V +5Vsb
ConnectorsMB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 10
SATA x 12
PERIPHERAL x 6
Features• OLED display monitors power draw in real time.
• AURA SYNC
• 80 PLUS TITANIUM CERTIFICATION
• 135MM PWM FAN
• LAMBDA A++ CERTIFICATION
• PCIE GEN 5.0 READY. Each ROG Thor 1600W Titanium PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
• SLEEVED CABLES. A range of sleeved cables are bundled with Thor, and we also provide a 20% CableMod discount.
• GAN MOSFETS. Boasting lower switching losses and improved efficiency compared to conventional silicon transistors, GaN FETs allow the 1600
Dimensions190 x 150 x 86 mm
Weight2.69kg (single PSU)
Package ContentPower Cord x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (650mm)
16-pin PCI-E Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 6 (675mm)
PCI-E 1-to-2 Cable x 2 (675+75mm)
SATA 1-to-4 Cable x 3 (400+120+120+120mm)
Peripheral 1-to-2 Cable x3 (450+120mm)
Addressable RGB Cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Shipping weight6.08 kg
Package size395 × 239 × 160 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 80 PLUS Titanium rating mean for real-world efficiency on this unit?

80 PLUS Titanium certification confirms the PSU meets high efficiency targets across typical loads, reducing wasted power and heat.

Will the 190 mm length and 150 mm width fit my case?

The unit measures 190 mm long, 150 mm wide and 86 mm high; check your case clearance against those dimensions.

How do I connect the bundled 16-pin PCIe cable for a Gen 5 graphics card?

Plug the single 16-pin connector directly into the GPU; it delivers up to 600 W without adapters.
