ASUS
ASUS ROG-THOR-3000T3-GAMING-20TH 3000 W power supply
A 3000 W ATX 3.1 power supply with 80 PLUS Titanium efficiency, GaN MOSFETs, a detachable OLED monitor and a GPU-First voltage stabiliser for up to four RTX 5090 cards
- TypeATX 3.1 / ATX12V
- Maximum Power3000 W
- Fans1
- Fan LEDARGB
- PFCActive
- Main Connector20+4Pin
- 3000 W peak output supports four RTX 5090 graphics cards
- 80 PLUS Titanium certification delivers high efficiency across load ranges
- GaN MOSFET design reduces heat and improves internal airflow
- GPU-First Intelligent Voltage Stabilizer improves voltage delivery by 45 %
- Detachable magnetic OLED display shows real-time power metrics
3000 W Titanium ATX 3.1
The ROG Thor 3000W Titanium III Edition 20 is an ATX 3.1 power supply rated for 3000 watts on 220-240V inputs. It targets extreme builds that run up to four RTX 5090 graphics cards. A server-grade GaN MOSFET design raises efficiency above standard MOSFETs while keeping internal temperatures lower. The unit carries 80 PLUS Titanium certification and a fully modular cable set.
GPU-First Stabilizer & Equalizer Cable

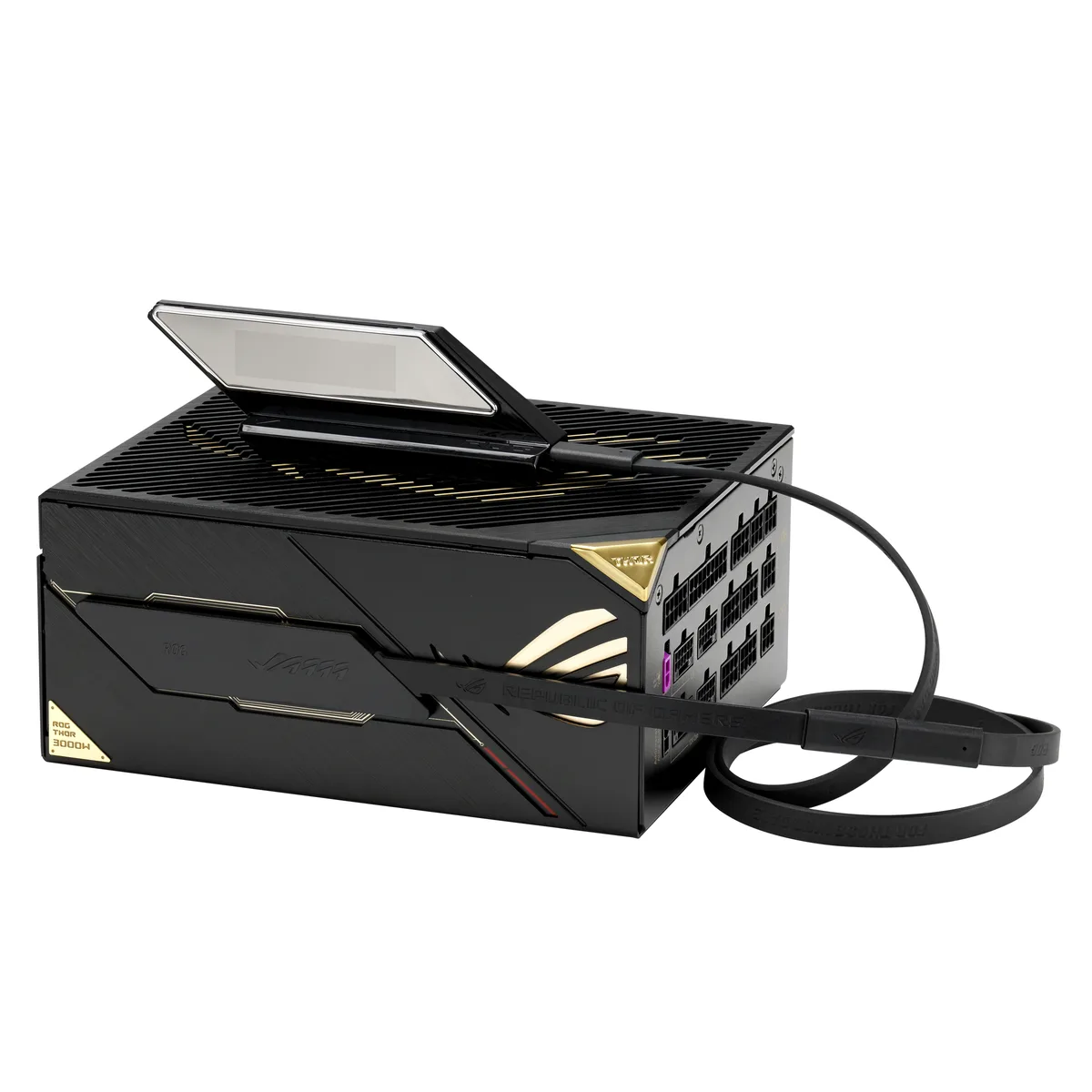

A patented GPU-First Intelligent Voltage Stabilizer improves voltage delivery to the graphics card by up to 45 percent during peak loads. The bundled ROG Equalizer 12V-2x6 PCIe cable reduces heat stress on connectors, helping protect the GPU under sustained draw. A magnetic OLED display with an extender provides real-time power and efficiency readouts and can be mounted on the side or exterior of the chassis.
Four 12V-2x6 Headroom
Four native 12V-2x6 connectors and three 6+2-pin PCIe plugs give direct power paths for multi-GPU arrays without adapters. Nine SATA connectors support dense storage configurations. On 110-120V mains the unit auto-switches voltage but cannot sustain the full 3000 W rating, so maximum headroom is only available on 220-240V circuits. Protection circuits cover OPP, OVP, UVP, SCP, OCP and OTP.
Highlights
- 3000 W peak output supports four RTX 5090 graphics cards
- 80 PLUS Titanium certification delivers high efficiency across load ranges
- GaN MOSFET design reduces heat and improves internal airflow
- GPU-First Intelligent Voltage Stabilizer improves voltage delivery by 45 %
- Detachable magnetic OLED display shows real-time power metrics
Specifications
| Brand | ASUS |
|---|---|
| Series | ROG Thor |
| Model | ROG-THOR-3000T3-GAMING-20TH |
| Part Number | 90YE00VA-B0AA00 |
| Type | ATX 3.1 / ATX12V |
| Maximum Power | 3000 W |
| Fans | 1 |
| Fan LED | ARGB |
| PFC | Active |
| Main Connector | 20+4Pin |
| PCI-Express Connector | 4 x 16-Pin, 3 x 6+2-Pin |
| SATA Power Connector | 9 |
| Max PSU Length | 190 mm |
| Modular | Modular |
| Energy-Efficient | 80 PLUS TITANIUM Certified |
| Overload Protection | Yes |
| Protection | OPP/OVP/UVP/SCP/OCP/OTP |
| Input Voltage | 220-240Vac | 115-240Vac | 100-115Vac |
| Output | +3.3V@30A, +5V@25A, [email protected] , [email protected] , +5Vsb@3A |
| MTBF | >120,000 hrs @ 25°C |
| Connectors | 1 x 24 pin (20+4) ATX 3 x 8 pin (4+4) CPU 3 x 8 pin (6+2) PCIe 4 x 16 pin PCIe (12V-2x6/ROG EQUALIZER) 9 x SATA 3 x PERIPHERAL |
| Dimensions | 190 x 150 x 86 mm |
| Weight | 2.5 kg (single PSU) |
| Package Content | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 3 (1000mm) ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm) ROG EQUALIZER 12V-2x6 PCI-E Cable x3 (750mm) PCI-E Cable 1-to-1 x 3 (750mm) SATA Cable 1-to-3 x 3 (400+120+120mm) Peripheral 1-to-3 x 1 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG OLED stand x 1 ROG 20TH Thank You Card x 1 ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Shipping weight | 6.62 kg |
| Package size | 406 × 251 × 159 mm |
Questions about this item
Will this unit fit in a standard ATX chassis?
The PSU is 190 mm long and uses the ATX 3.1 form factor, so it fits most mid-tower and larger cases that accept standard ATX power supplies.
Can I run four RTX 5090 cards on 110-120 V mains?
The 3000 W rating is only guaranteed on 220-240 V inputs; on 110-120 V the Dual Voltage Adaptive Design auto-switches but maximum output will be lower.
What cables come in the box for the graphics cards?
Four 16-pin 12V-2x6 cables and three 6+2-pin PCIe cables are included, plus the ROG Equalizer 12V-2x6 GPU cable for reduced connector temperatures.
