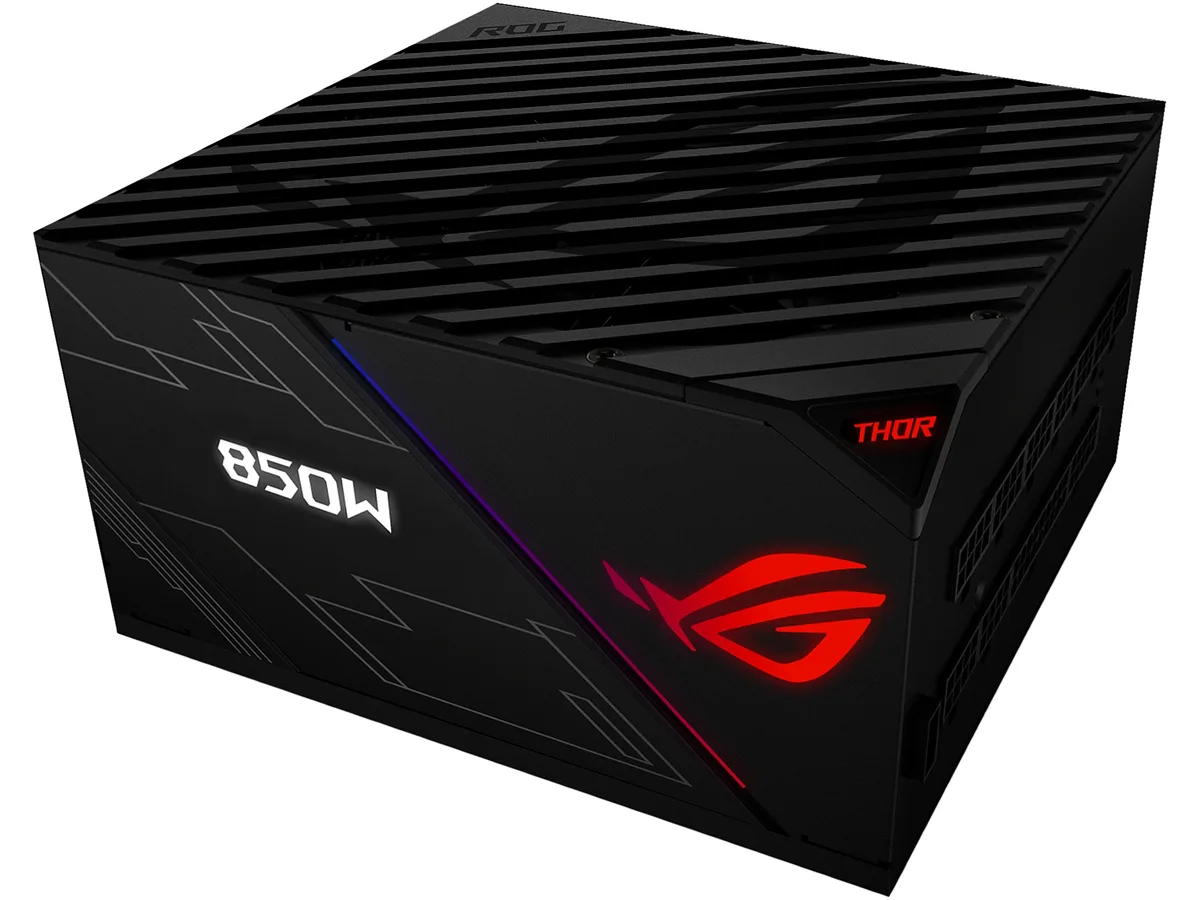

Rectangular ATX power supply with matte black finish, 135mm wing-blade fan, and integrated OLED panel

ASUS

ASUS ROG-THOR-850P 850W 80+ Platinum power supply

SKU CH-NXAB-3A0YE MPN ROG-THOR-850P

An 850 W ATX power supply with 80 PLUS Platinum efficiency, a 135 mm wing-blade fan, a built-in OLED display, fully modular cables and 100 % Japanese capacitors

  • TypeATX12V
  • Maximum Power850 W
  • Fans135mm patented Wing-Blade fan
  • Main Connector24Pin
  • +12V RailsSingle
  • PCI-Express Connector2 x 6+2-Pin
  • 80 PLUS Platinum efficiency reduces running costs
  • 100 % Japanese capacitors ensure stable long-term power delivery

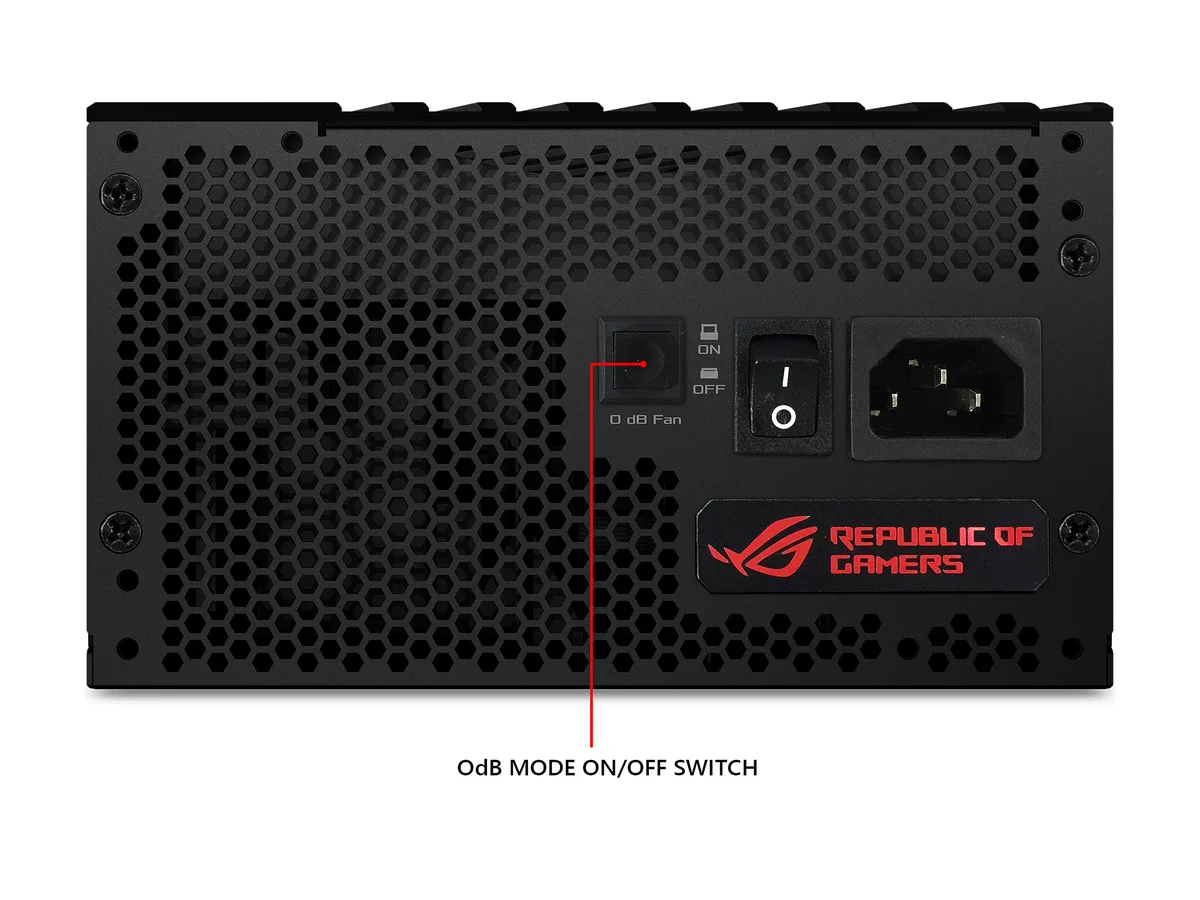

  • 135 mm IP5X wing-blade fan enables 0 dB cooling at low loads
  • Integrated OLED panel displays real-time power draw and custom graphics
  • Aura Sync RGB lighting synchronises effects across compatible components

850 W ATX12V power supply

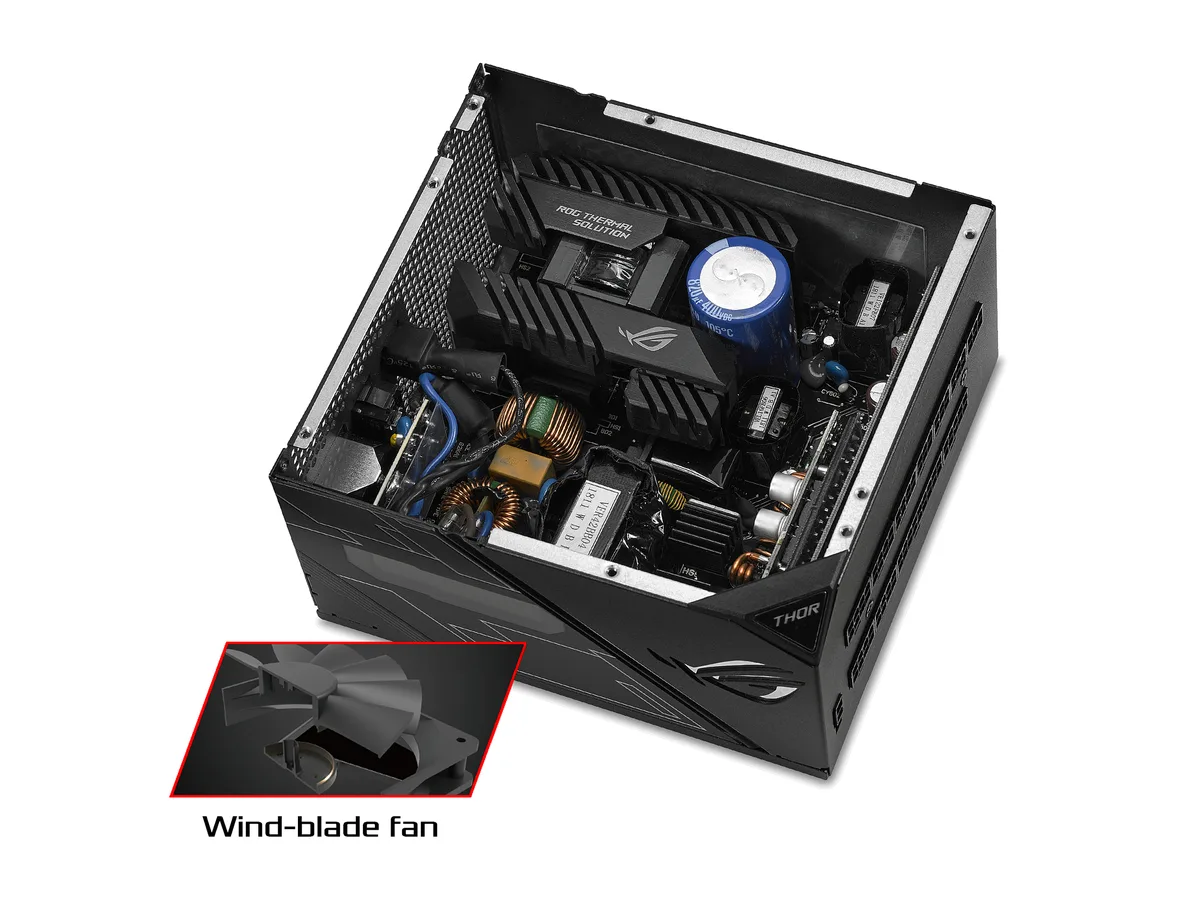

This 850 W ATX12V unit delivers up to 71 A on the single +12 V rail for high-end graphics cards and multi-core processors. Full modular cabling keeps the build tidy, while 100 % Japanese capacitors and 80 PLUS Platinum efficiency reduce heat and lower running costs. The 135 mm IP5X wing-blade fan and integrated heatsinks enable 0 dB cooling at low loads.

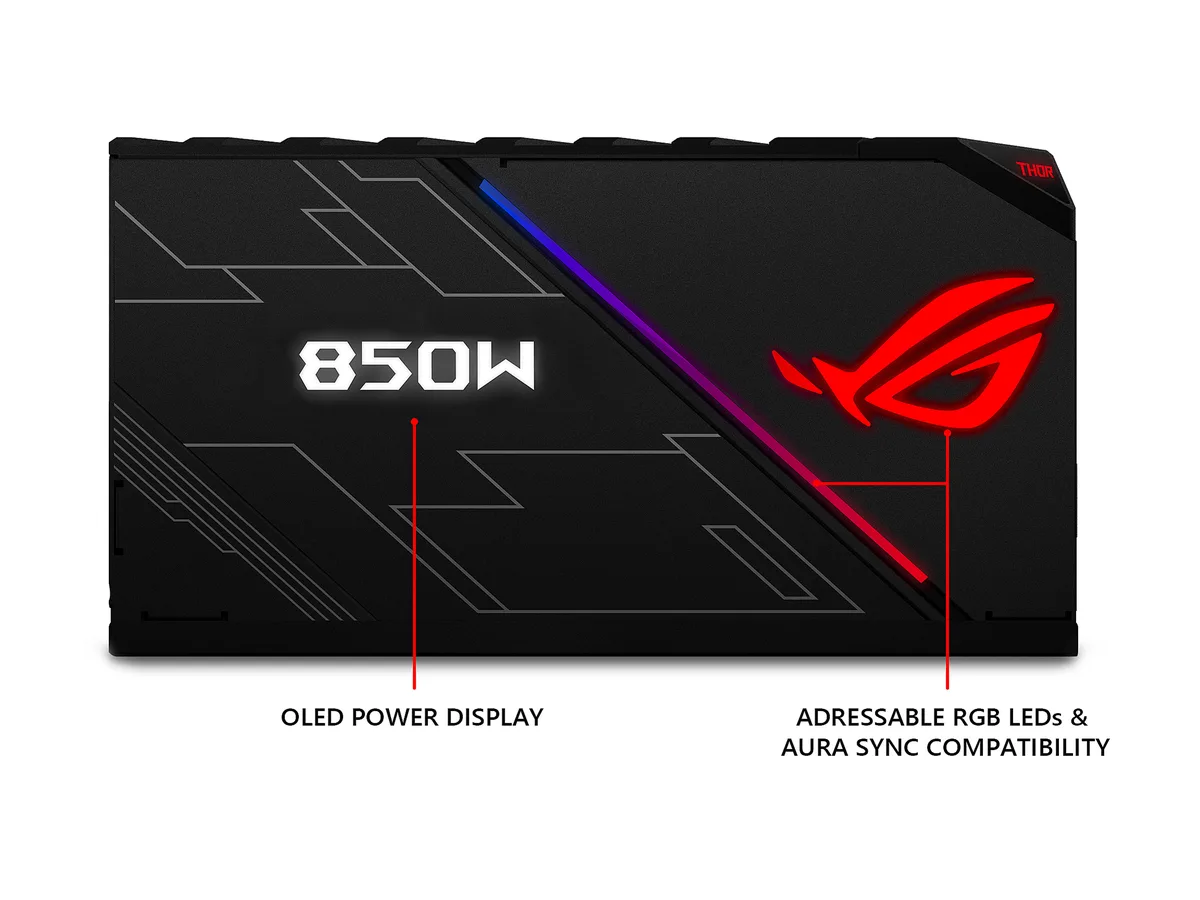

OLED monitoring and Aura Sync RGB

An integrated LIVEDASH OLED panel shows real-time power draw, temperatures and custom animations controlled through ASUS software. Addressable Aura Sync RGB lighting synchronises with compatible components across the ecosystem. The 160 mm depth fits most mid-tower and full-tower cases without clearance issues.

Single +12 V rail at 71 A

The single-rail design places the full 850 W on the +12 V line, so the limiting factor for modern GPUs is the 71 A ceiling. Builds that require more than two 6+2-pin PCIe connectors or sustained loads above this current will need a higher-capacity unit.

Highlights

  • 80 PLUS Platinum efficiency reduces running costs
  • 100 % Japanese capacitors ensure stable long-term power delivery
  • 135 mm IP5X wing-blade fan enables 0 dB cooling at low loads
  • Integrated OLED panel displays real-time power draw and custom graphics
  • Aura Sync RGB lighting synchronises effects across compatible components

Specifications

BrandASUS
SeriesROG
ModelROG-THOR-850P
TypeATX12V
Maximum Power850 W
Fans135mm patented Wing-Blade fan
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
Max PSU Length160 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Output+3.3V@20A, +5V@20A, +12V@71A, [email protected] , +5VSB@3A
Features80+ Platinum certification for energy efficiency, built with 100% Japanese capacitors for stability and durability
0db cooling with dustproof IP5X wing-blade fans and integrated ROG heatsinks for cooler operation
Integrated OLED panel for real-time system stats and personalized logos or animations via ASUS LIVEDASH software controls
Aura Sync addressable RGB lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
10-year warranty for core product operation
Dimensions3.39" x 5.90" x 6.30"
Weight9.9
Shipping weight4.12 kg
Package size378 × 244 × 132 mm

Questions about this item

Will the 160 mm length and standard ATX 24-pin connector fit my older mid-tower case and motherboard?

Yes, the 160 mm depth matches typical ATX bays and the 24-pin main connector is the long-standing standard for current and legacy motherboards.

How can I confirm the 135 mm wing-blade fan and OLED panel are functioning after installation?

The OLED panel shows live wattage, voltage and temperature; the fan stays off under light load and spins up audibly when power draw increases.

Which cables come in the box with this fully modular 850 W unit and what must I buy separately?

The package includes the PSU, detachable 24-pin, two 6+2-pin PCIe and peripheral cables plus mounting screws; no extra cables are needed for a typical build.
