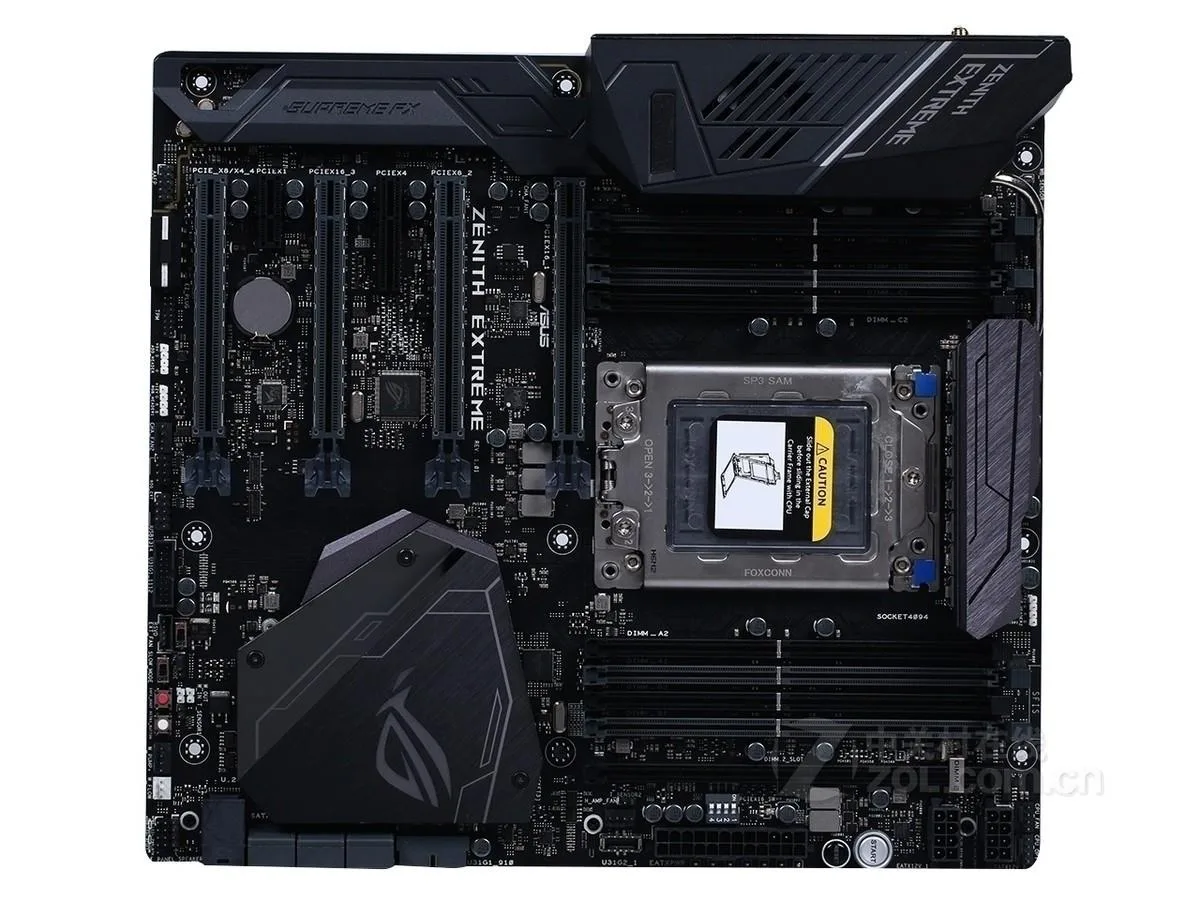

Large rectangular E-ATX motherboard in dark finish with multiple expansion slots and memory sockets

ASUS

ASUS ROG ZENITH EXTREME AMD motherboard

SKU CH-Y533-7CTJ1

Socket TR4 E-ATX board for up to 16-core Ryzen Threadripper CPUs, four-channel DDR4 to 3600 MHz and 128 GB capacity

  • CPU Socket TypesTR4
  • CPU TypeSupports up to 16 core CPUs AMD SocketTR4 for AMD Ryzen Thre
  • ChipsetAMD X399
  • Memory StandardSupports four-channel DDR4 3600 (overclocking)/3200 (overclo
  • Maximum Memory Supported128GB
  • PCI Slots4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) *
  • Supports up to 16 core CPUs for heavy multitasking
  • Four-channel DDR4 up to 3600 MHz overclocking for faster memory throughput
  • 128 GB maximum memory capacity for large workloads
  • E-ATX 30.5 x 27.7 cm form factor fits spacious chassis
  • AMD X399 chipset with multiple PCIe 3.0 x16 configurations for expandability

Socket TR4 Threadripper Platform

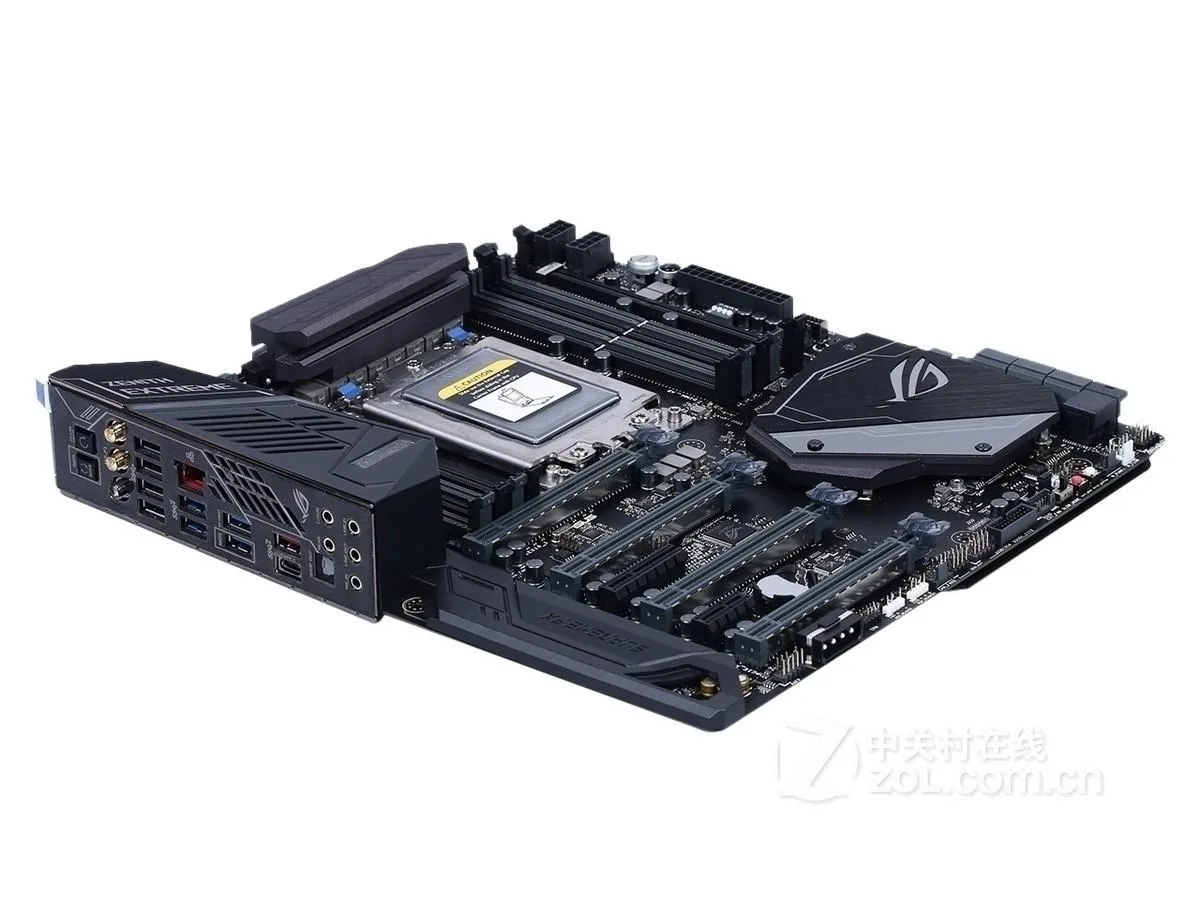

The ASUS ROG ZENITH EXTREME is an AMD X399 motherboard built for Socket TR4 Ryzen Threadripper processors up to 16 cores. It targets workstation builders who need four-channel DDR4 memory and extensive PCIe 3.0 connectivity in an E-ATX footprint.

Verify Threadripper Cooler And Chassis Fit

Confirm your CPU cooler mounting hardware supports the sTR4 socket pattern before ordering. Ensure your case accepts the 30.5 by 27.7 cm E-ATX board dimensions and that your power supply provides the required EPS connectors for high-core-count Threadripper CPUs.

Sustained Workload Thermal Behaviour

Under continuous multi-threaded loads the VRM and chipset areas draw significant power, so adequate case airflow across the board is essential. The four-channel DDR4 topology maintains bandwidth during long render or compute sessions when all eight slots are populated up to 128GB.

Highlights

  • Supports up to 16 core CPUs for heavy multitasking
  • Four-channel DDR4 up to 3600 MHz overclocking for faster memory throughput
  • 128 GB maximum memory capacity for large workloads
  • E-ATX 30.5 x 27.7 cm form factor fits spacious chassis
  • AMD X399 chipset with multiple PCIe 3.0 x16 configurations for expandability

Specifications

BrandASUS
SeriesASUS ROG ZENITH EXTREME
ModelASUS ROG ZENITH EXTREME
CPU Socket TypesTR4
CPU TypeSupports up to 16 core CPUs
AMD SocketTR4 for AMD Ryzen Threadripper
ChipsetAMD X399
Memory StandardSupports four-channel DDR4 3600 (overclocking)/3200 (overclocking)/2800 (overclocking)/2666/2400/2133MHz memory
Maximum Memory Supported128GB
PCI Slots4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) *1
1 x PCIe 2.0 x4
1 x PCIe 2.0 x1
AMD X399 chipset
SATA RAID1XU.2 interface, 3xM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC1220
LAN ChipsetIntel i211AT
Onboard USB2 x USB 2.0 ports (2 in the motherboard, Type-A + USB Type-CTM)
2 x USB ports (2 on backplane, Type-A + USB Type-CTM)
AMD Ryzen Threadripper Processors :
AMD X399 chipset :
ASMedia USB 3.1 Gen 2 controller :
8 x USB 3.1 Gen 1 ports (8 on backplane, blue)
4 x USB 3.1 Gen 1 ports (4 in the motherboard)
1 x USB 3.1 Gen 2 front panel connector

Questions about this item

What comes in the box and what must I buy separately?

The package includes the motherboard, one SATA cable and the chassis I/O back panel. No original packaging or other accessories are supplied. You must purchase a sTR4 Threadripper CPU, DDR4 memory modules, storage drives and a suitable E-ATX case separately.

Which memory capacity and speed should I choose for this board?

The board supports four-channel DDR4 up to 128 GB total. Speeds of 2133, 2400, 2666, 2800, 3200 and 3600 MHz are listed, with the higher figures requiring overclocking. Populate all eight slots with matching modules for maximum bandwidth.

What does the 16-core CPU support mean once the system is built?

The sTR4 socket accepts Threadripper processors with up to 16 cores. In practice this delivers high multi-threaded throughput for rendering, compilation and virtualization workloads, provided adequate cooling and a power supply rated for the CPU's TDP are used.
