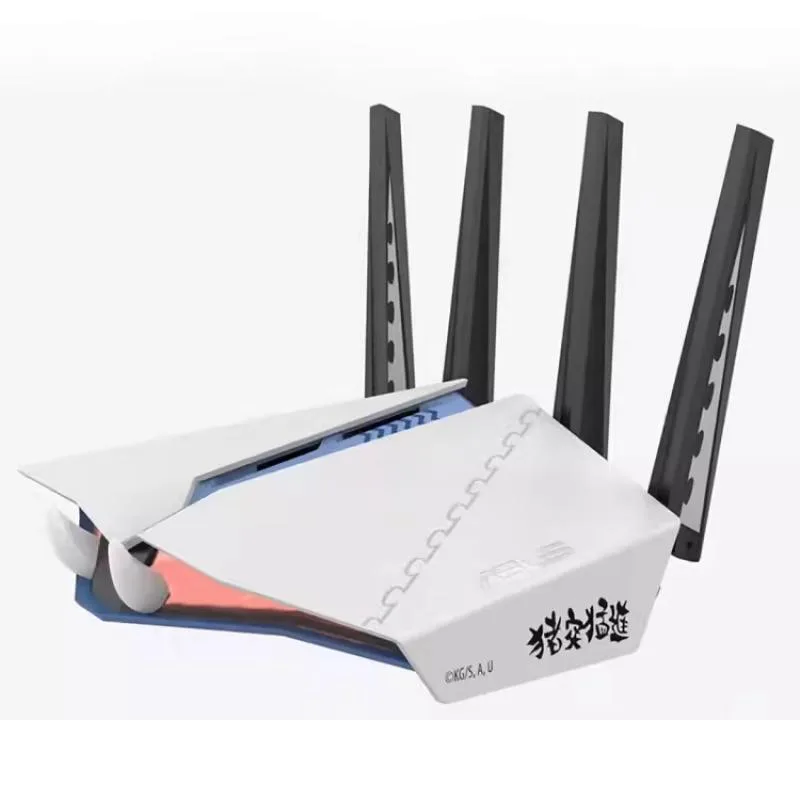

White rectangular Wi-Fi 6 router with four external antennas and RGB lighting accents

ASUS

ASUS RT-AX82U GUNDAM AX5400 Wi-Fi 6 wireless router

SKU CH-YQG7-MYWDM

Dual-band Wi-Fi 6 router with dedicated gaming port, mobile game acceleration and lifetime security subscription

  • StandardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE
  • WiFi GenerationWi-Fi 6
  • Device ManagementUPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port
  • SecurityFirewall: SPI intrusion detection, DoS protection Access con
  • WPAWPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise,
  • WAN Ports1 x 10/100/1000M
  • Wi-Fi 6 delivers speeds up to 5400 Mbps for lag-free gaming
  • Mobile Game Mode cuts latency with one tap in the ASUS Router app
  • Aura RGB lighting offers customisable effects to match your setup
  • AiMesh support builds a flexible whole-home mesh network
  • Lifetime free AiProtection Pro blocks threats and adds parental controls

RT-AX82U GUNDAM AX5400 Gaming Router

The ASUS RT-AX82U GUNDAM is a dual-band Wi-Fi 6 router delivering combined wireless rates up to 5400 Mbps. It features a dedicated gaming LAN port, mobile game acceleration via the ASUS Router app, and Aura RGB lighting effects. Lifetime free AiProtection Pro security powered by Trend Micro is included.

Suits competitive gamers and RGB enthusiasts

This router targets players who want a wired gaming port, mobile optimisation and customisable lighting on a Wi-Fi 6 platform. Buyers needing multi-gigabit WAN or LAN speeds beyond one gigabit per second should consider other models. Households requiring more than four wired ports or a built-in modem will also need a different solution.

AX5400 dual-band Wi-Fi 6 with 160 MHz channels

The decisive specification is the AX5400 class dual-band Wi-Fi 6 radio supporting 160 MHz channel width for high throughput. It operates on 2.4 GHz and 5 GHz bands with four external antennas and MU-MIMO capability. This determines whether the router matches your bandwidth and device density requirements.

Highlights

  • Wi-Fi 6 delivers speeds up to 5400 Mbps for lag-free gaming
  • Mobile Game Mode cuts latency with one tap in the ASUS Router app
  • Aura RGB lighting offers customisable effects to match your setup
  • AiMesh support builds a flexible whole-home mesh network
  • Lifetime free AiProtection Pro blocks threats and adds parental controls

Specifications

BrandASUS
ModelRT-AX82U GUNDAM
StandardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6
WiFi GenerationWi-Fi 6
Device ManagementUPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
SecurityFirewall: SPI intrusion detection, DoS protection
Access control: Parental control, Network service filter, URL filter, Port filter
WPAWPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, WPS support
WAN Ports1 x 10/100/1000M
LAN Ports4 x 10/100/1000M
LEDs1 x Power
2 x Wi-Fi
1 x WAN
ButtonsWPS Button, Reset Button, Power Switch, LED on/off Button
Wireless Data Rates802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11n (1024 QAM) : up to 500 Mbps
802.11ac (1024 QAM) : up to 4333 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHz) : up to 4804 Mbps
Frequency Band2.4 GHz / 5 GHz
Antenna4 x External antenna
Interface1 x USB 3.2 Gen 1
VPN supportIPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
IPSec server
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
Power SupplyAC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
System RequirementsWindows 10
Windows 8
Windows 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Dimensions6.50" x 10.85" x 7.26" with antenna
2.56" x 10.85" x 7.26" without antenna
Weight1.63 lbs.
FeaturesRange Boost
Router app
Link Aggregation
- 802.3ad
MU-MIMO
Smart Connect
Traffic Analyzer
Adaptive QoS
AiProtection Pro
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : PPTP Server, OpenVPN Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image :
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
Ai

Questions about this item

How do I connect the ASUS RT-AX82U GUNDAM router to my modem and which port should I use?

Plug the modem cable into the single 10/100/1000M WAN port; the four LAN ports are for wired clients only.

Will the external antennas or the USB 3.2 Gen 1 port need replacement over time?

The four external antennas are fixed and not user-serviceable; the USB 3.2 Gen 1 port is solid-state with no moving parts to wear out.

What thermal or throughput limit appears first when the AX5400 router runs at full load for hours?

Sustained 5400 Mbps throughput across 160 MHz channels will hit the 1 Gbps WAN and LAN port ceiling before any thermal throttle engages.
