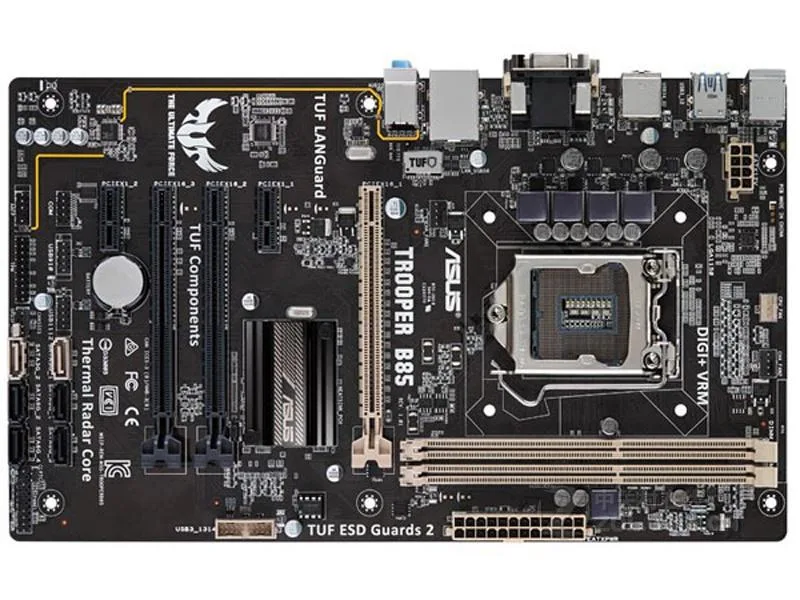

ATX motherboard in matte black with silver heatsinks and blue accents

ASUS

ASUS TROOPER B85 LGA 1150 DDR3 16GB Intel motherboard

SKU CH-VMPM-FFHTK

An ATX motherboard for LGA 1150 Intel CPUs with dual-channel DDR3 up to 16 GB, four SATA III and two SATA II ports, Realtek ALC887 audio and RTL8111GR gigabit LAN

  • CPU Socket TypeLGA 1150
  • CPU TypeSupport LGA1150 slot gIntel 4th generation Core i7/i5/i3/Pen
  • ChipsetIntel B85
  • Memory StandardSupports dual-channel DDR3 1600/1333MHz memory
  • Maximum Memory Supported16GB
  • PCI Slots1 xPCI Express 3.0/2 x16 interface card expansion slot (x16
  • Supports 16 GB DDR3 memory for multitasking headroom
  • LGA 1150 socket fits 4th-generation Intel Core processors
  • Intel B85 chipset provides stable platform foundation
  • Four SATA III plus two SATA II ports for storage flexibility
  • Realtek ALC887 8-channel audio delivers clear sound

TROOPER B85 Platform

The ASUS TROOPER B85 motherboard uses the Intel B85 chipset and an LGA 1150 socket to host 4th generation Core i7, i5, i3, Pentium and Celeron processors. It supports Intel Turbo Boost 2.0 technology for automatic frequency increases under load. The board accepts dual-channel DDR3 memory at 1600 or 1333 MHz up to a total of 16 GB. A Realtek ALC887 codec provides 8-channel audio and a Realtek RTL8111GR controller handles Gigabit LAN.

Expansion Layout

One PCI Express 3.0 x16 slot runs at full x16 mode for a primary graphics card. A second PCI Express 2.0 x16 slot operates at up to x4 mode and is compatible with x1 and x4 add-in cards. Storage connects through four SATA III and two SATA II ports. Front-panel USB 3.0 is available via two internal headers, while the rear I/O supplies two USB 3.0 and four USB 2.0 ports. Four additional USB 2.0 headers sit on the board for internal expansion.

Thermals and Power

The ATX form factor measures 30.5 by 18.0 cm, fitting standard chassis layouts. The Intel B85 chipset and LGA 1150 platform draw modest power under typical desktop workloads, keeping system thermals manageable with conventional case airflow. No specialised cooling hardware is required beyond a standard CPU cooler. The board ships with a metal battery and one SATA cable; no original packaging or additional accessories are included.

Highlights

  • Supports 16 GB DDR3 memory for multitasking headroom
  • LGA 1150 socket fits 4th-generation Intel Core processors
  • Intel B85 chipset provides stable platform foundation
  • Four SATA III plus two SATA II ports for storage flexibility
  • Realtek ALC887 8-channel audio delivers clear sound

Specifications

BrandASUS
SeriesASUS TROOPER B85
ModelASUS TROOPER B85
CPU Socket TypeLGA 1150
CPU TypeSupport LGA1150 slot gIntel 4th generation Core i7/i5/i3/Pentium Celeron processor support 22nm processor
Supports Intel Turbo Boost 2.0 technology *
ChipsetIntel B85
Memory StandardSupports dual-channel DDR3 1600/1333MHz memory
Maximum Memory Supported16GB
PCI Slots1 xPCI Express 3.0/2 x16 interface card expansion slot (x16 mode)
1 xPCI Express 2.0 x16 interface card expansion slot (black, up to x4 mode, compatible with PCIe x1 and x4 devices)
1 xPCI Express 2.0 x16 interface card expansion slot (black, up to x1 mode, compatible with PCIe x1 devices)
2xPCI Express 2.0 x1 interface card expansion slot
SATA RAID4XSATA III interface, 2xSATA II interface
Audio ChipsetRealtek ALC887 8-channel high-frequency fax audio codec
LAN ChipsetRealtek RTL8111GR Gigabit LAN Network Controller
Onboard USB2 xUSB 3.0/2 ports are located in the center of the motherboard and support the front panel
2 x USB 3.0/2 ports on the rear panel (color)
8 x USB 2.0/1 ports (4 in the center of the motherboard, 4 on the rear panel)

Questions about this item

Will an Intel 4th generation Core i5 fit the LGA 1150 socket?

Yes, the board supports 4th generation Core i7, i5, i3, Pentium and Celeron processors in the LGA 1150 socket.

Can I run two DDR3 modules at 1600 MHz in dual channel?

The board supports dual-channel DDR3 at 1600 and 1333 MHz up to a maximum of 16 GB.

What expansion slots are available for a graphics card?

There is one PCI Express 3.0 x16 slot running at x16 mode and a second PCI Express 2.0 x16 slot running at up to x4 mode.
