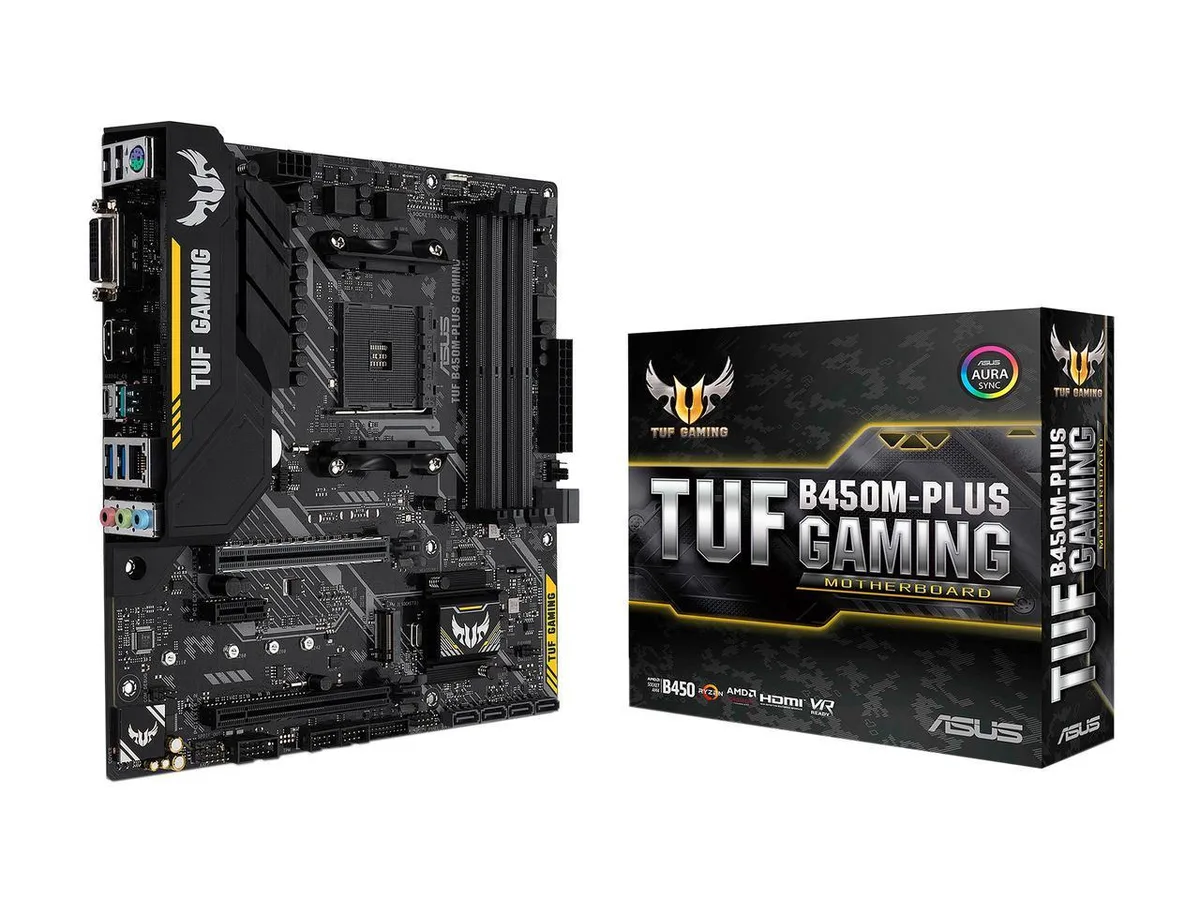

Micro-ATX motherboard with black PCB and yellow accents

ASUS

ASUS TUF B450M-PLUS GAMING AM4 AMD motherboard

SKU CH-Z1EF-HNP7M

Micro-ATX AM4 board with four DDR4 slots up to 64 GB, one PCIe 3.0 x16, one PCIe 2.0 x16, one M.2 socket, six SATA 6Gb/s ports, HDMI 2.0b, DVI-D, Realtek ALC887 audio and RTL8111H LAN

  • CPU Socket TypeAM4
  • CPU TypeAMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon
  • ChipsetAMD B450
  • Number of Memory Slots4×288pin
  • Memory StandardDDR4 3200(O.C)/ 3000(O.C)/ 2800(O.C)/ 2666/ 2400/ 2133 * Ref
  • Maximum Memory Supported64GB
  • Supports up to 64 GB DDR4 memory across four 288-pin slots
  • HDMI 2.0b output drives 4096×2160 at 60 Hz for crisp 4K visuals
  • M.2 socket 3 accepts 2242, 2260, 2280 and 22110 drives with PCIe 3.0 x4 or SATA modes

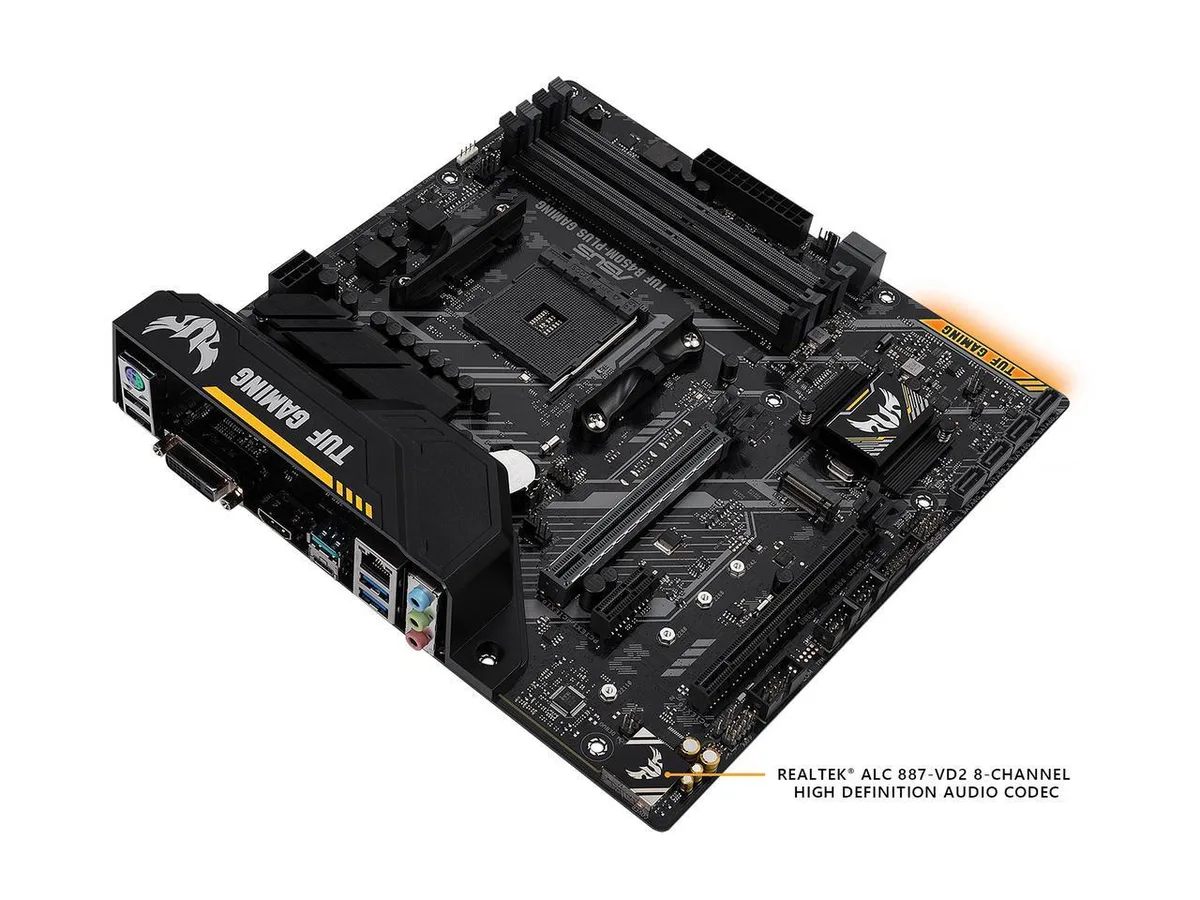

  • Realtek ALC887-VD2 codec delivers 8-channel audio enhanced by DTS Custom for positional headphone cues
  • Military-grade TUF chokes, capacitors and MOSFETs plus LANGuard and SafeSlot protect long-term reliability

ASUS TUF B450M-PLUS GAMING AM4

The ASUS TUF B450M-PLUS GAMING is a Micro ATX motherboard built for AMD AM4 socket processors. It supports Ryzen 1st and 2nd Generation CPUs as well as Ryzen with Radeon Vega Graphics. The board uses the AMD B450 chipset and provides dual-channel DDR4 memory across four 288-pin slots.

Builders Using Ryzen 1st or 2nd Gen

This board suits builders installing Ryzen 1st or 2nd Generation processors or APUs with Radeon Vega graphics. It offers one PCIe 3.0 x16 slot, one PCIe 2.0 x16 slot at x4 mode and a single PCIe 2.0 x1 slot. Users needing PCIe 4.0 support or Ryzen 3000 and newer CPUs should look at a newer chipset.

64GB DDR4 Across Four Slots

The board accepts up to 64GB of DDR4 memory over four slots with speeds up to 3200(O.C.) MHz. Overclocked speeds of 3000(O.C.), 2800(O.C.), 2666, 2400 and 2133 MHz are also listed. Populating all four slots at higher frequencies may require verified modules from the QVL.

Highlights

  • Supports up to 64 GB DDR4 memory across four 288-pin slots
  • HDMI 2.0b output drives 4096×2160 at 60 Hz for crisp 4K visuals
  • M.2 socket 3 accepts 2242, 2260, 2280 and 22110 drives with PCIe 3.0 x4 or SATA modes
  • Realtek ALC887-VD2 codec delivers 8-channel audio enhanced by DTS Custom for positional headphone cues
  • Military-grade TUF chokes, capacitors and MOSFETs plus LANGuard and SafeSlot protect long-term reliability

Specifications

BrandASUS
SeriesTUF
ModelTUF B450M-PLUS GAMIN
CPU Socket TypeAM4
CPU TypeAMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors Supports CPU up to 8 cores* * Due to CPU limitation, CPU cores supported varies by processor. ** Refer to www.asus.com for the AMD CPU support list.
ChipsetAMD B450
Number of Memory Slots4×288pin
Memory StandardDDR4 3200(O.C)/ 3000(O.C)/ 2800(O.C)/ 2666/ 2400/ 2133 * Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x16AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen with Radeon Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express 2.0 x161 x PCI Express 2.0 x16 slots (max. at x4 mode)
PCI Express x11 x PCI Express 2.0 x1 slot
Serial ATA (SATA)AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors: 2 x SATA 6Gb/s port(s) AMD B450 chipset: 4 x SATA 6Gb/s port(s)
M.21 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support* * When a M.2 device is installed, the SATA6G_5/6 ports do not operate
SATA RAID0/1/10
Onboard Video ChipsetIntegrated Graphics in the AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support: HDMI, DVI-D ports - Supports HDMI 2.0b with max. resolution 4096x2160@60Hz - Supports DVI-D with max. resolution up to 1920x1200@60Hz
Audio ChipsetRealtek ALC887-VD2
Audio Channels8 Channels * Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
Second LAN ChipsetRealtek RTL8111H
Max LAN Speed10/100/1000Mbps

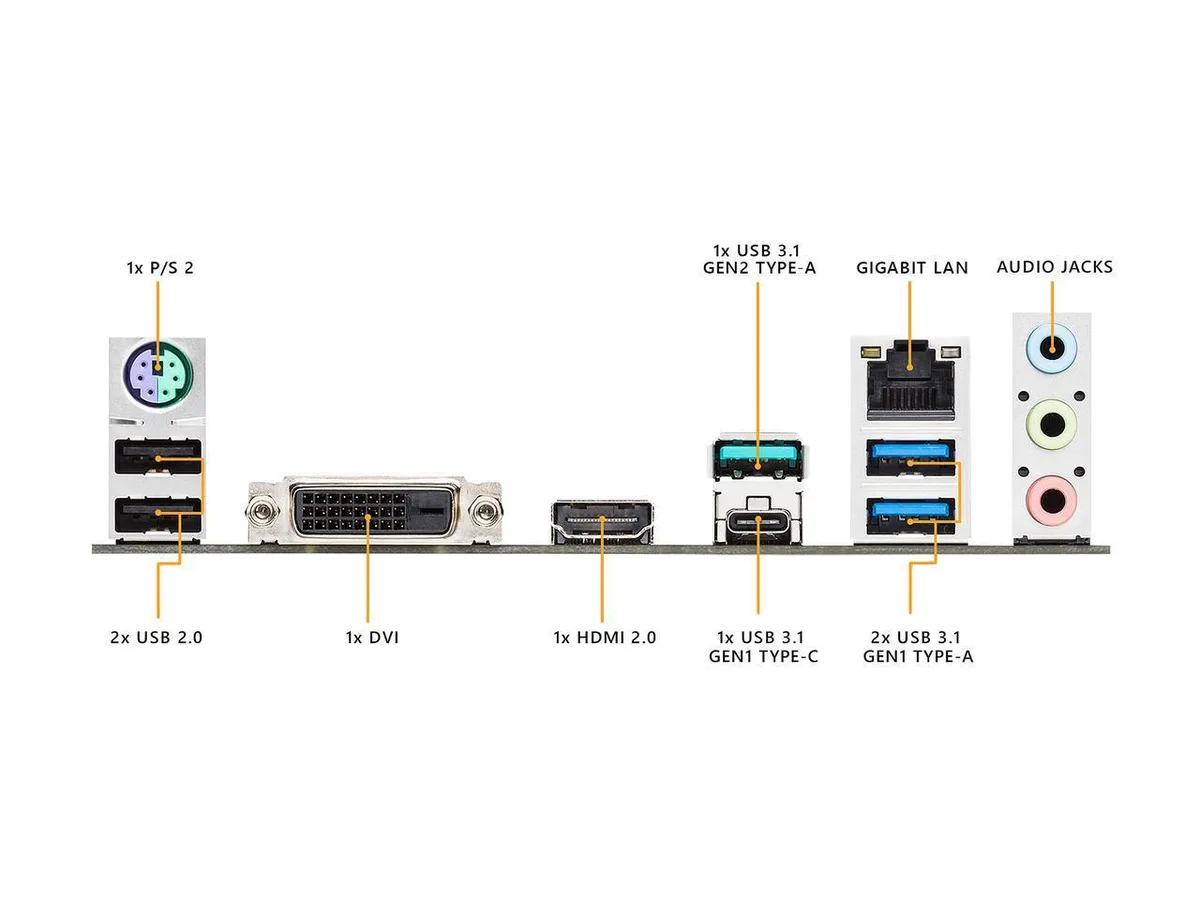

Back I/O Ports1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.11 x USB 3.1 Gen 2 Type-A 2 x USB 3.1 Gen 1 (blue)
USB 1.1/2.02 x USB 2.0
USB Type-C1 x USB 3.1 Gen 1 (blue) USB Type-C
Audio Ports3 Ports
Onboard USB1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors1 x Aura RGB Strip Header 1 x CPU Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector
FeaturesMulti-GPU Support: Supports AMD CrossFireX Technology Special Features: ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design AURA: - Aura Lighting Control ASUS Exclusive Features: - AI Suite 3 - Ai Charger - PC Cleaner ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert

Questions about this item

What SATA standard do the six ports use, and what is their practical speed cap?

All six SATA ports run at 6 Gb/s, so any connected drive tops out at that interface limit.

What case clearance does the Micro-ATX board and its reinforced PCIe slot require?

The board fits any Micro-ATX or larger case; the SafeSlot x16 uses a standard bracket height, so only a dual-slot graphics card could crowd the adjacent x1 slot.

How is the M.2 drive installed, and which step often gets missed?

Insert the 2242-22110 module at an angle, press flat, and secure with the supplied screw; the step people miss is that populating the slot disables the two chipset SATA ports.
