ASUS

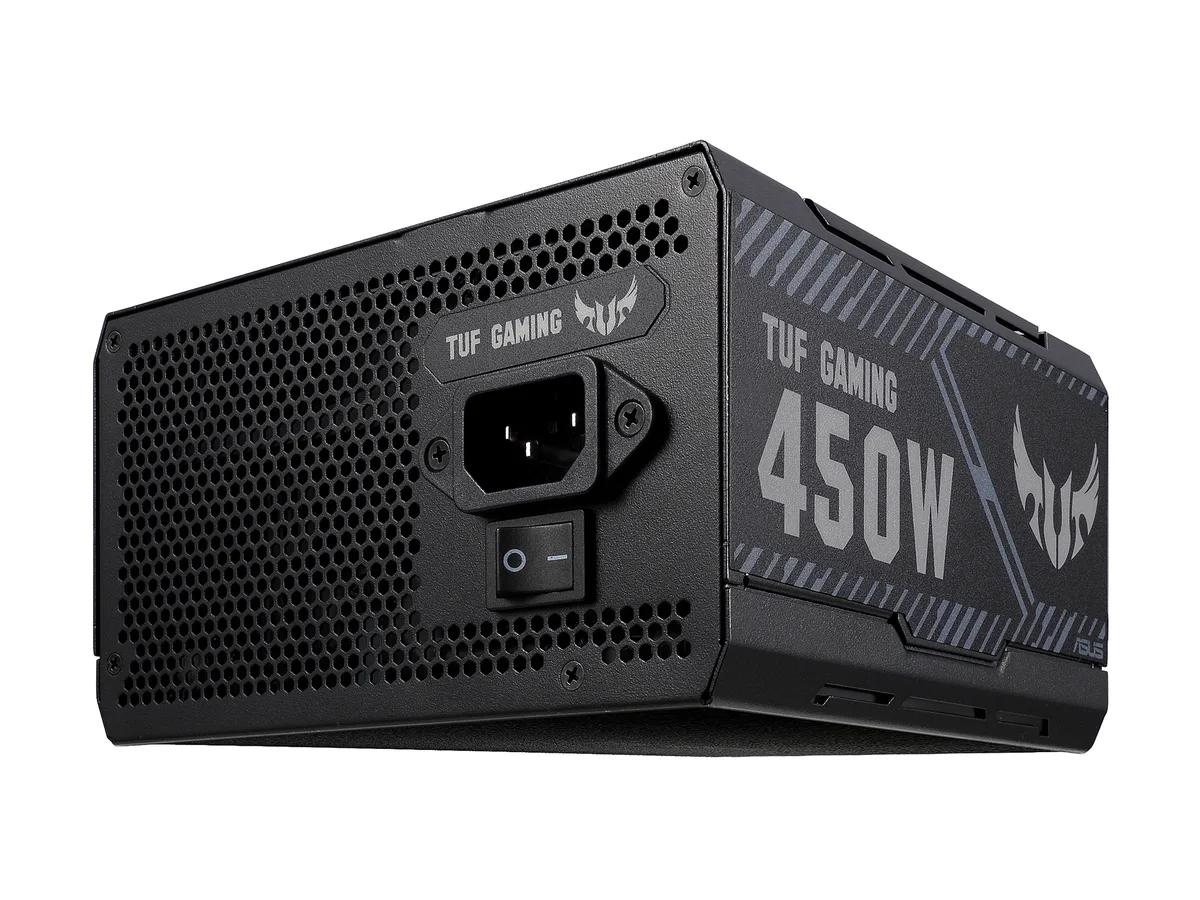

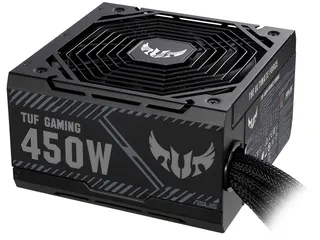

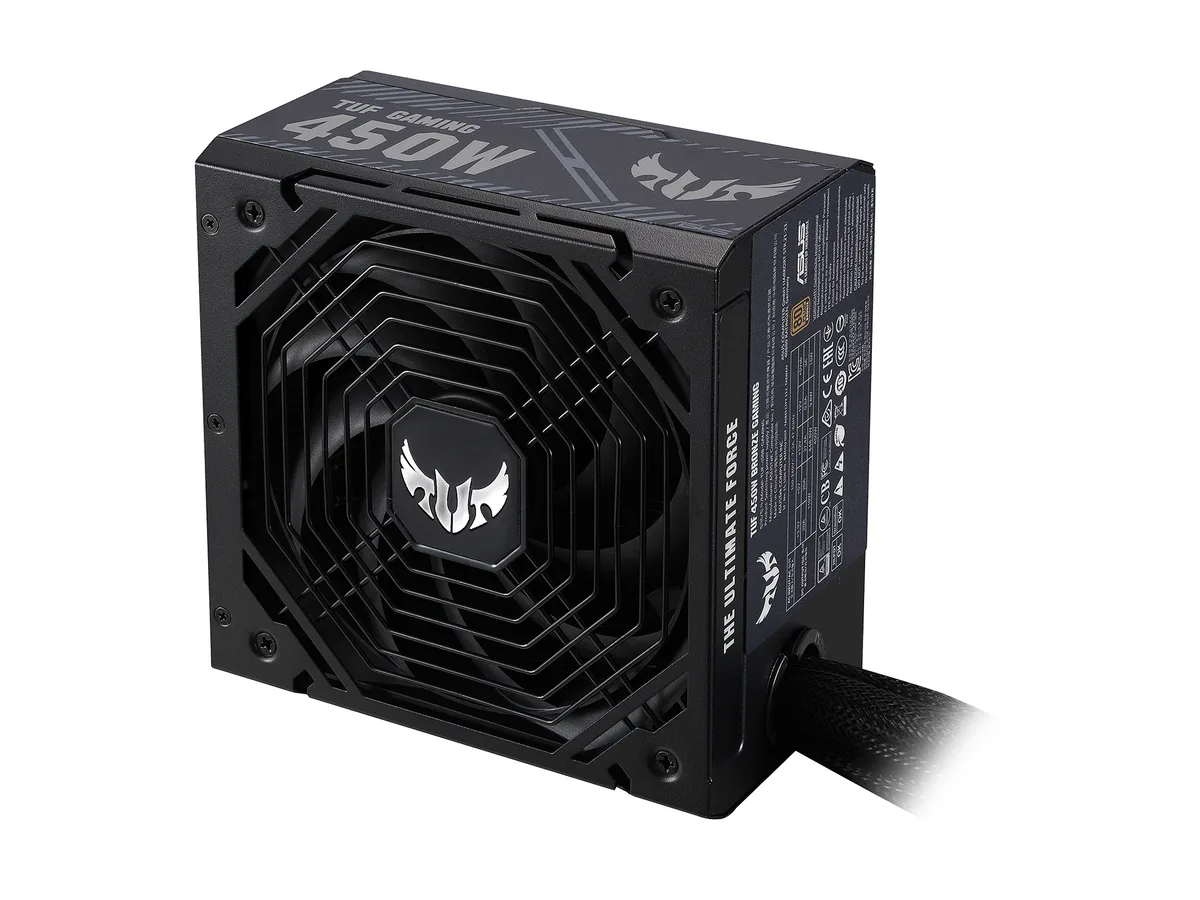

ASUS TUF GAMING 450B 450 W power supply
A 450 W ATX power supply with 80 PLUS Bronze efficiency, a 135 mm dual ball-bearing fan, two PCIe 6+2-pin connectors and five SATA power plugs
- TypeATX12V
- Maximum Power450 W
- Fans1 x 135mm Dual Ball Fan Bearing Fan
- Main Connector20+4Pin
- +12V RailsSingle
- PCI-Express Connector2 x 6+2-Pin
Options ATX 80+ Bronze (450W)
- ATX 80+ Bronze (450W)
- ATX 80+ Bronze (550W)
- ATX 80+ Bronze (650W)
- ATX 80+ Bronze (750W)
- Efficient power delivery backed by 80 PLUS Bronze certification
- Quiet operation at low loads with 0dB fan technology

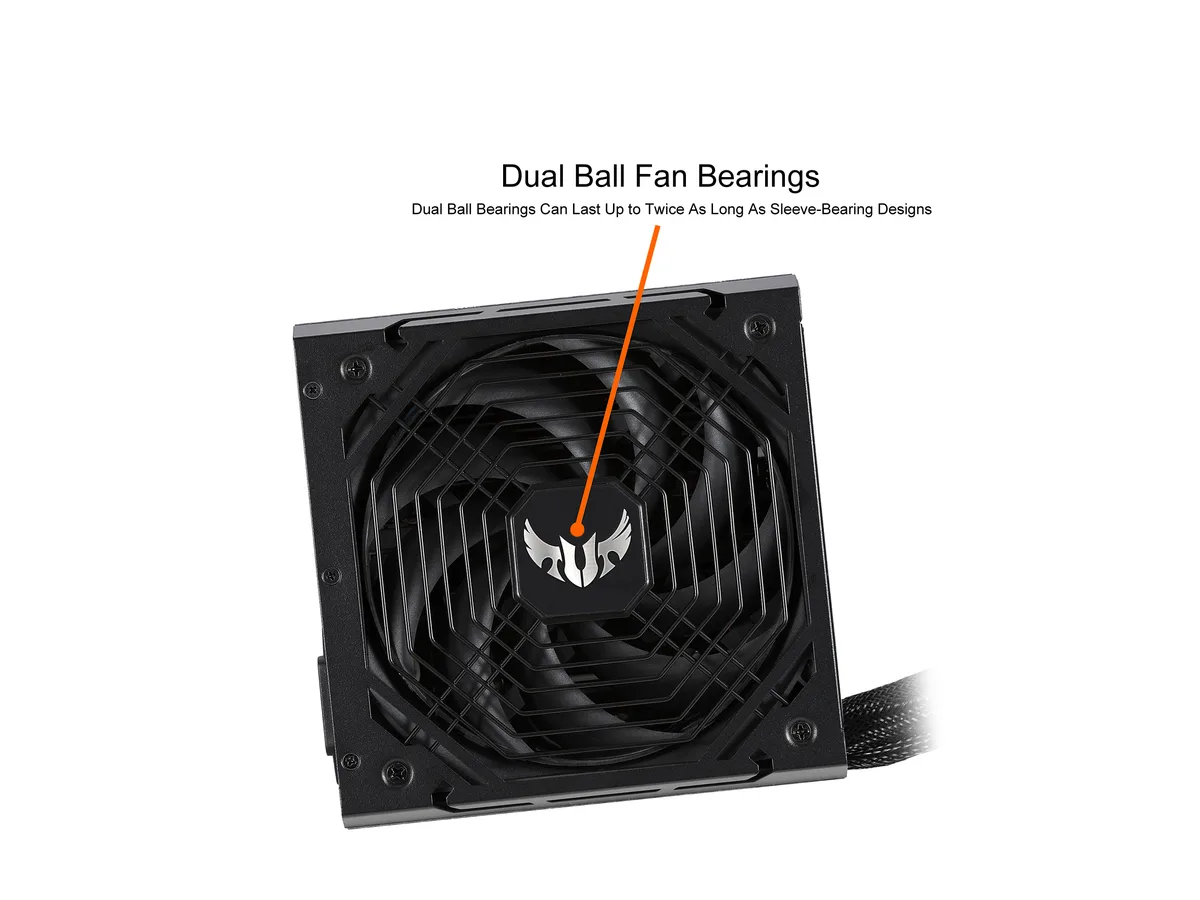

- Extended fan lifespan using dual ball bearings
- Military-grade component validation for capacitors and chokes
- Compact 150 mm length fits smaller ATX cases
Built for mid-range gaming builds
The ASUS TUF GAMING 450B is a 450 W ATX12V power supply with a single +12 V rail and 80 PLUS Bronze certification. A 135 mm dual ball bearing fan uses Axial-tech design and 0dB technology to stay quiet under light loads. Non-modular cabling includes a 20+4 pin main connector, one 4+4 pin CPU lead, two 6+2 pin PCIe plugs, five SATA and four peripheral connectors.
Suits entry-level systems, not high-end GPUs
This unit fits builds that draw up to 450 W and need only two PCIe power connectors. The 150 mm length works in most standard cases. Systems requiring more than two graphics power cables, modular cables or a higher wattage ceiling should consider a larger model.
450 W maximum power decides fit
The 450 W rating sets the hard limit for total system draw. If your components combined exceed this figure, the supply cannot deliver stable power and a higher-rated unit is required.
Highlights
- Efficient power delivery backed by 80 PLUS Bronze certification
- Quiet operation at low loads with 0dB fan technology
- Extended fan lifespan using dual ball bearings
- Military-grade component validation for capacitors and chokes
- Compact 150 mm length fits smaller ATX cases
Specifications
| Brand | ASUS |
|---|---|
| Series | TUF GAMING |
| Model | TUF GAMING 450B |
| Type | ATX12V |
| Maximum Power | 450 W |
| Fans | 1 x 135mm Dual Ball Fan Bearing Fan |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 5 |
| Max PSU Length | 150 mm |
| Modular | Non-Modular |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Protection | OPP / OVP / UVP / SCP / OCP / OTP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 7.5A |
| Output | +3.3V@20A, +5V@20A, [email protected] , [email protected] , +5VSB@3A |
| Approvals | RoHS |
| Connectors | 1 x MB 24/20-pin 1 x CPU 4+4-pin 2 x PCI-E 6+2-pin 5 x SATA 4 x Peripheral |
| PFC | No |
| SLI | No |
| CrossFire | No |

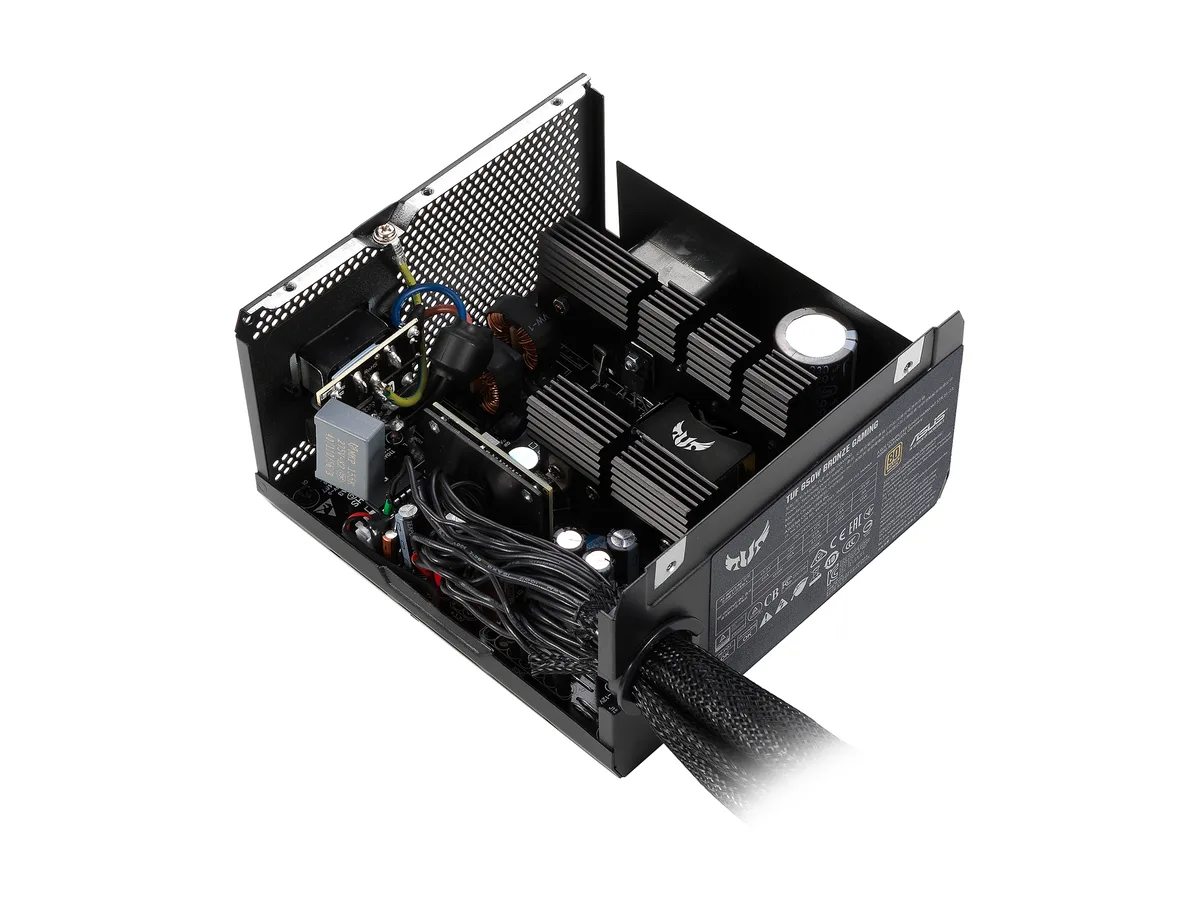

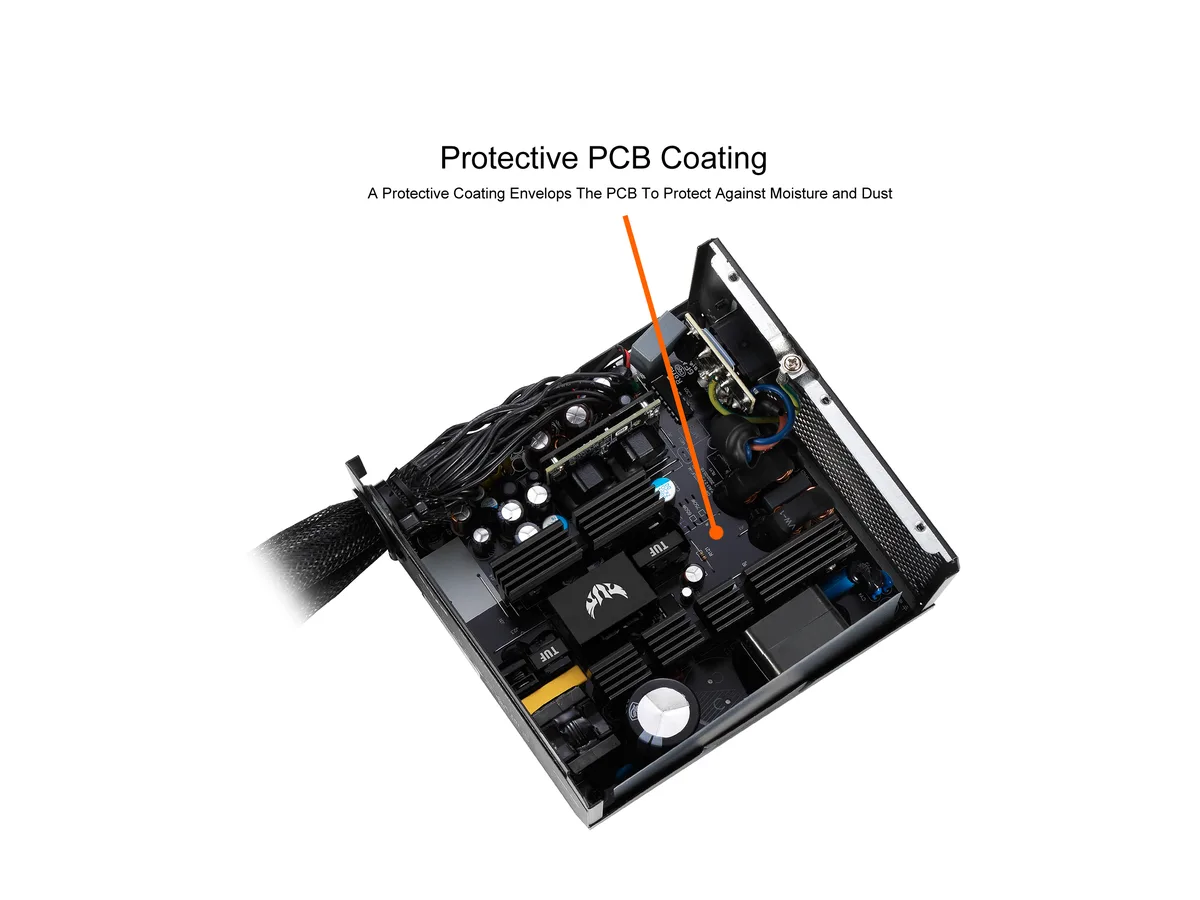

| Features | Capacitors and chokes pass demanding tests to achieve Military-grade Certification. Dual ball fan bearings can last up to twice as long as sleeve bearing designs. A protective PCB coating protects against moisture, dust, and extreme temperatures. An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing. Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. 0dB technology lets you enjoy light gaming in relative silence. Sleeved cables leave your rig looking tacti |
| Dimensions | 3.39" x 5.91" x 5.91" |
| Package Content | Power Cord x1 Motherboard Power Cable x1 (600mm) CPU Cable x1 (800mm) PCI-E Cable x1 (600mm) SATA Cable x2 (400+120mm x1, 400+120+120mm x1) Periphreal x1 (400+150+150+150mm) TUF Gaming sticker x1 |
| Shipping weight | 2.50 kg |
| Package size | 295 × 203 × 112 mm |
