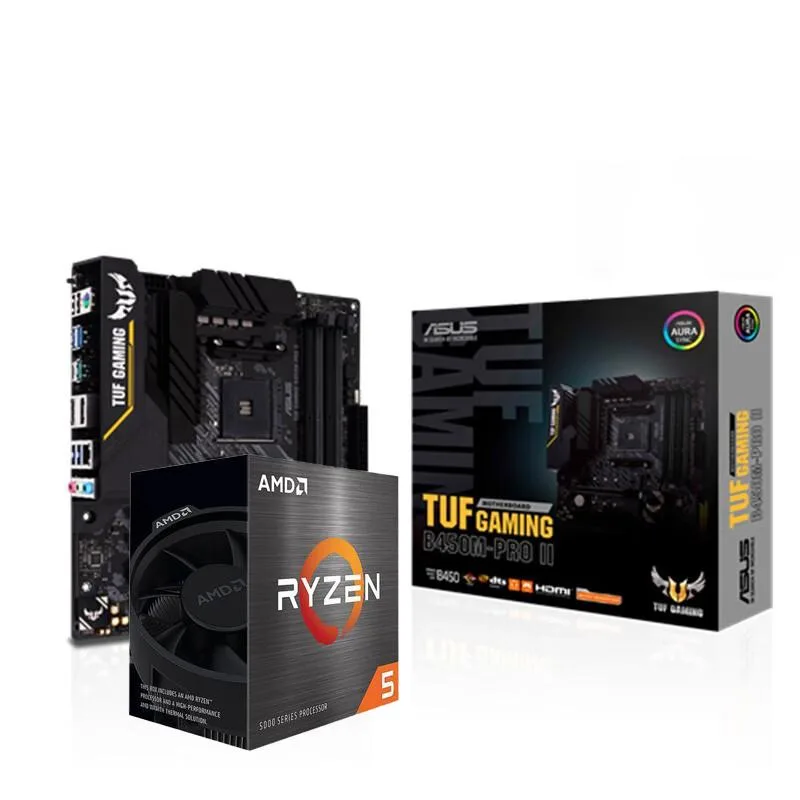

Micro ATX motherboard with AMD Ryzen 5 5600 CPU, black PCB, yellow accents, RGB lighting, four DDR4 slots, M.2 socket, HDMI port

ASUS

ASUS TUF GAMING B450M-PRO II AMD Motherboard CPU Combo with Ryzen 5 5600

SKU CH-QAKK-1QHWQ

Micro-ATX B450 board with four DDR4 slots up to 128 GB, one PCIe 3.0 x16 slot, one M.2 socket and six SATA ports, paired with a six-core Ryzen 5 5600 CPU

  • CPU TypeRyzen 5000 Series
  • ChipsetAMD B450
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4400(O.C.)/ 3533(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • Ryzen 5 5600 delivers 6-core Zen 3 performance at 3.5 GHz base clock
  • B450 chipset supports DDR4 memory up to 4400 MHz overclocked across four slots
  • Micro ATX board fits 9.6 x 9.6 inch cases while keeping full expansion room
  • Realtek ALC S1200A audio codec with DTS Custom tuning for clear game sound
  • Realtek RTL8111H LAN provides 1 Gbps wired networking out of the box

Combo for Ryzen 5 5600 Builds

This bundle pairs an ASUS TUF GAMING B450M-PRO II board with a Ryzen 5 5600 processor. The six-core CPU runs at 3.5 GHz with a 65 W TDP and includes 32 MB of L3 cache. The Micro ATX board uses the AMD B450 chipset and AM4 socket. It targets gamers and system builders who want a ready-matched platform.

Verify BIOS and Memory Before Installing

The motherboard supports Ryzen 5000 series processors but may require a BIOS update depending on stock firmware. Check the manufacturer QVL for validated DDR4 kits up to 4400 MT/s overclocked speeds. Four 288-pin slots accept up to 128 GB in dual-channel mode. Ensure your power supply has the required ATX and CPU connectors for the board.

Military-Grade Parts and Practical I/O

TUF components are used throughout for durability under sustained loads. The rear panel includes HDMI video output, USB 3.1 Gen 2 ports and Realtek RTL8111H Gigabit LAN. Onboard audio uses the Realtek ALC S1200A codec with DTS Custom tuning. Expansion covers one PCIe 3.0 x16 slot, one PCIe 2.0 x16 slot at x4 mode and one PCIe 2.0 x1 slot. Storage options include six SATA 6 Gbps ports and one M.2 socket supporting 2242, 2260 and 2280 devices in SATA or PCIe 3.0 x4 mode. RGB lighting headers are present.

Highlights

  • Ryzen 5 5600 delivers 6-core Zen 3 performance at 3.5 GHz base clock
  • B450 chipset supports DDR4 memory up to 4400 MHz overclocked across four slots
  • Micro ATX board fits 9.6 x 9.6 inch cases while keeping full expansion room
  • Realtek ALC S1200A audio codec with DTS Custom tuning for clear game sound
  • Realtek RTL8111H LAN provides 1 Gbps wired networking out of the box

Specifications

BrandASUS
SeriesTUF
CPU TypeRyzen 5000 Series
ChipsetAMD B450
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4400(O.C.)/ 3533(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x163rd/2nd/1st Gen AMD Ryzen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express 2.0 x161 x PCIe 2.0 x16 (max at x4 mode)
PCI Express x11 x PCI Express 2.0 x1 slot
Serial ATA (SATA)3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors:
2 x SATA 6Gb/s port(s)
AMD B450 chipset:
4 x SATA 6Gb/s port(s)
M.23rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*
AMD Athlon with Radeon Vega Graphics Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)**
AMD B450 chipset:
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)*2
* The M.2_1 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
* The M.2
SATA RAID0/1/10
Audio ChipsetRealtek ALC S1200A High Definition Audio CODEC
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)

Questions about this item

Will the Ryzen 5 5600 fit this motherboard without a BIOS update?

The board uses the AMD B450 chipset with an AM4 socket that supports 3rd Gen Ryzen 5000 Series processors. The included Ryzen 5 5600 is a 6-core 3.5 GHz 65W Vermeer CPU, so it is natively compatible.

What memory speeds can I run with the four DDR4 slots?

The board lists DDR4 speeds up to 4400(O.C.) and standard JEDEC speeds down to 2133 MHz. With four slots populated the maximum supported capacity is 128GB in dual-channel mode. Check the ASUS QVL for validated kits.

Which storage drives can I connect to the M.2 and SATA ports?

One M.2 Socket 3 M-key slot accepts 2242, 2260 and 2280 drives in SATA or PCIe 3.0 x4 mode. The chipset provides four SATA 6Gb/s ports and the CPU adds two more, all supporting RAID 0, 1 and 10.
