Micro-ATX motherboard and Ryzen 5 5600X CPU in socket, matte black PCB with grey heatsinks

ASUS

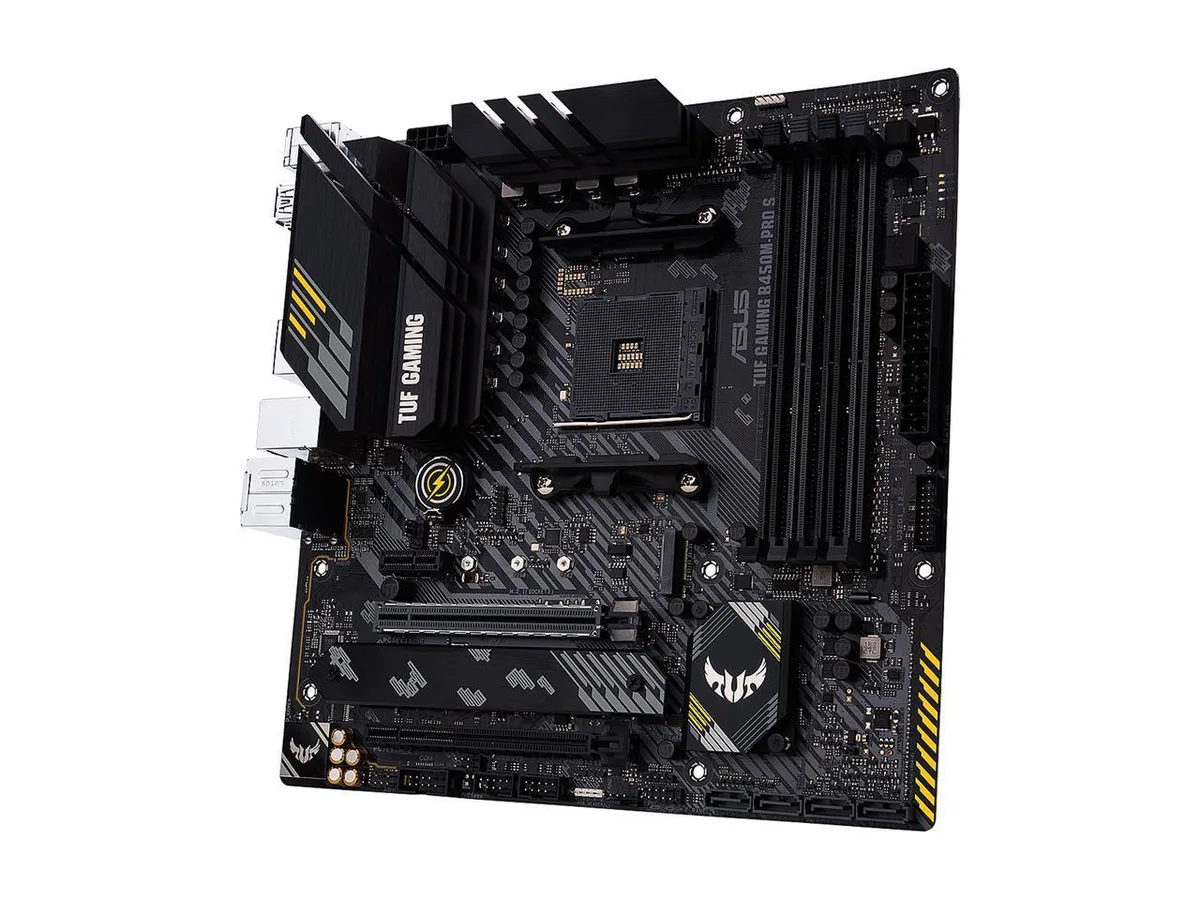

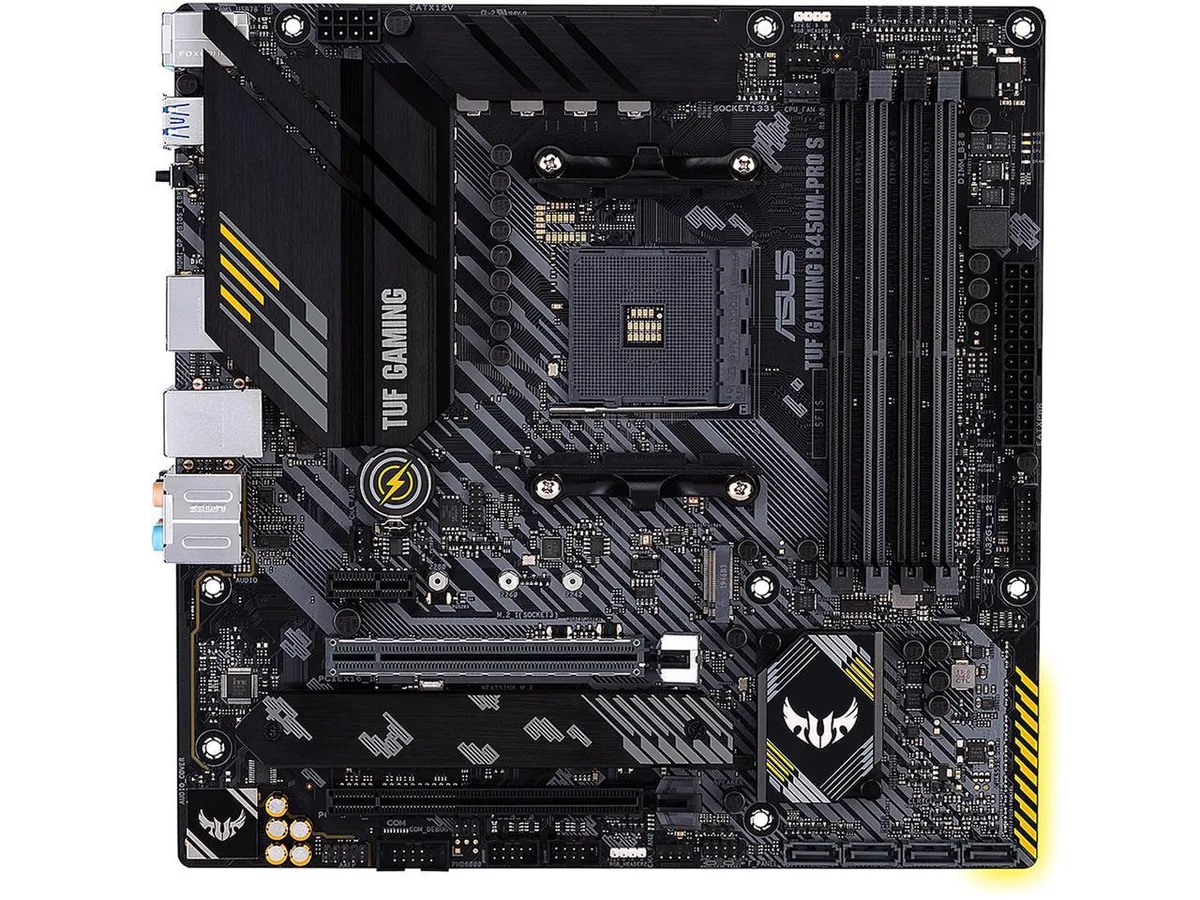

ASUS TUF GAMING B450M-PRO S AMD motherboard with Ryzen 5 5600X

SKU CH-RNVM-N05H5

Micro-ATX B450 board paired with a 6-core 3.7 GHz Ryzen 5 5600X, four DDR4 slots up to 128 GB, one PCIe 3.0 x16, one PCIe 2.0 x16, one PCIe 2.0 x1.

  • CPU TypeRyzen 5000 Series
  • ChipsetAMD B450
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4400(OC) / 3533(OC) / 3466(OC) / 3200(OC) / 3000(OC) /
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • 6-core Ryzen 5600X delivers 3.7 GHz performance for demanding workloads
  • B450 chipset supports Ryzen 5000 series processors on AM4 socket
  • Four DDR4 slots accept up to 128 GB dual-channel memory at 4400 OC speeds
  • Realtek ALC S1200A codec provides 7.1-channel high-definition audio output
  • Three M.2 sockets fit 2242, 2260 and 2280 drives with PCIe 3.0 x4 or SATA modes

TUF B450M Micro-ATX with Ryzen 5 5600X

This bundle pairs the ASUS TUF GAMING B450M-PRO S motherboard with a Ryzen 5 5600X processor. The board uses the AMD B450 chipset and fits Micro-ATX cases. The CPU is a 6-core Vermeer part running at 3.7 GHz with a 65W TDP. It supports Windows 11 and targets gamers and builders who want a compact AM4 platform.

AM4 socket DDR4 memory M.2 bandwidth sharing

Verify that your power supply provides an 8-pin EPS connector for the CPU. The board offers four 288-pin DDR4 slots supporting speeds up to 4400(OC) and a maximum of 128GB in dual-channel mode. Only one PCI Express 3.0 x16 slot is wired from the CPU; the second x16 slot runs at 2.0 and shares bandwidth with the second M.2 socket, so using both disables M.2_2.

Military-grade components Realtek S1200A audio

TUF components include certified chokes, capacitors and MOSFETs rated for durability. The Realtek ALC S1200A codec delivers 7.1-channel high-definition audio. Four SATA 6Gb/s ports and one M.2 slot supporting 2242, 2260 and 2280 drives handle storage. The single PCI Express 2.0 x1 slot adds room for a Wi-Fi card or other add-in board.

Highlights

  • 6-core Ryzen 5600X delivers 3.7 GHz performance for demanding workloads
  • B450 chipset supports Ryzen 5000 series processors on AM4 socket
  • Four DDR4 slots accept up to 128 GB dual-channel memory at 4400 OC speeds
  • Realtek ALC S1200A codec provides 7.1-channel high-definition audio output
  • Three M.2 sockets fit 2242, 2260 and 2280 drives with PCIe 3.0 x4 or SATA modes

Specifications

BrandASUS
ModelTUF GAMING B450M-PRO S
CPU TypeRyzen 5000 Series
ChipsetAMD B450
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4400(OC) / 3533(OC) / 3466(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133 *
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
ECC SupportedECC Memory (ECC mode) support varies by CPU.
Buffer SupportedUn-buffered
PCI Express 3.0 x161 x PCI Express 3.0 x16*
* Actual support may vary by CPU.
PCI Express 2.0 x161 x PCI Express 2.0 x16 *
* PCIEX16_2 shares bandwidth with M.2_2. When PCIEX16_2 runs, M.2_2 will be disabled.
PCI Express x16None
PCI Express x11 x PCI Express 2.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.23rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)
AMD Athlon with Radeon Vega Graphics Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD B450 chipset:
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 2.0 x4)*
* M.2_2 shares bandwidth with PCIEX16_2. When M.2_2 runs, PCIEX16_2 will be disabled.
SATA RAID0/1/10
Onboard Video ChipsetSupported only by CPU with integrated graphic
Audio ChipsetRealtek ALC S1200A Surround Sound High Definition Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8125B
Max LAN Speed2.5Gbps
Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack Button(s)
HDMI1 x HDMI
USB 3.03 x USB 3.0
Onboard USB1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x SPI TPM header
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
Windows 11Supported
FeaturesMulti-GPU Support:
Supports AMD 2-Way CrossFireX Technology
Software Features:
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise-Canceling Microphone
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features:
ASUS TUF PROTECTION
- ASUS DIGI+ VRM (Digital power desi
Package ContentsAccessories:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)

Questions about this item

Will the board run a Ryzen 5 5600X without a BIOS update?

The board is sold as a combo with the Ryzen 5 5600X, so it should ship with a compatible BIOS for that CPU.

What is the maximum memory capacity and speed the board supports?

Four DDR4 slots support up to 128 GB, with overclocked speeds up to 4400 and native speeds down to 2133.

Can I use two M.2 drives and both PCIe x16 slots at the same time?

The second PCIe 2.0 x16 slot shares bandwidth with the M.2 slot; using the second slot disables that M.2 connection.
