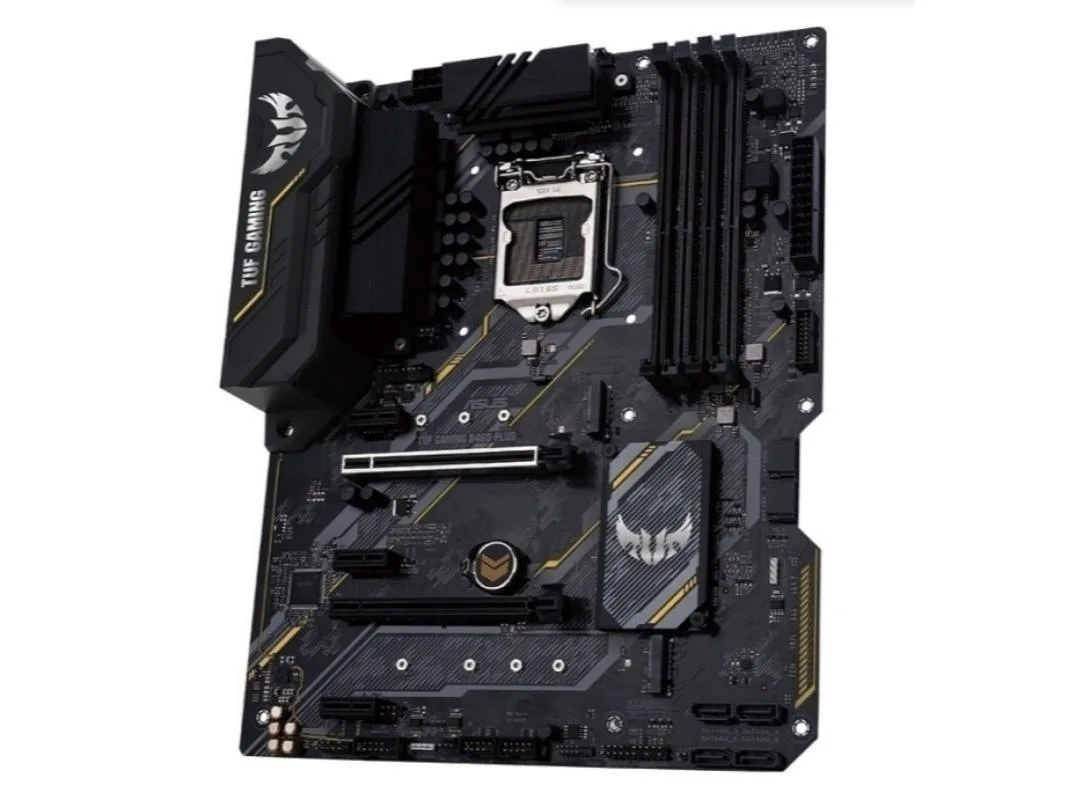

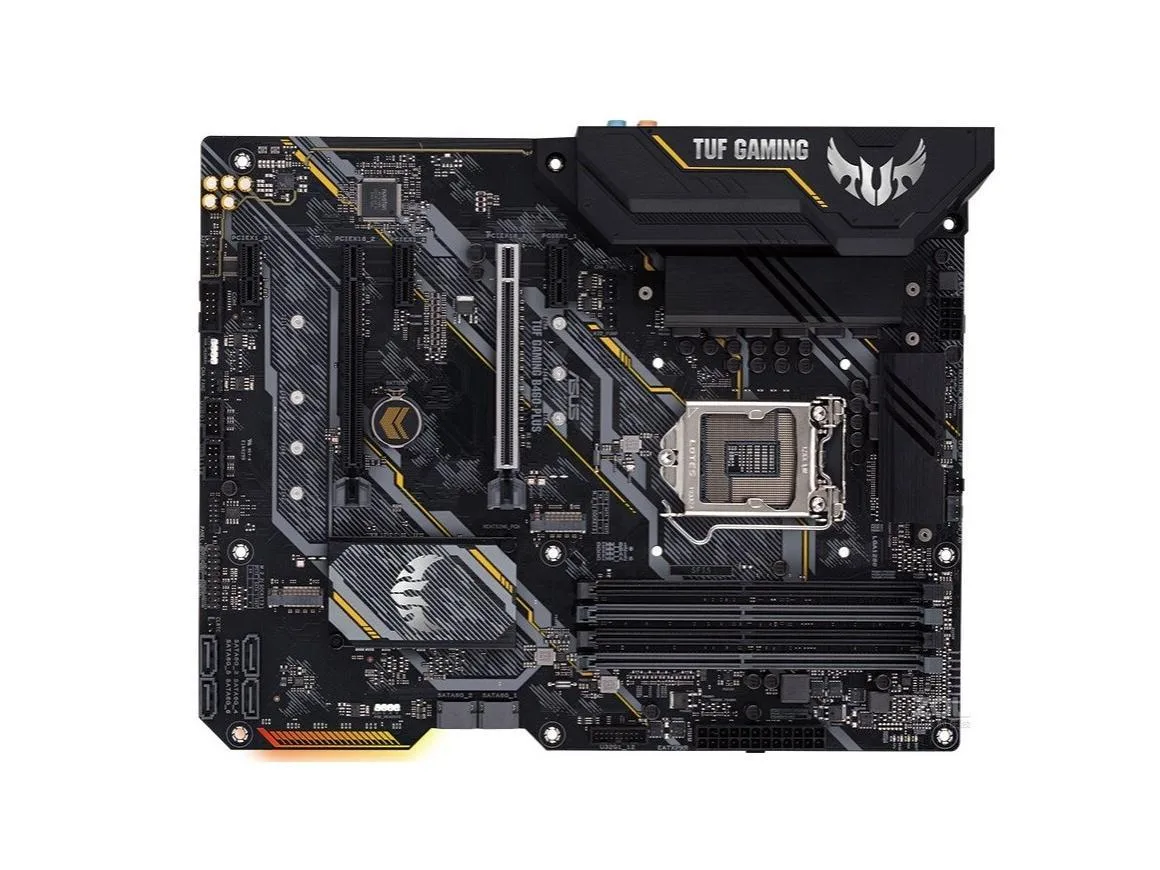

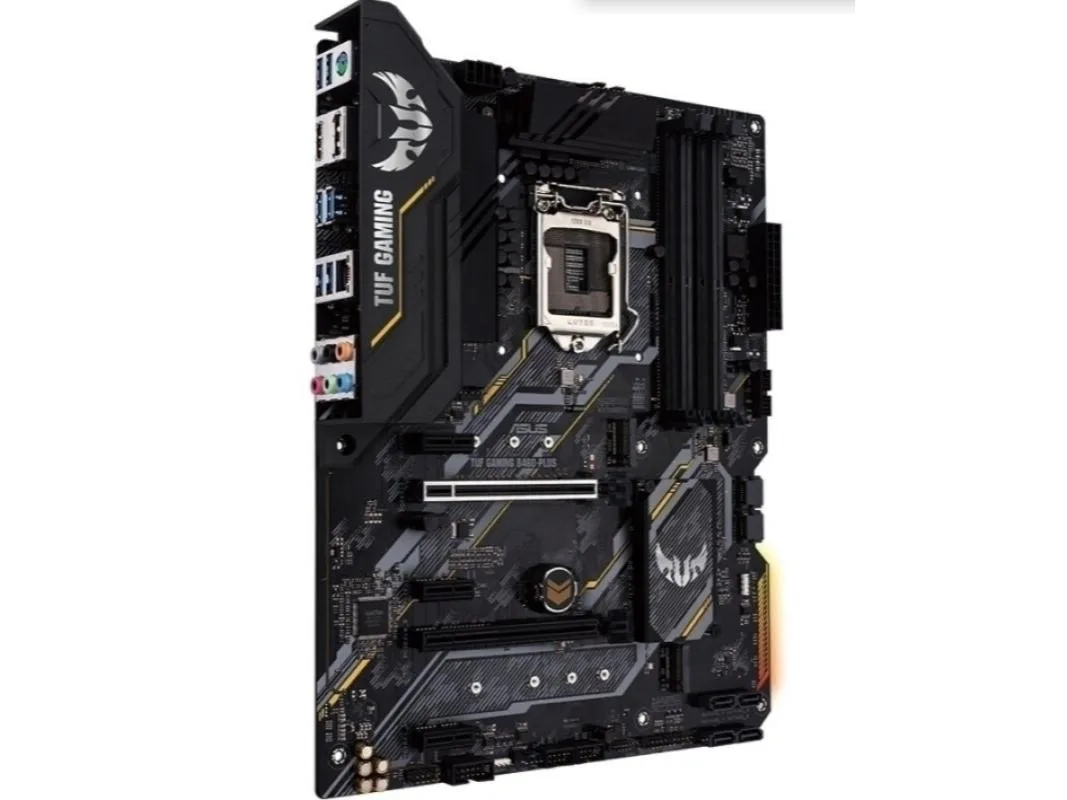

ASUS TUF GAMING B460-PLUS ATX motherboard, black and grey finish with metal-reinforced slots

ASUS

ASUS TUF GAMING B460-PLUS Intel motherboard

SKU CH-KKJR-4TYJ5

ATX board for 10th gen Intel Core, Pentium Gold and Celeron CPUs with DDR4 up to 2933MHz and 128GB capacity

  • CPU Socket TypeLGA 1200
  • CPU TypeIntel 1200 slot 10 1st generation Intel Core, Pentium Gold a
  • ChipsetIntel B460
  • Memory StandardSupport DDR4 2933/2800/2666/2400/2133MHz memory
  • Maximum Memory Supported128GB
  • PCI SlotsIntel 10th Agent 1 x PCIe 3.0 x16 (x16 mode) Intel B460 chip
  • Supports up to 128GB DDR4 memory for demanding workloads
  • Intel B460 chipset with LGA 1200 socket fits 10th generation CPUs
  • Realtek ALC S1200A 8-channel audio delivers high-fidelity sound
  • Intel I219-V 1Gb Ethernet provides reliable wired networking
  • Six rear USB 3.2 Gen 1 ports plus front headers expand connectivity

LGA 1200 DDR4 ATX board

The ASUS TUF GAMING B460-PLUS is an Intel motherboard built around the Intel B460 chipset and the LGA 1200 socket. It accepts 10th generation Intel Core, Pentium Gold and Celeron processors manufactured on a 14 nm process. Four DDR4 slots support up to 128 GB of memory running at speeds up to 2933 MHz. The ATX form factor measures 30.5 by 24.4 cm.

Suits 10th gen Intel builders needing 128 GB RAM

This board suits builders assembling a system with a 10th generation Intel processor who require four DDR4 slots for up to 128 GB of memory. It provides one full-length PCIe 3.0 x16 slot, a second x16 slot wired at x4, three x1 slots, six SATA III ports and two M.2 interfaces. Buyers who need a newer CPU socket, integrated Wi-Fi, or more than two M.2 connections should look elsewhere.

Maximum memory capacity is 128 GB

The single specification that decides fit is the 128 GB maximum memory limit across four DDR4 slots. If the planned build requires more than 128 GB of system memory, this motherboard cannot meet that requirement and a different platform must be chosen.

Highlights

  • Supports up to 128GB DDR4 memory for demanding workloads
  • Intel B460 chipset with LGA 1200 socket fits 10th generation CPUs
  • Realtek ALC S1200A 8-channel audio delivers high-fidelity sound
  • Intel I219-V 1Gb Ethernet provides reliable wired networking
  • Six rear USB 3.2 Gen 1 ports plus front headers expand connectivity

Specifications

BrandASUS
SeriesASUS TUF GAMING B460-PLUS
ModelASUS TUF GAMING B460-PLUS
CPU Socket TypeLGA 1200
CPU TypeIntel 1200 slot 10 1st generation Intel Core, Pentium Gold and Celeron processor *
Support Intel 14 nm CPU
ChipsetIntel B460
Memory StandardSupport DDR4 2933/2800/2666/2400/2133MHz memory
Maximum Memory Supported128GB
PCI SlotsIntel 10th Agent
1 x PCIe 3.0 x16 (x16 mode)
Intel B460 chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC S1200A 8-channel, high fax sound CODEC (Intel Core 10th generation processor, optional)
- Support: Jack-detection, plug detection, Multi-recording, front panel jack specified functions
Audio features:
Exclusive DTS customization for GAMING Headsets.
- Audio Shielding
- Dedicated audio PCB layers
- High-quality Japanese audio capacitors
LAN ChipsetIntel I219-V 1Gb Ethernet
Onboard USBBack USB ports (6 in total)
6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
Front USB ports (6 in total)
2 x USB 3.2 Gen 1 Axillary
4 x USB 2.0 input

Questions about this item

How can I confirm the board is working after installing a 10th generation Intel Core processor?

The system should post and show the BIOS screen. The Realtek ALC S1200A 8-channel audio codec becomes active with a supported 10th generation CPU. The Intel I219-V 1Gb Ethernet port will link when a cable is connected.

What ships with the motherboard and what must I source separately?

The box contains the motherboard, one SATA cable and the chassis I/O back panel. No original packaging is included. You must supply DDR4 memory, a CPU cooler, storage drives, power supply and a case.

Which DDR4 speed should I choose for the 128GB maximum capacity?

The board supports DDR4 at 2933, 2800, 2666, 2400 and 2133 MHz. Populate all four slots with matching modules to reach the 128GB limit. Pick the highest speed your CPU and memory controller can sustain.
