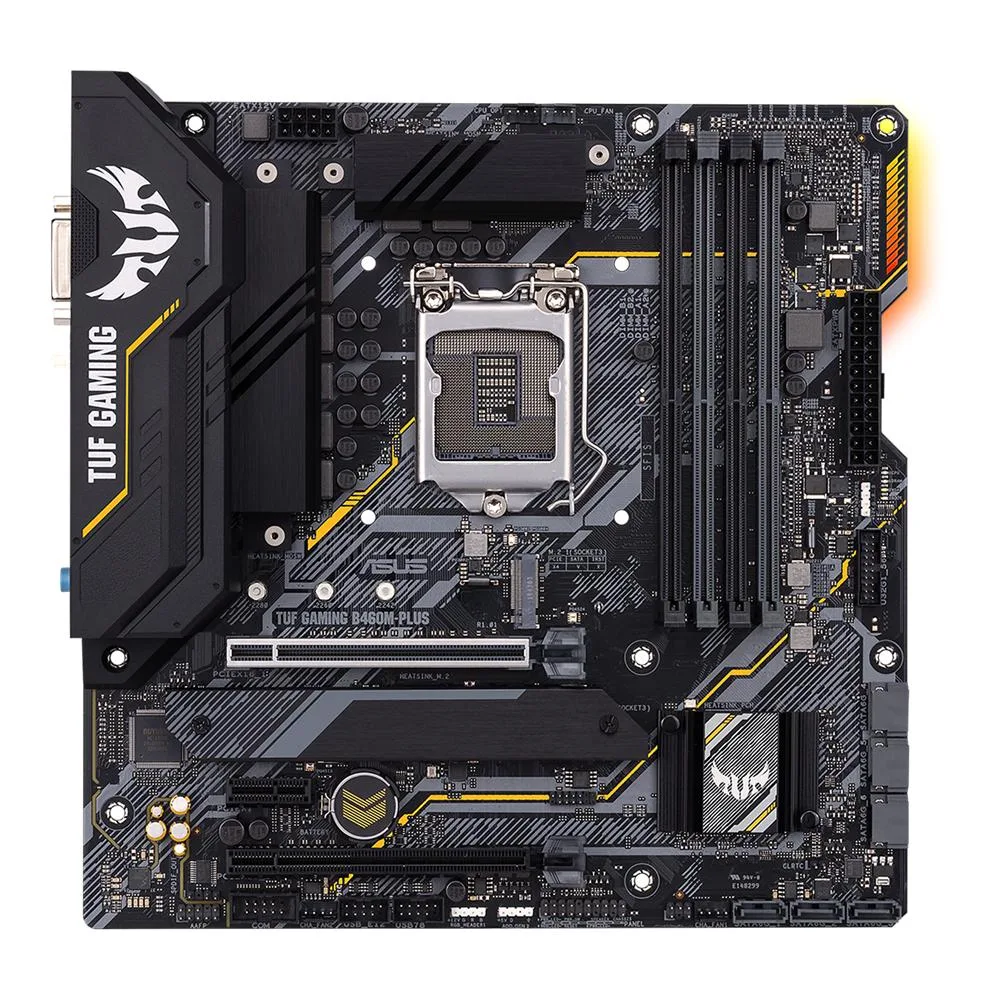

Micro ATX motherboard, dark PCB with yellow accents

ASUS

ASUS TUF GAMING B460M-PLUS Intel motherboard

SKU CH-161S-QSCGP

Micro-ATX board with LGA 1200 socket, Intel B460 chipset, DDR4 up to 2933 MHz and 128 GB capacity

  • CPU Socket TypeLGA 1200
  • CPU TypeIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold and
  • ChipsetIntel B460
  • Memory StandardSupport DDR4 2933/2800/2666/2400/2133MHz memory
  • Maximum Memory Supported128GB
  • PCI SlotsIntel 10th generation processor 1 x PCIe 3.0 x16 (x16 mode)
  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Up to 128GB DDR4 memory across four slots for heavy multitasking
  • Intel B460 chipset with PCIe 3.0 lanes for graphics and storage
  • Realtek ALC S1200A 7.1 surround audio with DTS Custom tuning
  • Intel I219-V 1Gb Ethernet plus twelve USB ports (six rear, six front)

Build foundation

The ASUS TUF GAMING B460M-PLUS is a Micro ATX motherboard built around the Intel B460 chipset and an LGA 1200 socket. It supports DDR4 memory up to 128GB across four slots and provides a compact 24.4cm square form factor for smaller chassis.

Fit check

This board suits builders assembling a 10th Gen Intel system who need up to 128GB of DDR4 and a single full-length PCIe 3.0 x16 slot. Buyers who want more than one x16 slot or require a different socket type should look elsewhere.

Deciding spec

The LGA 1200 socket paired with the B460 chipset defines which processors fit and which chipset features are available. Confirm that your chosen CPU matches this socket before purchasing.

Highlights

  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Up to 128GB DDR4 memory across four slots for heavy multitasking
  • Intel B460 chipset with PCIe 3.0 lanes for graphics and storage
  • Realtek ALC S1200A 7.1 surround audio with DTS Custom tuning
  • Intel I219-V 1Gb Ethernet plus twelve USB ports (six rear, six front)

Specifications

BrandASUS
SeriesASUS TUF GAMING B460M-PLUS
ModelASUS TUF GAMING B460M-PLUS
CPU Socket TypeLGA 1200
CPU TypeIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors *
Support Intel 14 nm CPU
ChipsetIntel B460
Memory StandardSupport DDR4 2933/2800/2666/2400/2133MHz memory
Maximum Memory Supported128GB
PCI SlotsIntel 10th generation processor
1 x PCIe 3.0 x16 (x16 mode)
Intel B460 Chipset
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC S1200A 7.1 Surround Sound High Fax Sound CODEC *
- Support: Jack-detection, Plug Detection, Multi-recording, Front Panel Jack Specification
Audio Features:
- Exclusive DTS Custom for GAMING Headsets.
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- High-quality Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
LAN ChipsetIntel I219-V 1Gb Ethernet
Onboard USBBack USB ports (6 in total)
4 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB ports (6 in total)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)

Questions about this item

Does the ASUS TUF GAMING B460M-PLUS come with all mounting hardware or must I buy a back-plate and screws separately?

The package contains the motherboard, one SATA cable and the rear I/O shield. No original box or extra mounting screws are included.

Should I choose the 128 GB DDR4 limit or a lower capacity for this B460 board?

The board supports up to 128 GB across four DDR4 slots at speeds up to 2933 MHz. Populate all four slots for maximum capacity or two slots for easier stability.

What does the single PCIe 3.0 x16 slot running at x16 mode mean for a graphics card installed in this Micro ATX board?

A discrete GPU receives a full x16 link from the 10th Gen Intel processor, while the second x16-size slot and the x1 slot run through the B460 chipset at x4 and x1 respectively.
