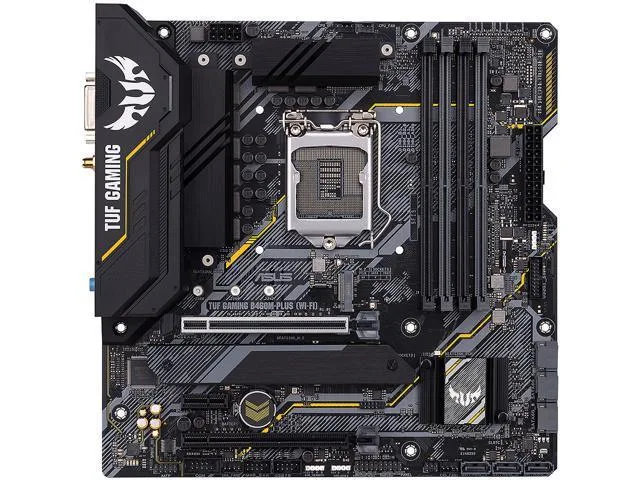

Micro-ATX motherboard with dark PCB and grey metal heatsinks

ASUS

ASUS TUF GAMING B460M-PLUS (WI-FI) Intel motherboard

SKU CH-T9ZN-V9SR6

Micro-ATX board for 10th and 11th Gen Core, four DDR4 slots up to 2933 MHz, two PCIe 3.0 x16, six SATA, two M.2, Intel I219-V LAN and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel B460
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots deliver up to 128 GB dual-channel memory at 2933 MHz
  • Two PCI Express 3.0 x16 slots plus two M.2 sockets for flexible GPU and storage expansion
  • Six SATA 6Gb/s ports with RAID 0/1/5/10 support for high-capacity arrays
  • Realtek ALC S1200A codec provides 7.1-channel high-definition audio and Intel I219-V LAN for wired networking

Intel B460 micro-ATX foundation

This board pairs the Intel B460 chipset with an LGA 1200 socket, accepting 10th and 11th generation Core i9, i7, i5 and i3 processors. It is built for compact systems that need full desktop performance without a full-size ATX chassis.

DDR4 2933 capacity and headroom

Four 288-pin slots support up to 128 GB of non-ECC DDR4 running at 2933, 2800, 2666, 2400 or 2133 MHz in dual-channel mode. Six SATA 6Gb/s ports and two M.2 sockets provide plenty of room for SSDs and hard drives, while RAID 0, 1, 5 and 10 add redundancy or speed options.

PCI Express 3.0 and wired networking limits

Two PCI Express 3.0 x16 slots and one x1 slot handle graphics cards and add-in boards at Gen 3 speeds. The onboard Intel I219-V controller delivers gigabit Ethernet, and Realtek ALC S1200A codec drives 7.1-channel audio for headsets or speaker arrays.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots deliver up to 128 GB dual-channel memory at 2933 MHz
  • Two PCI Express 3.0 x16 slots plus two M.2 sockets for flexible GPU and storage expansion
  • Six SATA 6Gb/s ports with RAID 0/1/5/10 support for high-capacity arrays
  • Realtek ALC S1200A codec provides 7.1-channel high-definition audio and Intel I219-V LAN for wired networking

Specifications

BrandASUS
ModelTUF GAMING B460M-PLUS (WI-FI)
CPU Socket TypeLGA 1200
CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel B460
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2933
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16
PCI Express x11 x PCI Express x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.22 x M.2
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC S1200A Surround Sound High Definition Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothYes
Onboard USB2 x USB 3.2 + 4 x USB 2.0
Other Connectors1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) (Chassis intrusion header is inbuilt)1 x Clear CMOS jumper(s)1 x COM port header
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin24 Pin
FeaturesMulti-GPU Support:Supports AMD 2-Way CrossFireX Technology Software Features:ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateAI ChargerASUS Turbo LANDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Special Features:ASUS TUF PROTECTION- ASUS DIGI+ VRM- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- Sa
Package ContentsAccessories:User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x Wi-Fi moving antenna1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s)

Questions about this item

Will my existing DDR4 2666 MHz modules run with the four 288-pin slots on this TUF GAMING B460M-PLUS (WI-FI) board?

Yes, the board supports DDR4 at 2933, 2800, 2666, 2400 and 2133 MHz, so your 2666 MHz modules will work in any of the four slots up to the 128 GB limit.

How can I confirm the Intel I219-V LAN and Realtek ALC S1200A audio are active after I build the system?

Open Device Manager in Windows; the Intel I219-V Ethernet controller and Realtek High Definition Audio device should appear without warning icons once the chipset drivers are installed.

Does the box include Wi-Fi antennas for the wireless model and do I need to buy SATA cables for the six 6 Gb/s ports?

The Wi-Fi version ships with external antennas; SATA data cables are not included, so purchase one cable per drive you plan to connect to the six SATA 6 Gb/s ports.
