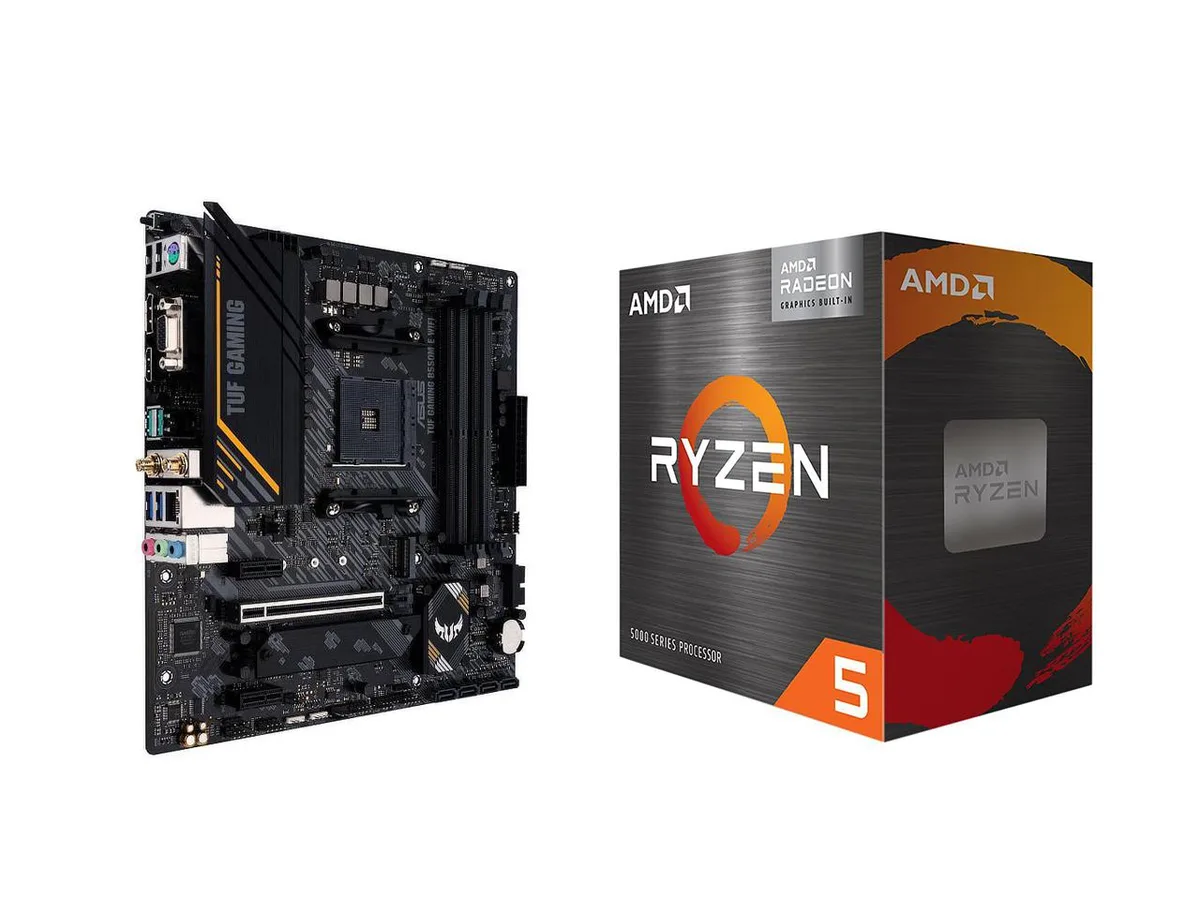

Micro ATX motherboard with black heatsinks and CPU with integrated graphics

ASUS

ASUS TUF GAMING B550M-E WIFI AMD motherboard with Ryzen 5 5600G

SKU CH-6MSG-PS3YC

Micro ATX B550 board with Ryzen 5 5600G, DDR4 up to 4866 MHz OC, 128 GB max, PCIe 4.0 x16 and SATA

  • CPU TypeRyzen 5000G Series
  • ChipsetAMD B550
  • Number of Memory Slots4x288pin (DDR4)
  • Memory Standard4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(O
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • 6-core Ryzen 5 5600G handles multitasking with 3.9 GHz base clock
  • Integrated Radeon graphics gives display output without a discrete card
  • 128 GB DDR4 capacity across four slots for memory-heavy workloads
  • PCIe 4.0 x16 slot unlocks full bandwidth for modern GPUs
  • Micro ATX form factor fits compact builds while keeping four SATA ports

TUF B550M-E with Ryzen 5 5600G

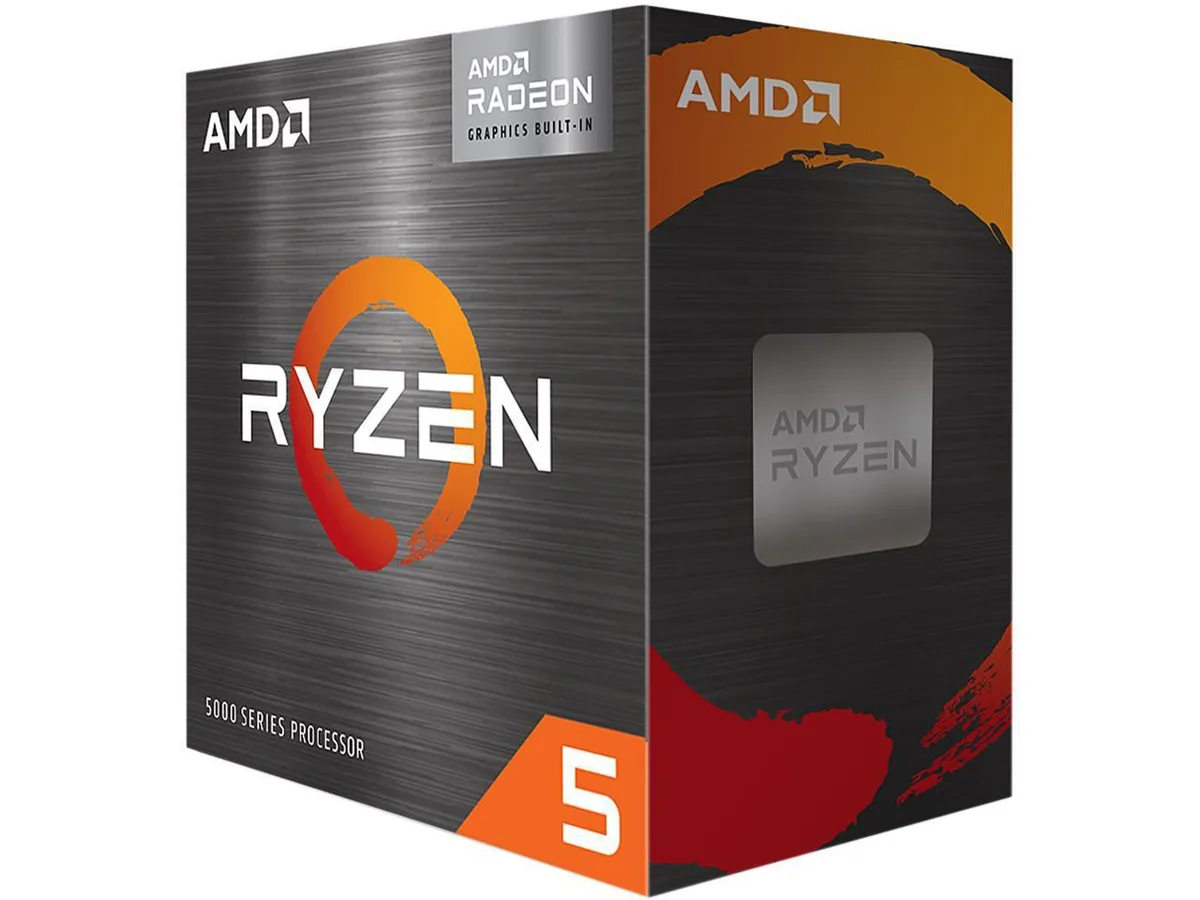

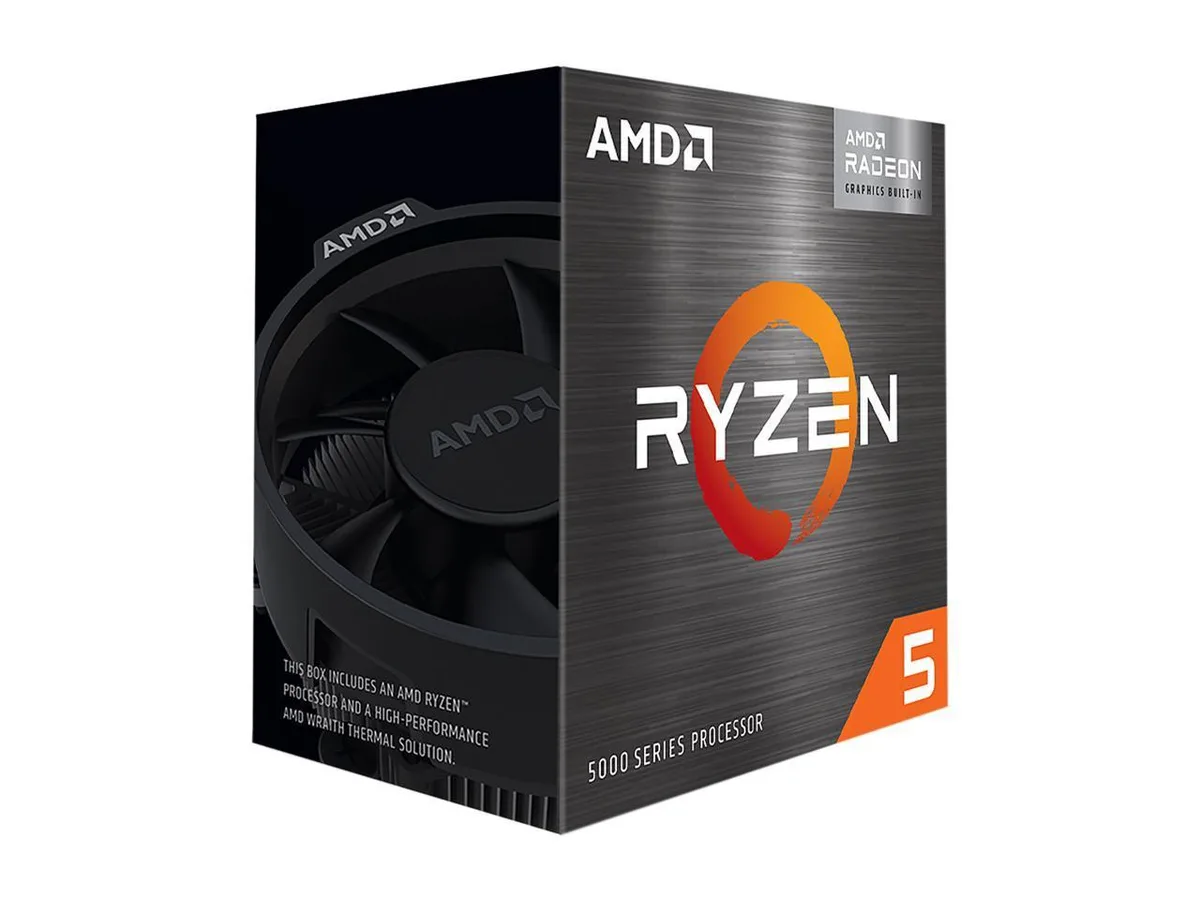

The ASUS TUF GAMING B550M-E WIFI motherboard comes paired with an AMD Ryzen 5 5600G processor. This Micro ATX combination targets builders who want integrated Radeon graphics and a compact AM4 platform. The board supports DDR4 memory up to 128 GB across four slots. The 65 W Cezanne chip delivers six Zen 3 cores at 3.9 GHz with 16 MB L3 cache.

Micro ATX AM4 socket installation

The Micro ATX form factor fits standard mounting holes in most chassis designed for the size. Align the AM4 processor triangle with the socket marker, lower the retention arm, and secure the supplied cooler. DDR4 modules click into the 288-pin slots when the notches match. Common issues include forgetting the CPU power cable, seating RAM incompletely, or bending socket pins during removal.

Sustained load on 65 W Cezanne silicon

Under continuous multi-threaded work the 65 W TDP keeps package temperatures manageable with a decent air cooler. The B550 chipset links PCIe 3.0 x1 slots and four SATA 6 Gb/s ports without adding significant heat. VRM phases on this TUF board handle the 5600G's draw steadily, so clock speeds hold at 3.9 GHz rather than throttling during long renders or compiles.

Highlights

  • 6-core Ryzen 5 5600G handles multitasking with 3.9 GHz base clock
  • Integrated Radeon graphics gives display output without a discrete card
  • 128 GB DDR4 capacity across four slots for memory-heavy workloads
  • PCIe 4.0 x16 slot unlocks full bandwidth for modern GPUs
  • Micro ATX form factor fits compact builds while keeping four SATA ports

Specifications

BrandASUS
ModelTUF GAMING B550M-E WIFI
CPU TypeRyzen 5000G Series
ChipsetAMD B550
Number of Memory Slots4x288pin (DDR4)
Memory Standard4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*
* ECC memory (ECC mode) support varies by CPU.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x16AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
PCI Express 3.0 x16AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
PCI Express x1AMD B550 Chipset
2 x PCIe 3.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
Form FactorMicro ATX

Questions about this item

How can I confirm the Ryzen 5 5600G is running at its 3.9 GHz base clock after assembly?

Enter the BIOS and verify the CPU frequency reads 3.9 GHz; the 6-core Cezanne processor should also report 16 MB L3 cache and 3 MB L2 cache at stock settings.

Which components are included in the combo and what must I add to complete the build?

The box contains the TUF GAMING B550M-E WIFI motherboard and the Ryzen 5 5600G processor; you will need DDR4 memory modules, a Micro ATX case, a power supply, storage drives and a CPU cooler.

Should I choose 3200 MHz or a higher overclocked speed like 4866 MHz for my DDR4 kit?

The board natively supports 3200 MHz; speeds up to 4866 MHz are overclocked profiles that require compatible modules and manual tuning in the BIOS.
